Which VW part numbers are on the door trim panels f 1 h p 999 000 front diagram for the Mk3 Golf?

This diagram lists 184 OEM part numbers for the Mk3 Golf. The first three are 1H0 868 391 A 0 1C, 1H0 867 133 A F 31 and 1H0 867 133 A B 41.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Door trim panels f 1 h p 999 000 front — Mk3 Golf Passenger Compartment (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Door trim panels

Generation: Mk3 1993 - 1996 (MEX) Group: Passenger compartment Parts: 184 Primary OEM: 1H0 868 391 A 0 1C, 1H0 867 133 A F 31, 1H0 867 133 A B 41

Door trim panels f 1 h p 999 000 front for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 867000 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 184 OEM part numbers including 1H0 868 391 A 0 1C, 1H0 867 133 A F 31 and 1H0 867 133 A B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 184 OEM part numbers across 184 numbered positions.

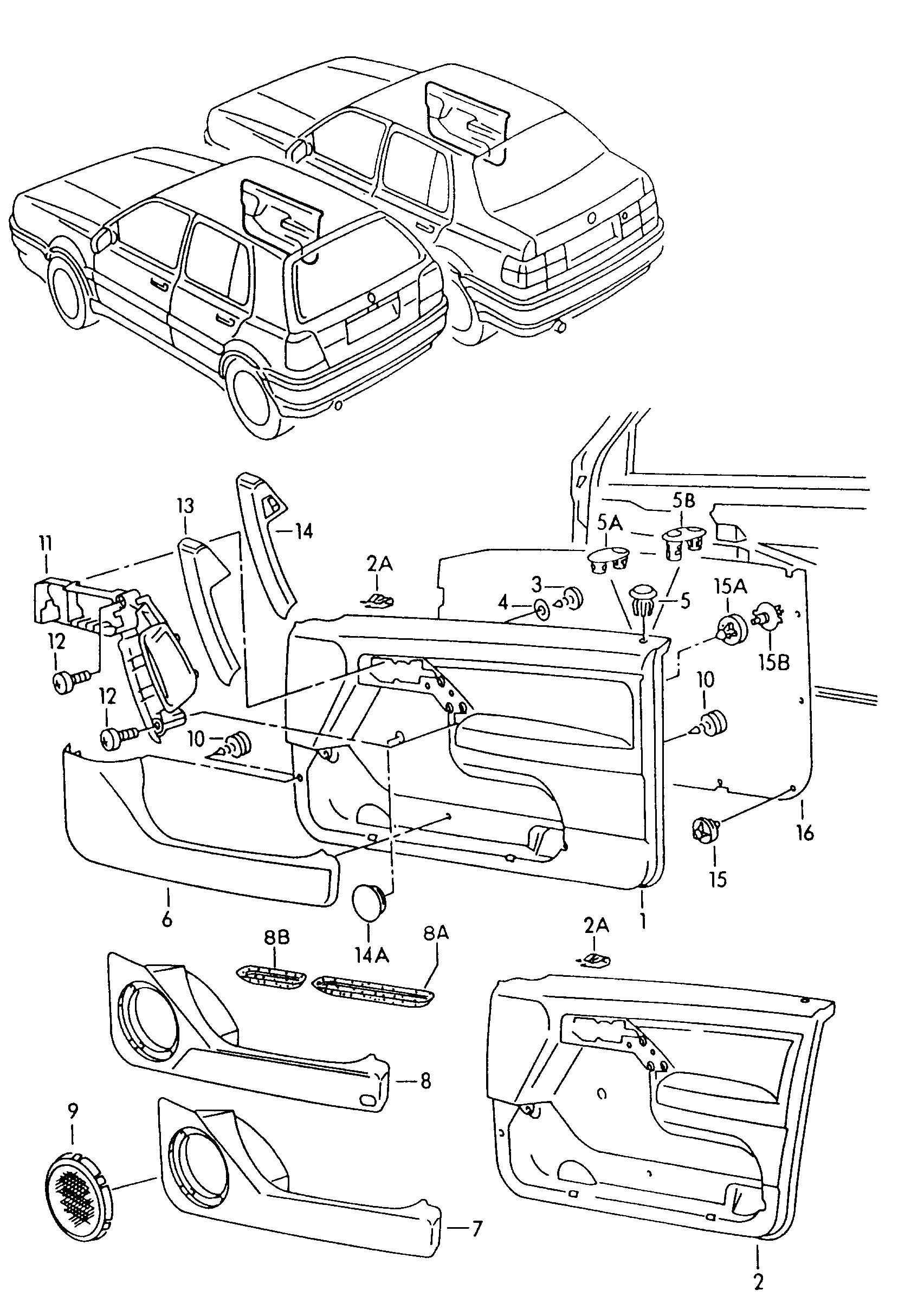

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 868 391 A 0 1C
	mauritius blue	1H0 867 133 A F 31
	Satin black	1H0 867 133 A B 41
	Black -RB,FY -RB,FY	1HM 867 011 AEB LU
	Satin black	1H0 867 164 B 41
	Black -RB,FY -RB,FY	1HM 867 011 AEB LU
	mauritius blue	1H0 867 198 E F 31
	beaver -VM -VM	1HM 867 011 P Q 05
	beaver	1H0 867 198 E T 21
	beaver -VM -VM	1HM 867 011 AMQ 05
	Satin black	1H0 867 198 E B 41
	Black -BP -BP	1HM 867 011 B B KH
	mauritius blue -BQ -BQ	1HM 867 011 B B KJ
	beaver -BZ -BZ	1HM 867 011 B B KK
	mauritius blue	1H0 867 197 E F 31
	Black -BP -BP	1HM 867 011 AJB KH
	mauritius blue -BQ -BQ	1HM 867 011 AJB KJ
	beaver -BZ -BZ	1HM 867 011 AJB KK
	beaver	1H0 867 197 E T 21
	Black -BP -BP	1HM 867 011 ABB KH
	mauritius blue -BQ -BQ	1HM 867 011 ABB KJ
	beaver -BZ -BZ	1HM 867 011 ABB KK
	Satin black	1H0 867 197 E B 41
	Black -BP GOLF GL -BP	1HM 867 011 ACB KH
	mauritius blue -BQ GOLF GL -BQ	1HM 867 011 ACB KJ
	mauritius blue -AM JETTA GL -AM	1HM 867 011 ACB WE
	beaver -AP JETTA GL -AP	1HM 867 011 ACB WG
	beaver	1H0 867 198 D T 21
	Black -AL -AL	1HM 867 011 ALB WD
	mauritius blue -AM "CDN" -AM	1HM 867 011 ALB WE
	beaver -AP -AP	1HM 867 011 ALB WG
	beaver	1H0 867 198 D T 21
	Black -AL -AL	1HM 867 011 AKB KH
	mauritius blue -AM -AM	1HM 867 011 AKB KJ
	Black -AL -AL	1HM 867 011 AKB WD
	mauritius blue -AM -AM	1HM 867 011 AKB WE
	beaver -AP -AP	1HM 867 011 AKB WG
	mauritius blue	1H0 867 198 D F 31
	Black -RB -RB	1HM 867 011 AAB LU
	Satin black	1H0 867 198 D B 41
	Black -RB -RB	1HM 867 011 AHB LU
	Satin black	1H0 867 198 D B 41
	Black -AL -AL	1HM 867 011 BCB WD
	mauritius blue -AM -AM	1HM 867 011 BCB WE
	beaver -AP -AP	1HM 867 011 BCB WG
	beaver -HQ -HQ	1HM 867 011 BCB KK
	Satin black	1H0 867 198 B 41
	beaver -AP -AP	1HM 867 011 EBQ 05
	beaver	1H0 867 197 D T 21
	Black -RB -RB	1HM 867 012 R B LU
	mauritius blue	1H0 867 197 D F 31
	Black -RB,FY -RB,FY	1HM 867 012 AEB LU
	Satin black	1H0 867 197 D B 41
	Black -RB,FY -RB,FY	1HM 867 012 AEB LU
	Black	1H0 867 180 F B 41
	beaver -VM -VM	1HM 867 012 P Q 05
	beaver	1H0 867 180 B T 21
	beaver -VM -VM	1HM 867 012 AMQ 05
	mauritius blue	1H0 867 180 B F 31
	Black -BP -BP	1HM 867 012 B B KH
	mauritius blue -BQ -BQ	1HM 867 012 B B KJ
	beaver -BZ -BZ	1HM 867 012 B B KK
	beaver	1H0 867 179 B T 21
	Black -BP -BP	1HM 867 012 AJB KH
	mauritius blue -BQ -BQ	1HM 867 012 AJB KJ
	beaver -BZ -BZ	1HM 867 012 AJB KK
	mauritius blue	1H0 867 179 B F 31
	Black -BP -BP	1HM 867 012 ABB KH
	mauritius blue -BQ -BQ	1HM 867 012 ABB KJ
	beaver -BZ -BZ	1HM 867 012 ABB KK
	Satin black	1H0 867 179 B B 41
	Black -BP GOLF GL -BP	1HM 867 012 ACB KH
	mauritius blue -BQ GOLF GL -BQ	1HM 867 012 ACB KJ
	beaver -BZ GOLF GL -BZ	1HM 867 012 ACB KK
	mauritius blue -AM JETTA GL -AM	1HM 867 012 ACB WE
	beaver -AP JETTA GL -AP	1HM 867 012 ACB WG
	Satin black	1HM 868 150 B B 41
	Black -AL -AL	1HM 867 012 E B WD
	mauritius blue -AM -AM	1HM 867 012 E B WE
	beaver -AP -AP	1HM 867 012 E B WG
	beaver	1H0 868 150 A T 21
	Black -AL -AL	1HM 867 012 ALB WD
	mauritius blue -AM "CDN" -AM	1HM 867 012 ALB WE
	beaver -AP -AP	1HM 867 012 ALB WG
	Satin black	1H0 868 150 A B 41
	Black -HF -HF	1HM 867 012 D B KH
	mauritius blue -HN -HN	1HM 867 012 D B KJ
	beaver -HQ -HQ	1HM 867 012 D B KK
	beaver	1H0 868 149 A T 21
	Black -AL -AL	1HM 867 012 AKB KH
	mauritius blue -AM -AM	1HM 867 012 AKB KJ
	beaver -HQ -HQ	1HM 867 012 AKB KK
	Black -AL -AL	1HM 867 012 AKB WD
	mauritius blue -AM -AM	1HM 867 012 AKB WE
	beaver -AP -AP	1HM 867 012 AKB WG
	Satin black	1H0 868 149 A B 41
	Black -RB -RB	1HM 867 012 AAB LU
	beaver	1H0 867 134 B T 21
	Black -RB -RB	1HM 867 012 AHB LU
	mauritius blue	1H0 867 134 B F 31
	Black -AL -AL	1HM 867 012 BCB WD
	mauritius blue -AM -AM	1HM 867 012 BCB WE
	beaver -AP -AP	1HM 867 012 BCB WG
	beaver -HQ -HQ	1HM 867 012 BCB KK
	Satin black	1H0 867 134 B B 41
	beaver -AP -AP	1HM 867 012 EBQ 05
	beaver	1H0 867 133 B T 21
	mauritius blue	1H0 867 133 B F 31
	Black -RB -RB	1HM 867 011 R B LU
	Satin black	N 905 984 014 FB
	beaver	1H0 867 164 T 21
	beaver	N 907 352 01S 11
	Satin black	1H0 867 133 B B 41
	beaver	1H0 867 134 A T 21
	Satin black	1HM 867 109 B 41
	mauritius blue	1H0 867 134 A F 31
	Satin black	1H0 867 109 0 1C
	Satin black	1H0 867 134 A B 41
-	Double-sided adhesive tape 19 MMX 25 M 19 MMX 25 M	AKL 434 019 25
-	fillister hd. bolt	N 905 984 01
-	fillister hd. bolt	N 907 352 01
(1)	Door panel trim (cloth)F >> 1 H-P-014 214* "CDN": GOLFCL	1HM 867 011 R
(1)	Door panel trim (cloth)F 1 H-P-006 273>>* GOLF GL	1HM 867 011 AJ
(1)	Door panel trim (cloth)F 1 H-P-014 215>>* GOLF CL,GTI,LIMITED EDIT	1HM 867 012 AE
(1)	Door panel trim (cloth) GOLF CL,GT,GTI	1HM 867 012 AE
(1)	Door panel trim (cloth)F >> 1 H-P-014 214* "CDN":GOLFCL	1HM 867 012 R
(1)	Door panel trim (cloth)F >> 1 H-P-006 272F >> 1 H-P-014 214 GOLF GL	1HM 867 011 AB
(1)	Door panel trim (cloth)F 1 H-P-014 215>>* GOLF CL,GTI,LIMITED EDIT	1HM 867 011 AE
(1)	Door panel trim (cloth)F 1 H-P-006 273>>*	1HM 867 011 AC
(1)	Door trim (leatherette)F >> 1 H-P-014 214* JETTA GLX	1HM 867 011 P
(1)	Door trim (leatherette)F 1 H-P-006 273>>F 1 H-P-014 215>> JETTA GLSCARAT	1HM 867 011 AM
(1)	Door panel trim (cloth) GOLF CL,GT,GTI	1HM 867 011 AE
(1)	Door panel trim (cloth)F >> 1 H-P-006 271* GOLF GL	1HM 867 011 B
(1)	Door panel trim (cloth)F 1 H-P-006 273>>* GOLF GL	1HM 867 012 AJ
(1)	Door panel trim (cloth)F >> 1 H-P-014 214* GOLF GL	1HM 867 012 B
(11)	Grab handle	1H0 867 179 B
(11)	Grab handle	1H0 867 180 F
(11)	Grab handle	1H0 867 180 B
(13)	Cover	1H0 867 197 D
(13)	Cover	1H0 867 198 D
(14)	Coverfor models with electricallyoperated windows	1H0 867 197 E
(14A)	Bungs	1H0 867 164
(15)	Clip	1HM 868 243 D
(15)	Clip	1HM 868 243 E
(16)	Protective filmsound absorber for door 1100 X 600 X 2 1100 X 600 X 2	3A0 867 201 H
(16)	sound abs. for door trim panelsound absorber for door	1H4 867 148 N
(16)	sound abs. for door trim panelsound absorber for door	1H3 867 147 M
(16)	Protective filmsound absorber for door	3A0 867 201 H
(16)	Protective filmsound absorber for door	3A0 867 201 H
(2)	Door panel trim (cloth)F >> 1 H-P-006 272F >> 1 H-P-014 214 GOLF GL	1HM 867 012 AB
(2)	door panelfor electric window regulators JETTA GLS	1HM 867 012 EB
(2)	Door panel trim (cloth)for electric window regulators JETTA GLS	1HM 867 012 BC
(2)	Door panel trim (cloth)F 1 H-P-014 215>>* GOLF CL	1HM 867 012 AH
(2)	Door panel trim (cloth)F >> 1 H-P-014 214* "CDN":GOLFCL	1HM 867 012 AA
(2)	Door panel trim (cloth)F 1 H-P-006 273>>* JETTA GLS	1HM 867 012 AK
(2)	Door panel trim (cloth)F >> 1 H-P-006 272* JETTA GLS	1HM 867 012 D
(2)	Door panel trim (cloth)F >> 1 H-S-012 882 JETTA GLS	1HM 867 012 AL
(2)	Door panel trim (cloth)F >> 1 H-P-014 214*	1HM 867 012 E
(2)	Door panel trim (cloth)F 1 H-P-006 273>>F 1 H-P-014 215>>	1HM 867 012 AC
(2)	Door trim (leatherette) JETTA GLSCARAT	1HM 867 012 AM
(2)	Door trim (leatherette)F >> 1 H-P-014 214* JETTA GLX	1HM 867 012 P
(2)	door panelfor electric window regulators JETTA GLS	1HM 867 011 EB
(2)	Door panel trim (cloth)for electric window regulators JETTA GLS	1HM 867 011 BC
(2)	Door panel trim (cloth)F 1 H-P-014 215>>* GOLF CL	1HM 867 011 AH
(2)	Door panel trim (cloth)F >> 1 H-P-014 214* "CDN":GOLFCL	1HM 867 011 AA
(2)	Door panel trim (cloth)F 1 H-P-006 273>>* 2 PUERTAS JETTA GLS 2 PUERTAS	1HM 867 011 AK
(2)	Door panel trim (cloth)	1HM 867 011 AL
(5)	guide for knob F 1 H-P-014 215>>F 1 H-P-006 273>>	1H0 867 109
(5)	guide for knob	1HM 867 109
(7)	Stowage boxfor models withloudspeaker grille	1H0 867 133 A
(8)	Stowage box Door warning lightfor models withloudspeaker grille JETTA GLS,VR 6	1H0 867 133 B
(9)	Loudspeaker trim	1H0 868 149 A
(9)	Loudspeaker trim	1HM 868 150 B
(9)	Loudspeaker trim	1H0 868 150 A
10	oval head panel screw (combi) 4,2 X 22 4,2 X 22	N 903 129 01
12	fillister hd. bolt M 6 X 20 M 6 X 20	N 014 142 3
13	Cover	1H0 867 198
14	Coverfor models with electricallyoperated windows	1H0 867 198 E
2A	Clip	1H0 868 244 C
3	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
4	Washer 4,3 X 12 X 1 4,3 X 12 X 1	N 011 664 20
5B	Rosette For vehicles with anti-theftalarm system F 1 H-P-014 215>>F 1 H-P-006 273>>	1H0 868 391 A
7	Stowage boxfor models withloudspeaker grille	1H0 867 134 A
8	Stowage box Door warning lightfor models withloudspeaker grille JETTA GLS,VR 6	1H0 867 134 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 22 Passenger compartment
Factory subgroup: 867000
