Which VW part numbers are on the moulded headlinersound insulation roof diagram for the Mk3 Golf?

This diagram lists 74 OEM part numbers for the Mk3 Golf. The first three are 1HM 867 501 B 8 KJ, 1HM 867 501 B 3 WF and 1HM 867 501 B 5 WF.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Moulded headlinersound insulation roof — Mk3 Golf Passenger Compartment (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Door trim panels

Generation: Mk3 1993 - 1996 (MEX) Group: Passenger compartment Parts: 74 Primary OEM: 1HM 867 501 B 8 KJ, 1HM 867 501 B 3 WF, 1HM 867 501 B 5 WF

Moulded headlinersound insulation roof for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 867055 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 74 OEM part numbers including 1HM 867 501 B 8 KJ, 1HM 867 501 B 3 WF and 1HM 867 501 B 5 WF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 74 OEM part numbers across 74 numbered positions.

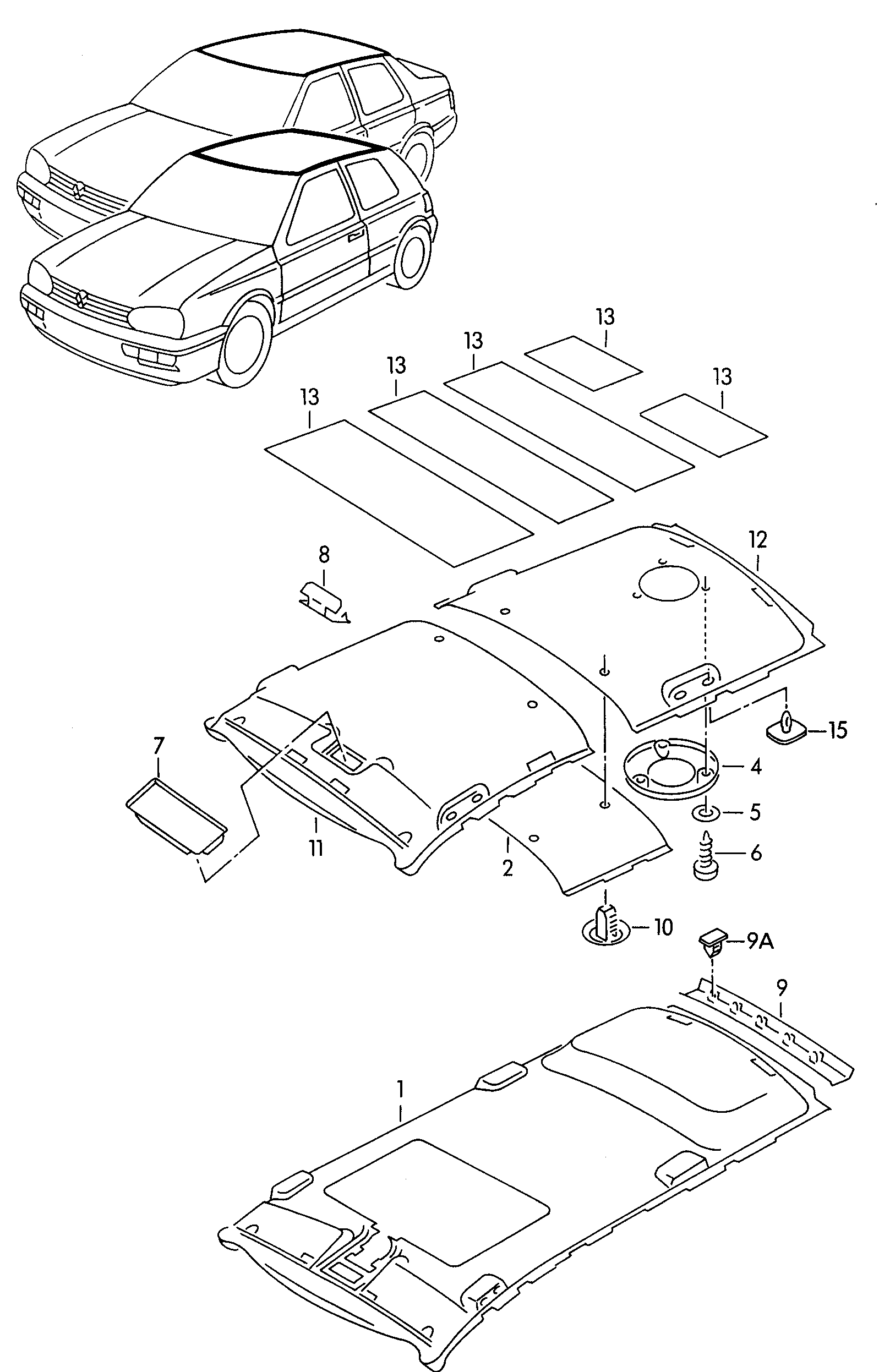

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	grey blue	1HM 867 501 B 8 KJ
	grey blue	1HM 867 501 B 3 WF
	beaver	1HM 867 501 B 5 WF
	pearl grey	1HM 867 501 B 9 AF
	grey blue	1HM 867 501 B 3 WF
	beaver	1HM 867 501 B 5 WF
	grey blue	1HM 867 501 B 7 AD
	grey blue	1HM 867 501 B 8 KJ
	pearl grey	1HM 867 501 B 9 AF
	pearl grey	1HM 867 501 L 9 AF
	grey blue	1HM 867 501 B 7 AD
	beaver	1HM 867 501 B 5 WF
	beaver	1HM 867 501 J P 59
	pearl grey	1HM 867 501 L 9 AF
	pearl grey	1HM 867 501 N 9 AF
	grey blue	1HM 867 501 H G 19
	beaver	1HM 867 501 H P 59
	pearl grey	1HM 867 501 M 9 AF
	grey blue	1HM 867 501 H G 19
	beaver	1HM 867 501 H P 59
	pearl grey	1HM 867 501 M 9 AF
	grey blue	1HM 867 501 G G 19
	beaver	1HM 867 501 G P 59
	pearl grey	1HM 867 501 P 9 AF
	grey blue	1HM 867 501 G G 19
	beaver	1HM 867 501 G P 59
	pearl grey	1HM 867 501 P 9 AF
	grey blue	1H5 867 617 H 50
	beaver	1H5 867 617 T 21
	grey blue	1H6 867 617 H 50
	beaver	1H6 867 617 T 21
	Satin black	321 867 838 0 1C
	beaver	1HM 867 501 5 WF
	grey blue	1HM 867 501 7 AD
	pearl grey	1HM 867 501 9 AF
	pearl grey	1HM 867 501 N 9 AF
	grey blue	1HM 867 501 F G 19
	beaver	1HM 867 501 F P 59
	Grey	1H5 867 501 U 19
	grey blue	1H5 867 501 A G 19
	beaver	1H5 867 501 A P 59
	beaver	1H5 867 501 W 29
	grey blue	1HM 867 501 B 7 AD
-	Distance pieceinterior light	1H0 867 596 A
(1)	Moulded headlinerfor vehicles with sliding roof Reading light F 1 H-S-062 322>>* "USA","CDN"+JETTA	1HM 867 501 P
(1)	Moulded headlinerfor vehicles with sliding roof F >> 1 H-R-999 000 F >> 1 H-S-012 882 GOLF"USA","CDN"+GOLF	1HM 867 501 J
(1)	Moulded headliner F 1 H-S-024 631>>* JETTA	1HM 867 501 N
(1)	Moulded headliner F >> 1 H-S-024 630* JETTA	1HM 867 501
(1)	Moulded headliner F >> 1 H-S-062 321* "USA","CDN"+GOLF	1HM 867 501 B
(1)	Moulded headlinerfor vehicles with sliding roof Reading light F 1 H-S-024 631>>* JETTA	1HM 867 501 P
(1)	Moulded headlinerfor vehicles with sliding roof F 1 H-S-062 322>>* "USA","CDN"+GOLF	1HM 867 501 M
(1)	Moulded headlinerfor vehicles with sliding roof F 1 H-P-006 273>> 1 H-S-024 630* GOLF	1HM 867 501 H
(1)	Moulded headliner F >> 1 H-S-024 630* GOLF	1HM 867 501 B
(1)	Moulded headlinerfor vehicles with sliding roof F 1 H-S-024 631>>* GOLF	1HM 867 501 M
(1)	Moulded headlinerfor vehicles with sliding roof Reading light F >> 1 H-S-062 321* "USA","CDN"+JETTA	1HM 867 501 G
(1)	Moulded headliner F 1 H-S-062 322>>F 1 H-S-024 631>> "USA","CDN"+GOLFGOLF	1HM 867 501 L
(1)	Moulded headliner F >> 1 H-R-999 000 F >> 1 H-S-012 882 GOLF"USA","CDN"+GOLF	1HM 867 501 B
(1)	Moulded headlinerfor vehicles with sliding roof JETTA"USA","CDN"	1HM 867 501 F
(1)	Moulded headliner "USA"+GOLF CITY	1HM 867 501 L
(1)	Moulded headlinerfor vehicles with sliding roof Reading light F 1 H-P-006 273>> 1 H-S-024 630* JETTA	1HM 867 501 G
(1)	Moulded headliner F >> 1 H-R-999 000 F >> 1 H-S-012 882 also use: 1 H 0 857 551 Q(E 47)1 H 0 857 552 Q(E 47) JETTA"USA","CDN"+JETTA 1 H 0 857 551 Q(E 47)1 H 0 857 552 Q(E 47)	1H5 867 501
(1)	Moulded headliner "USA"+JETTA CITY	1HM 867 501 N
(1)	Moulded headlinerfor vehicles with sliding roof F >> 1 H-S-012 882 F >> 1 H-R-999 000 "USA","CDN"+JETTAJETTA	1H5 867 501 A
(1)	Moulded headlinerfor vehicles with sliding roof F 1 H-P-014 215>> 1 H-S-062 321* "USA","CDN"+GOLF	1HM 867 501 H
(1)	Moulded headliner F >> 1 H-R-999 000 F >> 1 H-S-012 882 also use: 1 H 0 857 551 Q(T 37) JETTA"USA","CDN"+JETTA 1 H 0 857 551 Q(T 37)	1H5 867 501
(9)	End trim JETTA	1H5 867 617
10	Clipfor moulded headlining	321 867 838
13	sound insulation for roof	331 867 807
5	Washer A 4,3 X 9 X 0,8 A 4,3 X 9 X 0,8	N 011 522 7
6	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
7	Reinforcement	1HM 867 599
8	Reinforcement JETTA	1H0 867 600
9	End trim GOLF	1H6 867 617
9A	Clip	357 867 646

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 22 Passenger compartment
Factory subgroup: 867055
