Pillar trim — Mk3 Golf Passenger Compartment (1995)

Factory title: Volkswagen Golf (1995) - Door trim panels

Generation: Mk3 1995 (RDW) Group: Passenger compartment Parts: 156 Primary OEM: 1H4 867 243 B C 82, 1H0 868 310 B 41, 1H4 867 297 B T 21

Pillar trim for the Volkswagen Golf Mk3 (1995): factory exploded diagram 867065 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 154 OEM part numbers across 156 catalogued positions including 1H4 867 243 B C 82, 1H0 868 310 B 41 and 1H4 867 297 B T 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 154 OEM part numbers across 156 numbered positions.

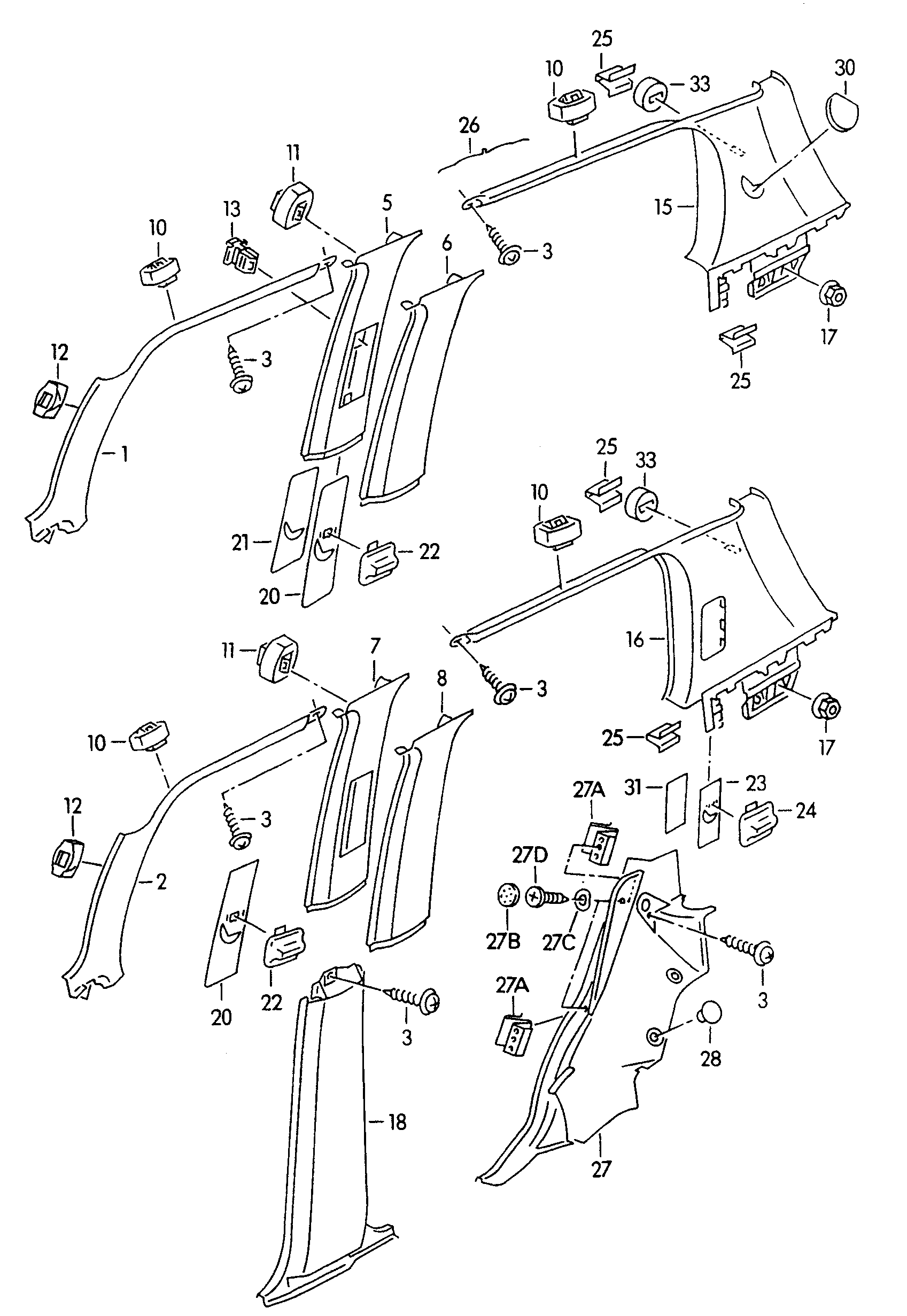

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 243 B C 82
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 310 B 41
	beaver	1H4 867 297 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 297 B C 82
	mauritius blue	1H4 867 297 B F 31
	Satin black	1H4 867 298 B B 41
	beaver	1H4 867 298 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 298 B C 82
	mauritius blue	1H4 867 298 B F 31
	grey blue	1H0 868 311 H 50
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 311 B 41
	beaver	1H0 868 311 T 21
	grey blue	1H0 868 311 A H 50
	beaver	1H0 868 311 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 311 A B 41
	beaver	1H0 868 312 T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 312 B 41
	grey blue	1H0 868 312 H 50
	grey blue	1H0 868 312 A H 50
	beaver	1H0 868 312 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 312 A B 41
	grey blue	1H0 868 315 A H 50
	beaver	1H0 868 315 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 315 A B 41
	grey blue	1H0 868 316 A H 50
	beaver	1H0 868 316 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 316 A B 41
	grey blue	1H0 868 309 H 50
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 309 B 41
	beaver	1H0 868 309 T 21
	grey blue	1H0 868 309 A H 50
	beaver	1H0 868 309 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 309 A B 41
	grey blue	1H0 868 310 H 50
	beaver	1H0 868 310 T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 325 A B 41
	grey blue	1H0 868 326 A H 50
	beaver	1H0 868 326 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 326 A B 41
	Satin black	1H4 867 765 B 41
	mauritius blue	1H4 867 765 F 31
	beaver	1H4 867 765 T 21
	Satin black	1H4 867 766 B 41
	mauritius blue	1H4 867 766 F 31
	beaver	1H4 867 766 T 21
	Black	357 867 169 4 FB
	mauritius blue	N 905 740 01F 31
	beaver	N 905 740 01T 21
	Satin black	N 905 740 010 1C
	Satin black	N 908 315 010 1C
	beaver	1H3 867 827 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 827 C 82
	grey blue	1H3 867 828 H 50
	beaver	1H3 867 828 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 828 C 82
	grey blue	1H4 867 827 H 50
	beaver	1H4 867 827 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 827 C 82
	grey blue	1H0 868 310 A H 50
	beaver	1H0 868 310 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 310 A B 41
	grey blue	1H0 868 325 A H 50
	beaver	1H0 868 325 A T 21
	grey blue	1H3 867 827 H 50
	grey blue	1H3 867 233 H 50
	beaver	1H3 867 233 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 233 C 82
	grey blue	1H3 867 234 H 50
	beaver	1H3 867 234 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 234 C 82
	grey blue	1H4 867 233 H 50
	beaver	1H4 867 233 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 233 C 82
	grey blue	1H4 867 234 H 50
	beaver	1H4 867 234 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 234 C 82
	grey blue	1H3 867 243 A H 50
	beaver	1H3 867 243 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 243 A C 82
	grey blue	1H3 867 244 A H 50
	beaver	1H3 867 244 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 244 A C 82
	grey blue	1H4 867 243 B H 50
	beaver	1H4 867 243 B T 21
	grey blue	1H4 867 244 B H 50
	beaver	1H4 867 244 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 244 B C 82
	grey blue	1H6 867 287 H 50
	beaver	1H6 867 287 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 287 C 82
	grey blue	1H6 867 288 H 50
	beaver	1H6 867 288 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 288 C 82
	grey blue	1H6 867 287 A H 50
	beaver	1H6 867 287 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 287 A C 82
	grey blue	1H6 867 288 A H 50
	beaver	1H6 867 288 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 288 A C 82
	Satin black	1H4 867 297 B B 41
(1)	A-pillar trim	1H3 867 233
(10)	Clip	1H0 867 260 C
(10)	Clipc-pillar	1H0 867 260 B
(15)	C-pillar trim	1H6 867 287
(16)	C-pillar trim	1H6 867 287 A
(17)	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
(18)	B-pillar trim	1H4 867 297 B
(18)	B-pillar trim	1H4 867 297 B
(2)	A-pillar trim	1H4 867 233
(20)	cover strips For vehicles with height-adjustable safety seatbelts	1H0 868 311
(20)	cover strips For vehicles with height-adjustable safety seatbelts	1H0 868 311
(20)	slide valve For vehicles with height-adjustable safety seatbelts	1H0 868 311 A
(20)	slide valve For vehicles with height-adjustable safety seatbelts	1H0 868 312 A
(22)	Setting knobb-pillar	1H0 868 315 A
(23)	Cover	1H0 868 309
(23)	Cover	1H0 868 309
(23)	slide valve	1H0 868 310 A
(23)	slide valve	1H0 868 309 A
(24)	Setting knobc-pillar	1H0 868 325 A
(27)	Wheel housing trim	1H4 867 765
(27)	Wheel housing trim	1H4 867 765
(28)	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 01
(30)	Cover cap	1H3 867 827
(5)	B-pillar trim For vehicles with height-adjustable safety seatbelts	1H3 867 243 A
(7)	B-pillar trim For vehicles with height-adjustable safety seatbelts	1H4 867 243 B
(7)	B-pillar trim For vehicles with height-adjustable safety seatbelts	1H4 867 244 B
1	A-pillar trim	1H3 867 234
11	Clip	1H0 867 260 A
12	Clipa-pillar	1H0 867 260 B
13	Clip	1H0 867 260 A
15	C-pillar trim	1H6 867 288
16	C-pillar trim	1H6 867 288 A
17	Hexagon collar nut 5 5	171 201 969
18	B-pillar trim	1H4 867 298 B
18	B-pillar trim	1H4 867 298 B
2	A-pillar trim	1H4 867 234
20	cover strips For vehicles with height-adjustable safety seatbelts	1H0 868 312
20	cover strips For vehicles with height-adjustable safety seatbelts	1H0 868 312
22	Setting knobb-pillar	1H0 868 316 A
23	Cover	1H0 868 310
24	Setting knobc-pillar	1H0 868 326 A
25	retaining spring	323 867 389 A
26	retaining spring	1H0 868 317
27	Wheel housing trim	1H4 867 766
27	Wheel housing trim	1H4 867 766
27B	Cover cap	357 867 169
27C	Spring washer A 4 X 8 X 0,5 A 4 X 8 X 0,5	N 012 221 3
27D	panel screw B 4,2 X 25 B 4,2 X 25	N 901 575 01
28	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
3	panel screw 4 X 15 4 X 15	N 904 468 01
30	Cover cap	1H3 867 828
31	Cover	1H4 867 827
33	Sealing element	1H0 868 295
5	B-pillar trim For vehicles with height-adjustable safety seatbelts	1H3 867 244 A
6	No longer available	—
8	No longer available	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Factory group: 22 Passenger compartment
Factory subgroup: 867065
