Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code 1Y.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Door trim panels grab handle stowage box protective film — Mk3 Golf Passenger Compartment (1997)

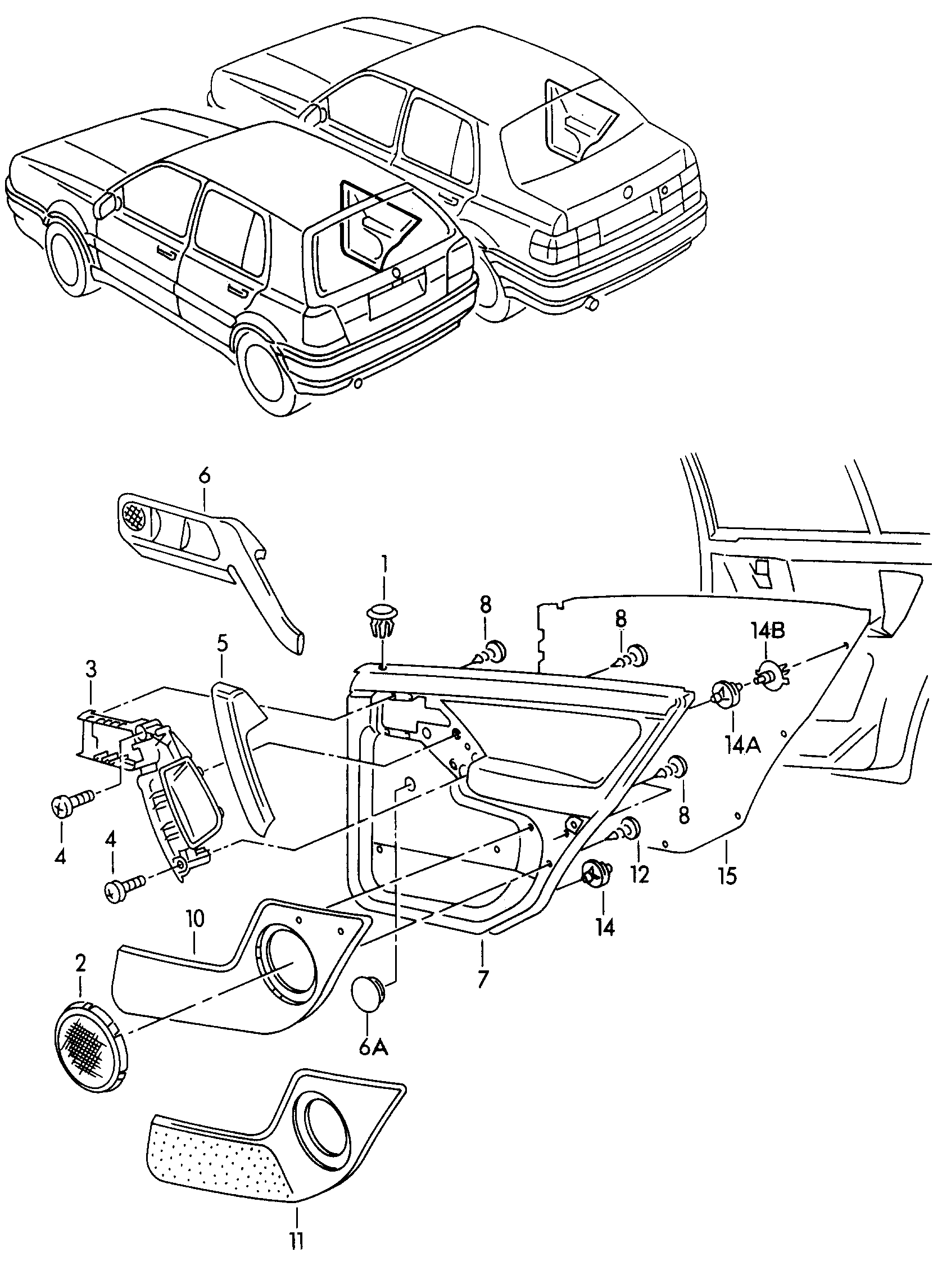

Factory title: Volkswagen Golf (1997 - 1998) - Door panel

Generation: Mk3 1997 (RDW) Group: Passenger compartment Parts: 138 Primary OEM: 1H4 867 212 CNF AL, 1H0 867 109 0 1C, 1H4 867 212 CPF LG

Door trim panels grab handle stowage box protective film for the Volkswagen Golf Mk3 (1997): factory exploded diagram 867040 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 138 OEM part numbers including 1H4 867 212 CNF AL, 1H0 867 109 0 1C and 1H4 867 212 CPF LG. Parts on this plate carry the engine code 1Y. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 138 OEM part numbers across 138 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	black/green -78 -78	1H4 867 212 CNF AL
	Satin black	1H0 867 109 0 1C
	pebble grey -39,72 BON-JOVI,"A.."PR:E 1 Y:RABBIT,PR:E 2 P:RABBIT,JOKER -39,72 1Y	1H4 867 212 CPF LG
	black/blue -60 -60	1H4 867 211 CME LZ
	black/green -80 -80	1H4 867 211 CME NC
	black/red -90 -90	1H4 867 211 CME NB
	Black -32 MOVIE -32	1H4 867 211 CME PQ
	black/yellow -70 -70	1H4 867 211 CMD YW
	black/blue -60 -60	1H4 867 212 CPE LZ
	black/red -90 -90	1H4 867 212 CPE NB
	Black -32 MOVIE -32	1H4 867 212 CPE PQ
	black/yellow -70 -70	1H4 867 212 CPD YW
	black/green -80 -80	1H4 867 212 CPE NC
	Black -DM CL,GL -DM	1H4 867 211 CRB KU
	beaver -DQ GL -DQ	1H4 867 211 CRB LA
	Black -XH RECARO,GTI,16 V,VR 6 -XH	1H4 867 211 CRB LU
	mauritius blue -DH GL -DH	1H4 867 211 CRE QE
	Black -DM CL,GL -DM	1H4 867 212 CQB KU
	beaver -DQ GL -DQ	1H4 867 212 CQB LA
	Black -XH RECARO,GTI,16 V,VR 6 -XH	1H4 867 212 CQB LU
	mauritius blue -DH GL -DH	1H4 867 212 CQE QE
	Black -RB,BA,BB,QB -RB,BA,BB,QB	1H4 867 211 CSA 35
	Black -RB,BA,BB,QB -RB,BA,BB,QB	1H4 867 212 CRA 35
	Black -VL,99-85-86 PR:E 2 U:GTI,GTI 16 V,TDI,"I.."PR:E 4 T:GTI 16 V -VL,99-85-86	1H4 867 211 CKC NN
	beaver -VM -VM	1H4 867 211 CKC NX
	Black -VL,99-85-86 PR:E 2 U:GTI,GTI 16 V,TDI,"I.."PR:E 4 T:GTI 16 V -VL,99-85-86	1H4 867 212 CJC NN
	beaver -VM -VM	1H4 867 212 CJC NX
	black/yellow -75 -75	1H4 867 211 CQE AH
	black/red -76 -76	1H4 867 211 CQE AS
	black/blue -77 -77	1H4 867 211 CQF AB
	black/green -78 -78	1H4 867 211 CQF AL
	Black -79 -79	1H4 867 211 CQC NN
	black/yellow -75 -75	1H4 867 212 CNE AH
	black/red -76 -76	1H4 867 212 CNE AS
	black/blue -77 -77	1H4 867 212 CNF AB
	Black -79 -79	1H4 867 212 CNC NN
	bramble	1H4 867 211 CLD MS
	bramble -89 -89	1H4 867 212 CKD MS
	Satin black	1H4 867 231 B 41
	beaver	1H4 867 231 T 21
	flint	1H4 867 231 Y 01
	Satin black	1H4 867 232 B 41
	beaver	1H4 867 232 T 21
	flint	1H4 867 232 Y 01
	Satin black	1H4 867 231 A B 41
	beaver	1H4 867 231 A T 21
	soft black HIGHLINE	1H4 867 231 A D NN
	Satin black	1H4 867 232 A B 41
	beaver	1H4 867 232 A T 21
	soft black HIGHLINE	1H4 867 232 A D NN
	Satin black	1H0 867 109 B 41
	Satin black	1H4 868 149 A B 41
	beaver	1H4 868 149 A T 21
	flint	1H4 868 149 A Y 01
	Satin black	1H4 868 647 B 41
	beaver	1H4 868 647 T 21
	flint	1H4 868 647 Y 01
	Satin black	1H4 867 179 D B 41
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 179 D C 82
	mauritius blue	1H4 867 179 D F 31
	beaver	1H4 867 179 D T 21
	flint	1H4 867 179 D Y 01
	Satin black	1H4 867 180 D B 41
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 180 D C 82
	beaver	1H4 867 180 D T 21
	flint	1H4 867 180 D Y 01
	Satin black	1H4 867 071 D B 41
	beaver	1H4 867 071 D T 21
	flint	1H4 867 071 D Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 071 D C 82
	Satin black	1H4 867 072 D B 41
	beaver	1H4 867 072 D T 21
	flint	1H4 867 072 D Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 072 D C 82
	Satin black	1H4 867 071 E B 41
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 071 E C 82
	beaver	1H4 867 071 E T 21
	flint	1H4 867 071 E Y 01
	Satin black	1H4 867 072 E B 41
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 072 E C 82
	beaver	1H4 867 072 E T 21
	flint	1H4 867 072 E Y 01
	Satin black	1H0 867 164 B 41
	Black -RB,17 CL,"A..":RABBIT -RB,17	1H4 867 211 CMB FY
	beaver -RC CL -RC	1H4 867 211 CMB JW
	Black -AN,AY,JE,UB, 15,34,47,24, 29,35,31,71-25-37 CL,GL,GT,VR 6 GTD:sportsversion AVENUE,MATCH"A..":RABBITAREZZO,BON JOVI,PR:E 2 U:GTI,GTI 16 V,TDI,"E.."PR:E 2 J:JUNIOR,"E.."PR:E 2 H:PLUS,PR:E 2 P:RABBIT,JOKER"I.."PR:E 4 T:GTI 16 V,"BR."PR:E 1 F:CL-PLUS -AN,AY,JE,UB, 15,34,47,24, 29,35,31,71-25-37	1H4 867 211 CMB LM
	pebble grey -39,72 BON-JOVI,"A.."PR:E 1 Y:RABBIT,PR:E 2 P:RABBIT,JOKER -39,72 1Y	1H4 867 211 CMF LG
	Black -RB,17 CL,"A..":RABBIT -RB,17	1H4 867 212 CPB FY
	beaver -RC CL -RC	1H4 867 212 CPB JW
	Black -AN,AY,JE,UB, 15,34,47,24, 29,35,31,71-25-37 CL,GL,GT,VR 6 GTD:sportsversion AVENUE,MATCH"A..":RABBITAREZZO,BON JOVI,PR:E 2 U:GTI,GTI 16 V,TDI,"E.."PR:E 2 J:JUNIOR,"E.."PR:E 2 H:PLUS,PR:E 2 P:RABBIT,JOKER"I.."PR:E 4 T:GTI 16 V"BR."PR:E 1 F:CL-PLUS -AN,AY,JE,UB, 15,34,47,24, 29,35,31,71-25-37	1H4 867 212 CPB LM
-	impact padding also use: AKL 450 005 05 AKL 450 005 05	1H4 868 469 A
-	Mask film	3A0 035 217
-	Double U-clip 12,5 X 10 X 1,5/2 12,5 X 10 X 1,5/2	N 903 235 01
-	impact padding also use: AKL 450 005 05 AKL 450 005 05	1H4 868 469
-	impact padding also use: AKL 450 005 05 AKL 450 005 05	1H4 868 470 A
-	Antislip mat See photo modify in workshop 600 X 300 X 4,5 MM 600 X 300 X 4,5 MM	000 867 098
-	impact padding also use: AKL 450 005 05 AKL 450 005 05	1H4 868 470
(10)	Stowage boxfor models withloudspeaker grille	1H4 867 231
(11)	Stowage boxfor models withloudspeaker grillefor vehicles with Impact protection	1H4 867 231 A
(15)	Protective film Dampingmodify in workshop use if required: use if required: 1100 X 600 X 2 D 469 101 A 33 A 0 035 217 1100 X 600 X 2 D 469 101 A 33 A 0 035 217	3A0 867 201 H
(15)	sound abs. for door trim panel also use: D 469 101 A 3 D 469 101 A 3	1H4 867 201 K
(2)	Cover	1H4 868 647
(2)	Loudspeaker trim	1H4 868 149 A
(3)	Grab handlefor vehicles with one piececover	1H4 867 179 D
(3)	Grab handlefor vehicles with one piececover	1H4 867 180 D
(6)	Cover	1H4 867 071 D
(6)	Cover	1H4 867 072 D
(6)	Coverfor models with electricallyoperated windows	1H4 867 071 E
(6)	Coverfor models with electricallyoperated windows	1H4 867 072 E
(6)	Cover	1H4 867 072 D
(6)	Cover	1H4 867 071 D
(7)	Door trim(leather/leatherette) HIGHLINE	1H4 867 211 CL
(7)	Door trim (leatherette) authoritypost,policegerman army	1H4 867 211 CS
(7)	Door trim (leatherette) authoritypost,policegerman army	1H4 867 212 CR
(7)	Door panel trim (cloth)	1H4 867 212 CP
(7)	Door trim(leather/leatherette)	1H4 867 211 CK
(7)	Door trim(leather/leatherette)	1H4 867 212 CJ
(7)	Door panel trim (cloth) GTI-EDITION	1H4 867 211 CM
(7)	Door trim(leather/leatherette) COLOUR-CONCEPT	1H4 867 211 CQ
(7)	Door panel trim (cloth) GTI-EDITION	1H4 867 211 CM
(7)	Door panel trim (cloth) GTI-EDITION	1H4 867 212 CP
(7)	Door panel trim (cloth) GTI-EDITION	1H4 867 212 CP
(7)	Door trim(leather/leatherette) COLOUR-CONCEPT	1H4 867 212 CN
(7)	Door panel trim (cloth)	1H4 867 211 CR
(7)	Door panel trim (cloth)	1H4 867 212 CQ
(7)	Door trim(leather/leatherette) HIGHLINE	1H4 867 212 CK
1	guide for knob	1H0 867 109
1	guide for knob	1H0 867 109
10	Stowage boxfor models withloudspeaker grille	1H4 867 232
11	Stowage boxfor models withloudspeaker grillefor vehicles with Impact protection	1H4 867 232 A
14	Clip	1H0 868 243 B
14A	Clip	1H0 868 244 B
14B	Clip	1H0 868 246 B
15	sound abs. for door trim panel also use: D 469 101 A 3 D 469 101 A 3	1H4 867 202 K
4	fillister hd. bolt M 6 X 20 M 6 X 20	N 014 142 3
6A	Bungs MOVIE	1H0 867 164
7	Door panel trim (cloth)	1H4 867 211 CM
8	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y
Variant tags: diesel
Factory group: 22 Passenger compartment
Factory subgroup: 867040
