Door trim panels — Mk3 Golf Passenger Compartment (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Door trim panels

Generation: Mk3 1994 - 1997 (RDW) Group: Passenger compartment Parts: 276 Primary OEM: 1H0 867 198 E Y 01, 1E0 867 011 C QS, 1E0 867 011 C QT

Door trim panels for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 867000 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 276 OEM part numbers including 1H0 867 198 E Y 01, 1E0 867 011 C QS and 1E0 867 011 C QT. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 276 OEM part numbers across 276 numbered positions.

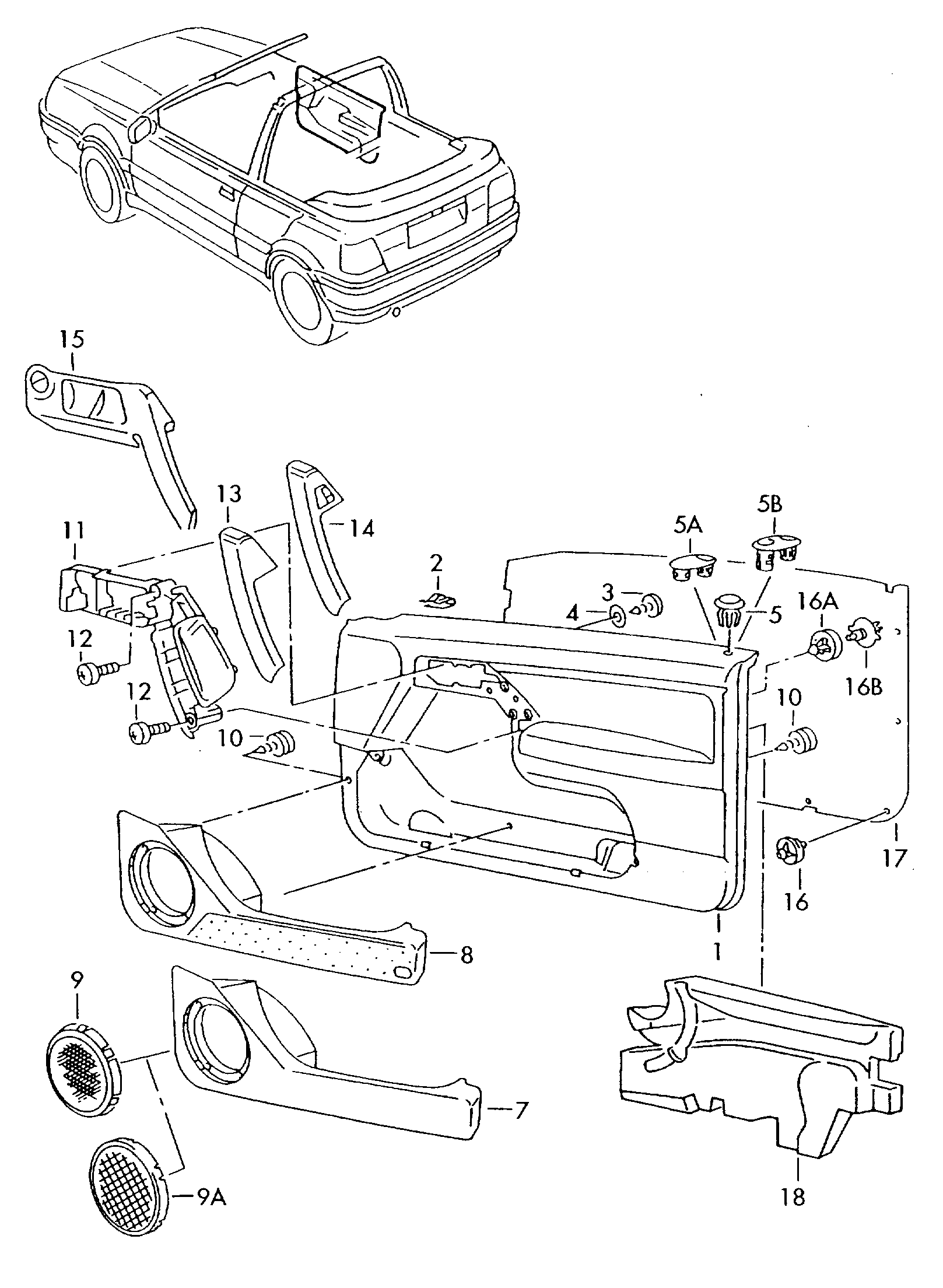

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	pebble grey	1H0 867 198 E Y 01
	pebble grey -KH -KH	1E0 867 011 C QS
	mauritius blue -KJ -KJ	1E0 867 011 C QT
	Black -KG -KG	1E0 867 011 C RY
	flint	1H0 868 150 A Y 01
	light beige	1H0 868 150 A Q 70
	mauritius blue	1H0 868 150 A F 31
	Satin black	1H0 868 645 B 41
	mauritius blue	1H0 868 645 F 31
	pebble grey	1H0 868 645 Y 01
	Satin black	1H0 868 646 B 41
	mauritius blue	1H0 868 646 F 31
	pebble grey	1H0 868 646 Y 01
	Satin black	1H0 867 179 B B 41
	mauritius blue	1H0 867 179 B F 31
	pebble grey	1H0 867 179 B Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 179 B C 82
	Satin black	1H0 867 180 B B 41
	mauritius blue	1H0 867 180 B F 31
	pebble grey	1H0 867 180 B Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 180 B C 82
	Satin black	1H0 867 179 E B 41
	mauritius blue	1H0 867 179 E F 31
	pebble grey	1H0 867 179 E Y 01
	light beige	1H0 867 179 E Q 70
	soft black	1H0 867 179 F C 82
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 179 E C 82
	soft black	1H0 867 180 F C 82
	Satin black	1H0 867 180 E B 41
	mauritius blue	1H0 867 180 E F 31
	pebble grey	1H0 867 180 E Y 01
	light beige	1H0 867 180 E Q 70
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 180 E C 82
	light beige	1H0 867 180 E Q 70
	Satin black	1H0 867 197 D B 41
	mauritius blue	1H0 867 197 D F 31
	pebble grey	1H0 867 197 D Y 01
	Satin black	1H0 867 198 D B 41
	mauritius blue	1H0 867 198 D F 31
	pebble grey	1H0 867 198 D Y 01
	Satin black	1H0 867 197 E B 41
	mauritius blue	1H0 867 197 E F 31
	pebble grey	1H0 867 197 E Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 197 E C 82
	Satin black	1H0 867 198 E B 41
	mauritius blue	1H0 867 198 E F 31
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 198 E C 82
	Satin black	1H0 867 197 H B 41
	mauritius blue	1H0 867 197 H F 31
	flint	1H0 867 197 H Y 01
	Satin black	1H0 867 198 H B 41
	mauritius blue	1H0 867 198 H F 31
	flint	1H0 867 198 H Y 01
	Satin black	1H0 867 197 J B 41
	mauritius blue	1H0 867 197 J F 31
	flint	1H0 867 197 J Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 197 J C 82
	light beige	1H0 867 197 J Q 70
	Satin black	1H0 867 198 J B 41
	mauritius blue	1H0 867 198 J F 31
	flint	1H0 867 198 J Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H0 867 198 J C 82
	light beige	1H0 867 198 J Q 70
	Satin black	1H1 867 197 C B 41
	mauritius blue	1H1 867 197 C F 31
	flint	1H1 867 197 C Y 01
	Satin black	1H1 867 198 C B 41
	mauritius blue	1H1 867 198 C F 31
	flint	1H1 867 198 C Y 01
	Satin black	1H1 867 197 B B 41
	mauritius blue	1H1 867 197 B F 31
	flint	1H1 867 197 B Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H1 867 197 B C 82
	light beige	1H1 867 197 B Q 70
	Satin black	1H1 867 198 B B 41
	mauritius blue	1H1 867 198 B F 31
	flint	1H1 867 198 B Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H1 867 198 B C 82
	light beige	1H1 867 198 B Q 70
	Satin black	1H2 867 197 C B 41
	mauritius blue	1H2 867 197 C F 31
	flint	1H2 867 197 C Y 01
	Satin black	1H2 867 198 C B 41
	mauritius blue	1H2 867 198 C F 31
	flint	1H2 867 198 C Y 01
	Satin black	1H2 867 197 B B 41
	mauritius blue	1H2 867 197 B F 31
	flint	1H2 867 197 B Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H2 867 197 B C 82
	light beige	1H2 867 197 B Q 70
	Satin black	1H2 867 198 B B 41
	mauritius blue	1H2 867 198 B F 31
	flint	1H2 867 198 B Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H2 867 198 B C 82
	light beige	1H2 867 198 B Q 70
	Black -DB -DB	1E0 867 011 A C SU
	pebble grey -DC -DC	1E0 867 011 A C SV
	mauritius blue -DD -DD	1E0 867 011 A C SW
	Black -VS -VS	1E0 867 011 E C NN
	pebble grey -VT -VT	1E0 867 011 E C TK
	beaver -VM -VM	1E0 867 011 E C NX
	black/yellow -75 -75	1E0 867 011 F E AH
	black/red -76 -76	1E0 867 011 F E AS
	black/red -76 "AUTO MOTORSPORT" -76	1E0 867 011 F E AS
	black/green -78 -78	1E0 867 011 F F AL
	Black -79 -79	1E0 867 011 F C NN
	black/blue -77 -77	1E0 867 011 F F AB
	bramble -89 -89	1E0 867 011 G D MS
	Black -88 -88	1E0 867 011 G C NN
	light beige -91 -91	1E0 867 011 G E TW
	mauritius blue -92 -92	1E0 867 011 G E UQ
	Black -93 -93	1E0 867 011 G C NN
	Black -20,31,47,24, 29,30,71,82, 83 PINK-FLOYD,"A.."RABBIT,AREZZO,BON-JOVI,ROLLING-STONES,PR:E 1 A:JOKERPR:E 2 X:SPORTEDITION -20,31,47,24, 29,30,71,82, 83	1E0 867 011 C B LM
	pebble grey -39,72 BON-JOVI,PR:E 1 A:JOKER -39,72	1E0 867 011 C F LG
	Black -17 -17	1E0 867 011 D B FY
	pebble grey -KH -KH	1E0 867 012 C QS
	mauritius blue -KJ -KJ	1E0 867 012 C QT
	Black -KG -KG	1E0 867 012 C RY
	Black -DB -DB	1E0 867 012 A C SU
	pebble grey -DC -DC	1E0 867 012 A C SV
	mauritius blue -DD -DD	1E0 867 012 A C SW
	Black -VS -VS	1E0 867 012 E C NN
	pebble grey -VT -VT	1E0 867 012 E C TK
	beaver -VM -VM	1E0 867 012 E C NX
	black/yellow -75 -75	1E0 867 012 F E AH
	Blackblack/red -76 -76	1E0 867 012 F E AS
	Blackblack/red -76 "AUTO MOTORSPORT" -76	1E0 867 012 F E AS
	black/blue -77 -77	1E0 867 012 F F AB
	black/green -78 -78	1E0 867 012 F F AL
	Black -79 -79	1E0 867 012 F C NN
	Black -88 -88	1E0 867 012 G C NN
	bramble -89 -89	1E0 867 012 G D MS
	light beige -91 -91	1E0 867 012 G E TW
	mauritius blue -92 -92	1E0 867 012 G E UQ
	Black -93 -93	1E0 867 012 G C NN
	Black -20,31,47,24, 29,30,71,82, 83 PINK-FLOYD,"A.."RABBIT,AREZZO,BON-JOVI,ROLLING-STONES,PR:E 1 A:JOKERPR:E 2 X:SPORTEDITON -20,31,47,24, 29,30,71,82, 83	1E0 867 012 C B LM
	pebble grey -39,72 BON-JOVI,PR:E 1 A:JOKER -39,72	1E0 867 012 C F LG
	Black -17 -17	1E0 867 012 D B FY
	Satin black	1H0 867 109 0 1C
	Satin black	1H0 867 109 B 41
	Satin black	1H0 868 391 0 1C
	Satin black	1H0 868 392 0 1C
	Satin black	1H0 868 391 A 0 1C
	Satin black	1H0 868 392 A 0 1C
	Satin black	1H0 867 134 A B 41
	mauritius blue	1H0 867 134 A F 31
	pebble grey	1H0 867 134 A Y 01
	Satin black	1E0 867 134 A B 41
	mauritius blue	1E0 867 134 A F 31
	flint	1E0 867 134 A Y 01
	Satin black	1H0 867 133 A B 41
	mauritius blue	1H0 867 133 A F 31
	pebble grey	1H0 867 133 A Y 01
	Satin black	1E0 867 133 A B 41
	mauritius blue	1E0 867 133 A F 31
	flint	1E0 867 133 A Y 01
	Satin black	1H0 867 134 B B 41
	mauritius blue	1H0 867 134 B F 31
	pebble grey	1H0 867 134 B Y 01
	Satin black	1E0 867 134 B B 41
	mauritius blue	1E0 867 134 B F 31
	flint	1E0 867 134 B Y 01
	light beige -91 -91	1E0 867 134 Q 70
	light beige -91 -91	1E0 867 134 C Q 70
	Satin black	1H0 867 133 B B 41
	mauritius blue	1H0 867 133 B F 31
	pebble grey	1H0 867 133 B Y 01
	Satin black	1E0 867 133 B B 41
	mauritius blue	1E0 867 133 B F 31
	flint	1E0 867 133 B Y 01
	light beige -91 -91	1E0 867 133 Q 70
	light beige -91 -91	1E0 867 133 C Q 70
	Satin black	1H0 867 149 B 41
	light beige	1H0 867 149 Q 70
	mauritius blue	1H0 867 149 F 31
	pebble grey	1H0 867 149 Y 01
	Satin black	1H0 868 149 A B 41
	flint	1H0 868 149 A Y 01
	light beige	1H0 868 149 A Q 70
	mauritius blue	1H0 868 149 A F 31
	Satin black	1H0 867 150 B 41
	light beige	1H0 867 150 Q 70
	mauritius blue	1H0 867 150 F 31
	pebble grey	1H0 867 150 Y 01
	Satin black	1H0 868 150 A B 41
-	Loudspeaker mounting	1E0 868 525
-	Bracket	1HM 035 241 B
-	expanding nut 6,9 MM 6,9 MM	155 809 966
-	Mask film	3A0 035 217
-	Bracket	1HM 035 242 B
-	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
-	Loudspeaker mounting	1E0 868 526
(1)	Door trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 011 F
(1)	Door trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 012 F
(1)	Door trim(leather/leatherette)	1E0 867 012 E
(1)	Door trim(leather/leatherette)	1E0 867 012 E
(1)	Door panel trim (cloth)	1E0 867 011 A
(1)	Door trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 011 F
(1)	Door trim(leather/leatherette) HIGHLINE	1E0 867 011 G
(1)	Door trim(leather/leatherette) CLASSIC-EDITION	1E0 867 011 G
(1)	Door panel trim (cloth)	1E0 867 012 A
(1)	Door panel trim (cloth) NEW-ORLEANS"A.."	1E0 867 012 D
(1)	Door panel trim (cloth)	1E0 867 011 C
(1)	Door panel trim (cloth) NEW-ORLEANS"A.."	1E0 867 011 D
(1)	Door panel trim (cloth)	1E0 867 012 C
(1)	Door trim(leather/leatherette)	1E0 867 011 E
(1)	Door trim(leather/leatherette) CLASSIC-EDITION	1E0 867 012 G
(1)	Door trim(leather/leatherette) HIGHLINE	1E0 867 012 G
(1)	Door panel trim (cloth)	1E0 867 011
(11)	Grab handle	1H0 867 180 E
(11)	Grab handle	1H0 867 179 B
(11)	Grab handle	1H0 867 179 E
(11)	Grab handle	1H0 867 179 F
(11)	Grab handle	1H0 867 179 E
(11)	Grab handle	1H0 867 180 F
(11)	Grab handle	1H0 867 180 E
(13)	Cover	1H0 867 198 D
(13)	Cover	1H0 867 198 D
(13)	Cover	1H0 867 197 D
(13)	Cover	1H0 867 197 D
(14)	Coverfor models with electricallyoperated windows	1H0 867 198 E
(14)	Coverfor models with electricallyoperated windows	1H0 867 197 E
(14)	Coverfor models with electricallyoperated windows	1H0 867 198 E
(15)	Cover	1H0 867 197 H
(15)	Cover For vehicles with electricwindow regulators andexterior mirrors with electricadjustment and heated	1H1 867 198 B
(15)	Cover For electric adjustableexterior mirrors	1H2 867 198 C
(15)	Coverfor electric window regulators	1H0 867 198 J
(15)	Coverfor electric window regulators	1H0 867 197 J
(15)	Cover	1H0 867 198 H
(15)	Cover For vehicles with electricwindow regulators andexterior mirrors with electricadjustment and heated	1H2 867 197 B
(15)	Cover For vehicles with electricwindow regulators andexterior mirrors with electricadjustment and heated	1H1 867 197 B
(15)	Cover For electric adjustableexterior mirrors	1H1 867 197 C
(15)	Cover For electric adjustableexterior mirrors	1H2 867 197 C
(15)	Cover For electric adjustableexterior mirrors	1H1 867 198 C
(15)	Cover For vehicles with electricwindow regulators andexterior mirrors with electricadjustment and heated	1H2 867 197 B
(15)	Cover For vehicles with electricwindow regulators andexterior mirrors with electricadjustment and heated	1H2 867 198 B
(17)	Protective film Dampingmodify in workshop use if required: use if required: 1100 X 600 X 2 D 469 101 A 33 A 0 035 217 1100 X 600 X 2 D 469 101 A 33 A 0 035 217	3A0 867 201 H
(17)	protective foil for door	1E0 867 147 A
(17)	protective foil for door	1E0 867 148 A
(18)	Damping	1E0 868 461
(5A)	Rosette	1H0 868 391
(5B)	Rosette For vehicles with anti-theftalarm system	1H0 868 391 A
(7)	Stowage boxfor models withloudspeaker grillefor vehicles with sound system	1E0 867 134 A
(7)	Stowage boxfor models withloudspeaker grille	1H0 867 133 A
(7)	Stowage boxfor models withloudspeaker grillefor vehicles with sound system	1E0 867 133 A
(8)	Stowage boxreflectorfor models withloudspeaker grillefor vehicles with sound system	1E0 867 134 B
(8)	Stowage boxreflectorfor models withloudspeaker grillefor vehicles with sound system CLASSIC-EDITION	1E0 867 133 C
(8)	Stowage boxreflectorfor models withloudspeaker grille CLASSIC-EDITION	1E0 867 133
(8)	Stowage boxreflectorfor models withloudspeaker grillefor vehicles with sound system	1E0 867 133 B
(8)	Stowage boxreflectorfor models withloudspeaker grille	1H0 867 133 B
(8)	Stowage boxreflectorfor models withloudspeaker grille PR:E 1 N:CLASSIC-EDITION	1E0 867 134
(9)	Loudspeaker trim	1H0 868 149 A
(9)	Loudspeaker trim	1H0 867 149
(9)	Loudspeaker trim	1H0 868 150 A
(9)	Loudspeaker trim	1H0 867 149
(9A)	Loudspeaker trim dummy	1H0 868 645
1	Door panel trim (cloth)	1E0 867 012
10	oval head panel screw (combi) B 4,2 X 22 B 4,2 X 22	N 903 129 01
11	Grab handle	1H0 867 180 B
12	fillister hd. bolt M 6 X 20 M 6 X 20	N 014 142 3
16	Clip	1H0 868 243 B
16A	Clip	1H0 868 244 B
18	Damping	1E0 868 462
2	Clip	1H0 868 244 C
3	oval head panel screw 4,2 X 13 STC 4,2 X 13 STC	N 013 966 26
4	Washer B 4,3 X 12 X 1 B 4,3 X 12 X 1	N 011 664 4
5	guide for knob	1H0 867 109
5	guide for knob	1H0 867 109
5A	Rosette	1H0 868 392
5B	Rosette For vehicles with anti-theftalarm system	1H0 868 392 A
7	Stowage boxfor models withloudspeaker grille	1H0 867 134 A
8	Stowage boxreflectorfor models withloudspeaker grillefor vehicles with sound system CLASSIC-EDITION	1E0 867 134 C
8	Stowage boxreflectorfor models withloudspeaker grille	1H0 867 134 B
9	Loudspeaker trim	1H0 867 150
9	Loudspeaker trim	1H0 867 150
9A	Loudspeaker trim dummy	1H0 868 646

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 22 Passenger compartment
Factory subgroup: 867000

Related factory diagrams

Other published passenger compartment plates for the Mk3 Golf in this catalogue.

Door trim panels 1993 - 1996 · subgroup 867005
Door trim panels 1993 - 1996 · subgroup 867010
Door trim panels f 1 h t 000 001 front 1993 - 1996 · subgroup 867015
Door trim panels 1993 - 1996 · subgroup 867044
Door trim panels 1993 - 1996 · subgroup 867045
Door trim panels f 1 h t 000 001 rear 4 door 1993 - 1996 · subgroup 867048
Moulded headlinersound insulation roof 1993 - 1996 · subgroup 867055
Door trim panels f 1 h p 999 000 front 1993 - 1996 · subgroup 867000

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the door trim panels diagram for the Mk3 Golf?: This diagram lists 276 OEM part numbers for the Mk3 Golf. The first three are 1H0 867 198 E Y 01, 1E0 867 011 C QS and 1E0 867 011 C QT.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
