Luggage compartment trim luggage compartment cover rear lid — Mk3 Golf Passenger Compartment (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door panel

Generation: Mk3 1997 (RDW) Group: Passenger compartment Parts: 50 Primary OEM: 191 867 775 A 0 1C, 1H6 863 533 0 1C, 1H6 867 761 B 41

Luggage compartment trim luggage compartment cover rear lid for the Volkswagen Golf Mk3 (1997): factory exploded diagram 867080 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 50 OEM part numbers including 191 867 775 A 0 1C, 1H6 863 533 0 1C and 1H6 867 761 B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 50 OEM part numbers across 50 numbered positions.

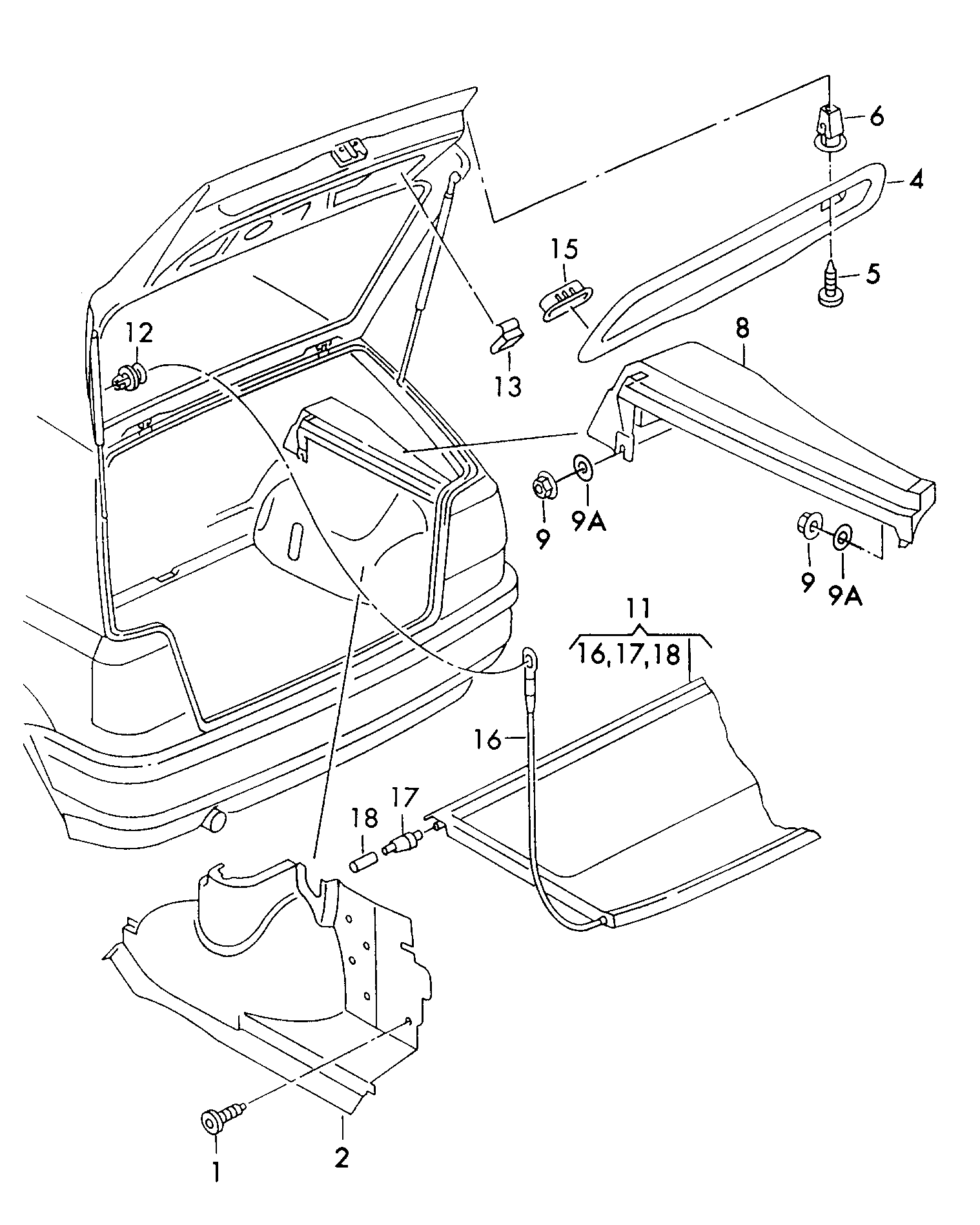

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	191 867 775 A 0 1C
	Satin black	1H6 863 533 0 1C
	Satin black	1H6 867 761 B 41
	mauritius blue	1H6 867 761 F 31
	beaver	1H6 867 761 T 21
	flint -39,72 -39,72	1H6 867 761 Y 01
	Satin black	1H6 863 447 B 41
	Satin black	1H6 867 762 B 41
	mauritius blue	1H6 867 762 F 31
	beaver	1H6 867 762 T 21
	lava (grey)	1H6 867 815 7 9S
	flint -39,72 -39,72	1H6 867 762 Y 01
	Black	1H6 867 769 B 5 YV
	mauritius blue	1H6 867 769 B G 94
	beaver	1H6 867 769 B Q 64
	flint -39,72 -39,72	1H6 867 769 B 9 SR
	Satin black	191 867 199 0 1C
	anthracite	1H6 867 429 E 1 BS
	anthracite	1H6 867 429 E 1 BS
	anthracite	1H6 867 430 F 1 BS
	anthracite	1H6 867 430 F 1 BS
	anthracite	1H6 867 430 J 1 BS
	anthracite	1H6 867 430 J 1 BS
	Satin black	1H6 863 534 0 1C
	Satin black	1H6 867 605 A B 41
(17)	Mounting	1H6 863 534
(2)	Luggage compartment trim	1H6 867 430 F
(2)	Luggage compartment trim Local deliv.van	1H6 867 429 E
(2)	Luggage compartment trimfor vehicles with CD changers	1H6 867 430 J
(2)	Luggage compartment trim	1H6 867 429 E
(2)	Luggage compartment trimfor vehicles with CD changers Local deliv.van	1H6 867 430 J
(2)	Luggage compartment trim Local deliv.van	1H6 867 430 F
(8)	Support element	1H6 867 761
(8)	Support element	1H6 867 761
(9A)	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
1	Bungs 20/8,5 20/8,5	191 867 199
11	cover for luggagecompartment	1H6 867 769 B
11	cover for luggagecompartment	1H6 867 769 B
12	Retainer for cover Holding strap	191 867 775 A
13	Stop buffer	1H6 867 815
15	Grommet	1H0 867 981
16	Holding strap	1H6 863 447
17	Mounting	1H6 863 533
18	Hose 7,6 X 1,7 X 14,5 7,6 X 1,7 X 14,5	N 901 293 01
4	Rear lid trim panel	1H6 867 605 A
5	panel screw 4,2 X 25 4,2 X 25	N 901 575 01
6	expanding nut 7 MM 7 MM	165 827 592
8	Support element	1H6 867 762
8	Support element	1H6 867 762
9	speed nut 5 5	N 904 348 01
