Pillar trim — Mk3 Golf Passenger Compartment (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door panel

Generation: Mk3 1997 (RDW) Group: Passenger compartment Parts: 139 Primary OEM: N 905 740 01Y 01, 1H3 867 233 H 50, 1H3 867 233 T 21

Pillar trim for the Volkswagen Golf Mk3 (1997): factory exploded diagram 867065 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 139 OEM part numbers including N 905 740 01Y 01, 1H3 867 233 H 50 and 1H3 867 233 T 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 139 OEM part numbers across 139 numbered positions.

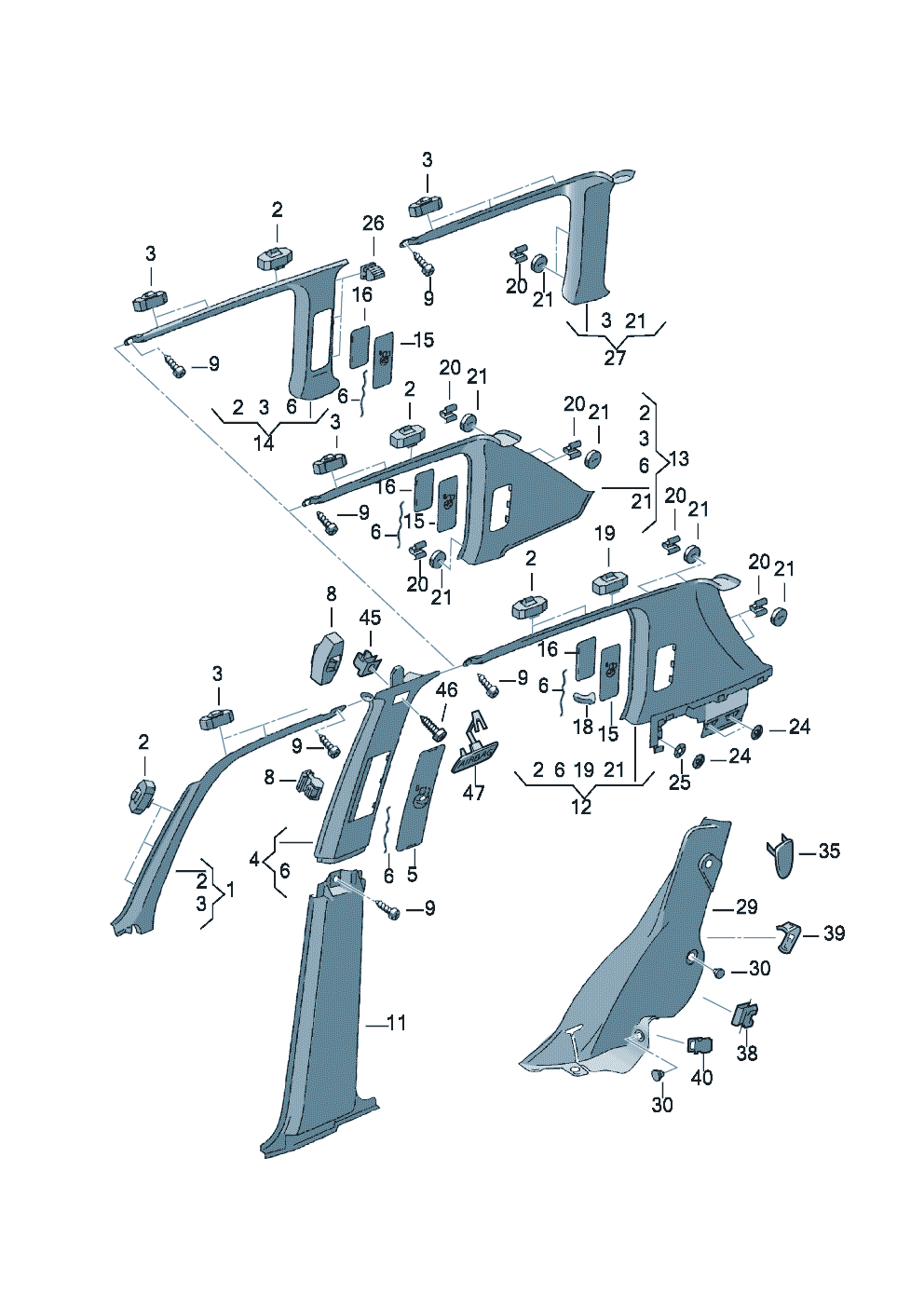

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	flint	N 905 740 01Y 01
	grey blue	1H3 867 233 H 50
	beaver	1H3 867 233 T 21
	flint	1H3 867 233 Y 01
	grey blue	1H6 867 288 H 50
	beaver	1H6 867 288 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 288 C 82
	flint	1H6 867 288 Y 01
	grey blue	1H6 867 287 A H 50
	beaver	1H6 867 287 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 287 A C 82
	flint	1H6 867 287 A Y 01
	grey blue	1H6 867 288 A H 50
	beaver	1H6 867 288 A T 21
	soft black HIGHLINECOLOUR-CONCEPT	1H6 867 288 A C 82
	flint	1H6 867 288 A Y 01
	grey blue	1H0 868 309 A H 50
	beaver	1H0 868 309 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 309 A B 41
	flint	1H0 868 309 A Y 01
	grey blue	1H0 868 310 A H 50
	beaver	1H0 868 310 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 310 A B 41
	flint	1H0 868 310 A Y 01
	grey blue	1H4 867 827 H 50
	beaver	1H4 867 827 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 827 C 82
	flint	1H4 867 827 Y 01
	grey blue	1H3 867 827 H 50
	beaver	1H3 867 827 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 827 C 82
	flint	1H3 867 827 Y 01
	grey blue	1H3 867 828 H 50
	beaver	1H3 867 828 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 828 C 82
	flint	1H3 867 828 Y 01
	Satin black	1H4 867 765 B 41
	flint	1H4 867 765 Y 01
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 765 C 82
	beaver	1H4 867 765 T 21
	Satin black	1H4 867 766 B 41
	flint	1H4 867 766 Y 01
	soft black	1H4 867 766 C 82
	beaver	1H4 867 766 T 21
	Satin black 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 010 1C
	beaver	N 905 740 01T 21
	Satin black	N 905 740 010 1C
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 233 C 82
	grey blue	1H3 867 234 H 50
	beaver	1H3 867 234 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 234 C 82
	flint	1H3 867 234 Y 01
	grey blue	1H4 867 233 H 50
	beaver	1H4 867 233 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 233 C 82
	flint	1H4 867 233 Y 01
	grey blue	1H4 867 234 H 50
	beaver	1H4 867 234 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 234 C 82
	flint	1H4 867 234 Y 01
	grey blue	1H3 867 243 A H 50
	beaver	1H3 867 243 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 243 A C 82
	flint	1H3 867 243 A Y 01
	grey blue	1H3 867 244 A H 50
	beaver	1H3 867 244 A T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H3 867 244 A C 82
	flint	1H3 867 244 A Y 01
	grey blue	1H4 867 243 B H 50
	beaver	1H4 867 243 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 243 B C 82
	flint	1H4 867 243 B Y 01
	grey blue	1H4 867 244 B H 50
	beaver	1H4 867 244 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 244 B C 82
	flint	1H4 867 244 B Y 01
	grey blue	1H0 868 311 A H 50
	beaver	1H0 868 311 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 311 A B 41
	flint	1H0 868 311 A Y 01
	grey blue	1H0 868 312 A H 50
	beaver	1H0 868 312 A T 21
	Satin black HIGHLINE,COLOUR-CONCEPT	1H0 868 312 A B 41
	flint	1H0 868 312 A Y 01
	Satin black	1H4 867 297 B B 41
	beaver	1H4 867 297 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 297 B C 82
	flint	1H4 867 297 B Y 01
	Satin black	1H4 867 298 B B 41
	beaver	1H4 867 298 B T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H4 867 298 B C 82
	flint	1H4 867 298 B Y 01
	grey blue	1H6 867 287 H 50
	beaver	1H6 867 287 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 287 C 82
	flint	1H6 867 287 Y 01
(1)	A-pillar trim	1H3 867 233
(1)	A-pillar trim	1H4 867 233
(1)	A-pillar trim	1H3 867 234
(1)	A-pillar trim	1H3 867 233
(11)	B-pillar trim	1H4 867 297 B
(12)	C-pillar trim	1H6 867 288
(12)	C-pillar trim	1H6 867 287 A
(12)	C-pillar trim	1H6 867 287
(15)	slide valve	1H0 868 309 A
(18)	Cover cap C-pillar trim	1H3 867 827
(18)	Cover cap C-pillar trim	1H3 867 827
(19)	Clip C-pillar trim	1H0 867 260 C
(29)	Wheel housing trim	1H4 867 765
(29)	Wheel housing trim	1H4 867 765
(4)	B-pillar trim	1H3 867 244 A
(4)	B-pillar trim	1H4 867 243 B
(4)	B-pillar trim	1H4 867 244 B
(4)	B-pillar trim	1H3 867 243 A
(5)	slide valve	1H0 868 311 A
1	A-pillar trim	1H4 867 234
11	B-pillar trim	1H4 867 298 B
12	C-pillar trim	1H6 867 288 A
15	slide valve	1H0 868 310 A
16	Cover	1H4 867 827
18	Cover cap C-pillar trim	1H3 867 828
18	Cover cap C-pillar trim	1H3 867 828
19	Clip C-pillar trim	1H0 867 260 B
2	Clip	1H0 867 260 B
20	retaining spring	323 867 389 A
21	Sealing element	1H0 868 295
24	speed nut 5 5	N 904 348 01
25	Clamping washer 5 X 30 5 X 30	N 903 350 04
25	Clamping washer 5 X 30 5 X 30	N 907 965 02
29	Wheel housing trim	1H4 867 766
29	Wheel housing trim	1H4 867 766
3	Clip	1H0 867 260 C
30	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
30	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 01
30	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
5	slide valve	1H0 868 312 A
6	retaining spring	1H0 868 317
8	Clip B-pillar trim	1H0 867 260 A
9	panel screw 4 X 15 4 X 15	N 904 468 01
