Pillar trim rear lid trim panel luggage compartment trim — Mk3 Golf Passenger Compartment (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Door trim panels

Generation: Mk3 1994 - 1997 (RDW) Group: Passenger compartment Parts: 57 Primary OEM: 1E0 868 797 B 23, 1H6 867 605 A B 41, 1E0 867 233 B 41

Pillar trim rear lid trim panel luggage compartment trim for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 867065 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 57 OEM part numbers including 1E0 868 797 B 23, 1H6 867 605 A B 41 and 1E0 867 233 B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 57 OEM part numbers across 57 numbered positions.

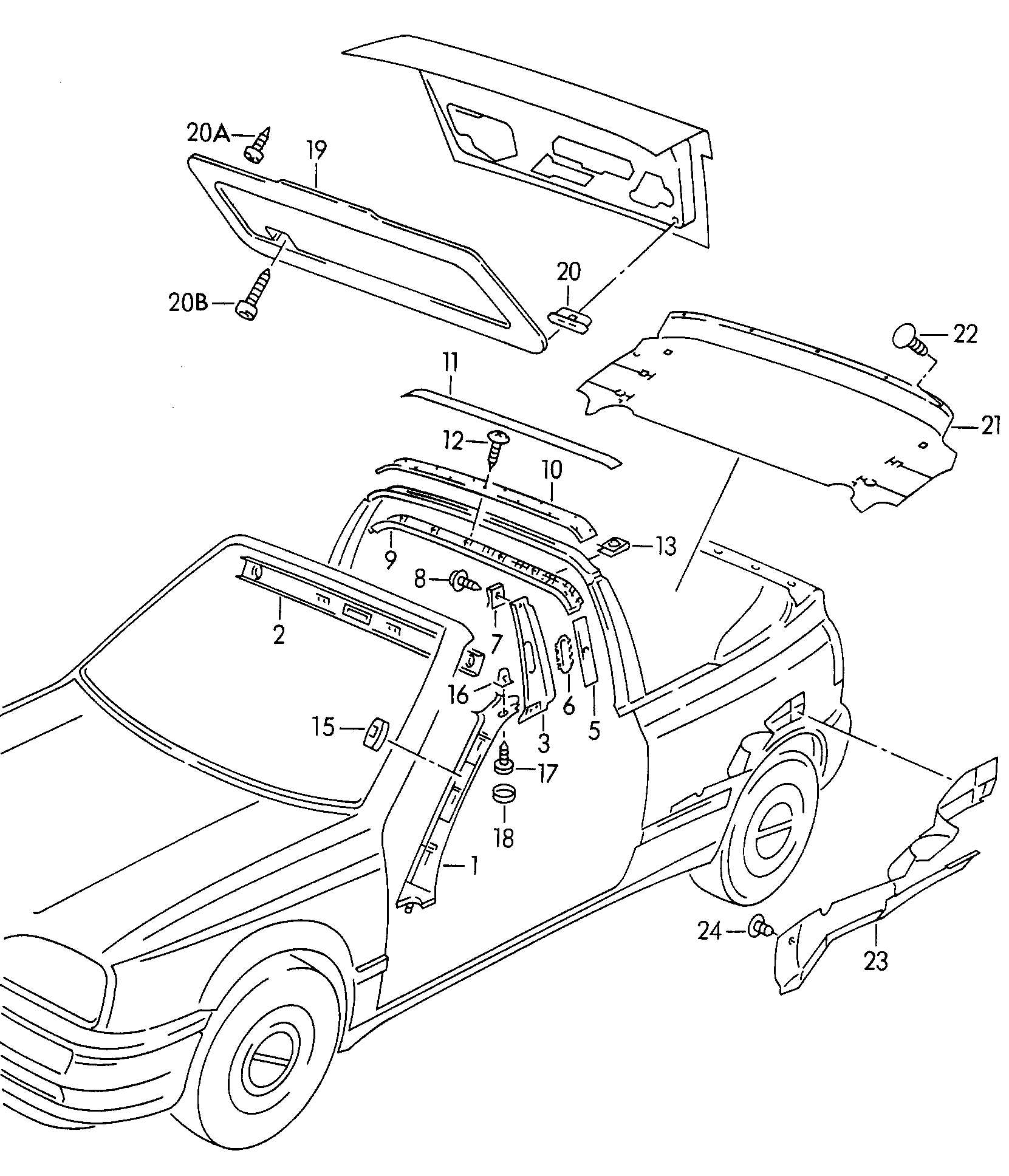

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Black	1E0 868 797 B 23
	Satin black	1H6 867 605 A B 41
	Satin black	1E0 867 233 B 41
	Satin black	1E0 867 244 B 41
	Satin black	1E0 867 244 A B 41
	Satin black	191 867 199 0 1C
	Satin black	6N0 868 313 B 41
	Black	1E0 867 430 A 47
	Satin black	6N0 868 313 A B 41
	Satin black	6N0 868 337 B 41
	Black	1E0 867 430 B A 47
	Black	1E0 867 429 A 47
	Satin black	1E0 867 283 B 41
	Satin black	1E0 867 295 B 41
	Satin black	1E0 867 803 0 1C
	Satin black	357 863 119 0 1C
	mauritius blue	1E0 868 797 H 13
	Black	535 867 842 A 4 FB
	Satin black	1E0 867 234 B 41
	Satin black see illustration also: 860-000 860-000	1E0 857 467 B 41
	Satin black	1E0 867 360 B 41
	Satin black	1E0 867 243 B 41
	Satin black	1E0 867 243 A B 41
-	Cover Hydraulic pump Balance weight	1E0 857 467
(1)	A-pillar trim	1E0 867 234
(23)	Luggage compartment trim	1E0 867 430 B
(23)	Luggage compartment trim	1E0 867 430
(3)	B-pillar trim	1E0 867 244 A
(3)	B-pillar trim	1E0 867 243 A
(3)	B-pillar trim	1E0 867 244
1	A-pillar trim	1E0 867 233
10	Rollover bar trim	1E0 867 295
11	Damping Rollover bar trim	1E0 867 803
12	oval head panel screw (combi)Rollover bar trim 4,2 X 22 4,2 X 22	N 903 129 01
13	Speed nut Rollover bar trim M 4 X 16,5 X 11 M 4 X 16,5 X 11	N 906 501 01
13	Speed nut Rollover bar trim 3,1 X 16,5 X 11 3,1 X 16,5 X 11	N 902 764 02
15	Clip	1E0 867 260
16	expanding nut	533 809 966 A
17	oval head panel screw 4,8 X 19 4,8 X 19	N 901 581 03
17	panel screw 4,8 X 19 4,8 X 19	N 901 581 02
18	Bungs	535 867 842 A
19	Rear lid trim panel	1H6 867 605 A
2	Trim for wind protectionwindow frame	1E0 867 360
20	Grommet	1H0 867 981
20A	expanding nut 7 MM 7 MM	165 827 592
20B	panel screw 4,2 X 25 4,2 X 25	N 901 575 01
21	Trim	1E0 868 797
22	Bungs	357 863 119
23	Luggage compartment trim	1E0 867 429
24	Bungs 20/8,5 20/8,5	191 867 199
3	B-pillar trim	1E0 867 243
5	traveller for heightadjustment	6N0 868 313 A
5	slide valve	6N0 868 313
6	collar for height adjustment	6N0 868 337
7	Speed nut M 4 X 13 X 11,5 M 4 X 13 X 11,5	N 902 825 01
8	panel screw 4,2 X 25 4,2 X 25	N 901 575 01
9	Rollover bar trim	1E0 867 283
