Which VW part numbers are on the roof trimsound insulation roof diagram for the Mk3 Golf?

This diagram lists 29 OEM part numbers for the Mk3 Golf. The first three are 1H0 867 581 A U 19, 1H6 867 501 G U 19 and 1H6 867 501 G W 29.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Roof trimsound insulation roof — Mk3 Golf Passenger Compartment (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door panel

Generation: Mk3 1997 (RDW) Group: Passenger compartment Parts: 31 Primary OEM: 1H0 867 581 A U 19, 1H6 867 501 G U 19, 1H6 867 501 G W 29

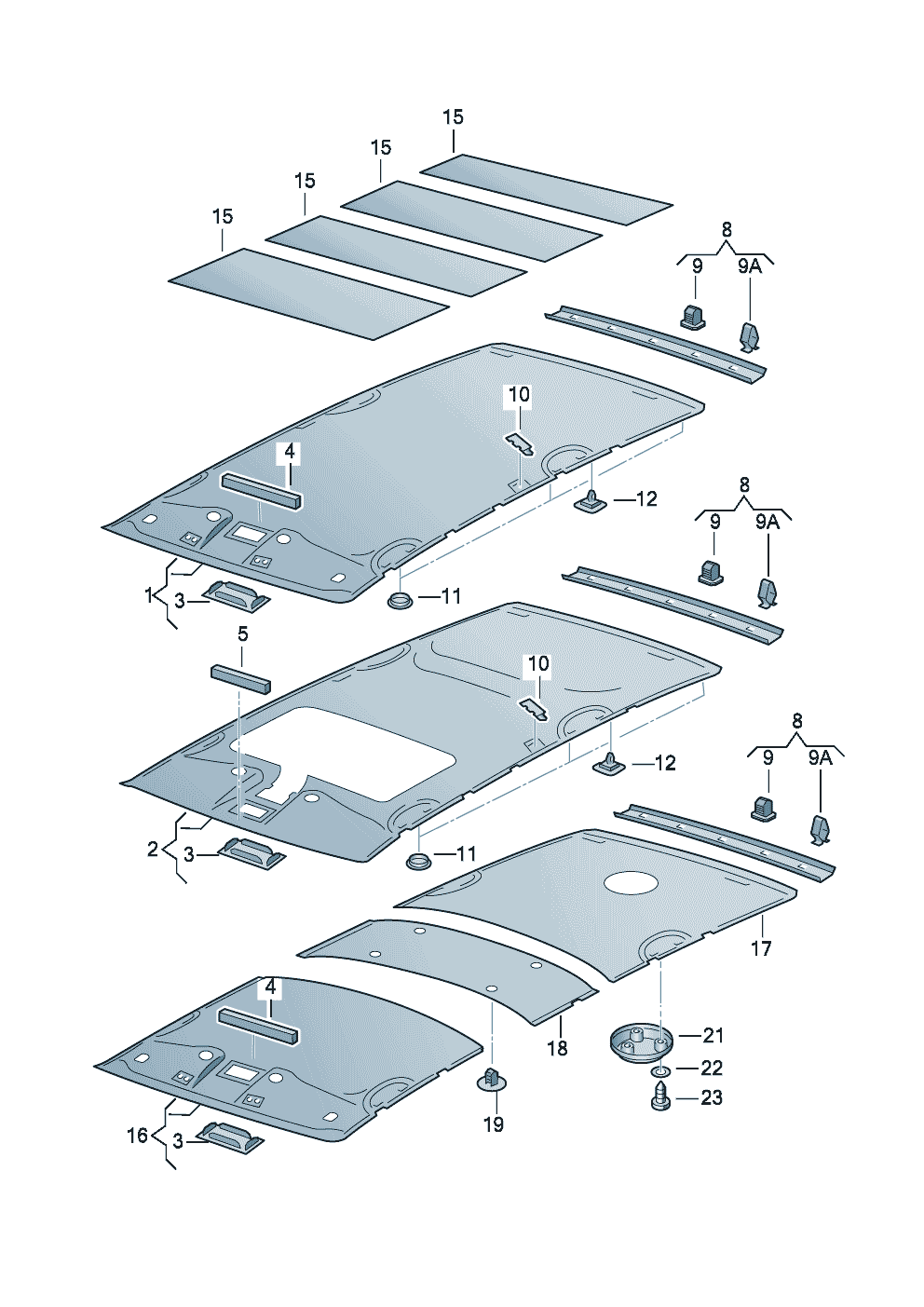

Roof trimsound insulation roof for the Volkswagen Golf Mk3 (1997): factory exploded diagram 867055 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 29 OEM part numbers across 31 catalogued positions including 1H0 867 581 A U 19, 1H6 867 501 G U 19 and 1H6 867 501 G W 29. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 29 OEM part numbers across 31 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Grey	1H0 867 581 A U 19
	Grey	1H6 867 501 G U 19
	beaver	1H6 867 501 G W 29
	beaver	1H6 867 501 H W 29
	beaver	1H0 867 589 W 29
	Grey	1H0 867 589 U 19
	grey blue	1H6 867 617 H 50
	beaver	1H6 867 617 T 21
	soft black HIGHLINE,COLOUR-CONCEPT	1H6 867 617 C 82
	flint	1H6 867 617 Y 01
	grey blue	191 867 838 A H 50
	Satin black	357 867 646 0 1C
	grey blue	1H0 867 840 H 50
	Grey	1H6 867 501 H U 19
1	Moulded headliner	1H6 867 501 G
12	Cover cap	1H0 867 840
15	sound insulation for roofmodify in workshop	331 867 807
16	Moulded headliner make up from: 1 H 6 867 501 G(U 19) 1 H 6 867 501 G(U 19)	—
17	Moulded headliner make up from: 1 H 6 867 501 G(U 19) 1 H 6 867 501 G(U 19)	—
18	Cover for blue flashinglight "D..":police	1H0 867 581 A
19	Clip "D..":police	191 867 838 A
2	Moulded headlinerfor vehicles with sliding roof	1H6 867 501 H
21	Cover "D..":police	1H0 867 589
22	Washer A 4,3 X 9 X 0,8 A 4,3 X 9 X 0,8	N 011 522 7
23	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
3	frame for interior light	1H0 867 599
4	Distance pieceinterior light 20 X 34 X 370 20 X 34 X 370	1H0 867 596
5	Distance piecefor vehicles with sliding roof	1H0 867 596 B
8	End trim	1H6 867 617
8	End trim	1H6 867 617
9	Clip	357 867 646

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 22 Passenger compartment
Factory subgroup: 867055
