Side panel trim — Mk3 Golf Passenger Compartment (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Door trim panels

Generation: Mk3 1994 - 1997 (RDW) Group: Passenger compartment Parts: 246 Primary OEM: 1E0 867 150 H 21, 1E0 867 150 Q 70, 1H0 867 199 0 1C

Side panel trim for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 867050 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 246 OEM part numbers including 1E0 867 150 H 21, 1E0 867 150 Q 70 and 1H0 867 199 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 246 OEM part numbers across 246 numbered positions.

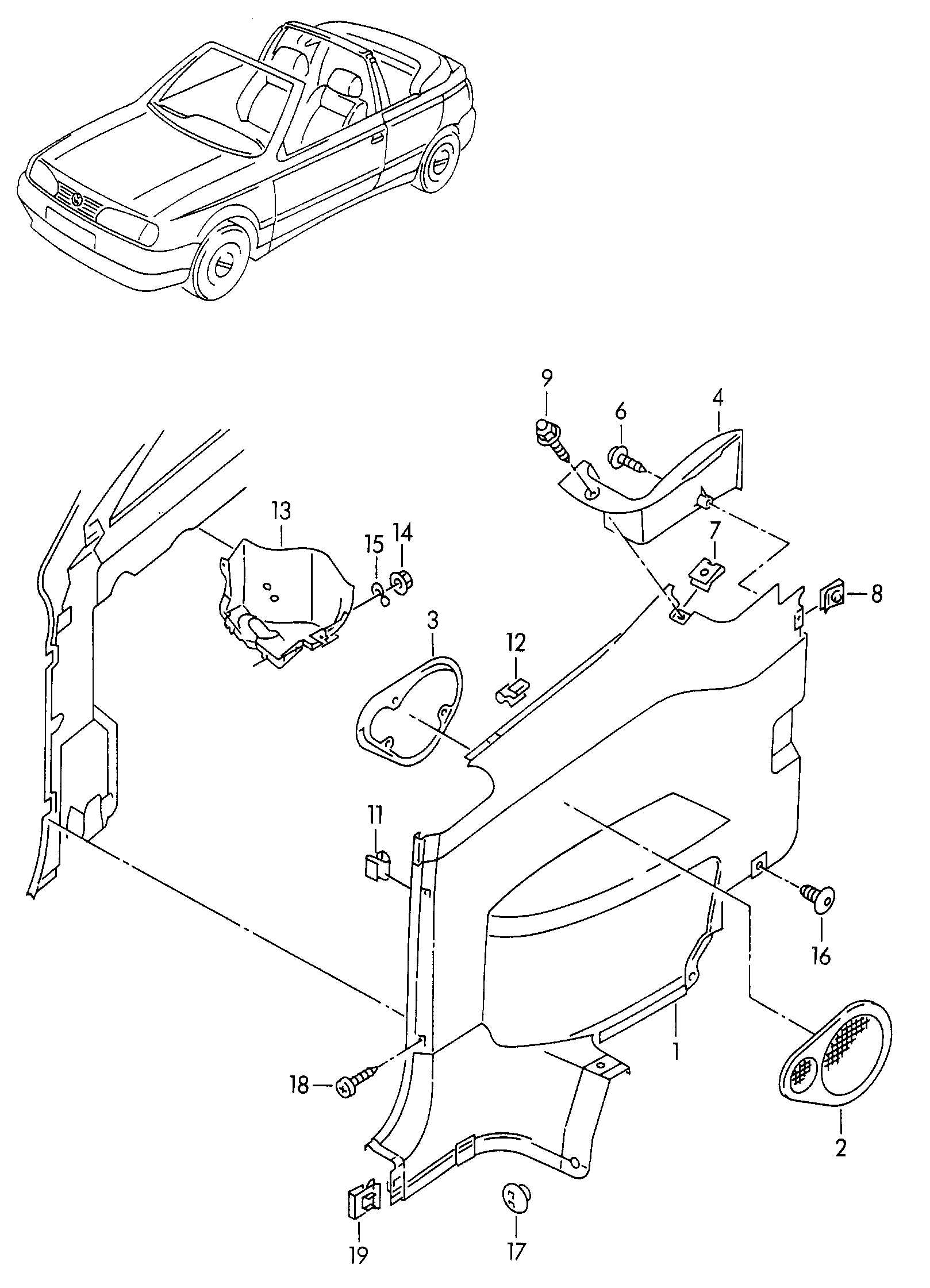

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mauritius blue	1E0 867 150 H 21
	light beige	1E0 867 150 Q 70
	Satin black	1H0 867 199 0 1C
	Satin black	1E0 867 150 0 1C
	Black -79 -79	1E0 867 041 A C NQ
	Black -17 -17	1E0 867 044 P B KA
	mauritius blue	1E0 868 843 F 31
	Satin black	N 905 740 010 1C
	mauritius blue	1E0 867 149 H 21
	pebble grey	1E0 867 149 Y 01
	light beige	1E0 867 149 Q 70
	beaver	N 905 740 01T 21
	Satin black	1E0 867 149 0 1C
	mauritius blue	N 905 740 01F 31
	pebble grey	1E0 867 150 Y 01
	light beige	1E0 867 149 A Q 70
	Flannel grey	1E0 867 149 A U 71
	Black	1E0 867 149 A 0 1C
	Satin black use if required: AKL 450 005 05 AKL 450 005 05	1E0 868 608 B 41
	light beige	1E0 867 150 A Q 70
	Flannel grey	1E0 867 150 A U 71
	Satin black	1E0 867 150 A 0 1C
	Satin black use if required: AKL 450 005 05 AKL 450 005 05	1E0 868 607 B 41
	Black	1E0 868 862 0 41
	Satin black	1E0 868 843 B 41
	pebble grey	1E0 868 843 Y 01
	Black	1E0 868 861 0 41
	Satin black	1E0 868 844 B 41
	mauritius blue	1E0 868 844 F 31
	pebble grey	1E0 868 844 Y 01
	Satin black	1E0 868 843 A B 41
	mauritius blue	1E0 868 843 A F 31
	pebble grey	1E0 868 843 A Y 01
	light beige CLASSIC -EDITION	1E0 868 843 A Q 70
	flint	1E0 868 844 B Y 01
	Satin black	1E0 868 844 A B 41
	mauritius blue	1E0 868 844 A F 31
	pebble grey	1E0 868 844 A Y 01
	light beige CLASSIC -EDITION	1E0 868 844 A Q 70
	light beige CLASSIC -EDITION	1E0 868 844 B Q 70
	Satin black	1E0 868 843 B B 41
	mauritius blue	1E0 868 843 B F 31
	light beige CLASSIC -EDITION	1E0 868 843 B Q 70
	flint	1E0 868 843 B Y 01
	mauritius blue	1E0 868 844 B F 31
	Satin black	1E0 868 844 B B 41
	bramble -89 -89	1E0 867 041 A D MT
	pebble grey -DC -DC	1E0 867 043 D C UB
	pebble grey -VT -VT	1E0 867 041 F C UH
	Black -DB -DB	1E0 867 043 D D NR
	Black -79 -79	1E0 867 041 G D NW
	mauritius blue -DD -DD	1E0 867 043 D D NS
	black/yellow -75 -75	1E0 867 041 E E AJ
	black/red -76 -76	1E0 867 041 E E AT
	black/blue -77 -77	1E0 867 041 E F AC
	black/green -78 -78	1E0 867 041 E F AM
	Black -79 -79	1E0 867 041 E D NW
	mauritius blue -KJ -KJ	1E0 867 043 D NU
	Black -20,31,47,30 -20,31,47,30	1E0 867 043 N B LQ
	pebble grey -KH -KH	1E0 867 043 AJC UE
	black/yellow -75 -75	1E0 867 041 G E AJ
	black/red -76 -76	1E0 867 041 G E AT
	black/red -76 "AUTO MOTORSPORT" -76	1E0 867 041 G E AT
	black/blue -77 -77	1E0 867 041 G F AC
	black/green -78 -78	1E0 867 041 G F AM
	Black -79 -79	1E0 867 041 G D NW
	Black -KG -KG	1E0 867 043 AJD NT
	bramble -89 -89	1E0 867 041 E D MT
	Black -88 -88	1E0 867 041 E D NW
	mauritius blue -KJ -KJ	1E0 867 043 AJD NU
	Black -88 -88	1E0 867 041 G D NW
	pebble grey -KH -KH	1E0 867 043 C UE
	light beige -91 -91	1E0 867 041 E E TX
	mauritius blue -92 -92	1E0 867 041 E E UR
	Black -93 -93	1E0 867 041 E D NW
	pebble grey -DC -DC	1E0 867 043 AFC UB
	light beige -91 -91	1E0 867 041 G E TX
	mauritius blue -92 -92	1E0 867 041 G E UR
	Black -93 -93	1E0 867 041 G D NW
	Black -DB -DB	1E0 867 043 AFD NR
	Black -20,31,47,30, 24,29,71 PINK-FLOYD,"A.."RABBIT,AREZZO,BON JOVI,ROLLING-STONES,PR:E 1 A:JOKER -20,31,47,30, 24,29,71	1E0 867 043 AHB LQ
	flint -39,72 BON JOVI,PR:E 1 A:JOKER -39,72	1E0 867 043 AHF LH
	mauritius blue -DD -DD	1E0 867 043 AFD NS
	Black -20,31,47,30, 24,29,71,82, 83 PINK-FLOYD,"A.."RABBIT,AREZZO,BON JOVI,ROLLING-STONES,PR:E 1 A:JOKERPR:E 2 X:SPORTEDITION -20,31,47,30, 24,29,71,82, 83	1E0 867 043 ANB LQ
	flint -39,72 -39,72	1E0 867 043 ANF LH
	pebble grey -KH -KH	1E0 867 043 ADC UE
	Black -17 -17	1E0 867 043 P B KA
	Satin black 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 010 1C
	pebble grey -KH -KH	1E0 867 044 C UE
	Black -KG -KG	1E0 867 044 D NT
	mauritius blue -KJ -KJ	1E0 867 044 D NU
	pebble grey -VT -VT	1E0 867 041 C UH
	pebble grey -KH -KH	1E0 867 044 ADC UE
	Black -KG -KG	1E0 867 044 ADD NT
	mauritius blue -KJ -KJ	1E0 867 044 ADD NU
	Black -VS -VS	1E0 867 041 D NW
	pebble grey -DC -DC	1E0 867 044 D C UB
	Black -DB -DB	1E0 867 044 D D NR
	mauritius blue -DD -DD	1E0 867 044 D D NS
	beaver -VM -VM	1E0 867 041 B YA
	pebble grey -KH -KH	1E0 867 044 AJC UE
	Black -KG -KG	1E0 867 044 AJD NT
	mauritius blue -KJ -KJ	1E0 867 044 AJD NU
	Black -KG -KG	1E0 867 043 ADD NT
	pebble grey -DC -DC	1E0 867 044 AFC UB
	Black -DB -DB	1E0 867 044 AFD NR
	mauritius blue -DD -DD	1E0 867 044 AFD NS
	pebble grey -DC -DC	1E0 867 043 ALC UB
	pebble grey -DC -DC	1E0 867 044 ALC UB
	Black -DB -DB	1E0 867 044 ALD NR
	mauritius blue -DD -DD	1E0 867 044 ALD NS
	Black -DB -DB	1E0 867 043 ALD NR
	pebble grey -VT -VT	1E0 867 042 C UH
	Black -VS -VS	1E0 867 042 D NW
	beaver -VM -VM	1E0 867 042 B YA
	mauritius blue -DD -DD	1E0 867 043 ALD NS
	pebble grey -VT -VT	1E0 867 042 D C UH
	Black -VS,31 -VS,31	1E0 867 042 D D NW
	mauritius blue -KJ -KJ	1E0 867 043 ADD NU
	light beige -91 -91	1E0 867 042 A E TX
	mauritius blue -92 -92	1E0 867 042 A E UR
	Black -93 -93	1E0 867 042 A D NW
	black/yellow -75 -75	1E0 867 042 A E AJ
	black/red -76 -76	1E0 867 042 A E AT
	black/blue -77 -77	1E0 867 042 A F AC
	black/green -78 -78	1E0 867 042 A F AM
	Black -79 -79	1E0 867 042 A C NQ
	bramble -89 BROMBEER -89	1E0 867 042 A D MT
	pebble grey -VT -VT	1E0 867 041 D C UH
	pebble grey -VT -VT	1E0 867 042 F C UH
	Black -VS,31 -VS,31	1E0 867 042 F D NW
	Black -VS -VS	1E0 867 041 D D NW
	black/yellow -75 -75	1E0 867 042 E E AJ
	black/red -76 -76	1E0 867 042 E E AT
	black/blue -77 -77	1E0 867 042 E F AC
	black/green -78 -78	1E0 867 042 E F AM
	Black -79,93 -79,93	1E0 867 042 E D NW
	Black -KG -KG	1E0 867 043 D NT
	Black -20,31,47,30 -20,31,47,30	1E0 867 044 N B LQ
	light beige -91 -91	1E0 867 041 A E TX
	black/yellow -75 -75	1E0 867 042 G E AJ
	black/red -76 -76	1E0 867 042 G E AT
	black/red -76 "AUTO MOTORSPORT" -76	1E0 867 042 G E AT
	black/blue -77 -77	1E0 867 042 G F AC
	black/green -78 -78	1E0 867 042 G F AM
	Black -79 -79	1E0 867 042 G D NW
	mauritius blue -92 -92	1E0 867 041 A E UR
	Black -88 -88	1E0 867 042 E D NW
	bramble -89 -89	1E0 867 042 E D MT
	Black -93 -93	1E0 867 041 A D NW
	Black -88 -88	1E0 867 042 G D NW
	black/yellow -75 -75	1E0 867 041 A E AJ
	light beige -91 -91	1E0 867 042 E E TX
	mauritius blue -92 -92	1E0 867 042 E E UR
	Black -93 -93	1E0 867 042 E D NW
	black/red -76 -76	1E0 867 041 A E AT
	light beige -91 -91	1E0 867 042 G E TX
	mauritius blue -92 -92	1E0 867 042 G E UR
	Black -93 -93	1E0 867 042 G D NW
	black/blue -77 -77	1E0 867 041 A F AC
	Black -20,31,47,30, 24,29,71 PINK-FLOYD,"A.."RABBIT,AREZZO,BON JOVI,ROLLING-STONES,PR:E 1 A:JOKER -20,31,47,30, 24,29,71	1E0 867 044 AHB LQ
	flint -39,72 BON JOVI,PR:E 1 A:JOKER -39,72	1E0 867 044 AHF LH
	black/green -78 -78	1E0 867 041 A F AM
	Black -20,31,47,30, 24,29,71,82, 83 PINK-FLOYD,"A.."RABBIT,AREZZO,BON JOVI,ROLLING-STONES,PR:E 1 A:JOKERPR:E 2 X:SPORTEDITION -20,31,47,30, 24,29,71,82, 83	1E0 867 044 ANB LQ
	flint -39,72 BON JOVI,PR:E 1 A:JOKER -39,72	1E0 867 044 ANF LH
-	Butyl adhesive/sealing strip 5 X 5000 5 X 5000	AKL 450 005 05
-	Static mixer	D 001 001
-	Bungs	1E0 868 862
-	Protective film	1E0 867 386 C
-	Protective filmfor models with electricallyoperated windows F >> 1 E-R-012 309*	1E0 867 385 A
-	Protective filmfor models with electricallyoperated windows F >> 1 E-R-012 309*	1E0 867 386 A
-	Protective filmfor models with electricallyoperated windows F 1 E-R-014 000>>*	1E0 867 386 B
-	Protective filmfor models with electricallyoperated windows F 1 E-R-014 000>>*	1E0 867 385 B
-	Protective film	1E0 867 385 C
-	Bungs	1E0 868 861
-	2-pack polyurethane adhesive also use: 50 MLD 001 001 50 MLD 001 001	D 180 KD2 A1
(1)	Side trim (fabric)	1E0 867 044 AH
(1)	Side trim (fabric)	1E0 867 043 AD
(1)	Side trim (fabric)	1E0 867 043 D
(1)	Side trim (fabric)	1E0 867 043 AJ
(1)	Side trim (fabric)	1E0 867 043 AF
(1)	Side trim(leather/leatherette)	1E0 867 041
(1)	Side trim (fabric)	1E0 867 043 AL
(1)	Side trim(leather/leatherette)	1E0 867 041 D
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 041 A
(1)	Side trim(leather/leatherette)	1E0 867 041 F
(1)	Side trim(leather/leatherette)	1E0 867 041 G
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 041 E
(1)	Side trim (fabric) PINK-FLOYD,AREZZO,"A.."RABBIT,ROLLING-STONES	1E0 867 043 N
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 041 G
(1)	Side trim(leather/leatherette) HIGHLINE	1E0 867 041 E
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 041 G
(1)	Side trim(leather/leatherette) CLASSIC-EDITION	1E0 867 041 E
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 041 G
(1)	Side trim (fabric)	1E0 867 043 AH
(1)	Side trim (fabric) PINK-FLOYD	1E0 867 043 AN
(1)	Side trim (fabric) NEW-ORLEANS"A.."	1E0 867 043 P
(1)	Side trim (fabric)	1E0 867 044 AD
(1)	Side trim (fabric)	1E0 867 044 D
(1)	Side trim (fabric)	1E0 867 044 AJ
(1)	Side trim (fabric)	1E0 867 044 AF
(1)	Side trim (fabric)	1E0 867 044 AL
(1)	Side trim(leather/leatherette)	1E0 867 042
(1)	Side trim(leather/leatherette)	1E0 867 042 D
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 042 A
(1)	Side trim(leather/leatherette)	1E0 867 042 F
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 042 E
(1)	Side trim (fabric) PINK-FLOYD,ROLLING-STONES,AREZZO,"A.."RABBIT	1E0 867 044 N
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1E0 867 042 G
(1)	Side trim(leather/leatherette) HIGHLINE	1E0 867 042 E
(1)	Side trim(leather/leatherette) HIGHLINE	1E0 867 042 G
(1)	Side trim(leather/leatherette)	1E0 867 042 E
(1)	Side trim(leather/leatherette)	1E0 867 042 G
(1)	Side trim (fabric)	1E0 867 043
(1)	Side trim (fabric) PINK-FLOYD	1E0 867 044 AN
(1)	Side trim (fabric) NEW-ORLEANS"A.."	1E0 867 044 P
(13)	collector container	1E0 868 607
(17)	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 01
(2)	Loudspeaker trim	1E0 867 149 A
(2)	Loudspeaker trim	1E0 867 149
(2)	Loudspeaker trim	1E0 867 149
(2)	Loudspeaker trim	1E0 867 150 A
(3)	mounting for loudspeaker	1E0 868 169
(4)	Insert piece	1E0 868 843
(4)	Insert piece	1E0 868 843 A
1	Side trim (fabric)	1E0 867 044
11	Clip	1H3 867 387
12	Clip	1H0 868 244 C
13	collector container	1E0 868 608
14	speed nut 5 5	N 904 348 01
15	Clamping washer 5 X 11,4 5 X 11,4	N 900 151 01
16	Bungs 23 X 10,5 X 19 23 X 10,5 X 19	1H0 867 199
17	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
18	panel screw 4,2 X 25 4,2 X 25	N 901 575 01
19	Clip	1H3 867 300 A
2	Loudspeaker trim	1E0 867 150
2	Loudspeaker trim	1E0 867 150
3	mounting for loudspeaker	1E0 868 170
4	Insert piece	1E0 868 844 B
4	Insert piece	1E0 868 844
4	Insert piece	1E0 868 844 A
4	Insert piece	1E0 868 843 B
6	fillister hd. bolt M 4 X 15 M 4 X 15	N 904 484 01
7	Speed nut 4,2 X 15,4 X 11,25 4,2 X 15,4 X 11,25	N 015 443 1
8	Speed nut M 4 X 13 X 11,5 M 4 X 13 X 11,5	N 905 066 01
9	panel screwsnap catch 4,2 X 16 4,2 X 16	N 906 399 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 22 Passenger compartment
Factory subgroup: 867050

Related factory diagrams

Other published passenger compartment plates for the Mk3 Golf in this catalogue.

Door trim panels 1993 - 1996 · subgroup 867005
Door trim panels 1993 - 1996 · subgroup 867010
Door trim panels f 1 h t 000 001 front 1993 - 1996 · subgroup 867015
Door trim panels 1993 - 1996 · subgroup 867044
Door trim panels 1993 - 1996 · subgroup 867045
Door trim panels f 1 h t 000 001 rear 4 door 1993 - 1996 · subgroup 867048
Moulded headlinersound insulation roof 1993 - 1996 · subgroup 867055
Door trim panels f 1 h p 999 000 front 1993 - 1996 · subgroup 867000

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the side panel trim diagram for the Mk3 Golf?: This diagram lists 246 OEM part numbers for the Mk3 Golf. The first three are 1E0 867 150 H 21, 1E0 867 150 Q 70 and 1H0 867 199 0 1C.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
