Which VW part numbers are on the side trim panels diagram for the Mk3 Golf?

This diagram lists 90 OEM part numbers for the Mk3 Golf. The first three are 1H3 867 043 BJE NF, 1H3 867 044 BJE NG and 1H3 867 043 CLB LB.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code 1Y.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Side trim panels — Mk3 Golf Passenger Compartment (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door panel

Generation: Mk3 1997 (RDW) Group: Passenger compartment Parts: 90 Primary OEM: 1H3 867 043 BJE NF, 1H3 867 044 BJE NG, 1H3 867 043 CLB LB

Side trim panels for the Volkswagen Golf Mk3 (1997): factory exploded diagram 867050 from the Volkswagen ETKA parts catalogue, group 22 Passenger compartment, listing 90 OEM part numbers including 1H3 867 043 BJE NF, 1H3 867 044 BJE NG and 1H3 867 043 CLB LB. Parts on this plate carry the engine code 1Y. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 90 OEM part numbers across 90 numbered positions.

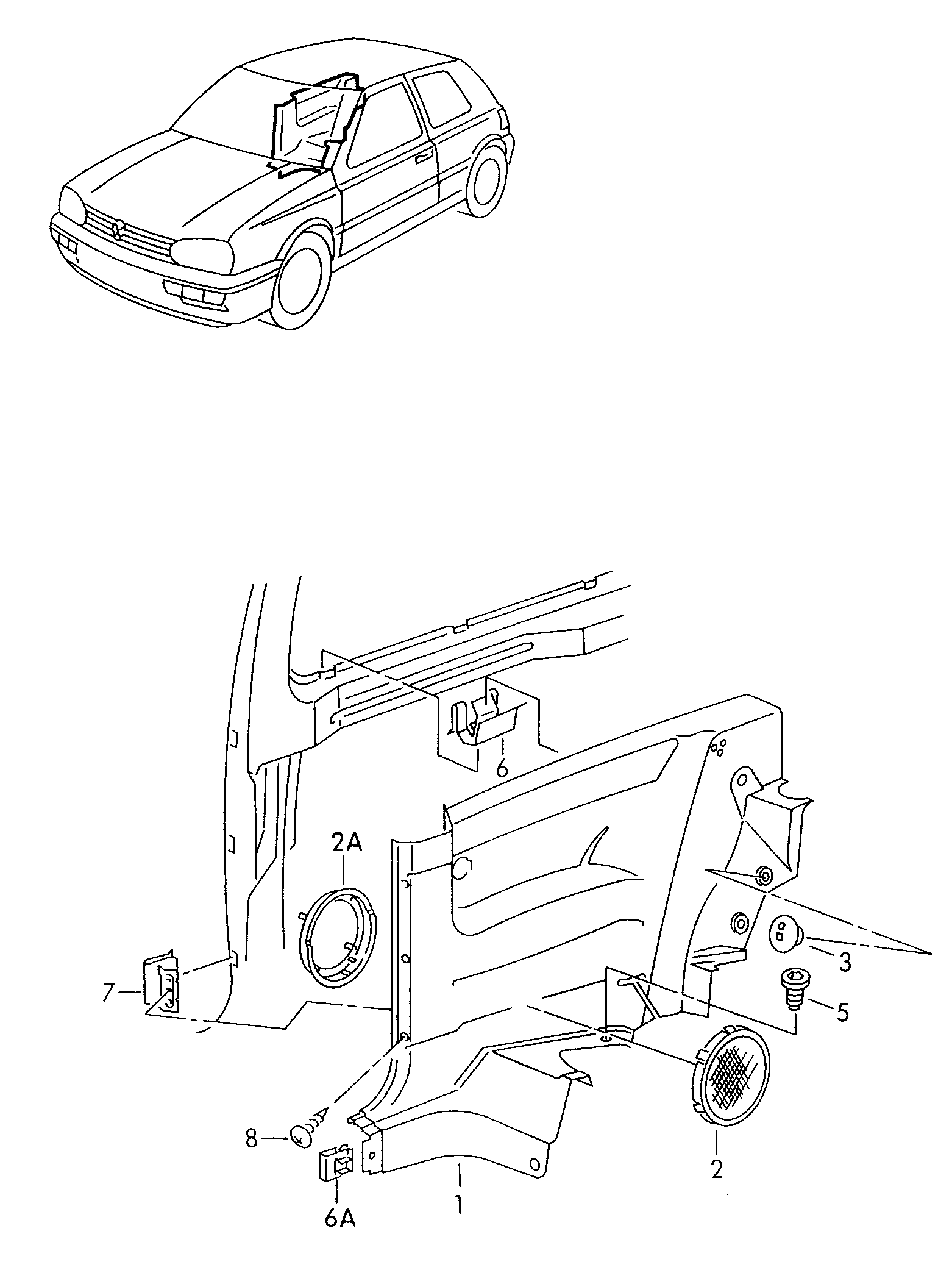

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	black/red -90 -90	1H3 867 043 BJE NF
	black/green -80 -80	1H3 867 044 BJE NG
	Black -DM CL,GL -DM	1H3 867 043 CLB LB
	beaver -DQ GL -DQ	1H3 867 043 CLB LL
	mauritius blue -DH GL -DH	1H3 867 043 CLE QH
	Black -DM CL,GL -DM	1H3 867 044 CLB LB
	beaver -DQ GL -DQ	1H3 867 044 CLB LL
	Black -XH RECARO,GTI,16 V,VR 6 -XH	1H3 867 044 CLB LX
	mauritius blue -DH GL -DH	1H3 867 044 CLE QH
	beaver -VM -VM	1H3 867 043 CMB YA
	Black -VL,99-85-86 PR:E 2 U:GTI,GTI 16 V,TDI,"I.."PR:E 4 T:GTI 16 V -VL,99-85-86	1H3 867 043 CMC NQ
	beaver -VM -VM	1H3 867 044 CMB YA
	Black -VL,99-85-86 PR:E 2 U:GTI,GTI 16 V,TDI,"I.."PR:E 4 T:GTI 16 V -VL,99-85-86	1H3 867 044 CMC NQ
	black/yellow -75 -75	1H3 867 043 CJE AJ
	black/red -76 -76	1H3 867 043 CJE AT
	black/blue -77 -77	1H3 867 043 CJF AC
	black/green -78 -78	1H3 867 043 CJF AM
	black/black -79-81 PR:E 2 R:OTMAR ALT -79-81	1H3 867 043 CJC NQ
	black/yellow -75 -75	1H3 867 044 CJE AJ
	black/red -76 -76	1H3 867 044 CJE AT
	black/blue -77 -77	1H3 867 044 CJF AC
	black/green -78 -78	1H3 867 044 CJF AM
	black/black -79-81 PR:E 2 R:OTMAR ALT -79-81	1H3 867 044 CJC NQ
	Black -RB,BA,BB,QB, QA -RB,BA,BB,QB, QA	1H3 867 043 CNB VK
	Black -RB,BA,BB,QB, QA -RB,BA,BB,QB, QA	1H3 867 044 CNB VK
	bramble	1H3 867 043 CPD MT
	bramble	1H3 867 044 CPD MT
	Satin black	1H3 868 149 A B 41
	beaver	1H3 868 149 A T 21
	flint	1H3 868 149 A Y 01
	Satin black	1H3 868 150 A B 41
	beaver	1H3 868 150 A T 21
	flint	1H3 868 150 A Y 01
	Satin black 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 010 1C
	beaver 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01T 21
	Satin black	N 905 740 010 1C
	Satin black	1H0 867 199 0 1C
	Black -RB,17 CL,"A..":RABBIT -RB,17	1H3 867 043 BJB KA
	beaver -RC CL -RC	1H3 867 043 BJB KB
	Black -AN,AY,UB,JE, 15,34,47,24, 29,35,31,71-25-37 CL,GL,GT,VR 6 GTD:sportsversion AVENUE,MATCH"A..":RABBITAREZZO,BON JOVI,PR:E 2 U:GTI,GTI 16 V,TDI,"E.."PR:E 2 J:JUNIOR,"E.."PR:E 2 H:PLUS,PR:E 2 P:RABBIT,JOKER"I.."PR:E 4 T:GTI 16 V"BR."PR:E 1 F:CL-PLUS -AN,AY,UB,JE, 15,34,47,24, 29,35,31,71-25-37	1H3 867 043 BJB LQ
	Black -XH RECARO,GTI,16 V,VR 6 -XH	1H3 867 043 CLB LX
	flint -39,72 BON-JOVI,"A.."PR:E 1 Y:RABBIT,PR:E 2 P:RABBIT,JOKER -39,72 1Y	1H3 867 043 BJF LH
	Black -32 MOVIE -32	1H3 867 043 BJE PP
	Black -RB,17 CL,"A..":RABBIT -RB,17	1H3 867 044 BJB KA
	beaver -RC CL -RC	1H3 867 044 BJB KB
	Black -AN,AY,UB,JE, 15,34,47,24, 29,35,31,71-25 CL,GL,GT,VR 6 GTD:SPORT-AUSFUEHRUNGAVENUE,MATCH"A..":RABBITAREZZO,BON JOVI,PR:E 2 U:GTI,GTI 16 V,TDI,"E.."PR:E 2 J:JUNIOR,"E.."PR:E 2 H:PLUS,PR:E 2 P:RABBIT,JOKER"I.."PR:E 4 T:GTI 16 V -AN,AY,UB,JE, 15,34,47,24, 29,35,31,71-25	1H3 867 044 BJB LQ
	Black -32 MOVIE -32	1H3 867 044 BJE PP
	flint -39,72 BON-JOVI"A.."PR:E 1 Y:RABBIT,PR:E 2 P:RABBIT,JOKER -39,72 1Y	1H3 867 044 BJF LH
	black/blue -60 -60	1H3 867 043 BJE ND
	black/yellow -70 -70	1H3 867 043 BJD YX
	black/green -80 -80	1H3 867 043 BJE NG
	black/blue -60 -60	1H3 867 044 BJE ND
	black/red -90 -90	1H3 867 044 BJE NF
	black/yellow -70 -70	1H3 867 044 BJD YX
-	primer 10 ML 10 ML	D 009 200 02
-	1 K window adhesive 110 ML 110 ML	DH 009 100 03
(1)	Side trim (fabric)	1H3 867 044 CL
(1)	Side trim (leatherette)	1H3 867 044 CN
(1)	Side trim(leather/leatherette)	1H3 867 043 CM
(1)	Side trim (fabric)	1H3 867 043 BJ
(1)	Side trim(leather/leatherette) HIGHLINE	1H3 867 043 CP
(1)	Side trim (leatherette)	1H3 867 043 CN
(1)	Side trim (fabric)	1H3 867 043 BJ
(1)	Side trim(leather/leatherette)	1H3 867 044 CM
(1)	Side trim(leather/leatherette) HIGHLINE	1H3 867 044 CP
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1H3 867 043 CJ
(1)	Side trim (fabric) GTI-EDITION	1H3 867 043 BJ
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1H3 867 043 CJ
(1)	Side trim (fabric) GTI-EDITION	1H3 867 043 BJ
(1)	Side trim (fabric) GTI-EDITION	1H3 867 044 BJ
(1)	Side trim (fabric) GTI-EDITION	1H3 867 044 BJ
(1)	Side trim(leather/leatherette) COLOUR-CONCEPT	1H3 867 044 CJ
(1)	Side trim (fabric)	1H3 867 043 CL
(1)	Side trim (fabric)	1H3 867 043 CL
(1)	Side trim (fabric)	1H3 867 044 CL
(2)	Loudspeaker trim	1H3 868 149 A
(2A)	mounting for loudspeaker	1H3 867 373
1	Side trim (fabric)	1H3 867 044 BJ
1	Side trim (fabric)	1H3 867 044 BJ
2	Loudspeaker trim	1H3 868 150 A
2	Loudspeaker trim	1H3 868 150 A
2A	mounting for loudspeaker	1H3 867 374
3	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
3	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 01
3	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
5	Bungs 23 X 10,5 X 19 23 X 10,5 X 19	1H0 867 199
6	Clip	1H3 867 300
6A	Clip	1H3 867 300 A
7	Clip	1H3 867 387
8	panel screw 4,2 X 25 4,2 X 25	N 901 575 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these passenger compartment diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y
Variant tags: diesel
Factory group: 22 Passenger compartment
Factory subgroup: 867050
