Rear axle beam attachment parts — Mk3 Golf Rear Axle (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Rear axle beam with attachment parts

Generation: Mk3 1997 (RDW) Group: Rear axle Rebuild step 3 Parts: 49 Primary OEM: 191 614 149 E OT, 1H0 500 051 R, 1H0 500 051 Q

Rear axle beam attachment parts for the Volkswagen Golf Mk3 (1997): factory exploded diagram 500020 from the Volkswagen ETKA parts catalogue, group 03 Rear axle, listing 49 OEM part numbers including 191 614 149 E OT, 1H0 500 051 R and 1H0 500 051 Q. Parts on this plate carry the engine code AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 49 OEM part numbers across 49 numbered positions.

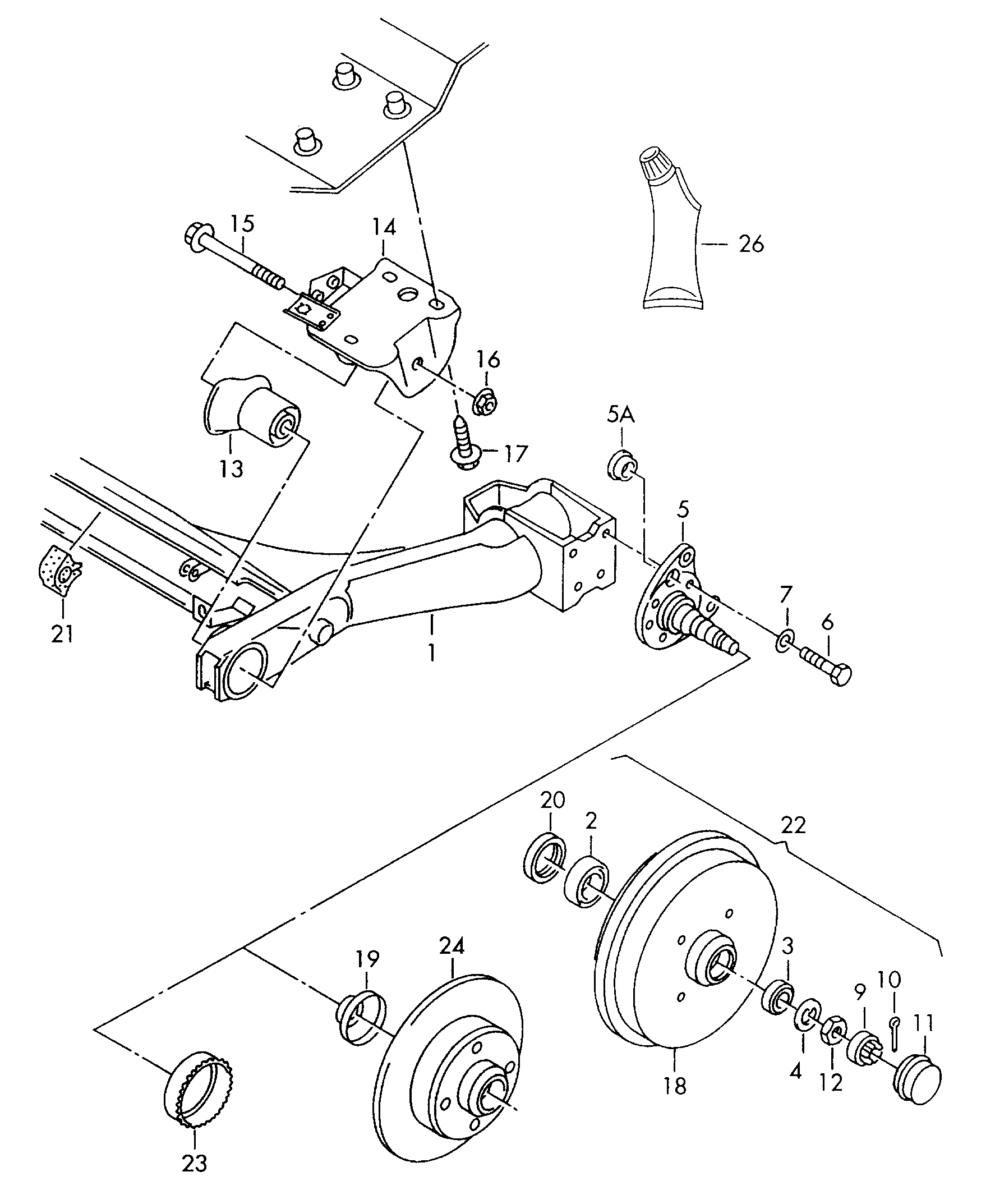

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	impulse rotor	191 614 149 E OT
(1)	rear axle beam F >> 1 H-V-000 966 for models with drumbrakes Brake power regulator(pressure-dependent) also use: 1 H 0 609 734 D 1 H 0 609 734 C AEX 1 H 0 609 734 D 1 H 0 609 734 C AEX	1H0 500 051 R
(1)	rear axle beam withstabilizerfor models with discbrakes also use:optional: 1 H 0 609 734 D 1 H 0 609 734 C 1 H 0 609 734 D 1 H 0 609 734 C	1H0 500 051 Q
(1)	rear axle beamfor models with drumbrakes also use:optional: 1 H 0 609 734 D 1 H 0 609 734 C 1 H 0 609 734 D 1 H 0 609 734 C	1H0 500 051 S
(1)	rear axle beam F 1 H-V-000 967>>for models with drumbrakesbrake pressure regulator(load sensitive) also use:optional: 1 H 0 609 734 D 1 H 0 609 734 C AEX 1 H 0 609 734 D 1 H 0 609 734 C AEX	1H0 500 051 S
(14)	Bracket	1H0 501 544
(19)	Cover F 1 H-VD 042 501>>F 1 H-VB 170 001>>F 1 H-VP 340 001>>F 1 H-VW 510 001>> D=59 MM D=59 MM	1H0 501 639
(19)	Cover F >> 1 H-VD 042 500F >> 1 H-VB 170 000F >> 1 H-VP 340 000F >> 1 H-VW 510 000 D=57 MM D=57 MM	191 501 639 B
(24)	Brake disc 226 X 10 5/100 226 X 10 5/100	357 615 601 B
(5)	stub axlefor vehicles with drum brakesand anti-locking brake system	333 501 118 A
(5)	stub axlefor models with drumbrakes	357 501 117 A
(5)	stub axlefor models with drumbrakes	357 501 117
(5)	stub axlefor vehicles with drum brakesand anti-locking brake system	333 501 117 A
(5)	stub axlefor vehicles with drum brakesand anti-locking brake system	191 501 117 D
(5)	stub axlefor vehicles with drum brakesand anti-locking brake system	191 501 118 C
(5)	stub axlefor models with discbrakesfor models with anti-lockbrake system -abs- also use:For vehicles without anti-lock braking system 191 501 159 191 501 159	333 501 118
(5)	stub axlefor models with discbrakesfor models with anti-lockbrake system -abs- also use:For vehicles without anti-lock braking system 191 501 159 191 501 159	191 501 118 D
10	split pin 4 X 30 4 X 30	N 012 536 1
11	Cap	823 501 249
12	Hexagon nut M 16 X 1 M 16 X 1	N 011 167 1
13	Bonded rubber bush	1H0 501 541 A
13	Bonded rubber bush F >> 1 H-V-100 000*	1H0 501 541
14	Bracket	1H0 501 543 A
14	Bracket AEX AEX	1H0 501 543
15	Hex collared bolt M 12 X 1,5 X 122 M 12 X 1,5 X 122	N 903 544 01
16	Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5	N 902 385 03
17	Hex collared bolt M 10 X 26 M 10 X 26	N 100 400 03
17	Hex collared bolt M 10 X 25 M 10 X 25	N 101 417 01
18	brake drum 200 X 40 -4/100 200 X 40 -4/100	1H0 501 615 A
19	Coverfor models with drumbrakes For vehicles without anti-lock braking system	191 501 639 A
2	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 F
2	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 E
20	Shaft oil seal	357 501 641 B
21	Rubber bushfor models with rearanti-roll bar	871 511 423
22	Wheel bearing with assemblyparts	191 598 625
23	rotor for speed sensor also use: 1 H 0 501 639 1 H 0 501 639	1J0 614 149
23	rotor for speed sensorfor ABS anti-lock braking sys	191 614 149
24	Brake disc 226 X 10 4/100 226 X 10 4/100	357 615 601
26	universal grease 120 G 120 G	G 052 735 A2
3	Taper roller bearing	311 405 645 B
3	Taper roller bearing 39 MM 39 MM	311 405 645
4	pressure washer	311 405 661
5	stub axlefor models with discbrakesfor models with anti-lockbrake system -abs- also use:For vehicles without anti-lock braking system 191 501 159 191 501 159	191 501 117 E
5	stub axlefor models with discbrakesfor models with anti-lockbrake system -abs- also use:For vehicles without anti-lock braking system 191 501 159 191 501 159	333 501 117
5A	Bungs	191 501 159
6	hexagon head bolt (combi) M 10 X 32 M 10 X 32	N 905 248 01
6	hexagon head bolt (combi) M 10 X 32 M 10 X 32	N 907 589 01
7	Belleville spring B 10 B 10	321 501 119 A
9	Crown bracing	803 501 221

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear axle diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AEX
Factory group: 03 Rear axle
Factory subgroup: 500020
