Suspension rear — Mk3 Golf Rear Axle (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Suspension

Generation: Mk3 1997 (RDW) Group: Rear axle Rebuild step 3 Parts: 43 Primary OEM: 1H6 511 115 F, 1H6 511 115 K, 1H6 511 115 L

Suspension rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 511010 from the Volkswagen ETKA parts catalogue, group 03 Rear axle, listing 43 OEM part numbers including 1H6 511 115 F, 1H6 511 115 K and 1H6 511 115 L. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 43 OEM part numbers across 43 numbered positions.

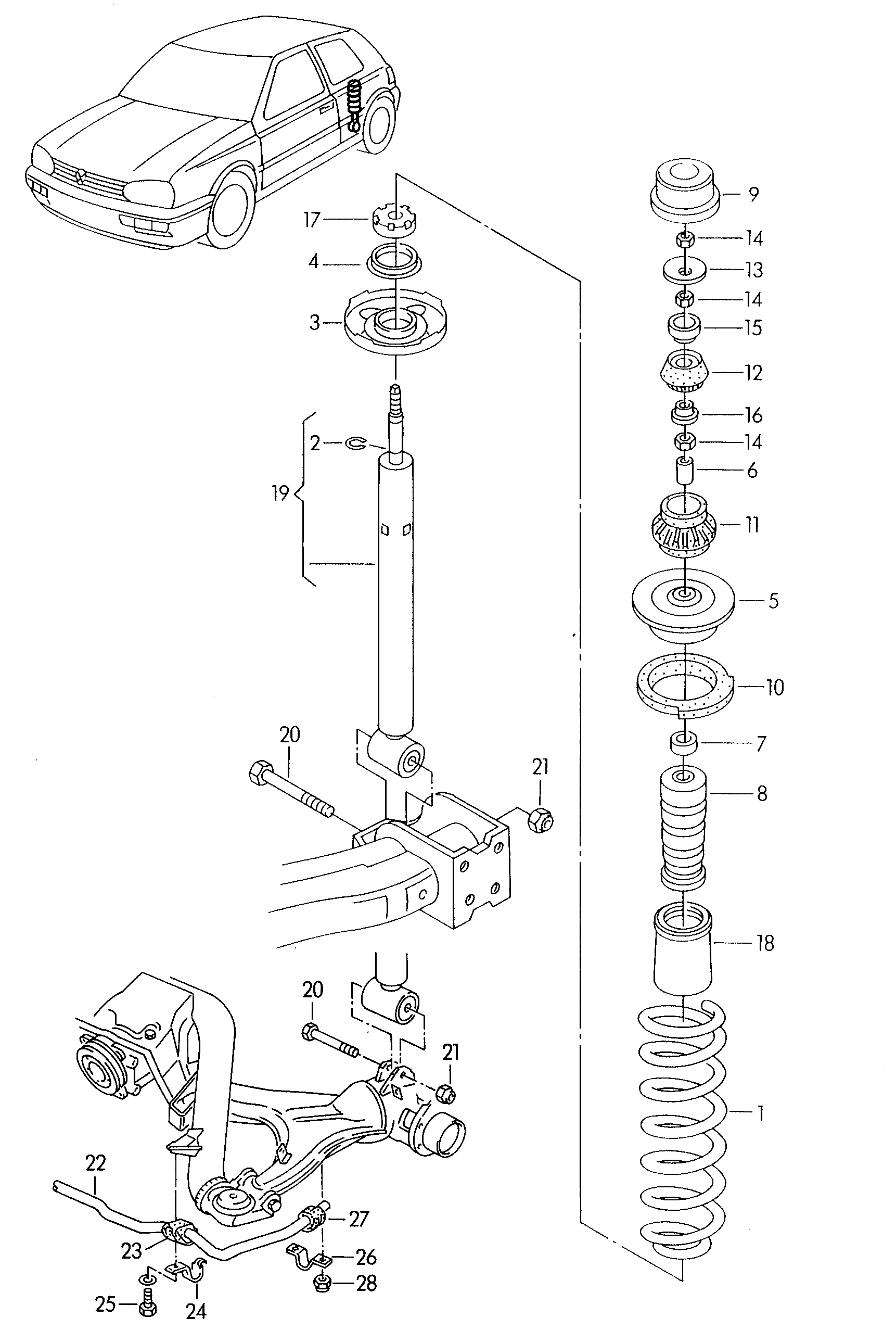

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(1)
Coil spring 3 paint marks 1 paint mark ABF,AAA,ADY,AGG,AKR;PR:E 2 U:GTI
AAAABFADYAGG
1H6 511 115 F
(1)
Coil spring 3 paint marksfor models withheavy duty suspension
 1H6 511 115 K
(1)
Coil spring 3 paint marks Local deliv.van ADAC
 1H6 511 115 K
(1)
Coil spring 3 paint marks "GB.":ADZ,1 Y,AEX;"J..","GUS","CN.":AAA
1Y
1H6 511 115 K
(1)
Coil spring 4 colour strokes 1 paint mark ABF,AAA,ADY,AGG,AKR;PR:E 2 U:GTI
AAAABFADYAGG
1H6 511 115 L
(1)
Coil spring 2 paint marks Sportsversion+1 Z,ADZ,AHU,ALE;Automatic+ADY,AGG;MATCH
ADZAHU
1H6 511 115 J
(1)
Coil spring 3 paint marks AAM,1 Y,AAZ,ADZ,AEY,AEE,AEX,APQ
1YAAMAAZADZAEEAEXAEYAPQ
1H6 511 115 K
(1)
Coil spring 2 paint marks "GB.":ADZ,1 Y,AEX;"J..","GUS","CN.":AAA
1Y
1H6 511 115 J
(1)
Coil spring 3 paint marks AEP;"BR.":ADY,ACC;"GUS","CN.":AAA
 1H6 511 115 K
(1)
Coil spring 2 paint marks AAM,1 Y,AAZ,1 Z,ADZ,AEY,AEE,AEX,AHU,ALE,APQ;AFN,AFT,AKS;"J..":ADY
1Y1ZAAMAAZADZAEEAEXAEYAFTAHUALE
1H6 511 115 J
(17)
Protective cap AAA,ABF,ADY,AGG,AKR
AAAABFADYAGGAKR
1H0 513 269 C
(19)
Shock absorbers "GB.":ADZ,1 Y,AEX;"J..","BR.":ADY
1Y
1H0 513 031 D
(19)
Shock absorbers, reinforced ADAC;"BR.":ACC
 1H0 513 031 B
(19)
Gas shock absorberfor sports suspension AAA,ABF,ADY,AGG,AKR;"J..","GUS","CN.":AAA;PR:E 2 U:GTI
AAAABFADYAGG
1H0 513 031 S
(19)
Shock absorbers GT:ADZ,1 Z,AHU,ALE;AFT,AFN,AKS;Automatic+ADY,AGG,AFN;MATCH
1ZADZAFNAGGAHU
1H0 513 031 D
(19)
Shock absorbers, reinforcedfor models withheavy duty suspension
 1H0 513 031 B
(8)
Stop buffer 140 MM AAA,ABF,ADY,AGG,AKR
140 MM
AAAABFADYAGGAKR
1H0 512 131 C
10
Underlay
 1H0 512 149
11
bearing ring
 191 512 333
12
bearing ring
 191 512 335
13
Cup washer
 191 512 337
14
Hexagon nut M 10 X 1
M 10 X 1
 N 011 157 1
14
Hexagon nut M 10 X 1
M 10 X 1
 N 103 286 02
15
pressure washer
 191 512 339
16
support washer
 191 512 340
17
Protective cap AAM,1 Y,AAZ,1 Z,ADZ,AEE,AFT,AEP,ACC,AEY,AEX,AFN,AHU,AKS,ALE,APQ;Automatic+ADY,AEP,AGG,AFN;"J..":ADY,AAA;"GUS","CN.":AAA
1Y1ZAAMAAZACCADZAEEAEPAEXAEYAFNAFTAGGAHUAKSALE
191 513 269
18
protective pipe
 191 513 425
19
Shock absorbers AAM,1 Y,AAZ,1 Z,AEP,AHU,AEE,AEX,ADZ,ALE,APQ,AEY;post,police TAXI
1Y1ZAAMAAZADZAEEAEPAEXAHUALEAPQ
1H0 513 031
19
Shock absorbers "GB.":ADZ,1 Y,AEX
1YAEX
1H0 513 031
2
snap ring
 823 512 097
2
snap ring
 8D0 512 097
20
Hexagon bolt M 10 X 75
M 10 X 75
 N 100 236 02
20
Hexagon bolt M 10 X 75 X 45
M 10 X 75 X 45
 N 905 173 02
21
hexagon nut, self-locking M 10
M 10
 N 900 876 02
21
hexagon nut, self-locking M 10
M 10
 N 102 090 05
3
spring disc
 321 512 103 C
3
spring disc
 3A0 512 103
4
Underlay
 321 512 109
5
spring disc
 191 512 113
6
spacer sleeve
 191 512 117
7
ring 4,1 X 20 X 11,1
4,1 X 20 X 11,1
 191 512 119
8
Stop buffer 146 MM AAM,1 Y,AAZ,1 Z,ADZ,AEE,AFT,AEP,ACC,AEY,AEX,AFN,AHU,AKS,ALE,APQ;Automatic+ADY,AEP,AGG,AFN;"J..":ADY,AAA;"GUS","CN.":AAA
146 MM
1Y1ZAAMAAZACCADZAEEAEPAEXAEYAFNAFTAGGAHUAKSALE
191 512 131 B
9
Protective cap
 191 512 135
