Which VW part numbers are on the suspension rear diagram for the Mk3 Golf?

This diagram lists 35 OEM part numbers for the Mk3 Golf. The first three are 165 501 462, 171 513 381 and 1H5 511 115 J.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes AAA, AAM, AAZ, ABA, ACC, ADC and ADD.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Suspension rear — Mk3 Golf Rear Axle (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Suspension

Generation: Mk3 1993 - 1996 (MEX) Group: Rear axle Rebuild step 3 Parts: 35 Primary OEM: 165 501 462, 171 513 381, 1H5 511 115 J

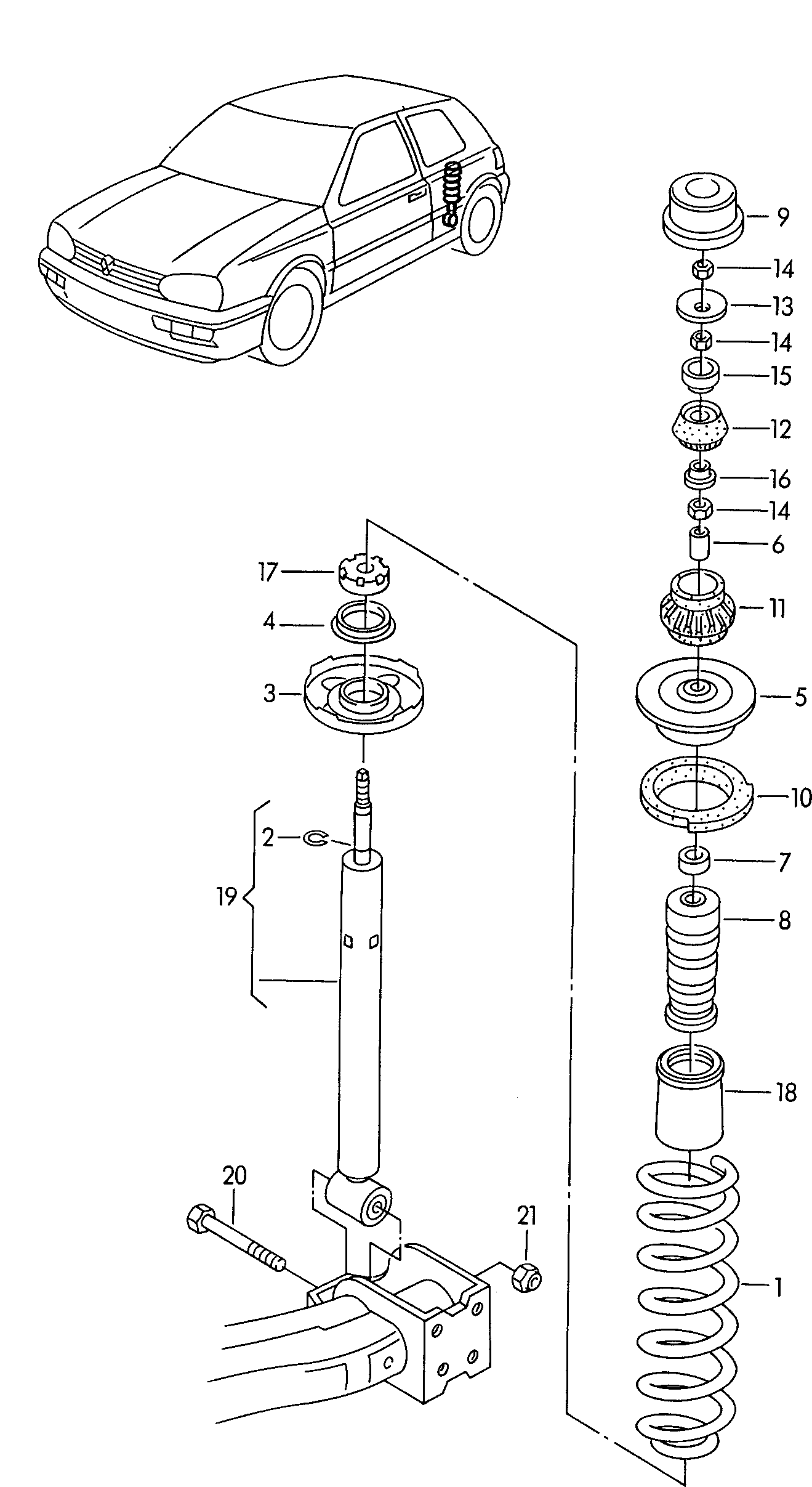

Suspension rear for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 511010 from the Volkswagen ETKA parts catalogue, group 03 Rear axle, listing 35 OEM part numbers including 165 501 462, 171 513 381 and 1H5 511 115 J. Parts on this plate carry the engine codes AAA, AAM, AAZ, ABA, ACC, ADC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 35 OEM part numbers across 35 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Protective plate	165 501 462
-	Rubber bush	171 513 381
(1)	Coil spring 2 paint marks 1 paint mark only to be used for:2 paint marks 1 paint mark JETTA	1H5 511 115 J
(1)	Coil spring 3 paint marks GOLF:AAM,ACCABA AAM	1H6 511 115 B
(1)	Coil spring 2 paint marks GOLF+AAM,ACC,ADD,ADC,AAA,ABA AAAABAACCADCADD	1H6 511 115 J
(1)	Coil spring 2 paint marks GOLF:AAM,ABAACC,ADD,ADC,AAA AAAAAMADCADD	1H6 511 115 A
(17)	Protective cap AAA AAA	1H0 513 269 D
(17)	Protective cap AAA AAA	1H0 513 269 C
(19)	Shock absorbers "USA","CND"ABA	1HM 513 031 E
(19)	Gas shock absorberfor sports suspension AAA AAA	1H0 513 031 S
(19)	Shock absorbers ADD ADD	1HM 513 031 F
(19)	Shock absorbers ABA,ADC ABAADC	1HM 513 031 E
(19)	Shock absorbers F >> 1 H-T-025 600 ABA,ADC ABAADC	1HM 513 031 E
(19)	Shock absorbers F >> 1 H-T-025 600 ABA,ADC ABAADC	1HM 513 031
(8)	Stop buffer 140 MM AAA 140 MM AAA	1H0 512 131 C
10	Underlay	1H0 512 149
11	bearing ring	191 512 333
12	bearing ring	191 512 335
13	Cup washer	191 512 337
14	Hexagon nut M 10 X 1 M 10 X 1	N 103 286 02
15	pressure washer	191 512 339
16	support washer	191 512 340
17	Protective cap	191 513 269
18	protective pipe 90 MM 90 MM	191 513 425
2	snap ring	823 512 097
2	snap ring	8D0 512 097
20	Hexagon bolt M 10 X 75 X 45 M 10 X 75 X 45	N 905 173 04
21	hexagon nut, self-locking M 10 M 10	N 102 090 05
3	spring disc	3A0 512 103
4	Underlay	321 512 109
5	spring disc	191 512 113
6	spacer sleeve	191 512 117
7	ring 4,1 X 20 X 11,1 4,1 X 20 X 11,1	191 512 119
8	Stop buffer 146 MM ACC,AAZ,ABA,AAM,ADC 146 MM AAMAAZABAACCADC	191 512 131 B
9	Protective cap	191 512 135

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear axle diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA, AAM, AAZ, ABA, ACC, ADC, ADD
Factory group: 03 Rear axle
Factory subgroup: 511010
