Which VW part numbers are on the door lock inner actuator door handle exterior rear diagram for the Mk3 Golf?

This diagram lists 49 OEM part numbers for the Mk3 Golf. The first three are 1H4 839 205 B 3 FZ, 1H0 837 226 C 82 and 1H0 837 226 Y 01.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Door lock inner actuator door handle exterior rear — Mk3 Golf Rear Door (1997)

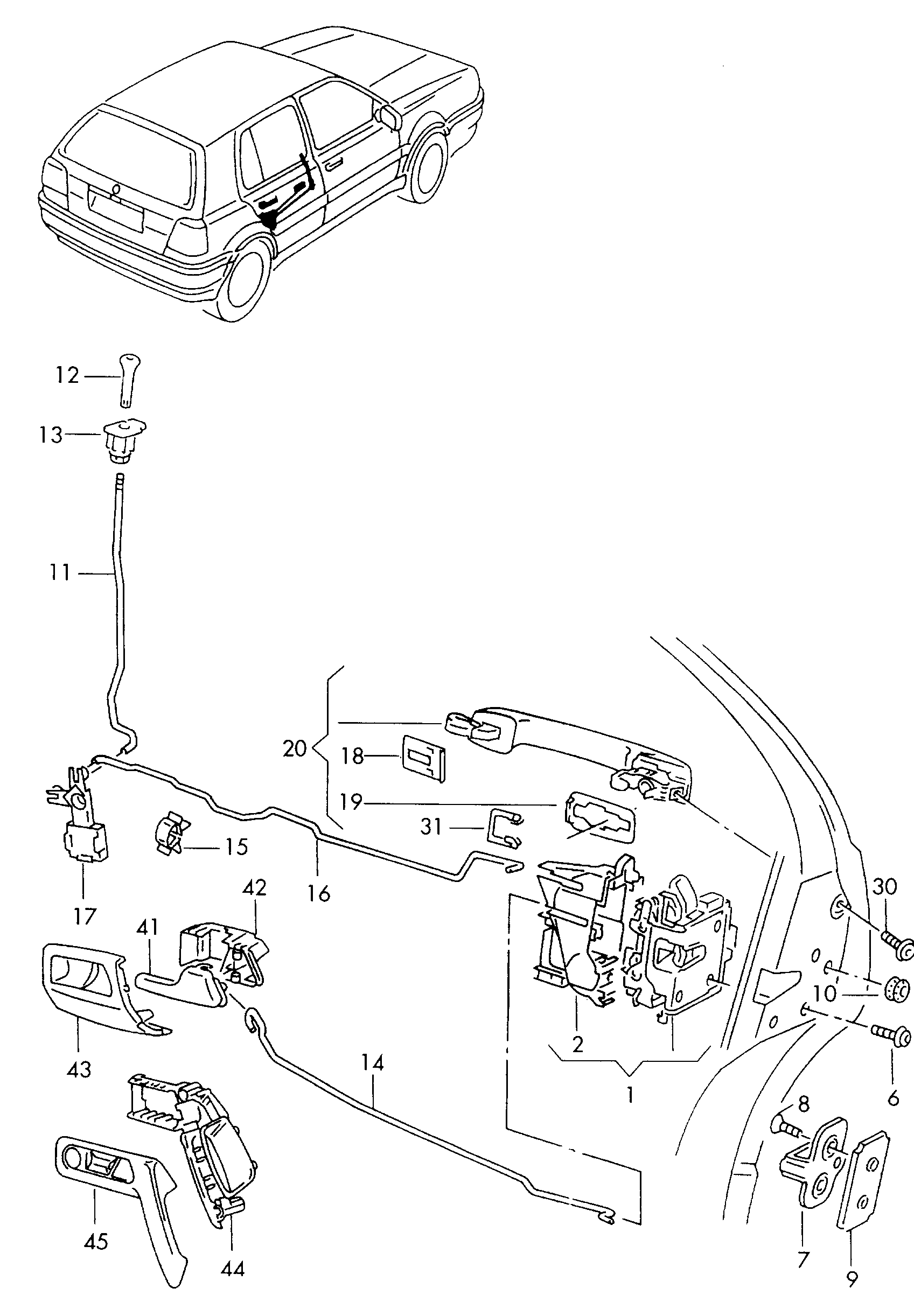

Factory title: Volkswagen Golf (1997 - 1998) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk3 1997 (RDW) Group: Rear door Parts: 52 Primary OEM: 1H4 839 205 B 3 FZ, 1H0 837 226 C 82, 1H0 837 226 Y 01

Door lock inner actuator door handle exterior rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 839000 from the Volkswagen ETKA parts catalogue, group 36 Rear door, listing 49 OEM part numbers across 52 catalogued positions including 1H4 839 205 B 3 FZ, 1H0 837 226 C 82 and 1H0 837 226 Y 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 49 OEM part numbers across 52 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H4 839 205 B 3 FZ
	soft black	1H0 837 226 C 82
	pebble grey	1H0 837 226 Y 01
	Satin black	1H0 837 226 B 41
	beaver	1H0 837 226 T 21
	soft black	1H0 837 225 C 82
	pebble grey	1H0 837 225 Y 01
	Satin black	1H0 837 225 B 41
	beaver	1H0 837 225 T 21
	Satin black	1H0 837 111 A B 41
	Satin black	3B0 837 111 B 41
	Satin black	1H0 837 187 A 0 1C
(1)	Door lockfor vehicles with centrallocking system	1H4 839 015 G
(1)	Door lock	6N4 839 016 B
(1)	Door lock	6N4 839 015 B
(1)	Door lock	1H4 839 016
(1)	Door lock	1H4 839 015
(1)	Door lockfor vehicles with centrallocking system	1H4 839 016 G
(14)	pull rod	1H4 839 081 A
(16)	locking rod I I	1H4 839 811
(17)	relay lever	193 839 825
(41)	Inner actuator	1H0 837 225
(41)	Inner actuator	1H0 837 225
(42)	Housing for inner actuator	1H0 837 141
10	Bungs	1H0 837 111 A
10	Bungs 16 16	3B0 837 111
11	locking rod fordoor lock	1H4 839 183
12	knob for locking rod	1H0 837 187 A
13	see illustration: 867-040 867-040	—
14	pull rod	1H4 839 082 A
15	Clip	321 837 199
16	locking rod I I	1H4 839 812
17	relay lever	193 839 826
18	Underlay	1H0 837 209
19	Underlay	1H0 837 211 B
2	throttle control elementfor vehicles with centrallocking system No replacement part Included in position: 1 1	—
20	Door handle, exterior	1H4 839 205 B
30	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 04
31	Clip	357 837 242
41	Inner actuator	1H0 837 226
41	Inner actuator	1H0 837 226
42	Housing for inner actuator	1H0 837 142
44-45	see illustration: 867-040 867-040	—
6	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 01
6	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 04
7	Lock striker	1H0 837 034 A
7	Lock striker	1H0 837 034 C
7	Lock striker	1H0 837 034 E
8	oval head countersunk bolt M 8 X 22 M 8 X 22	N 102 349 01
8	oval head countersunk bolt M 8 X 22 M 8 X 22	N 905 331 01
9	Threaded plate	6N0 809 237
9	Threaded plate	1H0 809 237

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 36 Rear door
Factory subgroup: 839000
