Window regulator rear — Mk3 Golf Rear Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk3 1997 (RDW) Group: Rear door Parts: 37 Primary OEM: 1H4 839 410 A 0 3C, 1H4 839 409 A 0 3C, 1H4 839 472 B B 41

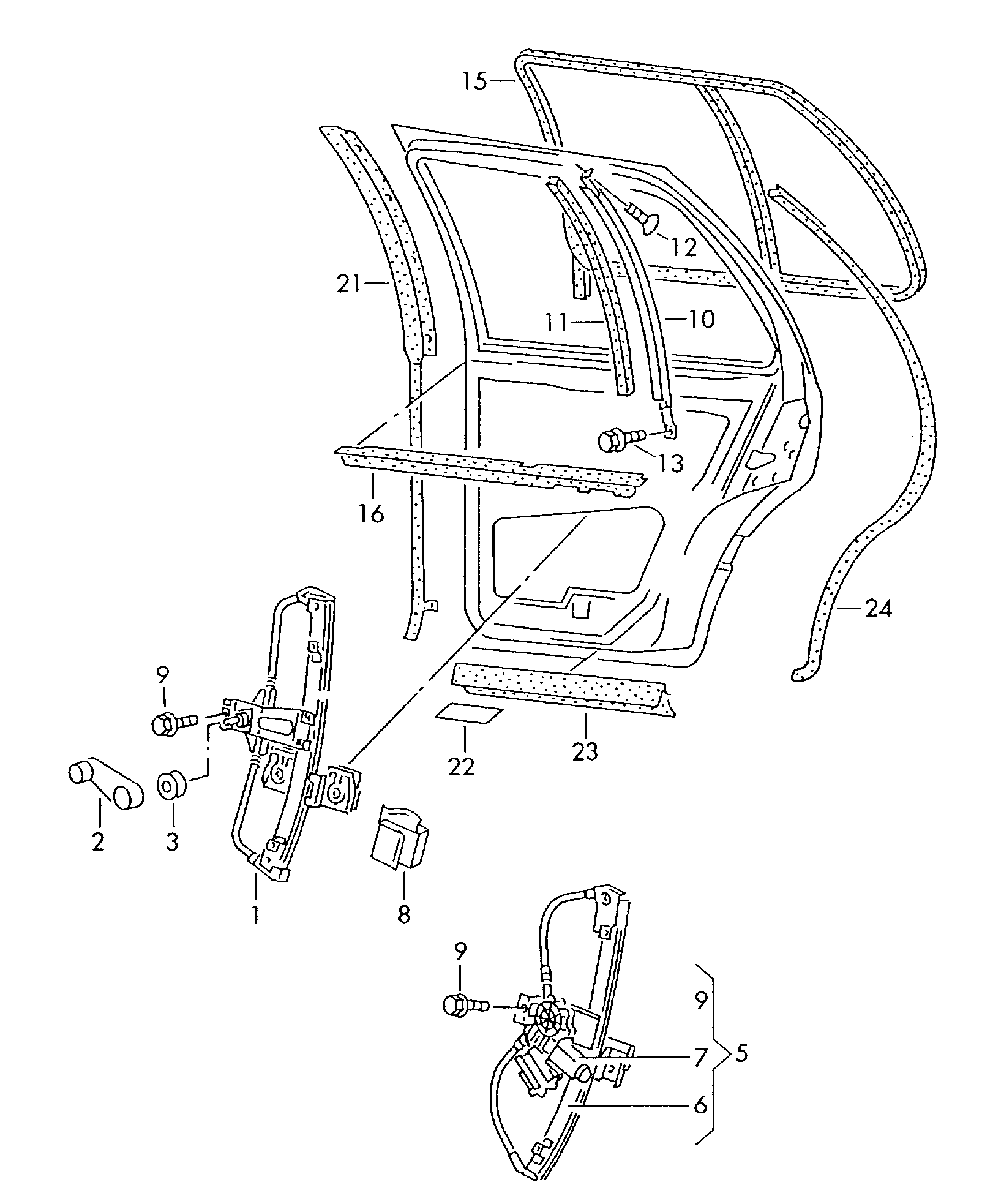

Window regulator rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 839060 from the Volkswagen ETKA parts catalogue, group 36 Rear door, listing 36 OEM part numbers across 37 catalogued positions including 1H4 839 410 A 0 3C, 1H4 839 409 A 0 3C and 1H4 839 472 B B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 36 OEM part numbers across 37 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
rally black
 1H4 839 410 A 0 3C
rally black
 1H4 839 409 A 0 3C
Satin black
 1H4 839 472 B B 41
Satin black
 1H0 837 581 B B 41
beaver
 1H0 837 581 B T 21
pebble grey
 1H0 837 581 B Y 01
Satin black
 1H4 839 471 B B 41
Satin black
 1H0 837 581 D B 41
pebble grey
 1H0 837 581 D Y 01
beaver
 1H0 837 581 D T 21
(1)
Window regulator
 1H4 839 401 E
(1)
Window regulator
 1H4 839 402 E
(10)
Guide rail
 1H4 839 409 A
(15)
Window guide
 1H4 839 431
(16)
Window aperture seal
 1H4 839 471 B
(6)
Window regulator without motor
 1H4 839 461 A
(7)
Window regulator motor F >> 1 H-VW 720 000*F >> 1 H-VB 240 000*F >> 1 H-VP 480 000*F >> 1 H-D-720 000* "J..""J..""J..""J.."
 1H4 959 811 A
(7)
Window regulator motor use if required:F 1 H-VW 720 001>>*F 1 H-VB 240 001>>*F 1 H-VP 480 001>>*F 1 H-VD 720 001>>* 803 959 849 "J..""J..""J..""J.."
803 959 849
 1H4 959 811 B
(7)
Window regulator motor F >> 1 H-VW 420 000*F >> 1 H-VB 140 000*F >> 1 H-VP 280 000*F >> 1 H-VD 420 000*
 1H4 959 812 A
(7)
Window regulator motor F >> 1 H-VW 720 000*F >> 1 H-VB 240 000*F >> 1 H-VP 480 000*F >> 1 H-VD 720 000* "J..""J..""J..""J.."
 1H4 959 812 A
(7)
Window regulator motor F >> 1 H-VW 420 000*F >> 1 H-VB 140 000*F >> 1 H-VP 280 000*F >> 1 H-VD 420 000*
 1H4 959 811 A
(7)
Window regulator motor use if required:F 1 H-VW 720 001>>*F 1 H-VB 240 001>>*F 1 H-VP 480 001>>*F 1 H-VD 720 001>>* 803 959 849 "J..""J..""J..""J.."
803 959 849
 1H4 959 812 B
(7)
Window regulator motor use if required:F 1 H-VW 420 001>>*F 1 H-VB 140 001>>*F 1 H-VP 280 001>>*F 1 H-VP 420 001>>* 803 959 849
803 959 849
 1H4 959 811 B
10
Guide rail
 1H4 839 410 A
11
Window guide 510 MM
510 MM
 1H4 839 433 B
12
Oval-head bolt, self-locking M 5 X 10
M 5 X 10
 N 014 129 13
13
bolt, hex. hd. with shoulder,self-locking M 6 X 10
M 6 X 10
 N 014 340 1
15
Window guide
 1H4 839 432
16
Window aperture seal
 1H4 839 472 B
2
window crank
 1H0 837 581 B
2
window crank
 1H0 837 581 D
3
Seal 60 X 20 X 15
60 X 20 X 15
 411 837 447
5
No longer available
 —
6
Window regulator without motor
 1H4 839 462 A
7
Window regulator motor use if required:F 1 H-VW 420 001>>*F 1 H-VB 140 001>>*F 1 H-VP 280 001>>*F 1 H-VD 420 001>>* 803 959 849
803 959 849
 1H4 959 812 B
8
Bracket
 803 959 849
9
bolt, hex. hd. with shoulder,self-locking M 6 X 10
M 6 X 10
 N 014 340 1

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these rear door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Factory group
36 Rear door
Factory subgroup
839060

Related factory diagrams

Other published rear door plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the window regulator rear diagram for the Mk3 Golf?
This diagram lists 36 OEM part numbers for the Mk3 Golf. The first three are 1H4 839 410 A 0 3C, 1H4 839 409 A 0 3C and 1H4 839 472 B B 41.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
