Doors door hinge door seal door catch rear — Mk3 Golf Rear Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door hinge. doors. Door catch. Door seal

Generation: Mk3 1997 (RDW) Group: Rear door Parts: 42 Primary OEM: 1H0 837 111 A B 41, 3B0 837 111 B 41, 1H4 839 633

Doors door hinge door seal door catch rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 833010 from the Volkswagen ETKA parts catalogue, group 36 Rear door, listing 40 OEM part numbers across 42 catalogued positions including 1H0 837 111 A B 41, 3B0 837 111 B 41 and 1H4 839 633. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 40 OEM part numbers across 42 numbered positions.

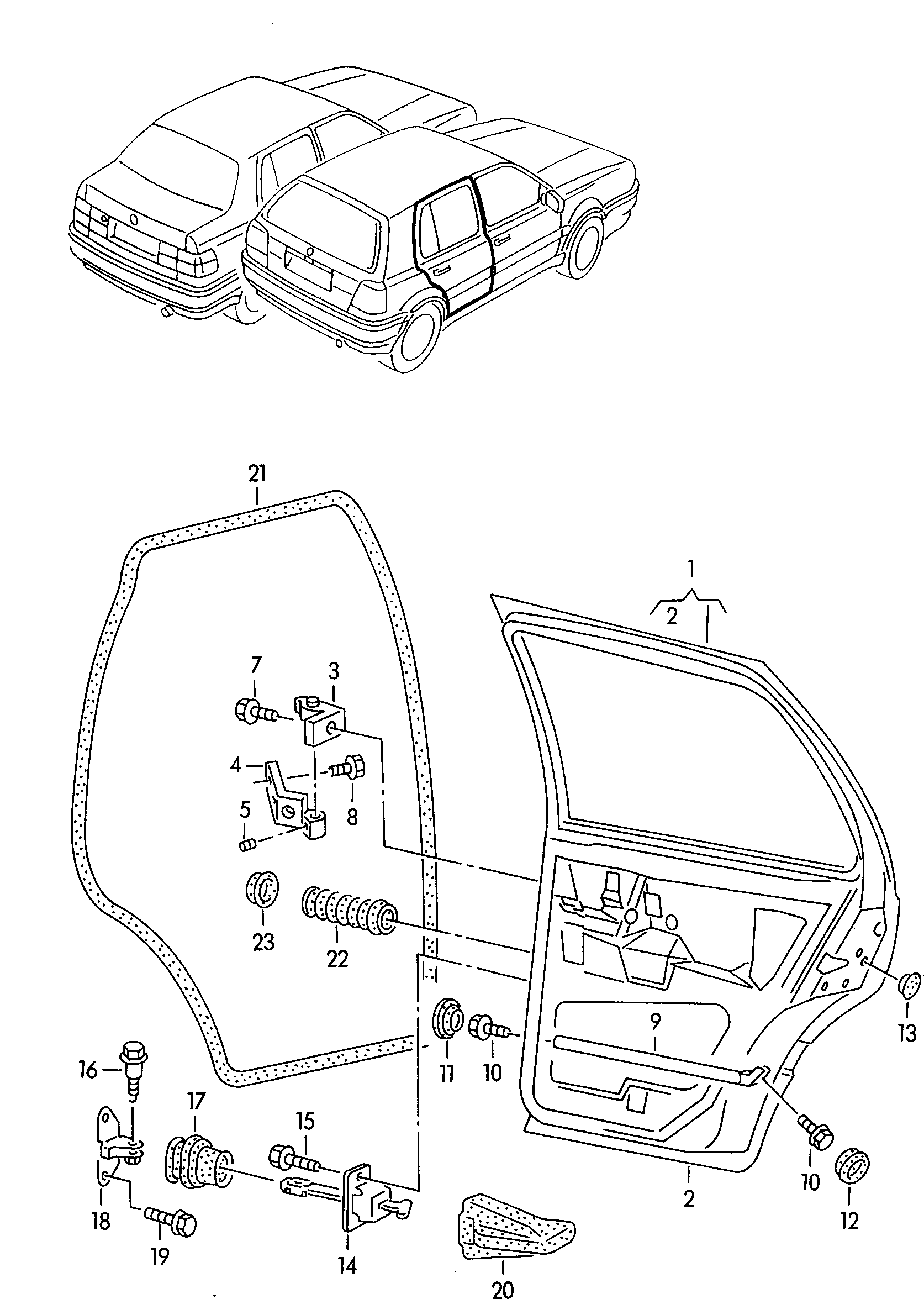

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 837 111 A B 41
	Satin black	3B0 837 111 B 41
-	arrester pin	1H4 839 633
-	Bungs Side part 25 25	1H0 839 863
-	Repair paneldoor inner part	1H4 898 311
-	Alu-lamin.insulation(self-adhesive) 500 X 250 X 1,6 500 X 250 X 1,6	D 378 500 A2
-	Locking fluid 10 ML 10 ML	D 185 400 A2
-	1 set attachment partsdoors	1H0 898 619
-	Cover cap	1H0 837 947
-	Damping'bestelleinheit 6' 550 X 250 X 2 550 X 250 X 2	323 863 950
-	Door seal see illustration: 839-060 839-060	—
(1)	Door use if required: 1 H 0 898 619 1 H 0 898 619	1H4 833 055
(18)	Bracket mount Door catch	1H4 839 281 A
(21)	door seal, inner Shorten if necessary 3320 MM 3320 MM	1H9 867 367 D
(3)	hinge half	1H0 831 403
(4)	Securing plate for doorhinge	1H4 833 409
(9)	side reinforcement	1H4 833 505 A
1	Door use if required: 1 H 0 898 619 1 H 0 898 619	1H4 833 056
10	Hex socket head collared bolt M 8 X 18 M 8 X 18	N 905 945 02
10	Hex socket head collared bolt M 8 X 18-H M 8 X 18-H	N 905 945 01
12	Bungs 28 28	171 957 857
13	Bungs 16 16	3B0 837 111
13	Bungs	1H0 837 111 A
14	Door catch	1H4 839 249
15	Hex collared bolt M 6 X 20 M 6 X 20	N 902 803 02
15	hexagon head bolt (combi) M 6 X 20 M 6 X 20	N 905 330 02
16	Pin	1H4 839 257 C
17	Cover	1H4 839 267
18	Bracket mount Door catch	1H4 839 282
19	hexagon head bolt (combi) also use: M 6 X 20 D 185 400 A 2 M 6 X 20 D 185 400 A 2	N 905 330 02
2	Door shell No replacement part	—
20	Protective sleeve	1H4 839 323
22	Bellows	1H4 971 611 A
22	Bellows	1H4 971 611
23	Bungs 64 64	1H4 971 908
3	hinge half	1H0 831 404
4	Securing plate for doorhinge	1H4 833 410
5	threaded pin M 8 X 12 M 8 X 12	N 903 555 02
5	threaded pin M 8 X 12 M 8 X 12	N 903 555 03
7	Hex socket head collared bolt M 8 X 24 M 8 X 24	N 905 271 01
8	Hex socket head collared bolt M 8 X 33 M 8 X 33	N 905 564 01
9	side reinforcement	1H4 833 506 A
