Which VW part numbers are on the heat insulation floor diagram for the Mk3 Golf?

This diagram lists 14 OEM part numbers for the Mk3 Golf. The first three are 1H0 803 664, 1H0 804 275 B and 1H0 803 308 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Heat insulation floor — Mk3 Golf Underbody (1997)

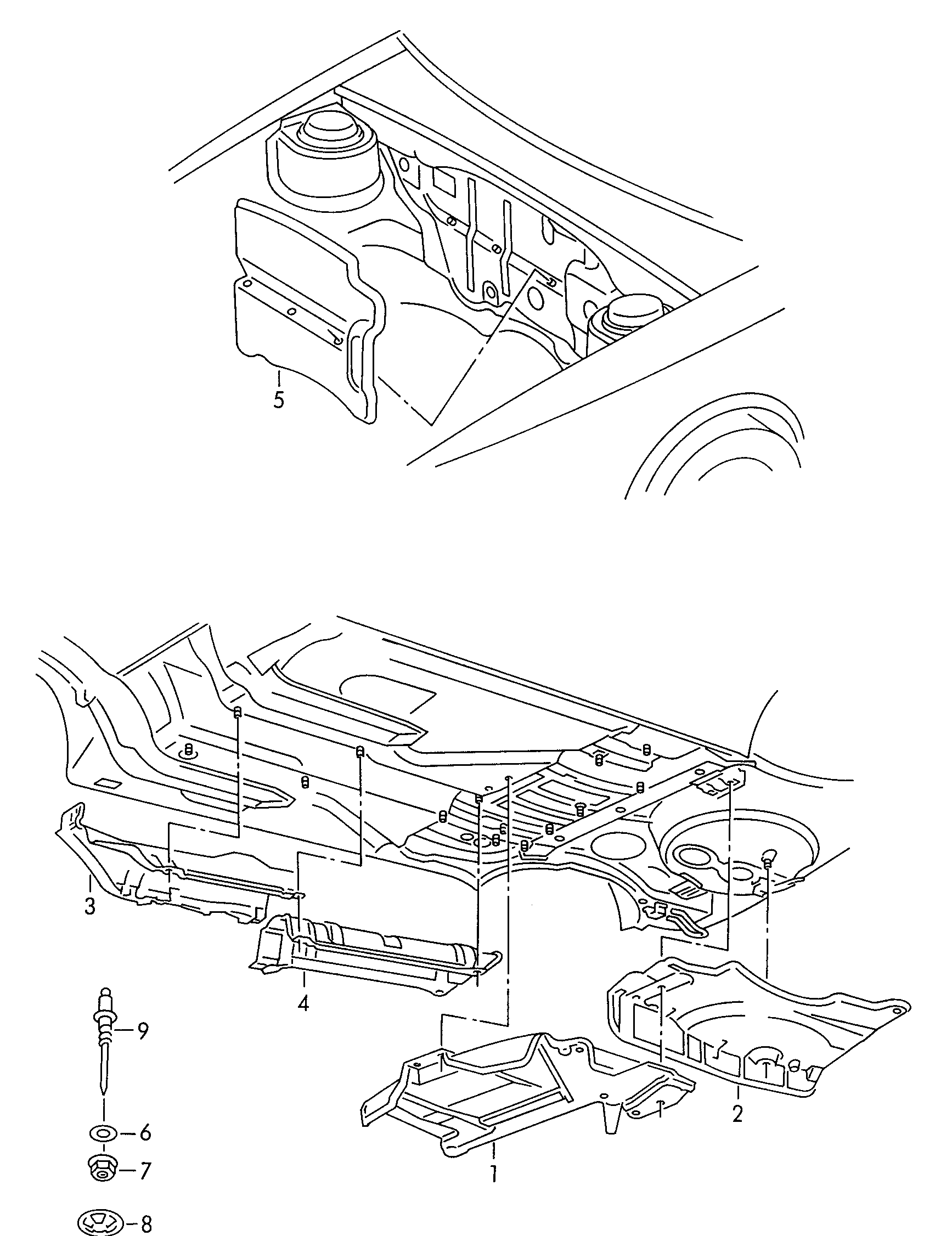

Factory title: Volkswagen Golf (1997 - 1998) - Heat insulation for floor

Generation: Mk3 1997 (RDW) Group: Underbody Parts: 14 Primary OEM: 1H0 803 664, 1H0 804 275 B, 1H0 803 308 B

Heat insulation floor for the Volkswagen Golf Mk3 (1997): factory exploded diagram 804010 from the Volkswagen ETKA parts catalogue, group 38 Underbody, listing 14 OEM part numbers including 1H0 803 664, 1H0 804 275 B and 1H0 803 308 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 14 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Heat shield for tunnel 16 V	1H0 803 664
-	Heat shield for tunnel 16 V	1H0 804 275 B
(1)	Heat shelf for centresilencer	1H0 803 308 B
(5)	Heat shield forbulkhead	1H2 803 326
1	Heat shelf for centresilencer 16 V	1H0 804 155 A
2	Heat shield for rearsilencer	1H0 803 310 B
3	Heat shield for tunnel	1H0 804 275 B
4	Heat shield for tunnel	1H0 803 313 D
5	Damping for bulkhead	1H1 863 353 G
6	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
7	nut,thread cutting 5 5	N 038 601 1
8	Clamping washer 5 X 30 5 X 30	N 907 965 02
8	Clamping washer 5 X 30 5 X 30	N 903 350 04
9	Pop rivet A 4,8 X 6,5 X 22 A 4,8 X 6,5 X 22	N 902 614 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these underbody diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 38 Underbody
Factory subgroup: 804010

Related factory diagrams

Other published underbody plates for the Mk3 Golf in this catalogue.

Side memberfloor assembly front 1997 · subgroup 803010
Wheel housing side memberconnecting strut floor plate rear 1997 · subgroup 803020
Heat insulation floor damping bulkhead 1994 - 1997 · subgroup 804010
Side memberfloor assembly front 1994 - 1997 · subgroup 803010
Wheel housing side memberconnecting strut floor plate rear 1994 - 1997 · subgroup 803020
