Side memberfloor assembly front — Mk3 Golf Underbody (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Floor assembly. Side member

Generation: Mk3 1997 (RDW) Group: Underbody Parts: 101 Primary OEM: N 102 265 01, N 905 904 01, N 010 217 10

Side memberfloor assembly front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 803010 from the Volkswagen ETKA parts catalogue, group 38 Underbody, listing 99 OEM part numbers across 101 catalogued positions including N 102 265 01, N 905 904 01 and N 010 217 10. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 99 OEM part numbers across 101 numbered positions.

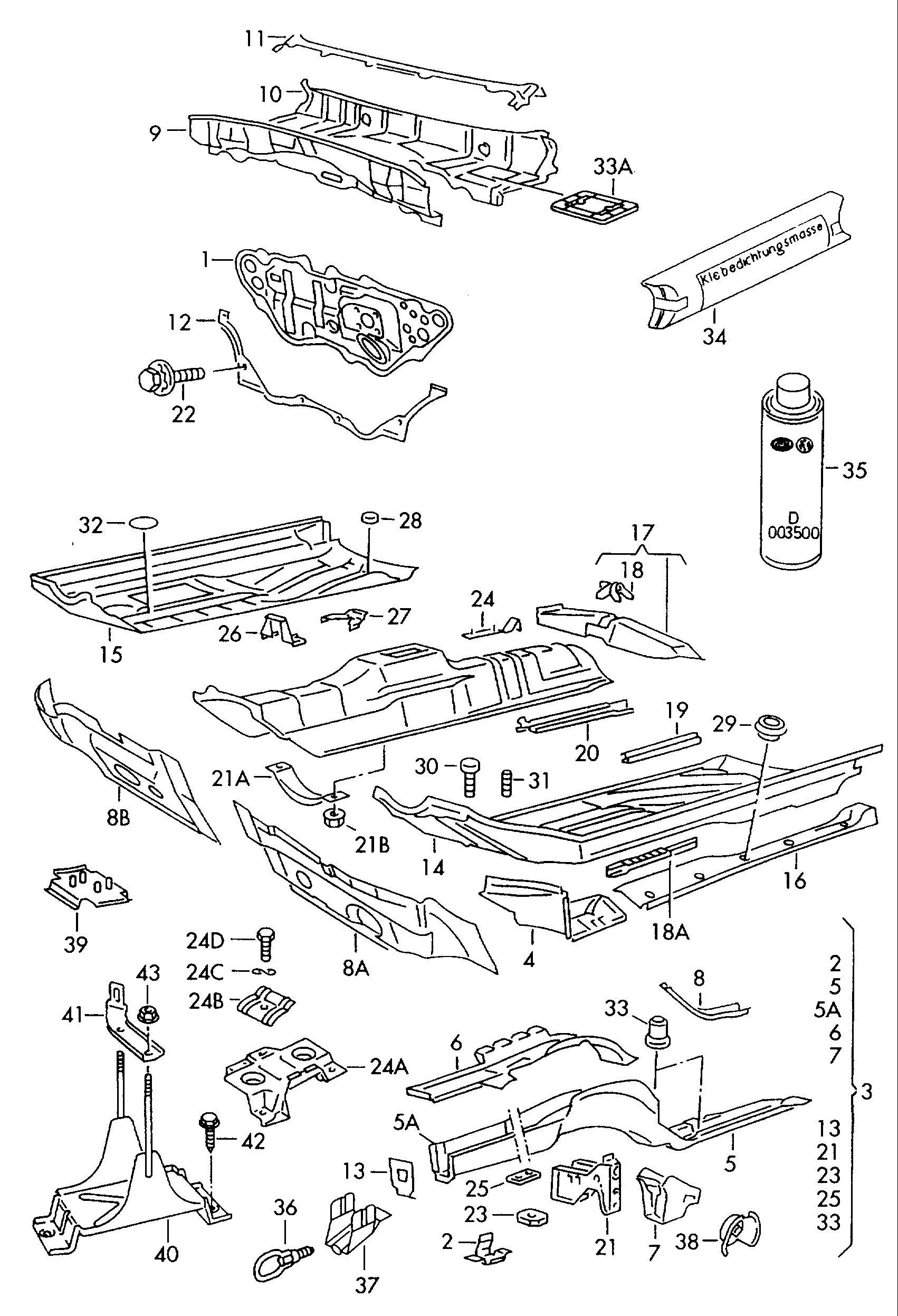

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bungs 30 30	N 102 265 01
-	End cap 35 X 70 35 X 70	N 905 904 01
-	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
-	Bungs 40 MM 40 MM	N 906 527 01
-	Bungs E 40 E 40	N 102 266 01
-	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
-	Bungs 48 MM 48 MM	357 971 908 A
-	t-bolt 5 X 10 5 X 10	N 901 495 02
-	Securing plate Three-point safety belt	1H0 804 311
-	Bungs 40 40	803 803 583 B
-	End cap 30 30	N 101 388 01
-	Securing plate Three-point safety belt	1H0 804 311
-	Guard plate "J.."	1H0 253 701 A
-	Cover	1H2 819 430 A
-	Cable guide see illustration: 971-014 971-014	1H0 972 373 B
-	Bungs diesel eng.	1H2 971 908
(1)	Cross panelfor vehicles with air condit.	1H1 863 911 D
(1)	Cross panel	1H2 863 911 B
(1)	Cross panelfor vehicles with air condit.	1H2 863 911 C
(13)	filler plate for longitudinalmember	1H0 804 182 A
(16)	Cover plate	1H0 803 226
(17)	seat support	1H0 803 231 A
(17)	seat support	1H0 803 232 A
(17)	seat support	1H0 803 232 B
(17)	seat support	1H0 803 231 B
(18)	bracket for seat	443 803 242
(18A)	Reinforce. for lower side mem.	1H0 804 244
(2)	retainer for engine carrier	1H0 804 055 B
(20)	Guide rail	1H0 803 258 A
(23)	Threaded plate M 10 M 10	1H0 804 699 B
(29)	Bungs 50,4 X 1,2 50,4 X 1,2	N 902 205 01
(29)	End cap 30 30	N 101 388 01
(29)	Sealing washer 40 X 0,5 40 X 0,5	N 901 466 04
(29)	Bungs 39,6 39,6	811 803 583
(3)	side member with reinforce-ments and welded nuts	1H0 803 091 B
(3)	side member with reinforce-ments and welded nuts	1H0 803 092 D
(31)	weld pin'order unit 100' 5 X 25 5 X 25	N 902 316 01
(32)	Bungs 40 MM 40 MM	N 906 527 01
(33)	welded nut M 10 X 25 M 10 X 25	N 901 883 02
(4)	Cross panel for sidemember	1H0 803 098
(5)	No longer available	—
(5A)	Sectional part - side member 385 MM 385 MM	1H0 802 107
(6)	Cover plate for slide member	1H0 803 108 B
(6)	Cover plate for slide member	1HM 803 085
(6)	Cover plate for slide member	1HM 803 086
(7)	Bracket	191 803 128
1	Cross panel 4-cylinder	1H1 863 911 C
10	water box	1H0 803 155
11	Reinforcement for bulkhead	1H0 803 159
12	frame for cross panel	1H0 803 187
13	filler plate for longitudinalmember	1H0 804 181
14	Sectional part - floor panel	1H0 803 205 A
14	Sectional part - floor panel	1H0 803 205
15	Sectional part - floor panel	1H0 803 206 A
15	Sectional part - floor panel	1H0 803 206
16	Cover plate	1H0 803 225
18	bracket for seat	443 803 241
18A	Reinforce. for lower side mem.	1H0 804 243
19	Guide rail	443 803 253
20	Guide rail	1H0 803 257 A
21	console for bumper	1H0 803 332
21A	Tunnel cross-piece 284 MM 284 MM	1H0 804 421 A
21B	hexagon nut, self-locking M 8 M 8	N 900 744 01
22	Hexagon bolt M 8 X 28 M 8 X 28	443 845 643 C
22	Hexagon bolt M 8 X 28 M 8 X 28	443 845 643 A
24	see illustration: 711-50 711-50	—
24A	Battery console	1H0 804 841 G
24A	Battery console	1H0 804 841 H
24B	clamping strip for battery	1H0 803 219
24B	clamping strip for battery	6X0 959 502
24C	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
24C	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
24D	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
25	Threaded plate M 6 M 6	1H0 804 849
26	Securing plate	191 803 875 B
27	Securing plate	6N0 803 876
27	Securing plate	191 803 876
28	Bungs 30 X 5,6 X 37 30 X 5,6 X 37	N 100 344 01
29	Bungs 40 40	803 803 583 B
30	Weld screw'Order quantity 100' M 6 X 12 M 6 X 12	N 901 693 01
31	weld pin'order unit 100' 5 X 12 5 X 12	N 901 757 01
32	End cap 87,5 X 0,5 87,5 X 0,5	N 901 470 01
33	welded nut M 12 X 1,5 X 30 M 12 X 1,5 X 30	N 904 333 01
33A	Cover	1H2 819 430 A
34	1 K window adhesive 300 ML 300 ML	DH 009 100
35	Permanent underbody protection	D 003 500
36	Tow hitch	1H0 805 615 B
3A	Formed partfor:fuel pipe	357 804 981
4	Cross panel for sidemember	1H0 803 097
40	Battery consolefor 2 nd battery ecomatic	1H6 802 906 A
41	Retaining barfor 2 nd battery ecomatic	1H6 802 924 A
42	hex. hd. self-tap bolt (combi) 6,6 X 19-D 6,6 X 19-D	N 905 426 03
42	hex. hd. self-tap bolt (combi) 6,6 X 19 6,6 X 19	N 905 426 02
43	Hexagon collar nut M 6 M 6	N 901 752 03
5A	Sectional part - side member 385 MM 385 MM	1H0 802 108
6	Cover plate for slide member	1H0 804 105 B
7	Bracket	191 803 127 C
8	Guide plate forfuel line	1H0 804 140 A
8A	Cross member	1H0 803 143
8B	Cross member	1H0 803 144
9	rip plate on front crosspanel	1H0 803 157 A
