Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wheel housing side memberconnecting strut floor plate rear — Mk3 Golf Underbody (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Floor assembly. Side member

Generation: Mk3 1997 (RDW) Group: Underbody Parts: 53 Primary OEM: 803 803 583 B, 1H6 804 993, 1H6 804 993 A

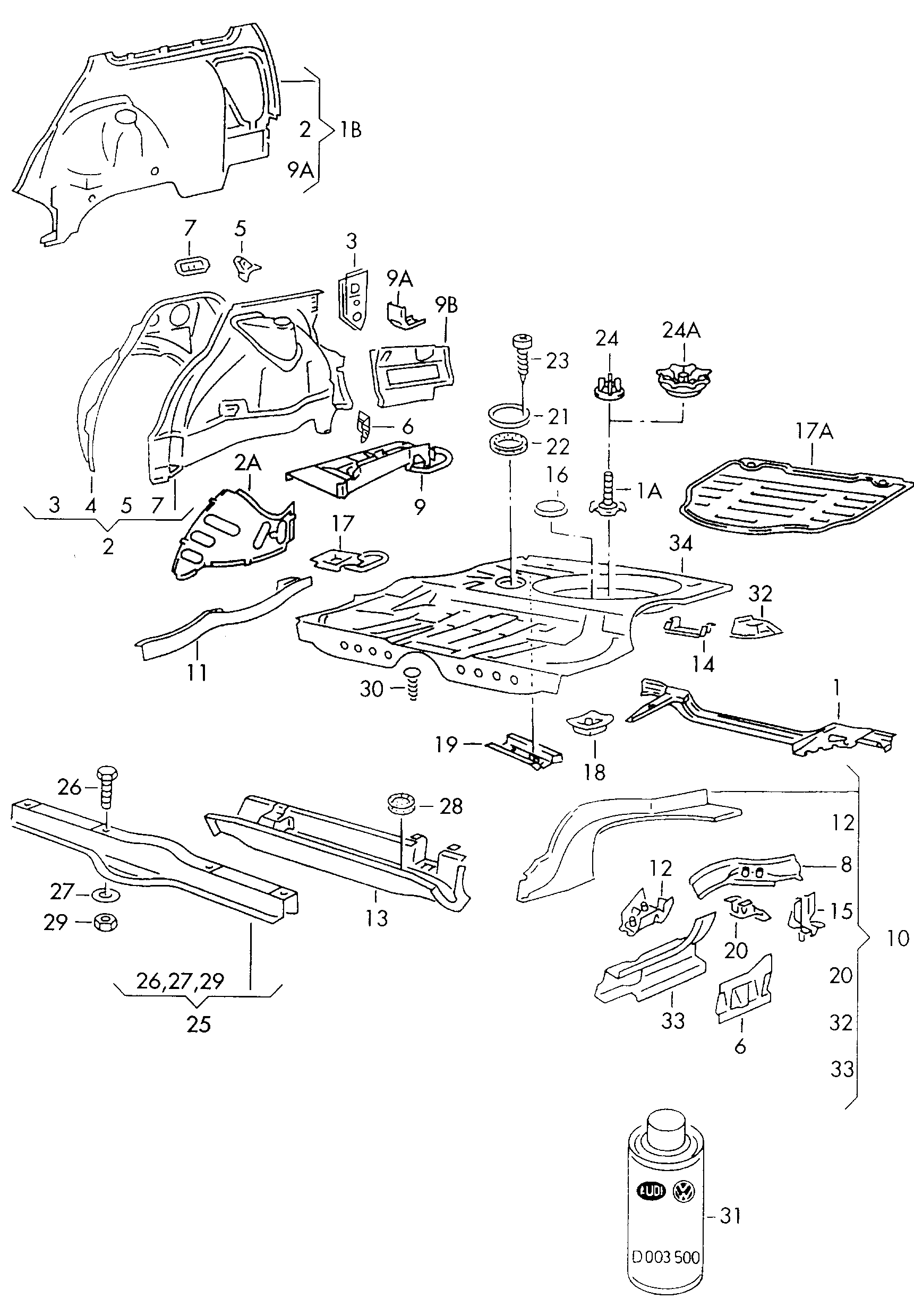

Wheel housing side memberconnecting strut floor plate rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 803020 from the Volkswagen ETKA parts catalogue, group 38 Underbody, listing 50 OEM part numbers across 53 catalogued positions including 803 803 583 B, 1H6 804 993 and 1H6 804 993 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 50 OEM part numbers across 53 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bungs 40 40	803 803 583 B
-	mounting for trailer couplingballfor temporary spare wheel	1H6 804 993
-	mounting for trailer couplingballfor spare wheel with normaltire	1H6 804 993 A
-	End cap 20 20	N 904 361 01
-	Bungs 30 30	N 102 265 01
(10)	side member with reinforce-ments and welded nuts	1H6 803 502 F
(11)	Side member	1H0 803 505 A
(12)	mounting forrear axle beam	1H0 803 514
(2)	Wheel housing	1H6 803 417
(2)	Wheel housing	1H6 803 421 D
(20)	Retainer for bumper	1H6 804 938 A
(24A)	nut for spare wheelmountingfor spare wheel with normaltire and raised boot floor	861 803 899 B
(3)	Supportfor vehicles with three-pointseat belts, rear	1H0 803 427
(4)	Wheel housing liner	1H0 803 435
(5)	mounting for backrest	1H0 803 449 A
(6)	Reinforcement for jackmount	1H0 803 478 A
(8)	Reinforcement forside member	1H0 803 566
10	side member with reinforce-ments and welded nuts	1H6 803 501 F
11	Side member	1H0 803 506 A
12	mounting forrear axle beam	1H0 803 513
13	Cross member	1H0 803 531
14	mounting plate Rear silencer	1H0 803 535 A
15	bracket for exhaust silencer	191 803 545 A
16	Cover 136 MM 136 MM	411 803 595
17	bracket for tow rope	191 803 611
18	bracket for strap	1H0 803 745
19	bracket for strap	191 803 746
1A	bracket for spare wheel	357 803 272
2	Wheel housing	1H6 803 422 D
2	Wheel housing	1H6 803 418
20	Retainer for bumper	1H6 804 937 A
21	Cover for sender	321 803 958
21	Cover for sender	6X0 803 959
22	seal ring	321 803 963
23	oval head panel screw 4,2 X 9,5 4,2 X 9,5	N 013 965 5
24	nut for spare wheelmountingfor temporary spare wheel	191 803 899
25	connecting strut forfloor plate	191 898 335
26	Weld screw M 8-6 X 22 M 8-6 X 22	N 010 568 2
27	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
28	Bungs 30 X 5,6 X 37 30 X 5,6 X 37	N 100 344 01
29	hexagon nut, self-locking M 8 M 8	N 900 744 01
3	Supportfor vehicles with three-pointseat belts, rear	1H0 803 428
30	weld pin'order unit 100' 5 X 12 5 X 12	N 901 757 01
31	Permanent underbody protection	D 003 500
32	see illustration: 813-000 813-000	—
33	see illustration: 813-000 813-000	—
34	see illustration: 813-000 813-000	—
4	Wheel housing liner	1H0 803 436
5	mounting for backrest	1H0 803 450 A
6	Reinforcement for jackmount	1H0 803 477 A
7	housing for fuel fillerneck	191 803 483
8	Reinforcement forside member	1H0 803 565
9A	Retainer for bumper	1H5 804 739

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these underbody diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 38 Underbody
Factory subgroup: 803020
