Aluminium rim — Mk3 Golf Wheels Tyres (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Steel rim

Generation: Mk3 1997 (RDW) Group: Wheels / tyres Parts: 91 Primary OEM: 6N0 601 171 B XF, 1H0 601 025 AE0 91, 535 601 025 D Z 31

Aluminium rim for the Volkswagen Golf Mk3 (1997): factory exploded diagram 601050 from the Volkswagen ETKA parts catalogue, group 31 Wheels / tyres, listing 90 OEM part numbers across 91 catalogued positions including 6N0 601 171 B XF, 1H0 601 025 AE0 91 and 535 601 025 D Z 31. Parts on this plate carry the engine code ABV. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 90 OEM part numbers across 91 numbered positions.

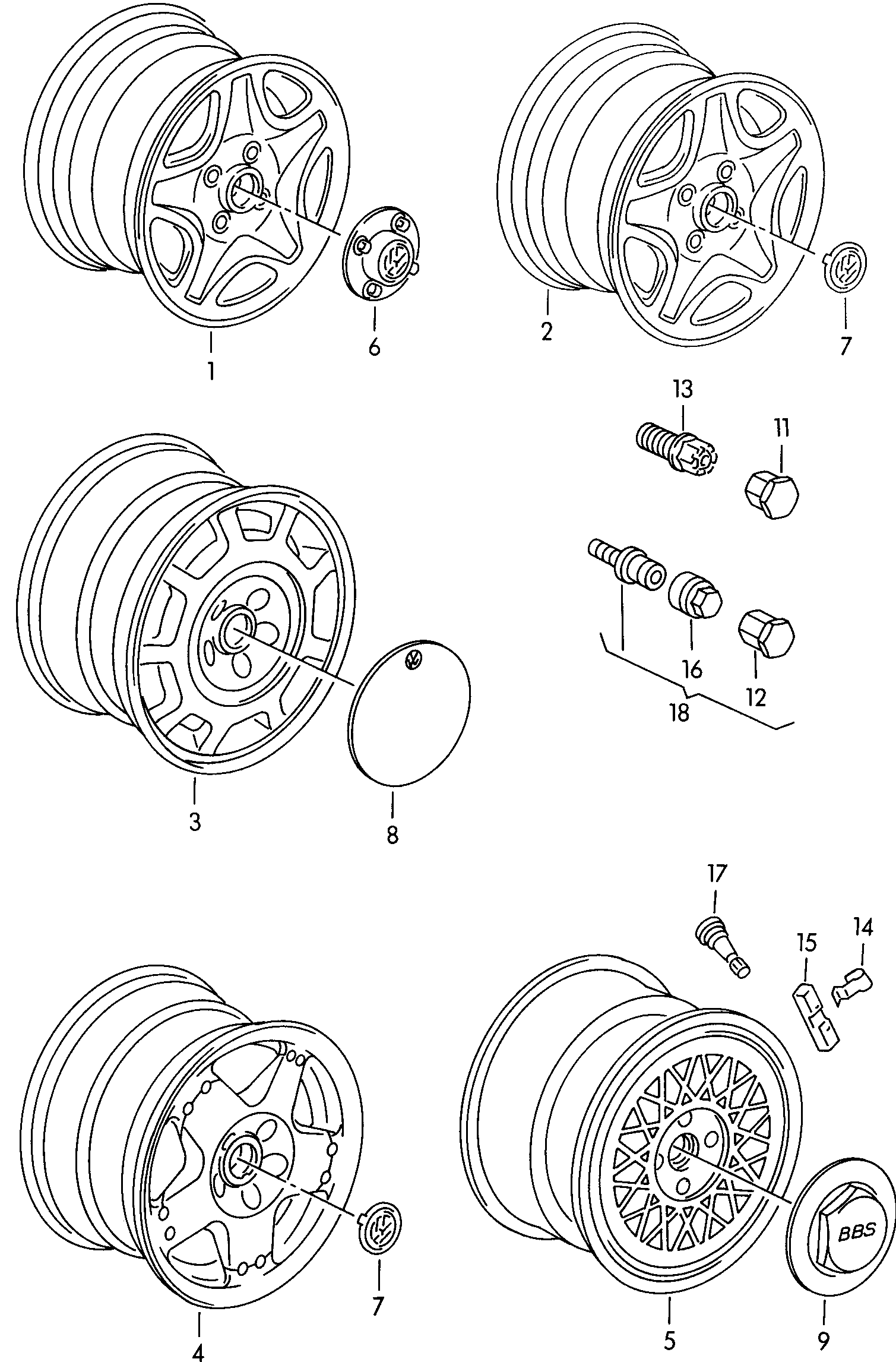

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Chrome colours/black For rim: 1 H 0 601 025 T 1 H 0 601 025 AE 1 H 0 601 025 AF 535 601 025 D 1 H 0 601 025 AH 1 H 0 601 025 T 1 H 0 601 025 AE 1 H 0 601 025 AF 535 601 025 D 1 H 0 601 025 AH	6N0 601 171 B XF
	chrome colored	1H0 601 025 AE0 91
	Brilliant chrome/dolomite grey	535 601 025 D Z 31
	Bright chrome	1H0 601 025 AGZ 31
	chrome colored	1H0 601 025 AA0 91
	chrome colored	1H0 601 025 AD0 91
	chrome colored	1H0 601 025 AH0 91
	Chrome colours/black For rim: 1 H 0 601 025 AA 1 H 0 601 025 AE 1 H 0 601 025 AF 1 H 0 601 025 AA 1 H 0 601 025 AE 1 H 0 601 025 AF	1H0 601 171 B B XF
	Brilliant chrome/dolomite grey	535 601 025 D Z 31
	chrome colored	1H0 601 025 T 0 91
	chrome colored	1H0 601 025 R 0 91
	chrome colored	1H0 601 025 AF0 91
	chrome coloured 85 For rim: 1 H 0 601 025 R 1 H 0 601 025 R	1H0 601 149 K V 7L
	chrome For rim: 1 H 0 601 025 R 1 H 0 601 025 R	1H0 601 149 S F ED
	Chrome colours/black VW VW	1H0 601 149 N A EV
	chrome colored For rim: 1 H 0 601 025 AD 1 H 0 601 025 AD	1H0 601 149 M A EV
	Bright chrome For rim: 1 H 0 601 025 AG 1 H 0 601 025 AG	1H0 601 149 R Z 31
	Bright chrome For rim: 535 601 025 D 535 601 025 D	535 601 149 A Z 31
	Satin black	867 601 173 0 1C
	Satin black	8D0 601 173 B 0 1C
	Self-service packaging	8D0 698 137 S BV
	Code keys .....051 .....051	8D0 601 139 0 51
	Code keys .....052 .....052	8D0 601 139 0 52
	Code keys .....053 .....053	8D0 601 139 0 53
	Code keys .....054 .....054	8D0 601 139 0 54
	Code keys .....055 .....055	8D0 601 139 0 55
	Code keys .....056 .....056	8D0 601 139 0 56
	Code keys .....057 .....057	8D0 601 139 0 57
	Code keys .....058 .....058	8D0 601 139 0 58
	Code keys .....059 .....059	8D0 601 139 0 59
	Code keys .....060 .....060	8D0 601 139 0 60
	Code keys .....061 .....061	8D0 601 139 0 61
	Code keys .....062 .....062	8D0 601 139 0 62
	Code keys .....051 .....051	8D0 601 139 E 0 51
	Code keys .....052 .....052	8D0 601 139 E 0 52
	Code keys .....053 .....053	8D0 601 139 E 0 53
	Code keys .....054 .....054	8D0 601 139 E 0 54
	Code keys .....055 .....055	8D0 601 139 E 0 55
	Code keys .....056 .....056	8D0 601 139 E 0 56
	Code keys .....057 .....057	8D0 601 139 E 0 57
	Code keys .....058 .....058	8D0 601 139 E 0 58
	Code keys .....059 .....059	8D0 601 139 E 0 59
	Code keys .....060 .....060	8D0 601 139 E 0 60
	Code keys .....061 .....061	8D0 601 139 E 0 61
	Code keys .....062 .....062	8D0 601 139 E 0 62
-	Aluminium rim- SPEEDLINE - 6,5 JX 15 H 2 ET 435/100 ABV 6,5 JX 15 H 2 ET 435/100 ABV	535 601 025 D
-	Aluminium rim- LONG BEACH - 6,5 JX 15 ET 435/100 GTI,GTI 16 V,VR 6 6,5 JX 15 ET 435/100	1H0 601 025 T
-	Hub cap ABV ABV	535 601 149 A
(12)	cap - wheel boltfor:Wheel bolt, anti-theft 8 D 0 601 137 A 8 D 0 601 137 A	8D0 601 173 B
(12)	cap - wheel bolt FUER:Wheel bolt, anti-theft 8 D 0 601 139 8 D 0 601 139	8D0 601 173
(12)	cap - wheel bolt only for: 20,1 X 18 MB 535 698 137 20,1 X 18 MB 535 698 137	535 601 173 B
(13)	Wheel bolt For rim: M 14 X 1,5 X 275/100 M 14 X 1,5 X 275/100	8D0 601 139 D
(13)	Wheel bolt For rim: M 14 X 1,5 X 275/100 M 14 X 1,5 X 275/100	431 601 139 A
(15)	Balancer weight 50 G 50 G	1K0 601 188 B
(15)	Balancer weight 60 G 60 G	255 601 185
(15)	Balancer weight 40 G 40 G	255 601 183
(15)	Balancer weight 10 G 10 G	255 601 179
(15)	Balancer weight 40 G 40 G	1K0 601 186 B
(15)	Balancer weight 70 G 70 G	255 601 186
(15)	Balancer weight 30 G 30 G	255 601 182
(15)	Balancer weight 20 G 20 G	255 601 181
(15)	Balancer weight 50 G 50 G	255 601 184
(16)	Wheel bolt, anti-theft with:Adapter For rim: M 14 X 1,5 X 27,51 H 0 601 205 AH M 14 X 1,5 X 27,51 H 0 601 205 AH	8D0 601 139
(18)	1 set wheel studs,anti-theft M 14 X 1,5 X 27,5 PR:E 2 U/E 4 T M 14 X 1,5 X 27,5	8D0 698 137
(18)	1 set wheel studs,anti-theft For rim: M 14 X 1,5 X 275/100 GTI,VR 6 M 14 X 1,5 X 275/100	1H0 698 137
(18)	1 set wheel studs,anti-theft M 14 X 1,5 X 27,5 M 14 X 1,5 X 27,5	1K0 698 137
(18)	Wheel bolt, anti-theft,with adapter M 14 X 1,5 X 27,5 M 14 X 1,5 X 27,5	8D0 601 139 E
(4)	Aluminium rim- SPEEDLINE II - 6,5 JX 15 H 2 ET 435/100 GTI EDITION 6,5 JX 15 H 2 ET 435/100	1H0 601 025 AG
(4)	Aluminium rim- SPEEDLINE I - 6,5 JX 15 H 2 ET 435/100 GTI EDITION 6,5 JX 15 H 2 ET 435/100	535 601 025 D
(4)	Aluminium rim- ORLANDO - 6 JX 14 H 2 ET 454/100 CL,GL,GT,GTDBON JOVI,JOKER 6 JX 14 H 2 ET 454/100	1H0 601 025 R
(4)	Aluminium rim- SOLITUDE - 6,5 JX 15 H 2 ET 435/100 GTI,16 V,VR 6:COLOUR-CONCEPT 6,5 JX 15 H 2 ET 435/100	1H0 601 025 AF
(4)	Aluminium rim- SOLITUDE - 6 JX 15 H 2 ET 454/100 GT,GTD:COLOUR-CONCEPTRABBIT V 6 JX 15 H 2 ET 454/100	1H0 601 025 AE
(5)	Aluminium rim= BBS = 6 JX 15 H 2 ET 454/100 GT: SPEZIALGTD:SPEZIAL 6 JX 15 H 2 ET 454/100	1H0 601 025 AD
(5)	Aluminium rim= BBS = 6,5 JX 15 H 2 ET 435/100 VR 6 GTI,GTI 16 V:EDITION 6,5 JX 15 H 2 ET 435/100	1H0 601 025 AA
(5)	Aluminium rim- BBS - 7 JX 16 H 2 ET 435/100 PR:E 2 U/E 4 T 7 JX 16 H 2 ET 435/100	1H0 601 025 AH
(7)	Hub cap 58 MM BBS GTI:EDITION 58 MM BBS	1H0 601 171 B
(7)	Cover cap	6N0 601 171
(8)	Hub cap F >> 1 H-VW 480 000*	1H0 601 149 K
(8)	Hub cap F 1 H-VW 480 001*	1H0 601 149 S
(9)	Hub cap For rim: 1 H 0 601 025 AD 1 H 0 601 025 AD	1H0 601 149 N
(9)	Hub cap 163 MM 163 MM	1H0 601 149 M
(9)	Hub cap	1H0 601 149 R
11	cap - wheel bolt For rim: 16,7 X 31 MB 1 H 0 601 025 T 16,7 X 31 MB 1 H 0 601 025 T	867 601 173
12	cap - wheel bolt only for: 20,1 X 31 MB 1 H 0 698 137 20,1 X 31 MB 1 H 0 698 137	535 601 173 C
13	Wheel bolt For rim: M 12 X 1,5 X 23,54/100 M 12 X 1,5 X 23,54/100	3A0 601 139
14	Spring	255 601 180
15	Balancer weight 5 G 5 G	443 601 190
16	No replacement part	—
17	Rubber valve	839 601 361
17	Rubber valve 43 GS/11,5 43 GS/11,5	281 601 361
18	1 set wheel studs,anti-theft For rim: M 12 X 1,5 X 23,54/100 CL,GL,GT,GTD M 12 X 1,5 X 23,54/100	535 698 137
