Steel rim — Mk3 Golf Wheels Tyres (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Steel rim

Generation: Mk3 1997 (RDW) Group: Wheels / tyres Parts: 59 Primary OEM: 1H0 601 149 H V 7L, 1H0 601 025 A 0 91, 321 601 173 A 0 1C

Steel rim for the Volkswagen Golf Mk3 (1997): factory exploded diagram 601010 from the Volkswagen ETKA parts catalogue, group 31 Wheels / tyres, listing 59 OEM part numbers including 1H0 601 149 H V 7L, 1H0 601 025 A 0 91 and 321 601 173 A 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 59 OEM part numbers across 59 numbered positions.

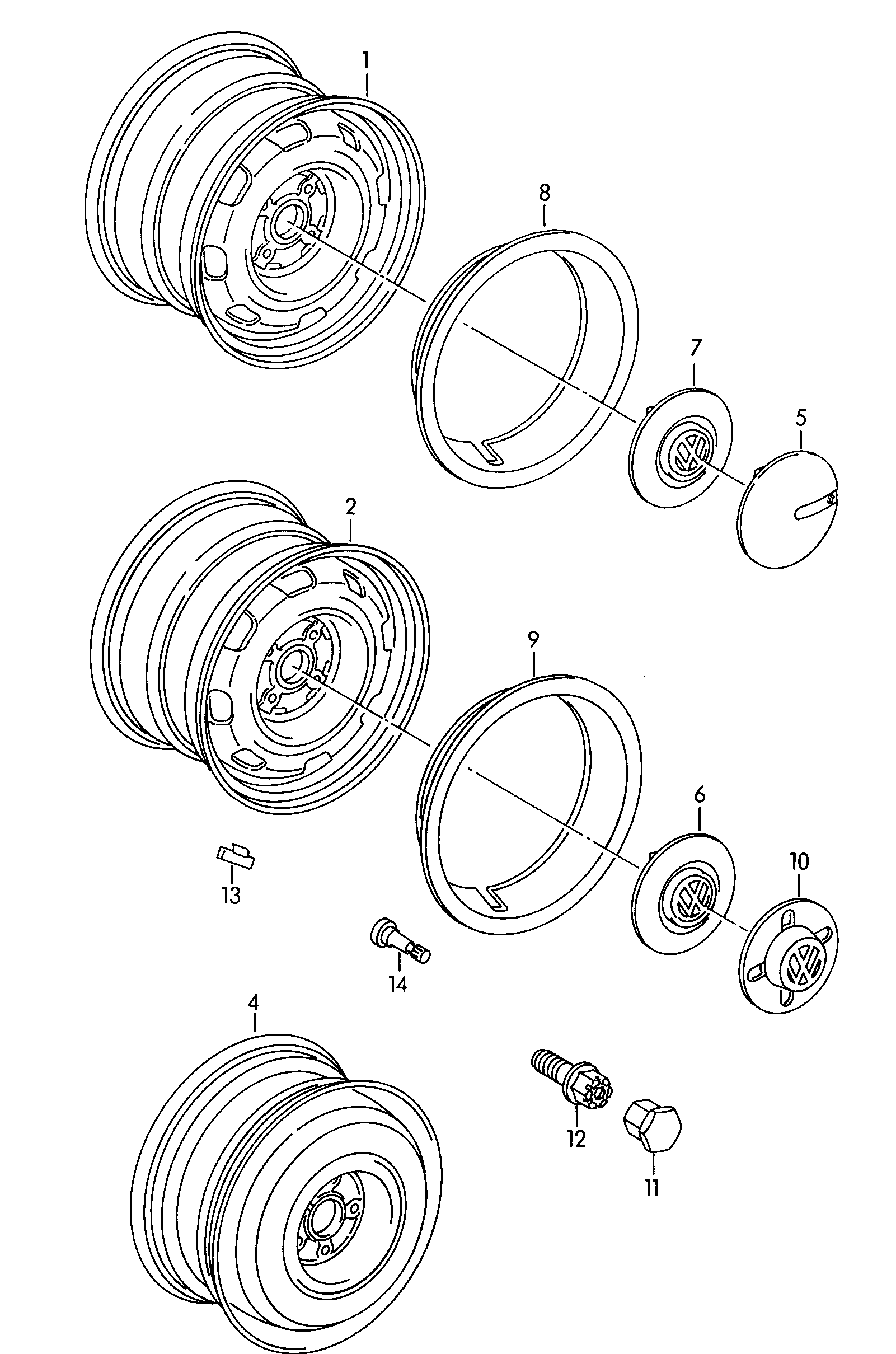

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
chrome coloured 85 For rim: 1 H 0 601 025 P
1 H 0 601 025 P
 1H0 601 149 H V 7L
chrome colored
 1H0 601 025 A 0 91
Satin black
 321 601 173 A 0 1C
chrome colored
 1H0 601 025 P 0 91
Satin blackfor winter tires For rim: 1 H 0 601 025 A 1 H 0 601 025 P
1 H 0 601 025 A 1 H 0 601 025 P
 1H0 601 171 C 0 1C
rally black
 1HM 601 025 0 3C
chrome coloured metallic For rim: 1 HM 601 025
1 HM 601 025
 1HM 601 147 A V 7L
chrome colored
 1H0 601 025 N 0 91
chrome For rim: 1 H 0 601 027 A
1 H 0 601 027 A
 1H0 601 147 A F ED
chrome colored
 3A0 601 027 0 91
Satin blackfor winter tires For rim: 1 H 0 601 025 A 1 H 0 601 025 P
1 H 0 601 025 A 1 H 0 601 025 P
 1H0 601 171 0 1C
rally black
 1H0 601 027 A 0 3C
chrome coloured metallic For rim: 1 H 0 601 027 A
1 H 0 601 027 A
 1H0 601 147 A V 7L
chrome For rim: 1 H 0 601 027 A
1 H 0 601 027 A
 1H0 601 147 F ED
Black
 3A0 601 025 0 3C
chrome colored For rim: 1 H 0 601 025 P
1 H 0 601 025 P
 1H0 601 157 A V 7L
chrome coloured 85 For rim: 1 H 0 601 025 A
1 H 0 601 025 A
 1H0 601 149 B V 7L
chrome colored For rim: 1 H 0 601 025 A
1 H 0 601 025 A
 1H0 601 157 V 7L
chrome colored For rim: 1 H 0 601 025 N
1 H 0 601 025 N
 1H0 601 149 C 0 91
chrome coloured metallic For rim: 3 A 0 601 027(091)
3 A 0 601 027(091)
 3A0 601 149 B V 7L
-
Hub cap HIGHLAND
 1H0 601 147 A
-
Hub cap
 3A0 601 149 B
-
Hub cap JOKER
 1H0 601 147
-
Hub cap RABBIT IVRABBIT V
 1HM 601 147 A
(10)
Hub cap 140
140
 1H0 601 171 C
(10)
Hub cap 140 MM
140 MM
 1H0 601 171
(12)
Wheel bolt M 14 X 1,5 X 27
M 14 X 1,5 X 27
 431 601 139 A
(12)
Wheel bolt M 14 X 1,5 X 27
M 14 X 1,5 X 27
 8D0 601 139 D
(13)
Balancer weight 20 G
20 G
 1K0 601 182 A
(13)
Balancer weight with retainingspring 90 G
90 G
 111 601 188
(13)
Balancer weight with retainingspring 80 G
80 G
 111 601 187
(13)
Balancer weight with retainingspring 70 G
70 G
 111 601 186
(13)
Balancer weight with retainingspring 60 G
60 G
 111 601 185
(13)
Balancer weight with retainingspring 50 G
50 G
 111 601 184
(13)
Balancer weight with retainingspring 40 G
40 G
 111 601 183
(13)
Balancer weight with retainingspring 30 G
30 G
 111 601 182
(13)
Balancer weight 10 G
10 G
 1K0 601 179 A
(13)
Balancer weight 30 G
30 G
 1K0 601 184 A
(13)
Balancer weight with retainingspring
 111 601 179
(13)
Balancer weight with retainingspring 20 G
20 G
 111 601 181
(2)
Steel rim 6 JX 14 H 2 ET 434/100 GL,JOKER
6 JX 14 H 2 ET 434/100
 1H0 601 027 A
(2)
Steel rimchrome coloredfor winter tires 6 JX 15 H 2 ET 355/100 VR 6,20 JAHRE GTI
6 JX 15 H 2 ET 355/100
 3A0 601 027
(2)
Steel rim 6,5 JX 15 H 2 ET 435/100 GTI,VR 6
6,5 JX 15 H 2 ET 435/100
 1H0 601 025 N
(2)
Steel rim 6 JX 14 H 2 ET 454/100 "A..":GOLF:RABBIT IVRABBIT V
6 JX 14 H 2 ET 454/100
 1HM 601 025
(2)
Steel rim 6 JX 14 H 2 ET 454/100 CL,GL,GT,GTD
6 JX 14 H 2 ET 454/100
 1H0 601 025 P
(4)
Steel rim forspace-saving emergency wheel 3,5 JX 16 H 2 ET 385/100 GTI,VR 6
3,5 JX 16 H 2 ET 385/100
 3A0 601 025
(4)
Steel rim forspace-saving emergency wheel 3,5 JX 14 H 2 ET 454/100
3,5 JX 14 H 2 ET 454/100
 1H0 601 027 C
(5)
Hub cap 167 CL,GL
167
 1H0 601 149 B
(6)
Hub cap 175 GTI,VR 6
175
 1H0 601 149 C
(6)
Hub cap 172 GL,GT,GTD
172
 1H0 601 149 H
1
Steel rim 5,5 JX 13 H 2 ET 384/100 CL,GL
5,5 JX 13 H 2 ET 384/100
 1H0 601 025 A
11
cap - wheel bolt 16,7 X 18
16,7 X 18
 321 601 173 A
12
Wheel bolt M 12 X 1,5 X 23,5
M 12 X 1,5 X 23,5
 3A0 601 139
13
Balancer weight with retainingspring 10 G
10 G
 111 601 178
13
Balancer weight with retainingspring 8 G
8 G
 191 601 180 A
14
Rubber valve
 839 601 361
14
Rubber valve
 281 601 361
8
wheel trim ring 13" GL
13"
 1H0 601 157
9
wheel trim ring 14" GL,GL
14"
 1H0 601 157 A
