Steel rim — Mk3 Golf Wheels Tyres (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Steel rim

Generation: Mk3 1993 - 1996 (MEX) Group: Wheels / tyres Parts: 43 Primary OEM: 1HM 601 147 V 7L, 3A0 601 025 0 3C, 1H0 601 025 B 0 91

Steel rim for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 601010 from the Volkswagen ETKA parts catalogue, group 31 Wheels / tyres, listing 43 OEM part numbers including 1HM 601 147 V 7L, 3A0 601 025 0 3C and 1H0 601 025 B 0 91. Parts on this plate carry the engine code RA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 43 OEM part numbers across 43 numbered positions.

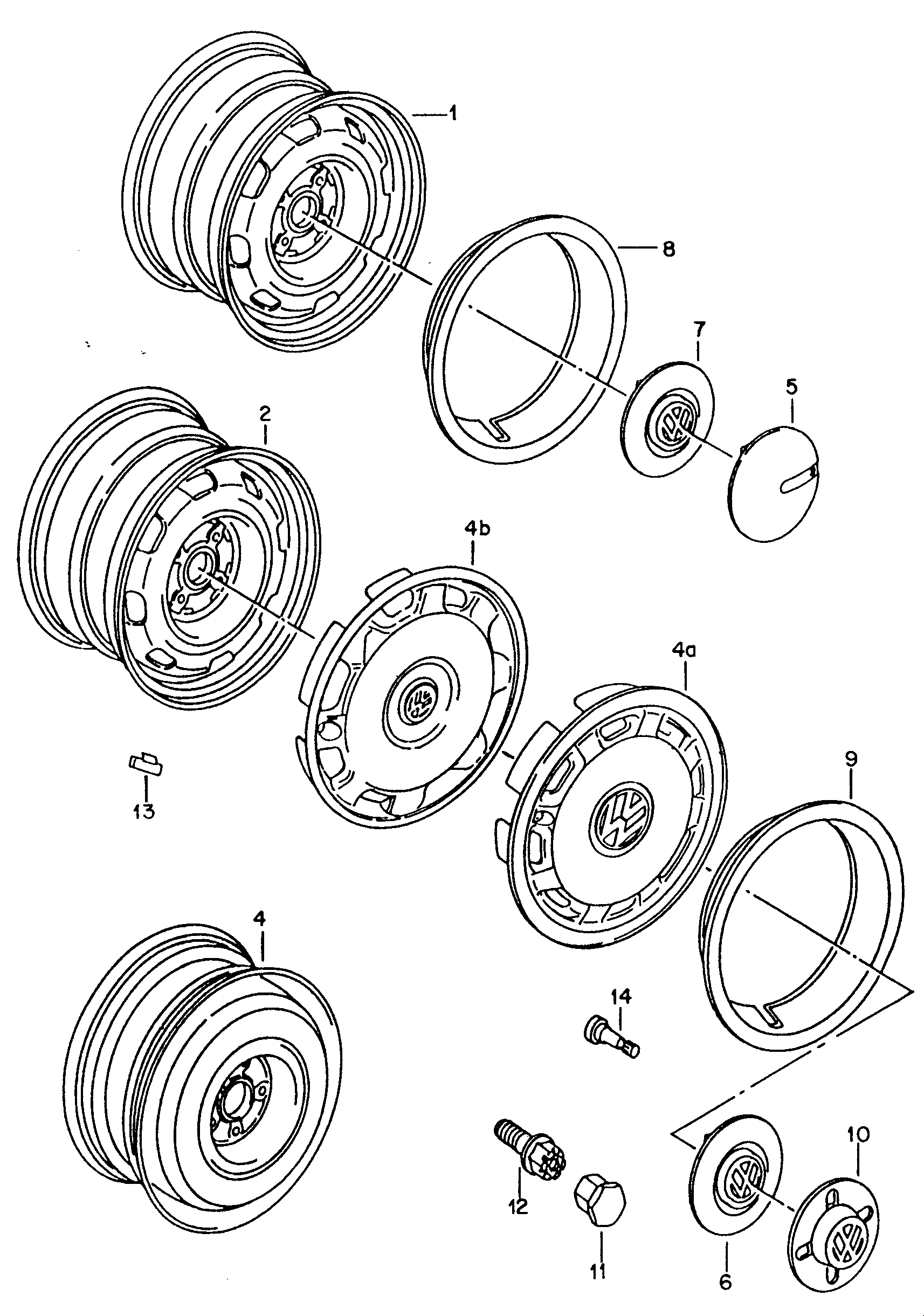

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
chrome colored For rim: 1 HM 601 025
1 HM 601 025
 1HM 601 147 V 7L
Black
 3A0 601 025 0 3C
chrome colored
 1H0 601 025 B 0 91
chrome colored For rim: 1 H 0 601 025 B
1 H 0 601 025 B
 1H0 601 157 A V 7L
chrome colored For rim: 1 H 0 601 025 A
1 H 0 601 025 A
 1H0 601 157 V 7L
chrome coloured 85 For rim: 1 H 0 601 025 A
1 H 0 601 025 A
 1H0 601 149 B V 7L
chrome colored For rim: 1 H 0 601 025 B
1 H 0 601 025 B
 1H0 601 149 A V 7L
chrome coloured metallic For rim: 1 H 0 601 025 A
1 H 0 601 025 A
 1H0 601 149 V 7L
chrome coloured metallic For rim: 1 HM 601 025
1 HM 601 025
 1HM 601 147 A V 7L
(12)
Wheel bolt For rim: M 12 X 1,5 X 23,54/100
M 12 X 1,5 X 23,54/100
 3A0 601 139
(13)
Balancer weight with retainingspring 30 G- 1 OZ.
30 G- 1 OZ.
 111 601 182
(13)
Balancer weight 15 G
15 G
 1K0 601 181 A
(13)
Balancer weight with retainingspring 15 G- 9/16 OZ.
15 G- 9/16 OZ.
 111 601 179
(13)
Balancer weight 20 G
20 G
 1K0 601 182 A
(13)
Balancer weight 30 G
30 G
 1K0 601 184 A
(13)
Balancer weight 40 G
40 G
 1K0 601 186 A
(13)
Balancer weight with retainingspring 50 G- 1 3/4 OZ.
50 G- 1 3/4 OZ.
 111 601 184
(13)
Balancer weight 50 G
50 G
 1K0 601 188 A
(13)
Balancer weight 60 G
60 G
 1K0 601 190 A
(13)
Balancer weight with retainingspring 70 G- 2 1/2 OZ.
70 G- 2 1/2 OZ.
 111 601 186
(13)
Balancer weight with retainingspring 80 G- 3 OZ.
80 G- 3 OZ.
 111 601 187
(13)
Balancer weight with retainingspring 90 G- 3 1/4 OZ.
90 G- 3 1/4 OZ.
 111 601 188
(2)
Steel rim Black 6 JX 144/100 GOLF GL;GLSJETTA GLS,CARAT
6 JX 144/100
 1HM 601 025
(2)
Steel rim Black 6 JX 144/100 "BR."+GOLF GLX,GTI"RA.","MEX"+GOLF GL,JETTA GLS,GLX
6 JX 144/100
RA
1HM 601 025 B
(2)
Steel rim Black 6 JX 14 H 2 ET 454/100 "USA","CDN"+GLF CL, GL,CITY,CELEBRATIONEDITION;JETTA GL,GLSCITY,CELEBRATION
6 JX 14 H 2 ET 454/100
 1HM 601 025 B
(4)
Steel rim forspace-saving emergency wheel 3,5 JX 14 H 2 ET 454/100
3,5 JX 14 H 2 ET 454/100
 1H0 601 027 C
(4)
Steel rim forspace-saving emergency wheel 3,5 JX 15 H 2 ET 404/100 GOLF GTI;JETTA GLS,CARAT
3,5 JX 15 H 2 ET 404/100
 535 601 025 A
(4)
Steel rim forspace-saving emergency wheel F 1 H-T-000 001>> 3,5 JX 16 H 2 ET 385/100 JETTA GLXGOLF GTI VR 6
3,5 JX 16 H 2 ET 385/100
 3A0 601 025
(4)
Steel rim forspace-saving emergency wheel GOLF CL,GLJETTA GL
 BAT 601 025 B
(4)
Steel rim Black TAKE OFF 6 JX 14 "USA","CDN"
6 JX 14
 1HM 601 025 BX
(4A)
Hub cap F 1 H-S-003 116>>F 1 H-R-082 421>> "USA","CDN":GOLF CL,GL,CITY,CELEBRATIONEDITION;JETTA GL,CITY,CELEBRATION"MEX":GOLF;JETTA GLS"BR.":GOLF GL
 1HM 601 147
(4B)
Hub cap F 1 H-S-003 116>>F 1 H-R-082 421>> "USA","CDN""MEX"+JETTA CARAT"RA."+GOLF GL
RA
1HM 601 147 A
(7)
Hub cap 167 MM GOLF GL;MANHATAN
167 MM
 1H0 601 149 B
1
Steel rim 5,5 JX 13 H 2 ET 384/100 GOLF CL,GL;MANHATAN
5,5 JX 13 H 2 ET 384/100
 1H0 601 025 A
13
Balancer weight 10 G- 3/8 OZ.
10 G- 3/8 OZ.
 1K0 601 179 A
14
Rubber valve 43 GS/11,5
43 GS/11,5
 281 601 361
14
Rubber valve 49 GS/11,5 "USA","CDN"
49 GS/11,5
 839 601 361
2
Steel rim 6 JX 14 H 2 ET 454/100 GOLF GL;JETTA GL
6 JX 14 H 2 ET 454/100
 1H0 601 025 B
4
Steel rim forspace-saving emergency wheel F >> 1 H-S-999 000 3,5 JX 15 H 2 ET 385/100 GOLF GTI VR 6 JETTA GLX
3,5 JX 15 H 2 ET 385/100
 1H0 601 025 H
5
Cover cap 165 MM GOLF CL
165 MM
 1H0 601 149
6
Hub cap 175 MM JETTA GL
175 MM
 1H0 601 149 A
8
wheel trim ring 13" GOLF GL;MANHATAN
13"
 1H0 601 157
9
wheel trim ring 14" JETTA GL
14"
 1H0 601 157 A
