2001 alternator versions — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Alternator versions

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 13 Primary OEM: N 014 726 15, 021 145 933 H, N 011 525 20

2001 alternator versions for the Volkswagen Golf Mk4 (1998): factory exploded diagram 903060 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 12 OEM part numbers across 13 catalogued positions including N 014 726 15, 021 145 933 H and N 011 525 20. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 12 OEM part numbers across 13 numbered positions.

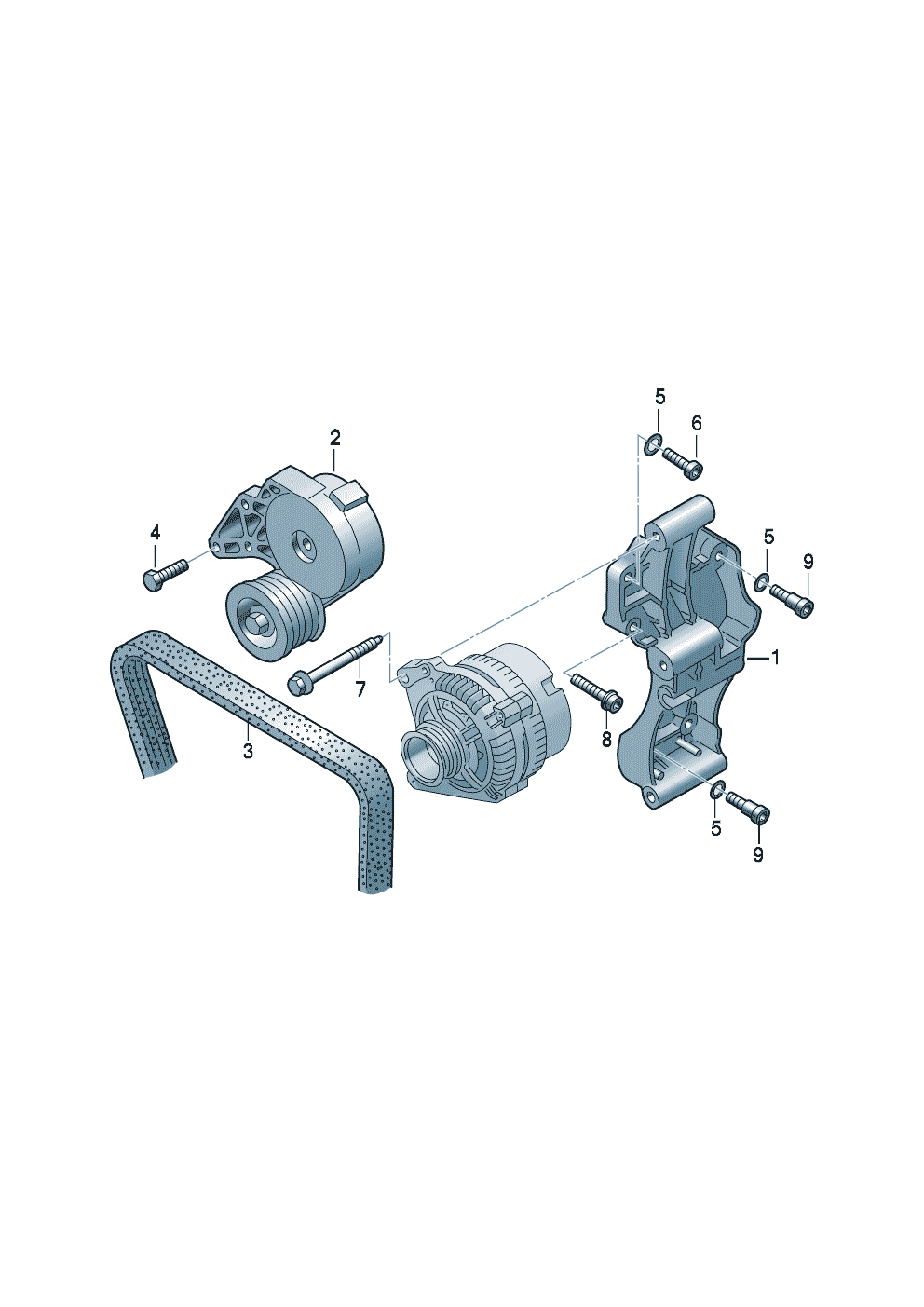

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator Poly-V-belt 2.8 Ltr. "MEX":AFP 2.8 Ltr.	—
	Socket head bolt withhexagon socket head M 8 X 30 M 8 X 30	N 014 726 15
(3)	Double poly V-beltfor vehicles with air condit. 24,92 X 1360 MM 24,92 X 1360 MM	021 145 933 H
(5)	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
(9)	Locating bolt M 8 X 8,992 X 28 M 8 X 8,992 X 28	N 904 263 02
1	bracket for alternator andrefrigerant compressor	021 260 087
2	Belt tensioner damper	021 145 299 C
4	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 16
5	Washer A 8,4 A 8,4	N 011 525 13
6	Socket head bolt withhexagon socket head M 8 X 30 M 8 X 30	N 014 726 3
7	Hex collared bolt M 8 X 85 M 8 X 85	N 101 208 03
8	Socket head bolt with hexagonsocket head (combination) M 8 X 38 M 8 X 38	N 904 050 02
9	Locating bolt M 8 X 8.992 X 28 M 8 X 8.992 X 28	N 904 263 01
