2001 conrod bearings crankshaft — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Conrod. bearings. Crankshaft

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 126 Primary OEM: 050 105 561 0 02, 034 105 701 0 07, 06B 105 561 0 02

2001 conrod bearings crankshaft for the Volkswagen Golf Mk4 (1998): factory exploded diagram 105015 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 122 OEM part numbers across 126 catalogued positions including 050 105 561 0 02, 034 105 701 0 07 and 06B 105 561 0 02. Parts on this plate carry the engine codes AEH, AGN, AGU, AKL, APF, APK, AQY and ARZ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 122 OEM part numbers across 126 numbered positions.

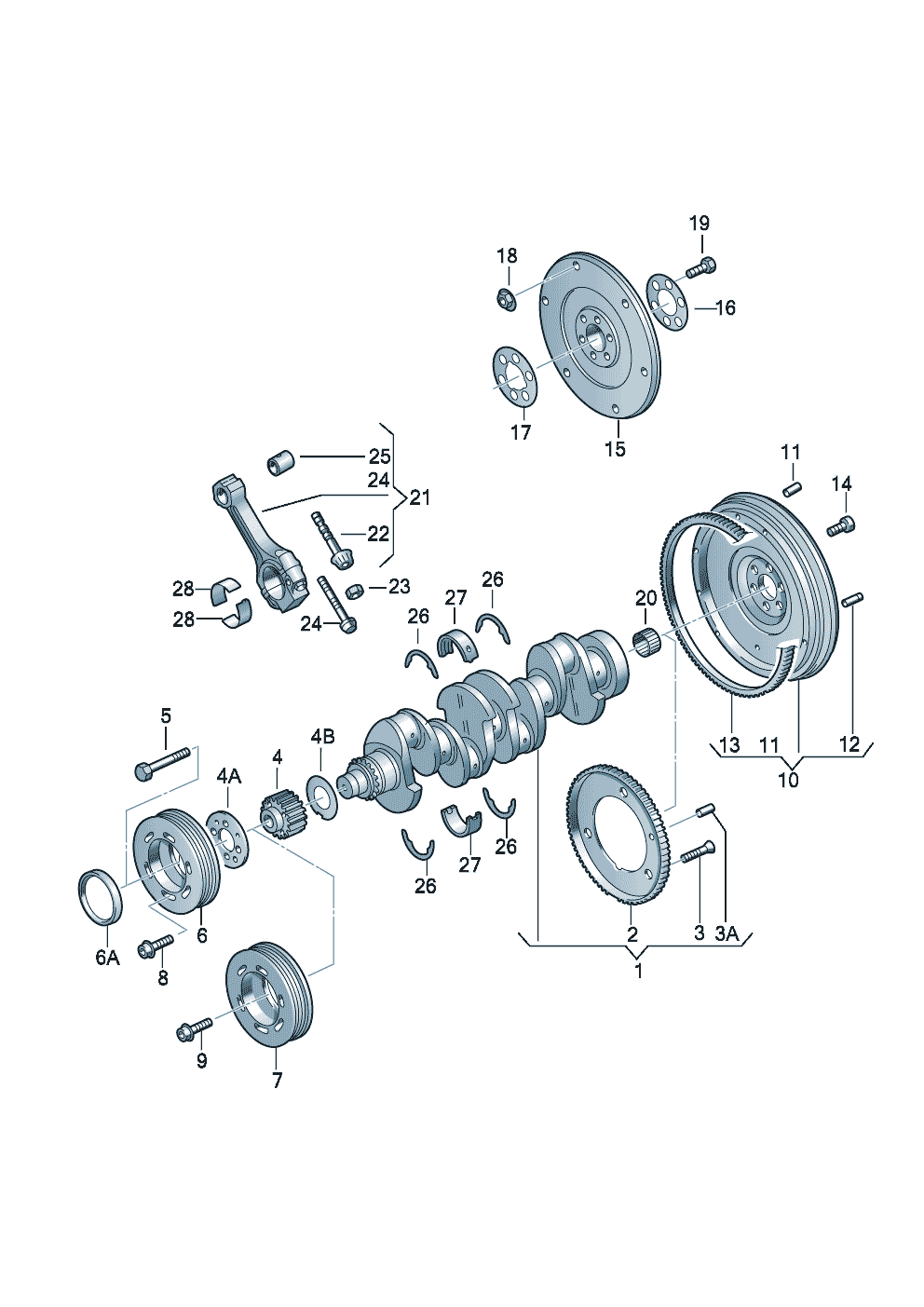

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	red	050 105 561 0 02
	yellow	034 105 701 0 07
	red	06B 105 561 0 02
	yellow	06B 105 701 E G LB
	yellow	06B 105 561 0 07
	yellow/violet	034 105 701 B 4 0Z
	yellow	034 105 701 0 07
	yellow	06B 105 561 0 07
	yellow	034 105 701 0 07
	yellow	050 105 561 0 07
	yellow	06B 105 701 F G LB
	Black	06B 105 561 0 10
	Crankshaftconrodbearings 1.6-1.8 Ltr. AEH,AKL,APF,AVU,AGN,AGU,ARZ,AUM 1.6-1.8 Ltr. AEHAKLAPFAVUAGNAGUARZAUM	—
	yellow	06B 105 561 0 07
	yellow	06B 105 701 F G LB
	red	06B 105 561 0 02
	blue	06B 105 561 0 01
	yellow	06B 105 591 0 07
	yellow	034 105 701 0 07
	Crankshaftconrodbearings 4-cylinder	—
	blue	050 105 561 0 01
	yellow	06B 105 701 A G LB
	Crankshaftconrodbearings 2.0 Ltr. AQY,APK,AZH 2.0 Ltr. AQYAPKAZH	—
	red	06B 105 561 0 02
	yellow	06B 105 591 0 07
	yellow	06B 105 701 E G LB
	yellow	06B 105 701 E G LB
	yellow	06B 105 701 F G LB
	Black	06B 105 561 0 10
	yellow	050 105 591 0 07
	yellow	06B 105 591 0 07
(1)	Crankshaft AVU AVU	06A 105 021 D
(1)	Crankshaft AEH,AKL,APF AEHAKLAPF	06A 105 021 A
(10)	flywheel 210 AEH,AKL,APF 210 AEHAKLAPF	027 105 271 NX
(10)	flywheel 215 AGN 215 AGN	068 105 269 F
(10)	flywheel 215 AGN 215 AGN	068 105 269 FX
(10)	flywheel 215 215	068 105 269 FX
(10)	flywheel with clutch AGU,ARZ,AUM AGUARZAUM	038 105 264 J
(10)	flywheel 210 AEH,AKL,APF 210 AEHAKLAPF	027 105 271 P
(14)	Hexagon bolt M 10 X 1 X 19,5 AEH,AKL,APF,AVU,AGN M 10 X 1 X 19,5 AEHAKLAPFAVUAGN	N 902 061 03
(2)	impulse rotor AEH,AGN,AGU,AKL,APF,ARZ AEHAGNAGUAKLAPFARZ	050 105 189 C
(21)	1 set: connecting rods AEH,AKL,APF AEHAKLAPF	058 198 401 C
(21)	1 set: connecting rods AUM AUM	06A 198 401
(21)	1 set: connecting rods AZH AZH	06A 198 401
(21)	1 set: connecting rods AVU AVU	06B 198 401
(24)	bolt - connecting rod M 8 X 1 X 43 AVU M 8 X 1 X 43 AVU	050 105 425 A
(25)	bush - connecting rod Not for this model AVU,AUM AVUAUM	—
(26)	1 set of thrust washers	026 198 421
(26)	thrust washer AVU AVU	050 105 637
(26)	1 set of thrust washers AGN,AGU,ARZ,AUM AGNAGUARZAUM	026 198 421
(27)	crankshaft bearing shell AVU AVU	050 105 591
(27)	crankshaft bearing shell AGN AGN	06B 105 591
(27)	crankshaft bearing shell AGN AGN	06B 105 561
(27)	1 set: crankshaft bearings AGU,ARZ,AUM AGUARZAUM	06A 198 491
(27)	crankshaft bearing shell AVU AVU	050 105 561
(28)	connecting rod bearing shell AGN AGN	034 105 701
(28)	connecting rod bearing shell AGU,ARZ AGUARZ	034 105 701 B
(28)	connecting rod bearing shell AGU,ARZ AGUARZ	034 105 701
(28)	connecting rod bearing shell M AEH 052 001>>M AKL 167 001>> only to be used for: 058 198 401 A APF 058 198 401 A APF	06B 105 701 F
(28)	connecting rod bearing shell M AEH 052 001>>M AKL 167 001>> only to be used for: 058 198 401 A APF 058 198 401 A APF	06B 105 701 E
(28)	connecting rod bearing shell M AEH 052 001>>M AKL 167 001>> only to be used for: 058 198 401 A APF 058 198 401 A APF	06B 105 701 A
(28)	1 set: conrod bearing shells AVU AVU	06B 198 701 B
(28)	1 set: conrod bearing shells AVU AVU	06B 198 701 A
(28)	connecting rod bearing shell AZH AZH	06B 105 701 F
(28)	connecting rod bearing shell AZH AZH	06B 105 701 E
(28)	connecting rod bearing shell AUM AUM	06B 105 701 E
(28)	connecting rod bearing shell AUM AUM	06B 105 701 F
(4)	toothed belt pulley AVU,AUM AVUAUM	06A 105 263 D
(4)	toothed belt pulley AEH,AGN,AGU,AKL,APF,ARZ AEHAGNAGUAKLAPFARZ	06A 105 263 C
1	Crankshaft AQY,APK AQYAPK	06A 105 021 B
1	Crankshaft	06A 105 021 G
1	Crankshaft AGN,AGU,ARZ,AUM AGNAGUARZAUM	06A 105 021
10	flywheel 215 215	068 105 269 F
10	flywheel with clutch AGU,ARZ,AUM AGUARZAUM	06A 105 264 M
10	flywheel with clutch AGU,ARZ,AUM AGUARZAUM	06A 105 264 K
12	Cylinder pin 6 X 16 6 X 16	N 013 210 2
12	Cylinder pin 6 X 16 AGN 6 X 16 AGN	N 013 210 2
14	Hexagon bolt M 10 X 1 X 19,5 M 10 X 1 X 19,5	N 902 061 03
14	Socket head bolt with innermultipoint head M 10 X 1 X 22,3 AGU,ARZ,AUM M 10 X 1 X 22,3 AGUARZAUM	N 906 650 01
15	Clutch plate automatic	068 105 323 D
15	Clutch plate automatic	068 105 323 D
16	Washer 0,5 automatic 0,5	051 105 301
16	Washer 0,5 automatic 0,5	051 105 301
17	compensation washer 1,2 automatic 1,2	056 105 303
17	compensation washer 1,2 automatic 1,2	056 105 303
19	12-point head bolt M 10 X 1 X 17 automatic M 10 X 1 X 17	N 904 656 01
19	12-point head bolt M 10 X 1 X 17 automatic M 10 X 1 X 17	N 904 656 01
2	impulse rotor	050 105 189 B
2	impulse rotor	050 105 189 B
2	impulse rotor AEH,AGN,AGU,AKL AEHAGNAGUAKL	050 105 189 A
21	1 set: connecting rods AEH,AKL,APF AEHAKLAPF	058 198 401
21	1 set: connecting rods AQY,APK AQYAPK	027 198 401 D
21	1 set: connecting rods AGU,ARZ AGUARZ	027 198 401 B
21	1 set: connecting rods AGN AGN	027 198 401 D
22	bolt - connecting rod M 8 X 1 X 50 AZH M 8 X 1 X 50 AZH	077 105 425 E
22	bolt - connecting rod M 8 X 1 X 50 AUM M 8 X 1 X 50 AUM	077 105 425 E
23	Hexagon nut only to be used for: 058 198 401 AEH,AKL,APF 058 198 401 AEHAKLAPF	048 105 427
23	Hexagon nut AGN,AGU,ARZ AGNAGUARZ	048 105 427
23	Hexagon nut AQY,APK AQYAPK	048 105 427
24	Big end bolt, press-fitted(rotation-angle controlled) AQY,APK AQYAPK	048 105 425
24	bolt - connecting rod M AEH 052 001>>M AKL 167 001>> only to be used for: M 8 X 1 X 50058 198 401 A APF M 8 X 1 X 50058 198 401 A APF	077 105 425 E
24	Big end bolt, press-fitted(rotation-angle controlled) AGN,AGU,ARZ AGNAGUARZ	048 105 425
24	Big end bolt, press-fitted(rotation-angle controlled) only to be used for: 058 198 401 AEH,AKL,APF 058 198 401 AEHAKLAPF	048 105 425
25	bush - connecting rod AEH,AKL,APF,AGN,AGU,ARZ AEHAKLAPFAGNAGUARZ	053 105 431 B
25	bush - connecting rod AQY,APK AQYAPK	053 105 431 B
26	thrust washer AEH,AKL,APF AEHAKLAPF	06A 105 637 A
27	crankshaft bearing shell AEH,AKL,APF AEHAKLAPF	06B 105 591
27	crankshaft bearing shell	06B 105 591
27	crankshaft bearing shell	06B 105 561
27	crankshaft bearing shell AEH,AKL,APF AEHAKLAPF	06B 105 561
28	connecting rod bearing shell AQY,APK AQYAPK	034 105 701
28	connecting rod bearing shell only to be used for: 058 198 401 AEH,AKL,APF 058 198 401 AEHAKLAPF	034 105 701
3	countersunk bolt M 6 X 16 M 6 X 16	053 105 229 A
3	countersunk bolt M 6 X 16 M 6 X 16	053 105 229 A
4	toothed belt pulley	06A 105 263 E
4	toothed belt pulley	06A 105 263 E
4	toothed belt pulley AEH,AGN,AGU AEHAGNAGU	06A 105 263 B
4	toothed belt pulley	06A 105 263 C
5	12-point head bolt M 16 X 54 M 16 X 54	06A 105 229
5	12-point head bolt M 16 X 54 M 16 X 54	06A 105 229
6	vibration damper	06A 105 243 E
6	vibration damper AGN,AGU,ARZ,AUM AGNAGUARZAUM	06A 105 243 E
7	pulley AEH,AKL,APF,AVU AEHAKLAPFAVU	06A 105 255 F
8	Socket head bolt withinner multipoint head M 8 X 16 M 8 X 16	N 103 036 03
8	Socket head bolt withinner multipoint head M 8 X 16 M 8 X 16	N 103 036 03
9	Socket head bolt withinner multipoint head M 8 X 16 M 8 X 16	N 103 036 07

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 1998
Generation region: RDW
Generation code: 203
Engine codes on this plate: AEH, AGN, AGU, AKL, APF, APK, AQY, ARZ
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 105015
