Engine Components

MK2 Golf 16v Plug Lead Carrier Retaining Clips

£14.95
In Stock
VW Part № 027 905 478 B / 027 905 478 C
SKU: T19-EC-PLCC-001 | Also catalogued as: 027 905 478 B / 027 905 478 C

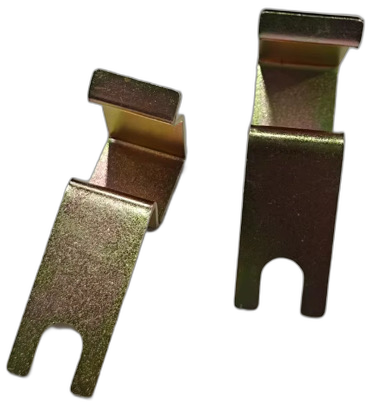

The two stamped-steel retaining clips that hold the Mk2 Golf 16v ignition lead carrier in place — one short (027 905 478 B), one long (027 905 478 C). Both fall off, both go missing, both have been off the VW shelves for decades. Reproduced in-house in zinc-plated spring steel to the original ETKA pattern.

Specification

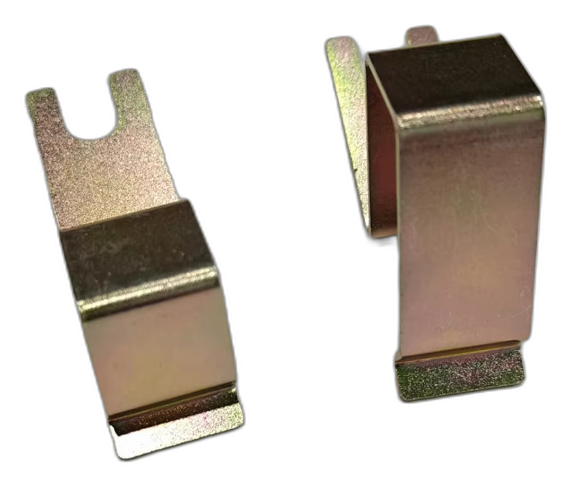

  • Direct replacement for VW parts 027 905 478 B (short retaining clip) and 027 905 478 C (long retaining clip)
  • Pressed spring steel, yellow zinc-passivated to original finish
  • Sold as a matched pair — one B and one C per set
  • Fits factory ignition lead carrier 053 905 487 A on KR and PL 16v engines

Fitment

  • Mk2 Golf GTI 16v (KR 1986-1989, PL 1990-1992)
  • Mk2 Jetta GTI 16v
  • Scirocco 16v

Why they go missing

The clips spring-locate the lead carrier on two pegs cast into the cam cover. Pull the carrier off in a hurry to change a plug lead and one or both clips will ping into the engine bay and never be seen again. After thirty years of plug changes, almost no surviving Mk2 has both originals still fitted.

Material: Yellow zinc-passivated spring steel
