engines

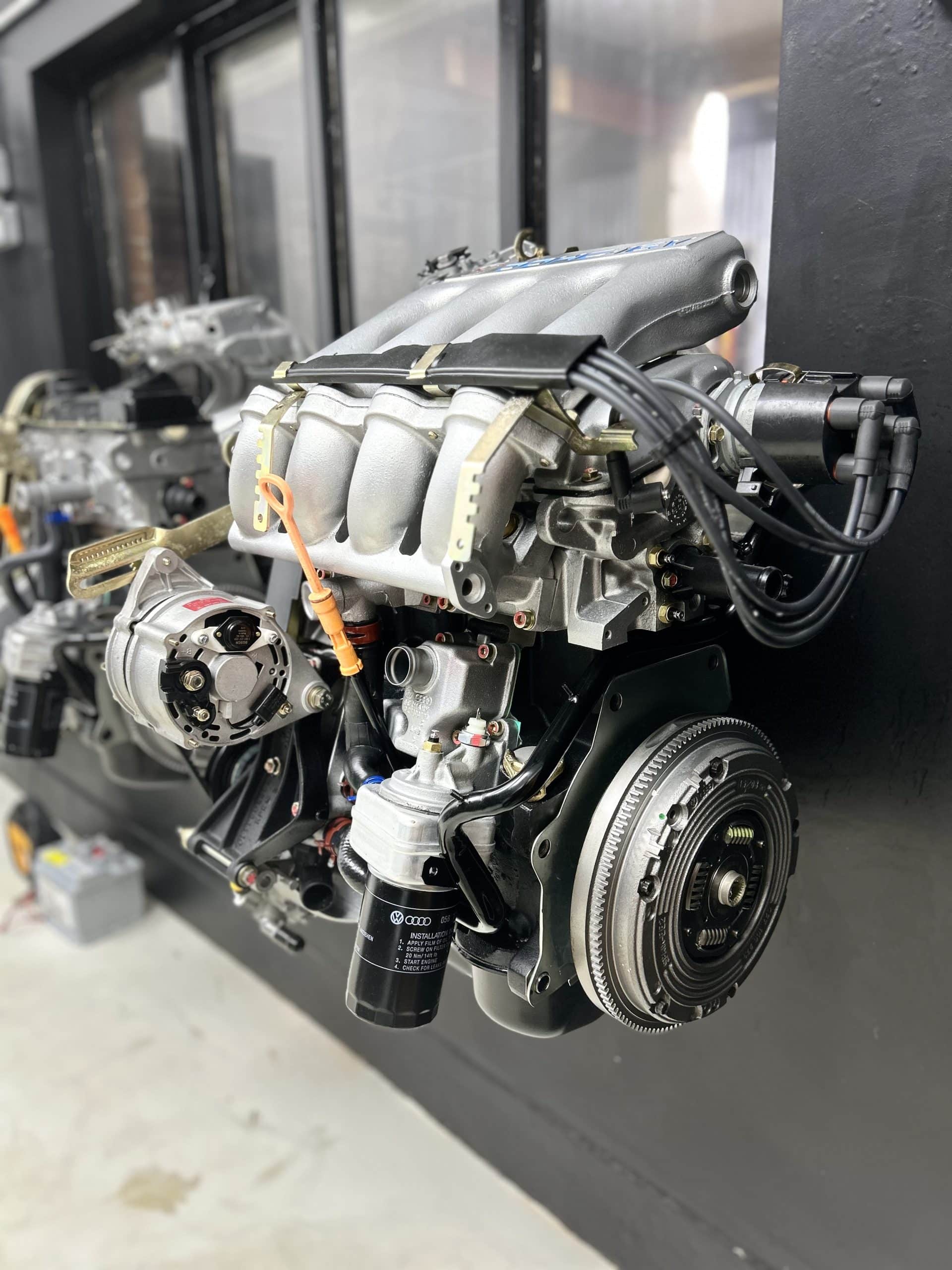

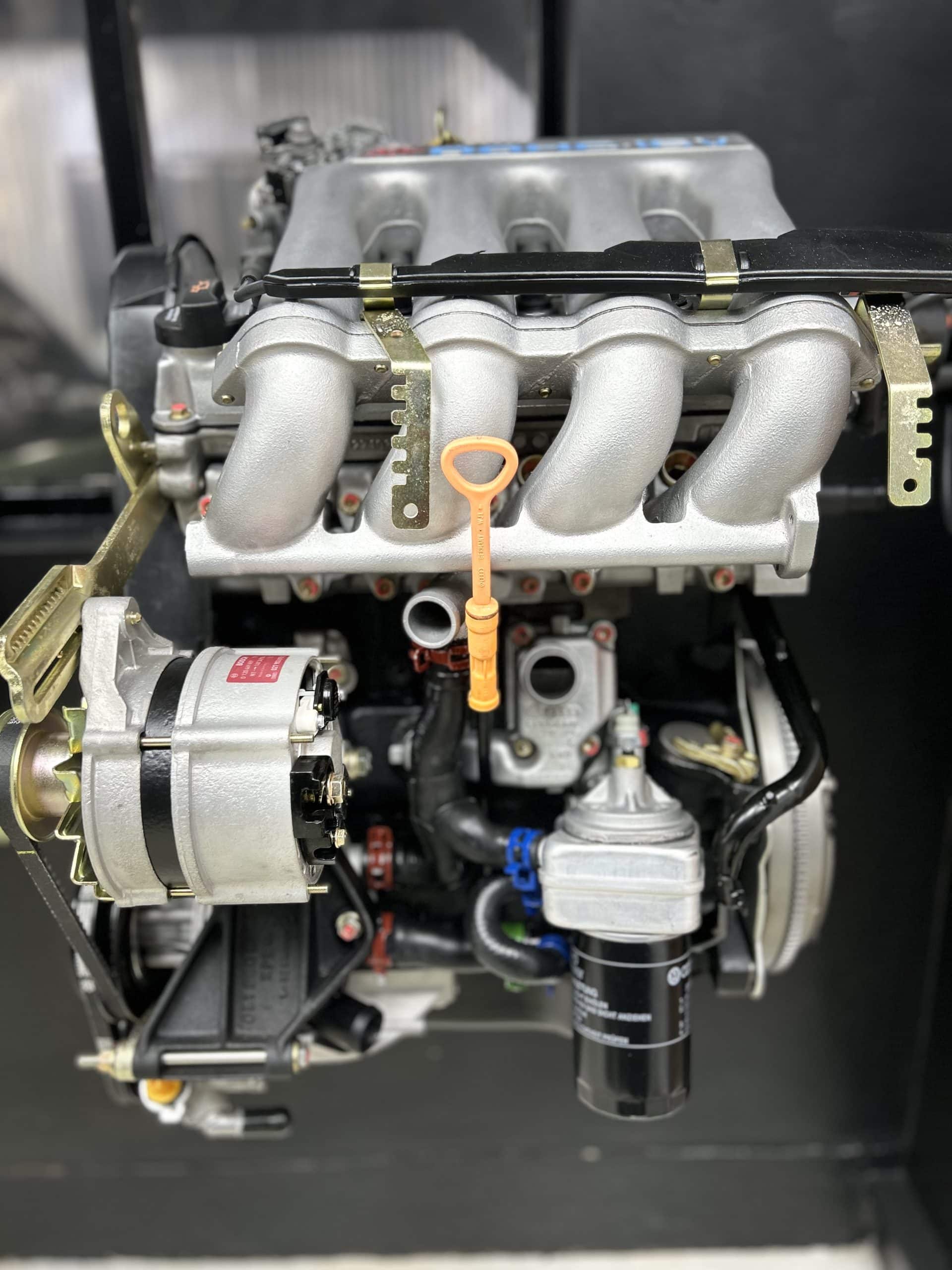

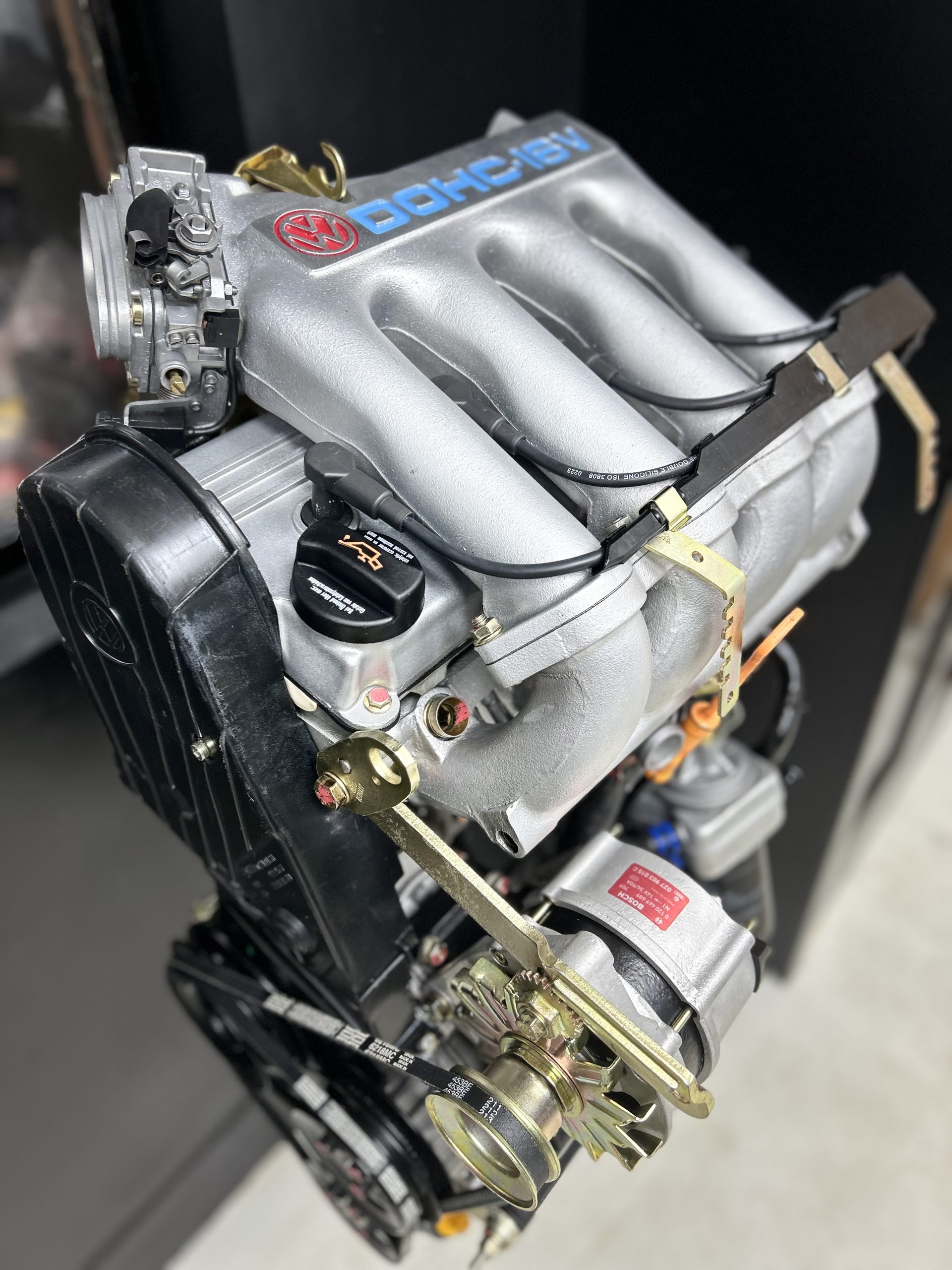

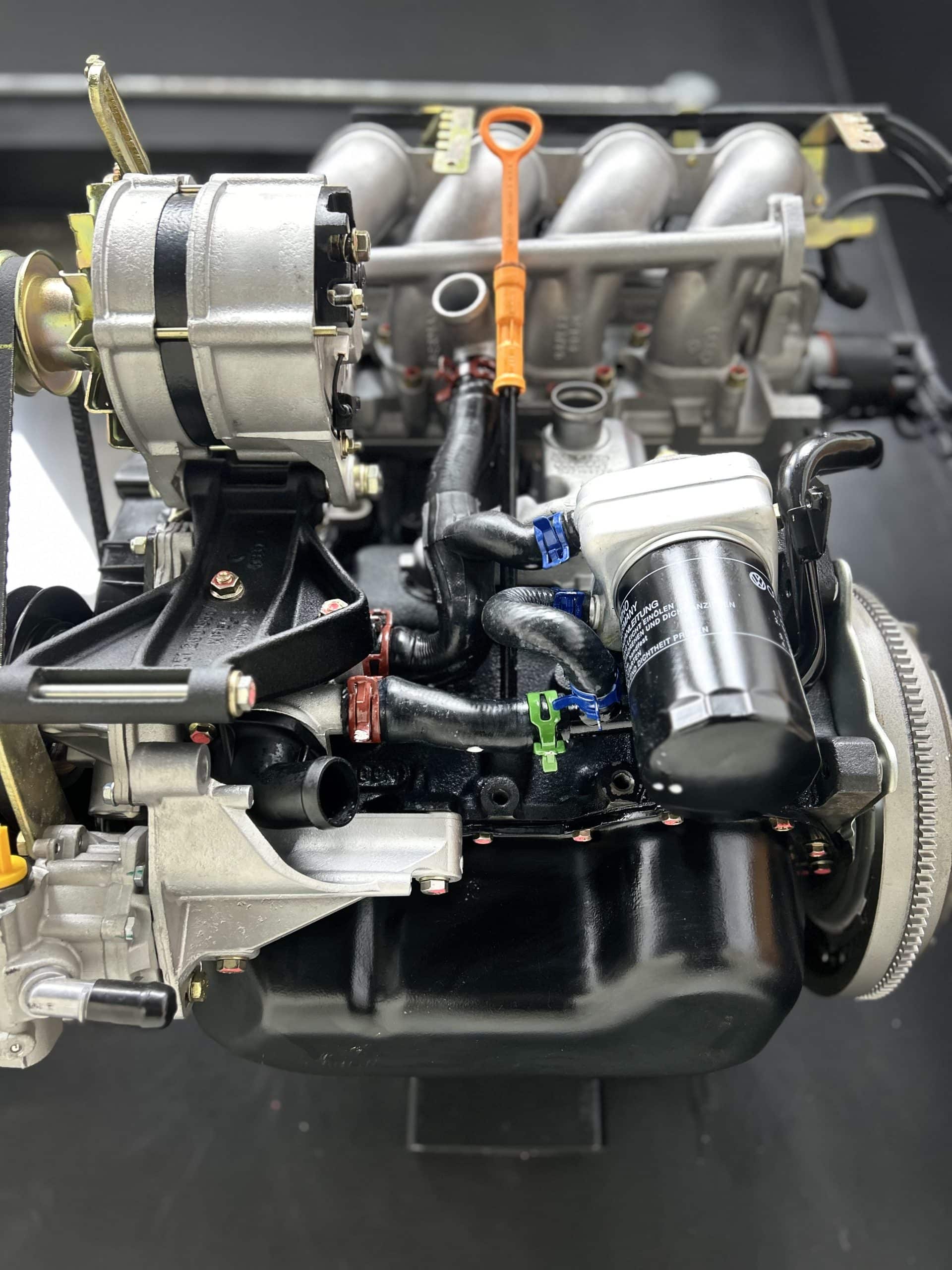

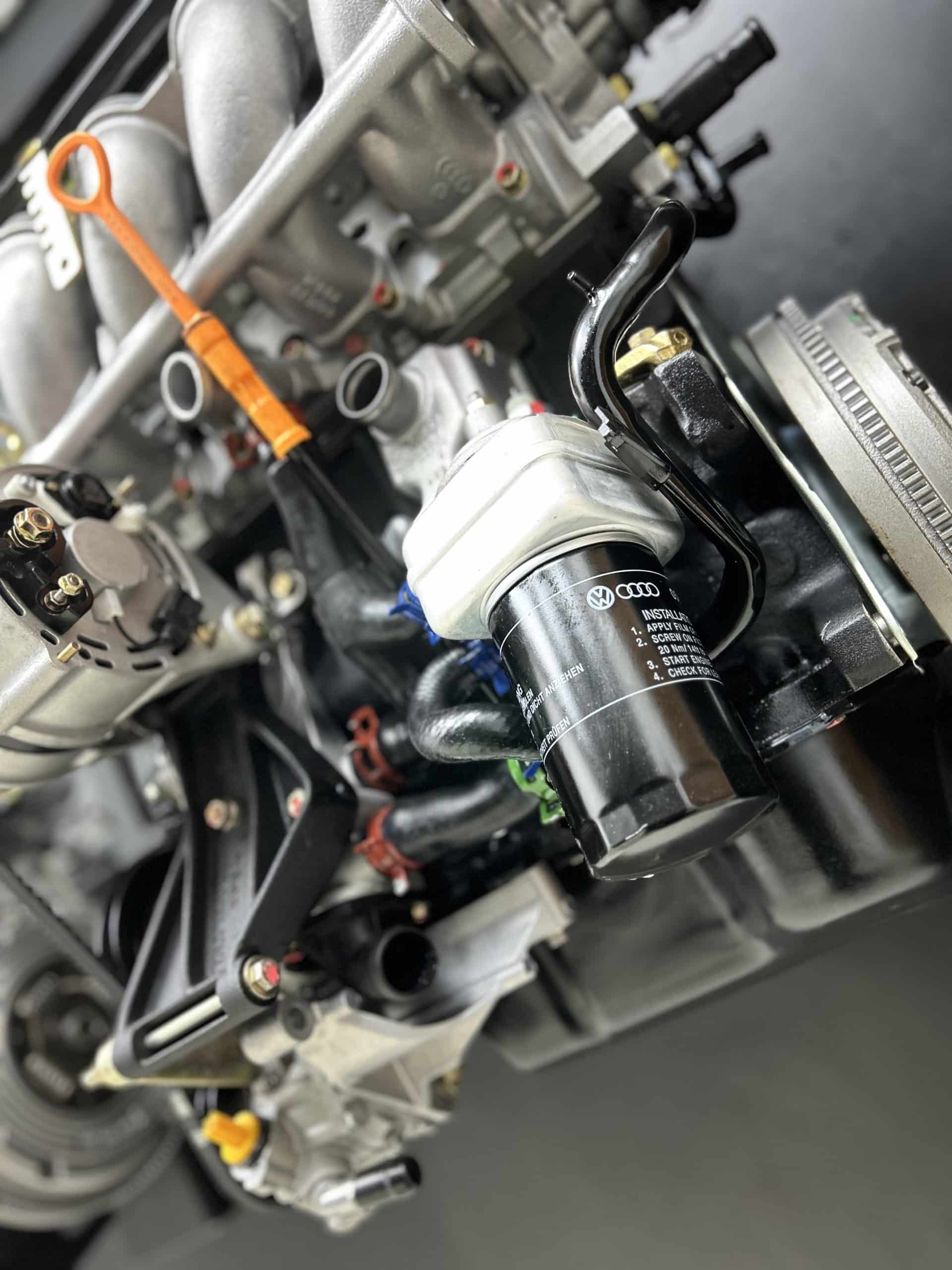

1.8 KR 16v Reconditioned Engines

£7080.00 £4945.00
In Stock
VW Part № 027100091KX
SKU: T19-ENG-KR-16V | Also catalogued as: 027100091KX

Type 19 specialises in restoring the Mk2 Golf 1.8 KR 16v to as-new condition. Every component is replaced using OEM manufacturers and all mating surfaces are machined. The original 1.8-litre bore size is retained, producing an engine as close to factory as is possible.

Pricing

  • £4,495 engine build (base spec)
  • £450 refundable core surcharge — returned in full on receipt of a rebuildable core

Block work

  • Acid dipped and powder coated in crinkle black
  • All mating surfaces machined, liner installs to OEM spec and honed
  • Line honed bottom end as standard
  • New Mahle main, thrust and rod bearings
  • New Mahle piston rings
  • Optional clutch and flywheel balancing

Cylinder head

  • Valve faces and surfaces skimmed
  • New Febi hydraulic tappets
  • Mahle valve guides, genuine Bosch plugs
  • Titanium exhaust studs and nuts throughout

External components

  • Reconditioned Bosch alternator
  • Febi oil cooler
  • Meyle power steering pump
  • OEM colour-matched coolant hose set with clamps
  • Supplied with performance running-in engine oil

Lead time

Builds take 8 to 12 weeks from order confirmation.

Optional upgrades

  • Black Edition (+£500) — external components powder coated black with zinc-coated silver ironmongery
  • Superfinished & balanced (+£1,360) — internal rotating assembly blueprinted and super-finished
  • Extended warranty (+£275) — 12 months / 12,000 miles cover
Build process

What we do to every engine.

Core stripped entirely. Measurements taken. Every component inspected for suitability before reuse or replacement. Items marked (option) are available as upgrades on request — see "Optional upgrades" below.

Zone 01

Block

Surface & finish
  • Block acid-dipped, powder-coated crinkle black
  • Pulleys powder-coated
  • All re-usable cast aluminium parts vapour-blasted
  • Flywheel vapour-blasted
Machining
  • All block mating surfaces machined
  • Liner installs to OEM specifications, then honed
  • Superfinished crank, intermediate shaft, gears (option)
  • Crank, pistons, rods, flywheel, clutch, pulleys & rings balanced (option)
Bearings, seals, clutch
  • New Mahle main, thrust, rod & intermediate-shaft bearings
  • New Mahle rings
  • Elring full gasket set
  • New Sachs clutch & bolts
Ironmongery
  • All blasted, zinc-coated gold
  • Clutch end plate zinc-coated silver to match OEM
Zone 02

Cylinder Head

Surface & finish
  • All re-usable cast aluminium parts vapour-blasted
  • Pulleys dry-blasted to match OEM
  • Exhaust manifold cera-coated, faces machined
Machining & finishing
  • Skimmed valve face, inlet & exhaust surfaces
  • Valves, cams, springs, upper & lower seats, collets superfinished (option)
Internals
  • New Febi hydraulic tappets
  • Mahle valve guides
  • Elring valve-stem seals
Ignition & exhaust
  • Bosch distributor reconditioned and vapour-blasted
  • Genuine Bosch plugs
  • Aftermarket leads, reconditioned lead holder
  • Titanium exhaust studs & nuts
Ironmongery
  • All blasted, zinc-coated gold
Zone 03

External Components

Ancillaries reconditioned
  • Bosch alternator reconditioned and vapour-blasted
  • Alternator supports blasted, powder-coated crinkle black to match OEM
  • Febi water pump
  • Meyle power-steering pump
  • Febi oil cooler
  • Genuine Volkswagen oil filter
Cooling & fluids
  • New coolant hose set with colour-match OEM clamps (original ‘T’ hose re-used if fit for purpose)
  • CO₂ screw O-ring replaced
  • Genuine dipstick collar; powder-coated dipstick tube
Detail & finish
  • All re-usable cast aluminium parts vapour-blasted
  • Genuine Volkswagen reproduced high-temp blue lettering
  • Elring full gasket set

Engine supplied with performance running-in oil and technical-data reference sheets covering pre-start and run-in processes.

Material: OEM cast iron block / aluminium 16v head
