Differentialfor manual gearbox — Mk1 Golf 9A 16V (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - For manual gearbox. Differential

Generation: Mk1 1982 - 1983 (RDW) Group: Gearbox Rebuild step 9 Parts: 48 Primary OEM: 02K 409 121 J, 020 409 121 F, 020 498 085 E

Differentialfor manual gearbox for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 99000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 45 OEM part numbers across 48 catalogued positions including 02K 409 121 J, 020 409 121 F and 020 498 085 E. Parts on this plate carry the engine code 9A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 45 OEM part numbers across 48 numbered positions.

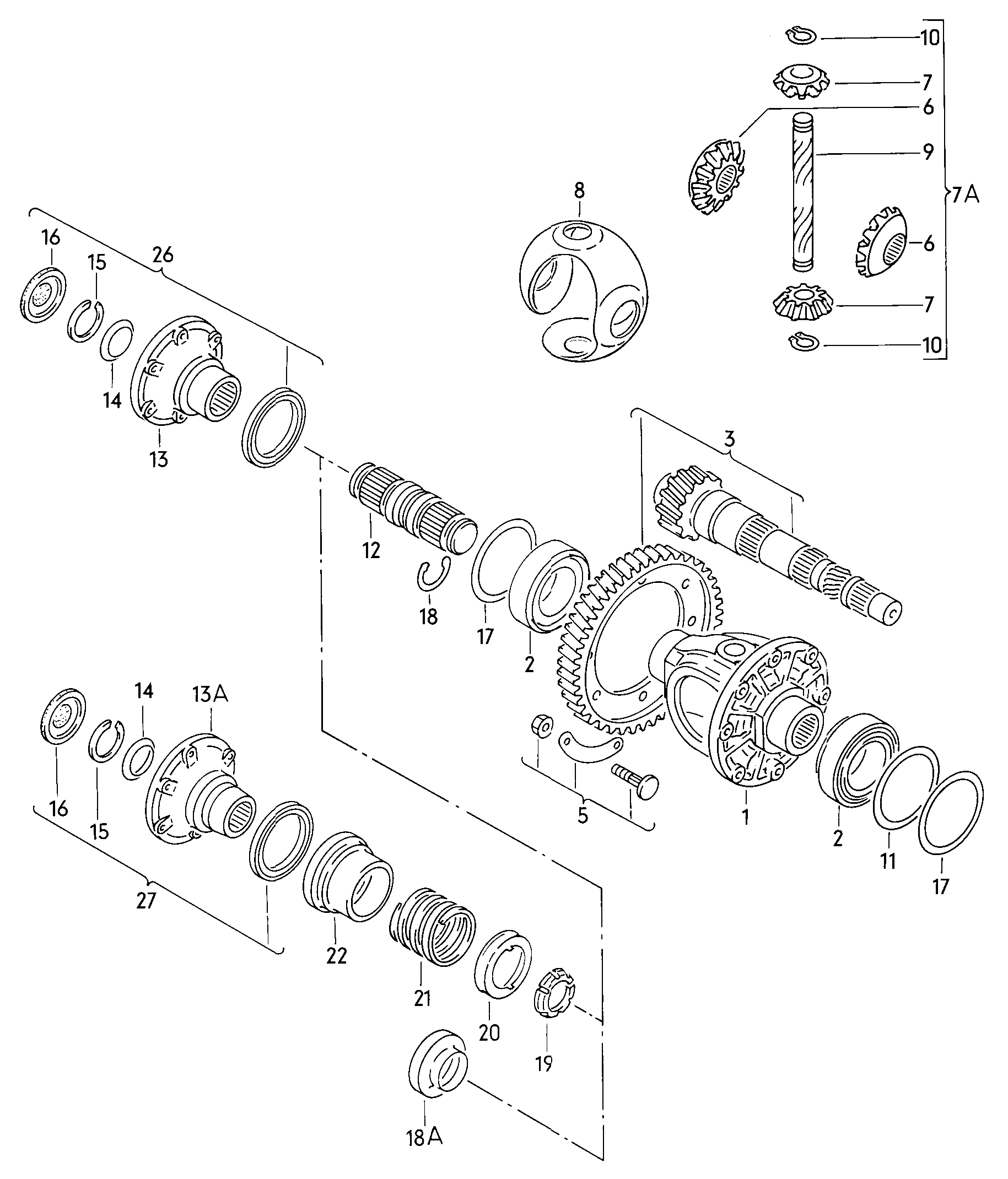

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Differentialpinion gear setfor 4-speed manual gearboxfor 5 speed manual transmiss. 1.5-1.8 ltr. GC,GR,GN,GL,GZ,GK,1 A,4 A;FF,FH,FN,FJ,FK,FD,7 G,6 G,7 A,9 A,8 A,4 T,4 Y 1.5-1.8 ltr. 9A	—
-	thrust washer	020 409 378
-	1 set: differential pinions	02K 498 081
-	Thrust washer assembly	020 409 170 B
-	tapered ring	020 409 374
(1)	Differential housing also use: 020 409 378020 409 37402 K 498 081020 409 170 B GR,GK,FH,FJ,FK,FD,7 G,6 G,FP,1 A,4 A,7 A,9 A,8 A,4 T,4 Y 020 409 378020 409 37402 K 498 081020 409 170 B 9A	02K 409 121 J
(1)	Differential housing GR,GK,FH,FJ,FK,FD,7 G,6 G,FP,1 A,4 A,7 A,9 A,8 A,4 T,4 Y 9A	020 409 121 F
(11)	adjusting washer 0,3 0,3	020 409 231 A
(11)	adjusting washer 0,8 0,8	020 409 231 F
(11)	adjusting washer 0,8 0,8	02K 409 210 C
(11)	adjusting washer 0,7 0,7	02K 409 210 A
(11)	adjusting washer 0,7 0,7	020 409 231 E
(11)	adjusting washer 0,6 0,6	020 409 231 D
(12)	Output shaft	020 409 291 B
(18)	Securing ring 22 X 2,3 22 X 2,3	020 409 299 A
(27)	repair kit forjoint flange G 01 08 3>>see workshop manual ED=6,4 GR,GK,1 A,4 A,FH,FJ,FK,FD,FP,6 G,7 G,7 A,4 Y,8 A,4 T,9 A ED=6,4 9A	020 498 085 E
(3)	pinion gear set 67/17 7 A 67/17	020 409 143 Q
(3)	pinion gear set 17/62 7 G,6 G,8 R 17/62	020 409 143 M
(3)	pinion gear set 66/18 9 A,4 Y 66/18 9A	020 409 143 AC
(3)	pinion gear set 67/17 7 A 67/17	02K 409 143 D
(3)	pinion gear set 74/19 FF,FH,FN,4 T,FJ,FK,FD 74/19	020 409 143 F
(3)	pinion gear set 62/17 GZ 62/17	020 409 143 K
(3)	pinion gear set 67/17 1 A,4 A 67/17	020 409 143 P
1	Differential housing GC,GN,GL,GZ,FF,FN	020 409 121 A
10	Securing ring 16 X 1,5 16 X 1,5	N 042 363 1
11	adjusting washer 0,15 0,15	020 409 231
13	Drive flange 90 FF,FN,GC,GN,GL,GZ 90	113 517 285 J
13A	Drive flange 90 1 A,4 A,7 A,4 Y,GR,GK,FH,FJ,FK,FD,7 G,6 G,FP,8 A,4 T,9 A 90 9A	020 409 285 N
14	Belleville spring	020 409 295
15	snap ring	020 409 297
16	End cap	020 409 289 B
17	Shim	020 409 298
18	Securing ring 22 X 2 22 X 2	020 409 299
19	tapered ring 1 A,4 A,6 G,7 G,GR,GK,FP,7 AFH,FJ,FK,FD 8 A,4 T,4 Y,9 A 9A	020 409 374
2	Taper roller bearing	003 519 185 B
20	thrust washer 1 A,4 A,6 G,7 G,GR,GK,FP,7 A,FH,FJ,FK,FD,4 Y,8 A,4 T,9 A 9A	020 409 378
21	Pressure spring GR,GK,FH,6 G,FJ,FK,FD,7 G,FP,4 Y,7 A,1 A,4 Y,8 A,4 T,9 A 9A	020 409 379 B
22	Sleeve GR,GK,FH,6 G,FJ,FK,FD,7 G,FP,4 A,8 A,4 T,4 Y,7 A,1 A,9 A 9A	020 301 192 A
26	repair kit forjoint flange G >> 31 07 3 GC,GN,GL,GZ,FF,FN	020 498 085
27	repair kit forjoint flange G >> 31 07 3 GR,GK,1 A,4 A,FH,FJ,FK,FD,FP,6 G,7 G,7 A,4 Y,8 A,4 T,9 A 9A	020 498 085 A
3	pinion gear set 74/19 GC,GR,GN,GL,GK 74/19	020 409 143
5	1 set fixing parts foroutput wheel on differentialcasing	171 498 088 A
6	Discont. / replace: 020 498 081 A 020 498 081 A	—
7	Discont. / replace: 020 498 081 A 020 498 081 A	—
7A	1 set: differential pinions	020 498 081 A
8	Thrust washer assembly	020 409 170 B
9	shaft - differential pinion	020 409 177 D
9	shaft - differential pinion	020 409 177

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these 9a 16v diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Engine codes on this plate: 9A
Variant tags: petrol_16v, petrol_8v_gti_or_gl
Factory group: 02 Gearbox
Factory subgroup: 99000
