Shift rodselector shaft selector forkfor 5 speed manual — Mk1 Golf 9A 16V (1982 - 1983)
Factory title: Volkswagen Golf (1982 - 1984) - For 4-speed manual gearbox. gears and shafts

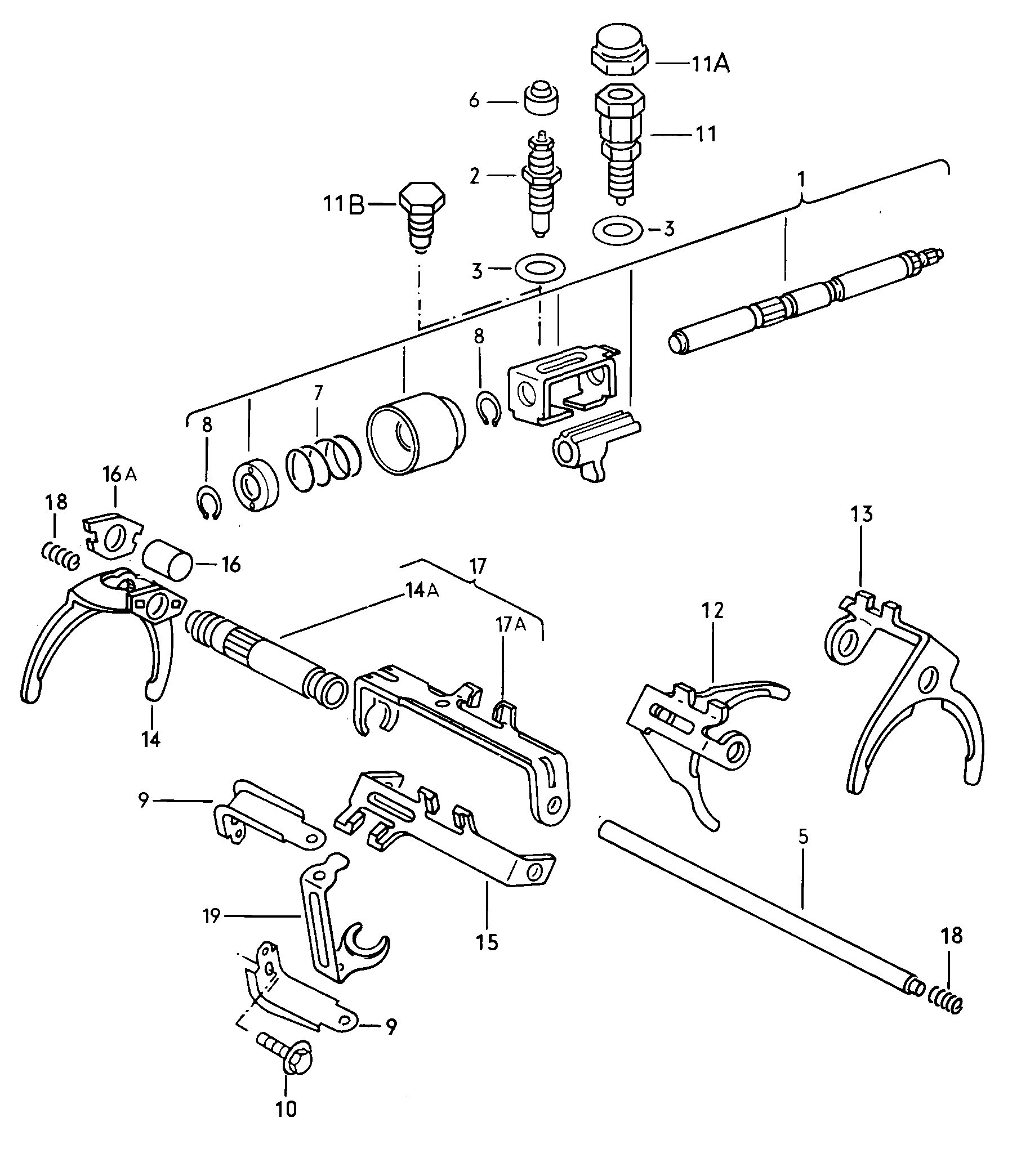

Shift rodselector shaft selector forkfor 5 speed manual for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 90000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 27 OEM part numbers across 31 catalogued positions including 171 941 550, 020 311 601 K and 020 301 235 K. Parts on this plate carry the engine code 9A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 27 OEM part numbers across 31 numbered positions.
| № | Description | Part number |
|---|---|---|
| shift rodselector shaft Selector forkfor 5 speed manual transmiss. 1.5-1.8 ltr. FF,FH,4 T,FD,FP,FN,FJ,7 A,FK,7 G,6 G,8 A,9 A,4 Y 1.5-1.8 ltr. 9A | — | |
| - | sealing plug M 12 X 1,5 M 12 X 1,5 | 171 941 550 |
| (19) | reverse lever | 020 311 601 K |
| 1 | shift rod also use: N 900 930 01171 941 550 N 900 930 01171 941 550 | 020 301 235 K |
| 10 | Hexagon bolt M 7 X 15 M 7 X 15 | N 900 712 01 |
| 11 | sealing plug M 12 X 1,5 M 12 X 1,5 | 171 941 550 |
| 11A | Discont. / replace: 171 941 550 171 941 550 | — |
| 11B | Hexagon bolt M 12 X 1,5 M 12 X 1,5 | N 900 930 01 |
| 12 | Selector fork | 020 311 551 E |
| 12 | Selector fork | 020 311 551 F |
| 13 | Selector fork | 020 311 561 F |
| 13 | Selector fork | 020 311 561 E |
| 14 | Selector fork | 020 311 562 E |
| 14A | selector shaft, tubular G 07 03 3>> | 020 311 568 C |
| 15 | Selector fork also use: 020 311 601 K 020 311 601 K | 020 311 571 G |
| 15 | Selector fork | 020 311 571 C |
| 16 | spacer sleeve G >> 06 03 3 | 020 311 579 |
| 16A | Retaining plate G 07 03 3>>see workshop manual 6-04/83 6-04/83 | 020 311 579 B |
| 17 | Discont. / replace: 020 311 585 C 020 311 568 C 020 311 585 C 020 311 568 C | — |
| 17A | connecting bridge | 020 311 585 |
| 17A | connecting bridge also use: >>G 06 033020 311 568 C >>G 06 033020 311 568 C | 020 311 585 C |
| 18 | Pressure spring | 020 311 597 |
| 19 | reverse lever | 020 311 601 K |
| 19 | reverse lever | 020 311 601 E |
| 2 | locking screw G >> 31 07 2 | 020 301 241 B |
| 3 | seal ring 20,9 X 1,5 X 12,2 20,9 X 1,5 X 12,2 | 020 301 244 |
| 5 | selector shaft | 020 301 247 B |
| 6 | Cover cap G >> 31 07 2 | 020 301 254 A |
| 7 | No longer available | — |
| 8 | Securing ring 15 X 1 15 X 1 | N 012 415 1 |
| 9 | Support | 020 301 429 A |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these 9a 16v diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Engine codes on this plate
- 9A
- Variant tags
- petrol_16v, petrol_8v_gti_or_gl
- Factory group
- 02 Gearbox
- Factory subgroup
- 90000
