Gears shaftsfor 5 speed manual transmiss — Mk1 Golf 9A 16V (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - For 4-speed manual gearbox. gears and shafts

Generation: Mk1 1982 - 1983 (RDW) Group: Gearbox Rebuild step 9 Parts: 111 Primary OEM: 020 311 101 M, 020 311 101 T, 020 311 261 K

Gears shaftsfor 5 speed manual transmiss for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 87000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 108 OEM part numbers across 111 catalogued positions including 020 311 101 M, 020 311 101 T and 020 311 261 K. Parts on this plate carry the engine code 9A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 108 OEM part numbers across 111 numbered positions.

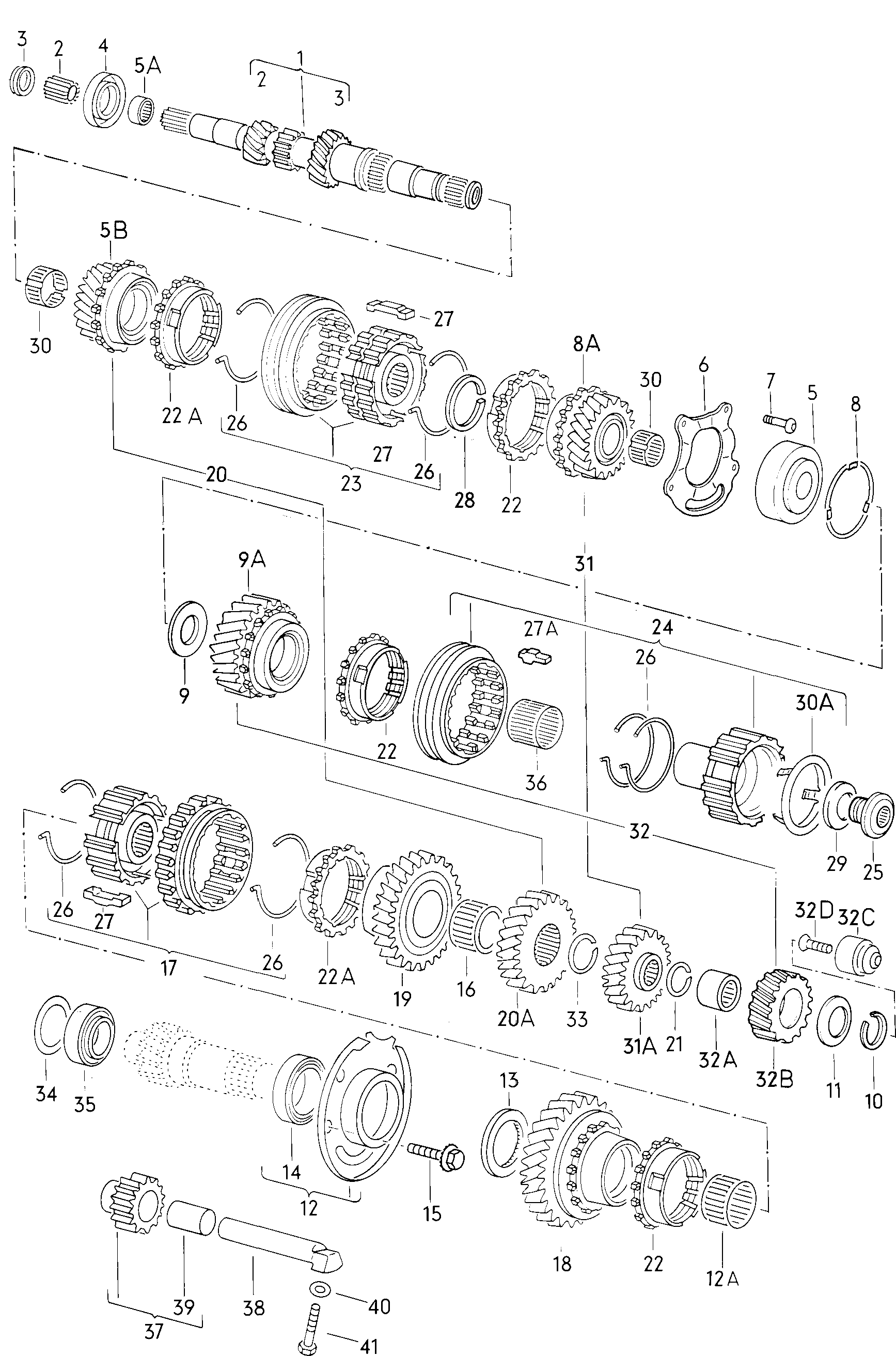

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	thrust washer	020 311 221 A
	gears and shaftsfor 5 speed manual transmiss. 1.5-1.8 ltr. FF,FH,FD,FP,4 T,FN,FJ,7 A,FK,7 G,6 G,8 A,9 A,4 Y 1.5-1.8 ltr. 9A	—
(1)	Input shaft also use: Z=11+17020 311 123 N 9 A,FK,FD,7 G,FP,4 Y Z=11+17020 311 123 N 9A	020 311 101 M
(1)	Input shaft also use: Z=11+17020 311 123 N 9 A,FK,FD,7 G,FP,4 Y Z=11+17020 311 123 N 9A	020 311 101 T
(1)	Input shaft Z=11+18 4 T,7 A,8 A Z=11+18	020 311 101 S
(1)	Input shaft Z=11+18 4 T,7 A,8 A Z=11+18	020 311 101 L
(19)	change gear Z=36/17 FK,FD,7 G,FP 9 A,4 Y Z=36/17 9A	020 311 261 K
(20A)	gear Z=39/27 7 G,FP,9 A,4 Y Z=39/27 9A	020 311 285 E
(22)	synchronizer ring	014 311 295 E
(22A)	synchronizer ring FD,FK,FP,4 T,6 G,7 A,7 G,8 A,9 A,4 Y 9A	020 311 295 A
(27A)	locking piece G 06 10 1>>	014 311 313
(31A)	gear Z=35/31 FK,FP,FD,7 G,9 A,4 Y Z=35/31 9A	020 311 351 G
(32B)	gear Z=31/34 7 G,FD,FK,FP Z=31/34	020 311 361 D
(32B)	gear Z=42/47 9 A,4 Y Z=42/47 9A	020 311 361 K
(32B)	gear Z=38/51 4 T,8 A Z=38/51	020 311 361 M
(32B)	gear Z=37/52 7 A Z=37/52	020 311 361 J
(33)	Securing ring 24 X 2,9 24 X 2,9	020 311 381 D
(33)	Securing ring 24 X 2,6 24 X 2,6	020 311 381 A
(33)	Securing ring 24 X 2,8 24 X 2,8	020 311 381 C
(33)	Securing ring 24 X 2,7 24 X 2,7	020 311 381 B
(33)	Securing ring 24 X 3,0 24 X 3,0	020 311 381 E
(34)	adjusting washer 1,2 1,2	020 311 391 J
(34)	adjusting washer 0,7 0,7	020 311 391 Q
(34)	adjusting washer 0,65 0,65	020 311 391 P
(34)	adjusting washer 1,4 1,4	020 311 391 N
(34)	adjusting washer 1,35 1,35	020 311 391 M
(34)	adjusting washer 1,3 1,3	020 311 391 L
(34)	adjusting washer 1,25 1,25	020 311 391 K
(34)	adjusting washer 1,15 1,15	020 311 391 H
(34)	adjusting washer 1,1 1,1	020 311 391 G
(34)	adjusting washer 1,05 1,05	020 311 391 F
(34)	adjusting washer 1 1	020 311 391 E
(34)	adjusting washer 0,95 0,95	020 311 391 D
(34)	adjusting washer 0,9 0,9	020 311 391 C
(34)	adjusting washer 0,85 0,85	020 311 391 B
(34)	adjusting washer 0,8 0,8	020 311 391 A
(5)	grooved ball bearing G 01 08 3>> 26 X 68 X 21,6 26 X 68 X 21,6	020 311 123 N
(5B)	change gear Z=39/27 FD,FK,FP,7 G,9 A,4 Y Z=39/27 9A	020 311 131 D
(8)	adjusting washer 0,6 0,6	020 311 140 A
(8A)	change gear Z=35/31 FD,FK,FP,7 G,9 A,4 Y Z=35/31 9A	020 311 149 F
(9A)	change gear 5. GANG 9 A,4 Y 5. GANG 9A	020 311 159 K
(9A)	change gear Z=38/51 4 T,8 A Z=38/51	020 311 159 L
(9A)	change gear Z=31/34 FK,FD,FP 7 G Z=31/34	020 311 159 D
(9A)	change gear Z=37/52 7 A Z=37/52	020 311 159 J
1	Input shaft Z=11+18 FF,FH,FN,FJ,6 G Z=11+18	020 311 101 D
10	Securing ring 16,1 X 2 16,1 X 2	N 901 060 01
11	Washer 18 X 28 X 1,8 18 X 28 X 1,8	020 311 191 A
12	mounting with taper rollerbearing	020 311 206
12A	needle bearing - K 32 X 37 X 27,7 K 32 X 37 X 27,7	020 311 213
14	Discont. / replace: 020 311 206 020 311 206	—
15	Hexagon bolt M 8 X 45 M 8 X 45	N 901 733 02
15	Hexagon bolt BM 8 X 45 BM 8 X 45	N 901 733 01
16	needle bearing - 28,1 X 37 X 28,15 28,1 X 37 X 28,15	020 311 228
17	synchronizing hub	020 311 239 E
17	synchronizing hub	020 311 239 B
18	change gear Z=38/11 Z=38/11	020 311 257
19	change gear Z=35/18 FF,FH,FN,FJ,4 T,6 G,7 A,8 A Z=35/18	020 311 261 A
19	change gear Z=35/18 FF,FH,FN,FJ,4 T,6 G,7 A,8 A Z=35/18	020 311 261 L
2	guide bush	020 311 107 C
2	guide bush	020 311 107 D
20	No longer available	—
20A	gear also use: Z=36/28020 311 131 B FF,FN,FH,FJ,6 G,7 A Z=36/28020 311 131 B	020 311 285 A
20A	gear Z=36/28 4 T,8 A Z=36/28	020 311 285 A
21	Securing ring 20 X 2,5 20 X 2,5	113 311 287
22	synchronizer ring	014 311 295 D
22	synchronizer ring	020 311 247
22A	synchronizer ring	014 311 295 E
23	synchronizing hub	020 311 301 C
23	synchronizing hub	020 311 301 D
24	synchronizing hub	020 311 303 G
24	synchronizing hub	020 311 303 F
25	Threaded sleeve with multi-point socket drive	020 311 308 C
26	Spring	014 311 311 C
27	locking piece	014 311 313
27A	locking piece G >> 05 10 1	020 311 313 A
28	Securing ring	091 311 321
29	Belleville spring 18 X 34 X 2,8 18 X 34 X 2,8	020 311 324 B
3	seal ring 14 X 4 14 X 4	020 311 108 A
30	needle bearing - K 32 X 37 X 24,8 K 32 X 37 X 24,8	020 311 325 C
30A	stop ring G 06 10 1>>	020 311 331 B
31	gear set	020 311 339 D
31A	gear Z=30/33 FF,FH,FJ,FN,4 T,6 G,7 A,8 A Z=30/33	020 311 351 K
32	gear set	020 311 359 B
32A	needle bearing - 22,02 X 33 X 19 22,02 X 33 X 19	020 311 373 D
32B	gear Z=27/38 FF,FN,FH,FJ,6 G Z=27/38	020 311 361 F
32C	Needle bush G 09 08 2>> 18,02 X 24 X 21,3 18,02 X 24 X 21,3	020 311 375
32D	oval head countersunk bolt G 09 08 2>> M 5 X 16 M 5 X 16	N 900 856 01
33	Securing ring 24 X 2,5 24 X 2,5	020 311 381
34	adjusting washer 0,75 0,75	020 311 391
35	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 E
35	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 F
36	needle bearing - K 35 X 40 X 23,8 K 35 X 40 X 23,8	02A 311 265 D
36	Needle cage K 35 X 40 X 23,8 K 35 X 40 X 23,8	02A 311 265
37	reverse gear	02K 311 501 A
37	reverse gear	020 311 501 B
37	reverse gear	020 311 501 A
38	reverse gear idler spindle	020 311 515 D
39	fush for reverse gear	014 311 533
4	radial shaft seal 40 X 8 40 X 8	020 311 113
40	seal ring A 8 X 13 A 8 X 13	N 043 804 3
41	Hexagon bolt M 8 X 28 X 21,5 M 8 X 28 X 21,5	N 900 422 01
5	grooved ball bearing G >> 31 07 3 25 X 68 X 21,6 25 X 68 X 21,6	020 311 123 J
5A	needle bearing - 22 X 30 X 18 22 X 30 X 18	002 311 125 A
5B	change gear Z=36/28 FF,FH,FN,FJ,4 T,6 G,7 A,8 A Z=36/28	020 311 131 B
6	prestressed panel	020 311 136 B
7	oval head countersunk bolt M 7 X 23 M 7 X 23	N 906 984 01
7	oval head countersunk bolt M 7 X 24 M 7 X 24	N 900 751 01
8	adjusting washer 0,3 0,3	020 311 140
8A	change gear Z=30/33 FF,FH,FN,FJ,4 T,6 G,7 A,8 A Z=30/33	020 311 149 H
9	thrust washer	020 311 155
9A	change gear Z=27/38 FF,FH,FN,FJ,6 G Z=27/38	020 311 159 F
