Which VW part numbers are on the connecting mounting parts alternator diagram for the Mk1 Golf?

This diagram lists 49 OEM part numbers for the Mk1 Golf. The first three are 049 903 103 B, 026 903 119 A and 055 903 119 B.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Connecting mounting parts alternator — Mk1 Golf Engine Electrics (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Alternator versions

Generation: Mk1 1982 - 1983 (RDW) Group: Engine electrics Rebuild step 4 Parts: 52 Primary OEM: 049 903 103 B, 026 903 119 A, 055 903 119 B

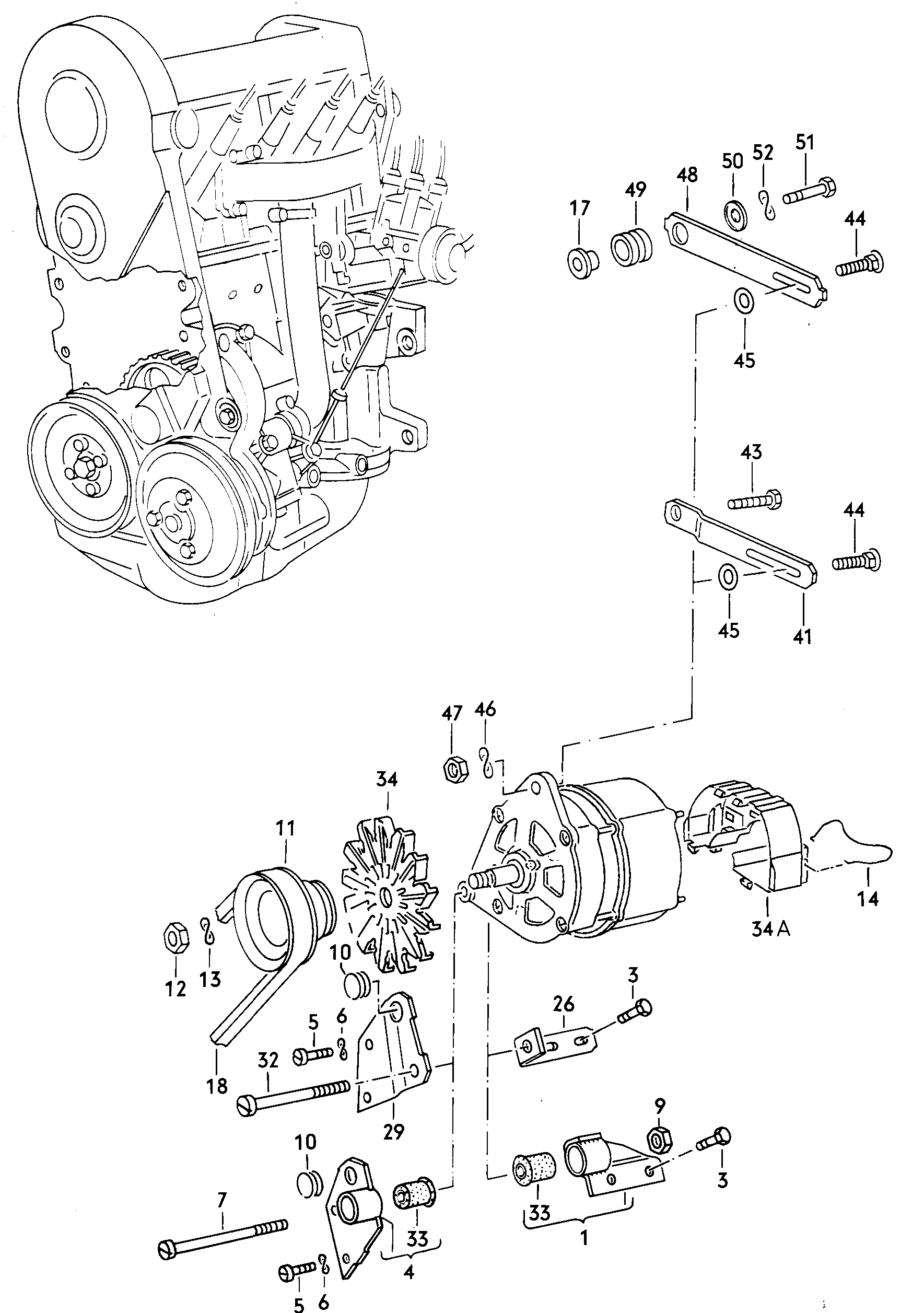

Connecting mounting parts alternator for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 196000 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 49 OEM part numbers across 52 catalogued positions including 049 903 103 B, 026 903 119 A and 055 903 119 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 49 OEM part numbers across 52 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator 1.5-1.8 ltr. GH,JB,EM,FR,EG,DX,JJ,EN,EW 1.5-1.8 ltr.	—
(1)	bracket for alternator F ..-D-000 001>>	049 903 103 B
(11)	v-belt pulley for alternator: MOTOROLA 15 MOTOROLA 15	026 903 119 A
(11)	v-belt pulley for alternator: MOTOROLA 7,9 MOTOROLA 7,9	055 903 119 B
(14)	spring shackle for alternator: MOTOROLA 7,9,15,23 MOTOROLA 7,9,15,23	036 903 121 A
(33)	bush F ..-D-000 001>>	049 903 149
(34)	fan wheel for alternator: 7 7	036 903 171
(34)	fan wheel for alternator: 9,15 9,15	036 903 171 A
(34)	fan wheel for alternator: 6,8,10 6,8,10	068 903 171
(7)	Socket head bolt withhexagon socket head M 8 X 95 DX,JJ,EW,EN M 8 X 95	N 044 759 1
1	Bracket F >> ..-C-999 999 EG,EM,EN	049 903 103
10	Bungs	049 109 273
11	v-belt pulley for alternator: 6,8 6,8	049 903 119 L
12	Hexagon nut BM 14 X 1,5 BM 14 X 1,5	N 011 113 5
12	Hexagon nut M 14 X 1,5 M 14 X 1,5	N 011 163 3
13	Spring washer 14 14	N 012 233 3
14	spring shackle for alternator: BOSCH 6,8,10-13,21,22 BOSCH 6,8,10-13,21,22	036 903 121
17	Mounting F >> ..-C-999 999 EG,EN,EM	059 903 127 A
17	Mounting F >> ..-C-999 999 EG,EN,EM	441 903 127
18	v-belt 9,5 X 950 MM 9,5 X 950 MM	050 903 137
18	v-belt 9,5 X 950 MM 9,5 X 950 MM	026 903 137 C
26	No longer available F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 JB,GHJB,GH,FRJB,GHJB,GH,FR	—
26	bracket for alternator F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 JB,GHJB,GH,FRJB,GHJB,GH,FR	056 903 141
29	bracket for alternator F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 EWJB,GHJB,GH,FRJB,GHJB,GH,FR	049 903 145 B
3	Hexagon bolt M 8 X 25 M 8 X 25	N 010 242 22
32	Socket head bolt withhexagon socket head F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 M 8 X 80 JB,GHJB,GH,FRJB,GHJB,GH,FR M 8 X 80	N 044 714 2
32	Socket head bolt withinner hex round head F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 M 8 X 80 JB,GHJB,GH,FRJB,GHJB,GH,FR M 8 X 80	N 044 714 1
33	Damping sleeve F >> ..-C-999 999 EG,EM,EN	056 903 147 A
34A	Cover for alternator: 7 7	036 903 193
34A	No longer available for alternator: 7 7	—
4	Bracket F >> ..-C-999 999 EG,EMEN	049 903 105 A
41	angled bracket F ..-D-000 001>> EN	056 903 253
41	angled bracket JB,GH,FR,DX,JJ,EW	056 903 253
43	Hexagon bolt M 8 X 25 JB,GH,FR,DX,JJ,EW M 8 X 25	N 010 242 22
43	Hexagon bolt F ..-D-000 001>> M 8 X 25 EN M 8 X 25	N 010 242 22
44	flat round head bolt M 8 X 25 M 8 X 25	059 903 285
45	Washer B 8,1 X 24 X 1,5 B 8,1 X 24 X 1,5	N 011 696 1
46	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
46	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
47	hexagon nut, self-locking M 8 M 8	N 022 146 4
48	angled bracket F >> ..-C-999 999 EGEN,EM	056 903 253 A
49	Rubber bush F >> ..-C-999 999 EGEN,EM	059 903 263 A
5	Socket head bolt withhexagon socket head M 8 X 22 M 8 X 22	N 014 709 1
50	Cup washer F >> ..-C-999 999 EGEN,EM	059 903 265 A
51	Hexagon bolt F >> ..-C-999 999 M 8 X 30 N 010244 EGEN,EM M 8 X 30 N 010244	N 010 244 16
51	Hexagon bolt F >> ..-C-999 999 M 8 X 30 N 010244 EGEN,EM M 8 X 30 N 010244	N 010 244 21
52	Spring washer F >> ..-C-999 999 B 8 X 15 X 0,8 EGEN,EM B 8 X 15 X 0,8	N 012 241 11
52	Spring washer F >> ..-C-999 999 B 8 X 15 EGEN,EM B 8 X 15	N 012 241 10
6	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
6	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
7	Socket head bolt withhexagon socket head M 8 X 125 EG,EM,JB,GH,FR M 8 X 125	N 044 721 1
9	hexagon nut, self-locking M 8 M 8	N 022 146 4

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine electrics diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Variant tags: petrol_8v_gti_or_gl
Factory group: 44 Engine electrics
Factory subgroup: 196000
