Activated charcoal containerexpansion chamber — Mk1 Golf Fuel Supply (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Fuel tank. Vent hose. gravity valve

Generation: Mk1 1982 - 1983 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 39 Primary OEM: N 020 150 5, N 020 290 1, N 020 290 3

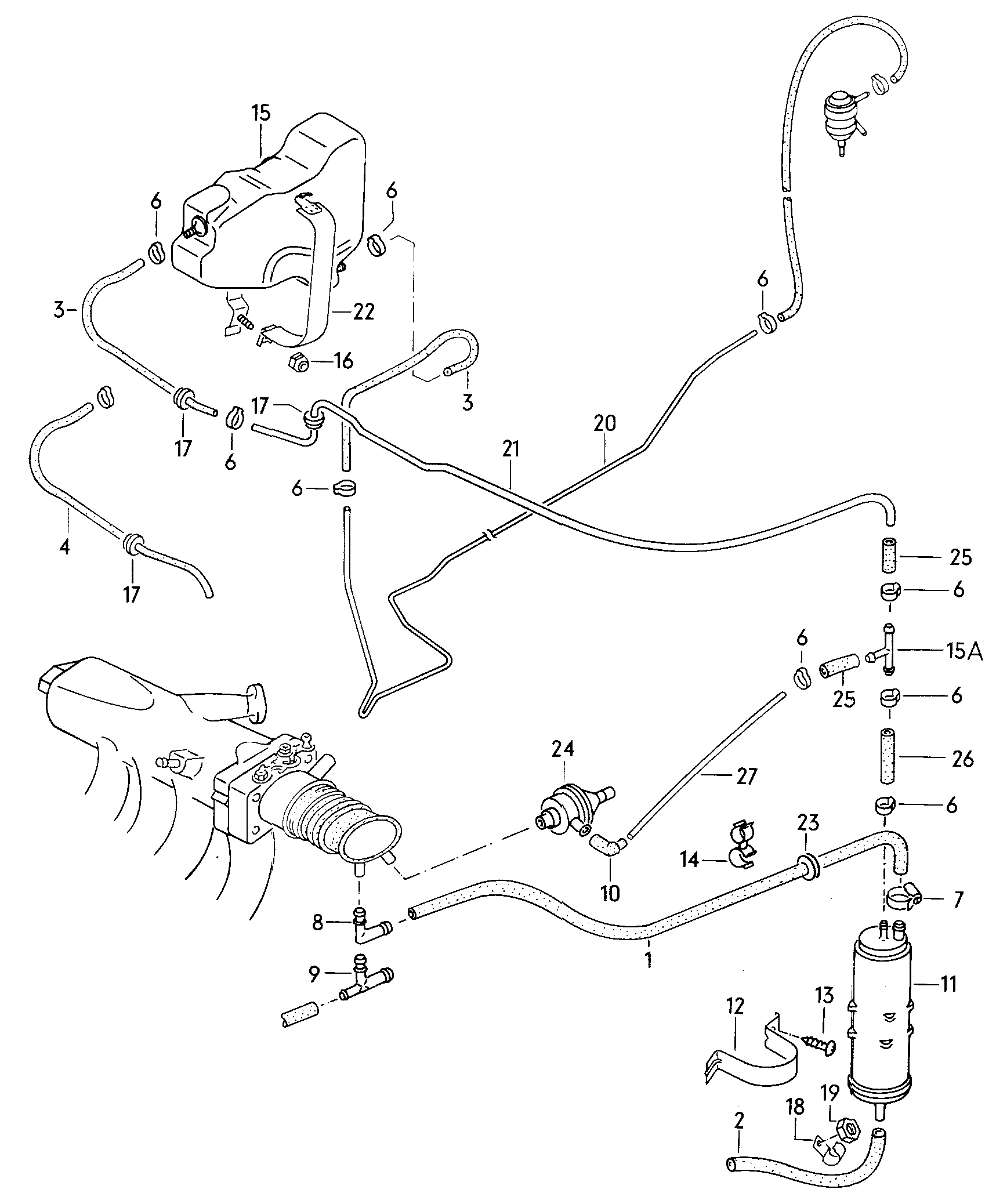

Activated charcoal containerexpansion chamber for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 67000 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 30 OEM part numbers across 39 catalogued positions including N 020 150 5, N 020 290 1 and N 020 290 3. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 30 OEM part numbers across 39 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	tube in coils of 5 m'order unit 5' 6 X 1 X 5000 6 X 1 X 5000	N 020 150 5
-	Hose(Bulk stock) 12 X 3,5 12 X 3,5	N 020 290 1
-	hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5	N 020 290 3
-	tube in coils of 5 m'order unit 5' 6 X 1 X 5000 6 X 1 X 5000	N 020 150 5
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
(1)	breather hosewith spring "S..":GOLF	171 201 159 B
(10)	angled hose 4 MM 4 MM	054 133 784 F
(15)	expansion chamber SCIR.	533 201 891
(20)	Pipe	171 201 999 A
(22)	tensioning strap SCIR.	531 805 415
(23)	Bungs 27 27	191 971 928
1	shorten to: 900 MM 900 MM	—
11	Activated charcoal container	1H0 201 801 C
11	Activated charcoal container	171 201 801 A
12	tensioning strap	171 201 809
13	oval head panel screw 5,5 X 25 5,5 X 25	N 013 948 1
14	Hose bracket GOLF	171 201 815
15	expansion chamber GOLF,JETTA	171 201 891 B
15A	t-piece	113 127 563
16	hexagon nut, self-locking M 8 M 8	N 022 146 4
17	Grommet 16,5 16,5	111 971 911 A
18	Clamp	171 201 989
19	Hexagon nut M 6 M 6	N 011 006 8
19	Hexagon nut M 6 M 6	N 011 006 24
2	shorten to: 550 MM 550 MM	—
20	shorten to: 3040 MM "S.." 3040 MM	—
21	shorten to: 1500 MM 1500 MM	—
22	tensioning strap GOLF,JETTA	171 805 415
24	Non-return valve	035 133 517
25	shorten to: 80 MM 80 MM	—
26	shorten to: 300 MM 300 MM	—
27	shorten to: 550 MM 550 MM	—
3	shorten to: 550 MM 550 MM	—
4	shorten to: 1130 MM 1130 MM	—
6	Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 024 528 1
7	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
8	Elbow fitting 13/12,3 MM 13/12,3 MM	067 133 382 H
9	T-piece with reducing opening 13/12,3/8,3 MM air condit. 13/12,3/8,3 MM	067 133 382 G

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Factory group: 29 Fuel / air power supply
Factory subgroup: 67000
