Which VW part numbers are on the fuel tank diagram for the Mk1 Golf?

This diagram lists 72 OEM part numbers for the Mk1 Golf. The first three are 111 837 219 A S 89, 111 837 219 A S 88 and 155 201 551 S BV.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Fuel tank — Mk1 Golf Fuel Supply (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Fuel tank

Generation: Mk1 1979 - 1980 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 79 Primary OEM: 111 837 219 A S 89, 111 837 219 A S 88, 155 201 551 S BV

Fuel tank for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 42000 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 72 OEM part numbers across 79 catalogued positions including 111 837 219 A S 89, 111 837 219 A S 88 and 155 201 551 S BV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 72 OEM part numbers across 79 numbered positions.

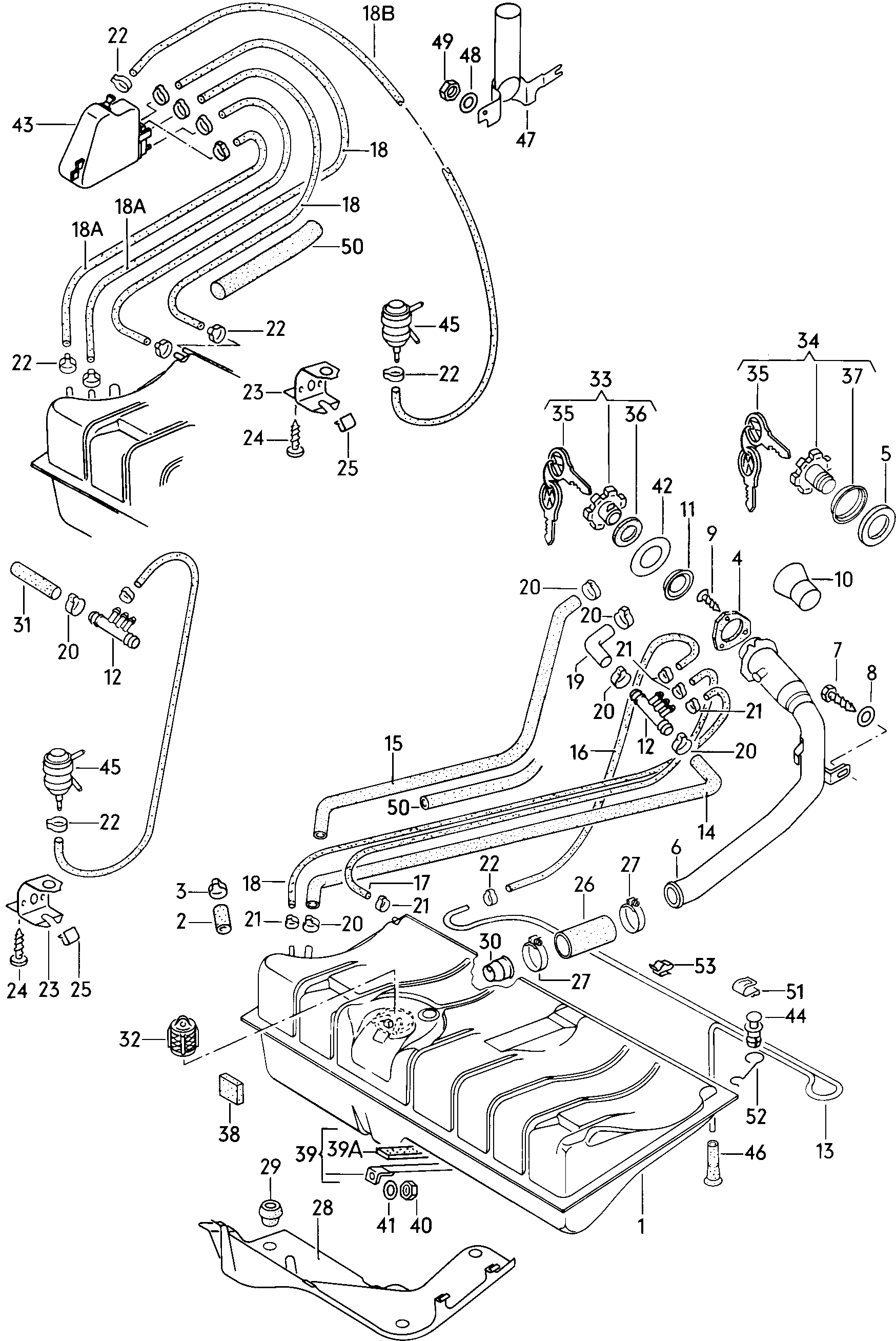

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Left profile	111 837 219 A S 89
	Right profile	111 837 219 A S 88
	Self-service packaging	155 201 551 S BV
	Z profilequote key numberfor cut keys	111 837 219 A S 99
	Right profile	111 837 219 A S 98
	Left profile	111 837 219 A S 97
-	hose in coils of 5 m'order unit 5' 4 X 1,75 4 X 1,75	N 020 312 2
-	1 set underlays forfuel tank	171 298 121
-	Stop buffer	056 129 465
-	Underlay 620 X 35 X 1,5 620 X 35 X 1,5	321 201 300 B
-	beading 100 MM 100 MM	701 947 149 A
-	Edge protection	861 805 793 A
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
-	Hose(Bulk stock) 15 X 2,5 15 X 2,5	N 020 363 1
(1)	Fuel tank also use: 171 201 159 BN 900 996 01171 298 121 DIESEL,K-JETRONIC 171 201 159 BN 900 996 01171 298 121	171 201 075 Q
(15)	breather hosewith spring	171 201 159 B
(32)	Fuel filter K-JETRONIC	431 201 511
(33)	cap, lockable forfuel tank carburetorengine DIESEL:CK	155 201 551
(34)	cap with thread notventilation forfuel tank	171 201 551 M
(42)	Cover ring for fillingpiece with lettering diesel eng.	171 201 681 E
(51)	Hose bracket GOLF D,LD,GLD,GTI,GLI	171 201 981
(6)	filler neck(for threaded cap) GOLF E,LE,GLE,GTI,GLI	171 201 129 N
(6)	fuel filler neck SCIR.,L,LS,GL,GT	531 201 129 B
(6)	filler neck(for threaded cap) K-JETRONIC "J..":SCIR. K-JETRONIC	531 201 129 M
1	Fuel tank also use: 171 201 159 BN 900 996 01171 298 121 carburetorengine 171 201 159 BN 900 996 01171 298 121	171 201 075 P
10	funnel for use with leadedfuels	133 201 134
11	ring for fuel filler neck	171 201 141
12	Connecting piece DIESEL	171 201 157 A
13	Breather line GOLF D,LD,GLD,GTI,GLI	171 201 158
14	Discont. / replace:	—
15	breather hosewith spring	171 201 153 G
16	shorten to: 1160 MM 1160 MM	—
17	shorten to: 1000 MM 1000 MM	—
18	shorten to: 1300 MM 1300 MM	—
18A	shorten to: 1510 MM 1510 MM	—
18B	shorten to: 870 MM 870 MM	—
19	Connecting hose	311 201 179 A
2	Cap closure	113 201 539
20	Clamp LC 16-25 LC 16-25	N 900 719 01
20	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
21	Hose clip 9 9 Type 19 makes this →	311 133 343 A
22	Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 024 528 1
23	bracket for gravity valve DIESEL:CK	171 201 181
24	oval head panel screw 6,3 X 13 6,3 X 13	N 013 976 1
25	Clip DIESEL:CK	321 201 190
26	Hose 40 X 5 X 165 40 X 5 X 165	N 901 196 01
27	Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this →	N 024 507 7
27	Clamp LC 32-50 LC 32-50	N 024 507 4
28	Guard plate also use: 701 947 149 A 321 201 300 B 056 129 465 "J..";GOLF GTI,GLI 701 947 149 A 321 201 300 B 056 129 465	171 201 283
29	Grommet "J.."	321 721 559
3	Hose clip 9 9 Type 19 makes this →	311 133 343 A
30	pipe insert with flap	171 201 285 A
31	shorten to: 80 MM GOLF GTI,GLI 80 MM	—
32	Fuel filter DIESEL:CK	431 201 511 A
33	cap without ventilation forfuel tank carburetorengine DIESEL:CK	171 201 551 J
34	End cap with threadwithout vent (lockable)for fuel tank	155 201 551 A
35	key	111 837 219 A
36	Seal 35 X 54 35 X 54	211 201 557 F
37	seal ring	191 201 557
38	Underlay	171 201 647 A
39	tensioning strap	171 201 651 A
39A	Underlay	321 201 300 B
4	seal ring	171 201 119 F
40	hexagon nut, self-locking M 8 M 8	N 022 146 4
41	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
41	Washer A 8,4 A 8,4	N 011 525 13
42	Cover ring for fillingpiece	171 201 681 D
43	fuel trap	171 201 701 C
44	Spreader rivet GOLF D,LD,GLD,GTI,GLI	171 201 713 A
45	gravity valve GOLF GTI,GLISCIR.GTI,GLI"J..":SCIR.	431 201 753 D
46	end piece GOLF D,LD,GLD,GTI,GLI	321 201 890
5	seal ring K-JETRONIC	171 201 119 E
50	Protective hose	171 201 949 B
52	bracket for breather pipe GOLF D,LD,GLD,GTI,GLI	171 201 981 E
53	cable terminal DIESEL:CK	803 971 847
6	fuel filler neck GOLF,L,LS,GLGLS,D,LD,GLD	171 201 129
7	hexagon head panel screw 6,5 X 19 6,5 X 19	N 015 946 1
8	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
9	countersunk panel screw 4,2 X 16 4,2 X 16	N 013 998 1

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

Mk2 Golf Engine Hose Clamps Factory numbers on this diagram: 311 133 343 A, N 024 507 7

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: petrol_8v_gti_or_gl
Factory group: 29 Fuel / air power supply
Factory subgroup: 42000

Related factory diagrams

Other published fuel supply plates for the Mk1 Golf in this catalogue.

Activated charcoal containerfuel trapexpansion chamber line 1975 - 1976 · subgroup 19010
Fuel tank 1975 - 1976 · subgroup 19000
Accumulator fuel filter fuel pumpfuel pipe k jetronic 1975 - 1976 · subgroup 19020
Fuel tank 1977 - 1978 · subgroup 19000
Activated charcoal containerfuel trapexpansion chamber 1977 - 1978 · subgroup 19010
Accumulator fuel filter fuel pumpfuel pipe k jetronic 1977 - 1978 · subgroup 19020
Activated charcoal containerexpansion chamber line 1979 - 1980 · subgroup 43000
Fuel tank 1979 - 1980 · subgroup 42010
