Activated charcoal containerexpansion chamber line — Mk1 Golf Fuel Supply (1979 - 1980)
Factory title: Volkswagen Golf (1979 - 1980) - Fuel tank

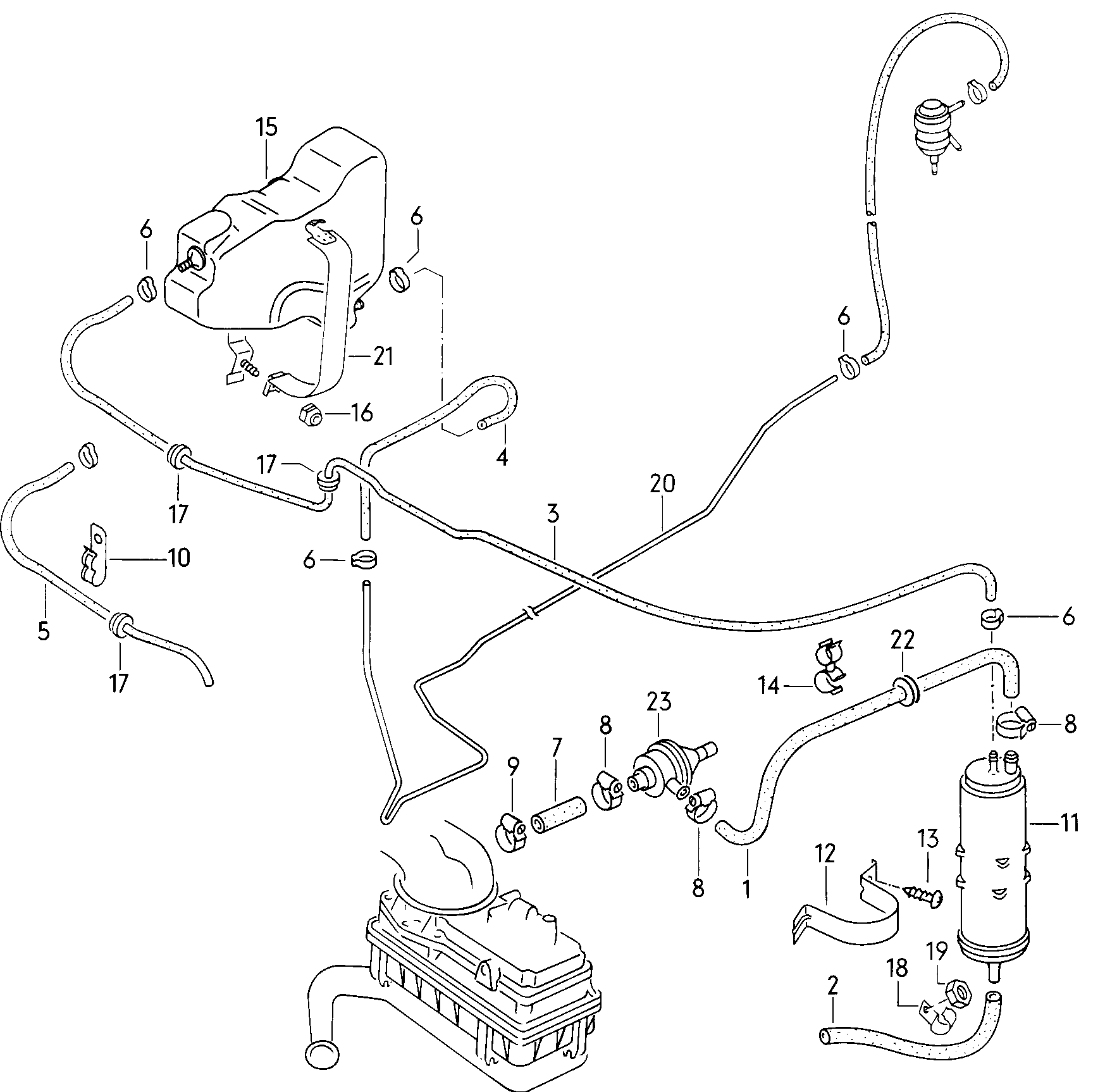

Activated charcoal containerexpansion chamber line for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 43000 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 27 OEM part numbers across 34 catalogued positions including N 020 262 1, N 020 290 1 and N 020 290 3. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 27 OEM part numbers across 34 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | hose in coils of 5 m'order unit 5' 10 X 3,5 10 X 3,5 | N 020 262 1 |
| - | Hose(Bulk stock) 12 X 3,5 12 X 3,5 | N 020 290 1 |
| - | hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5 | N 020 290 3 |
| - | hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3 | N 900 996 01 |
| - | tube in coils of 5 m'order unit 5' 6 X 1 X 5000 6 X 1 X 5000 | N 020 150 5 |
| - | shorten to: 800 MM 800 MM | — |
| (1) | breather hosewith spring "S..":GOLF | 171 201 159 B |
| (15) | expansion chamber | 171 201 891 B |
| (21) | tensioning strap SCIR. | 531 805 415 |
| 1 | shorten to: 580 MM 580 MM | — |
| 11 | Activated charcoal container | 171 201 801 A |
| 11 | Activated charcoal container | 1H0 201 801 C |
| 12 | tensioning strap not for: GTI,GLI GTI,GLI | 171 201 809 |
| 13 | oval head panel screw 5,5 X 25 5,5 X 25 | N 013 948 1 |
| 14 | Hose bracket GOLF | 171 201 815 |
| 16 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 17 | Grommet 16,5 16,5 | 111 971 911 A |
| 18 | Clamp | 171 201 989 |
| 19 | Hexagon nut M 6 M 6 | N 011 006 8 |
| 19 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 2 | shorten to: 550 MM 550 MM | — |
| 20 | shorten to: 3040 MM "S.." 3040 MM | — |
| 20 | Pipe F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> | 171 201 999 A |
| 21 | tensioning strap GOLF;JETTA | 171 805 415 |
| 22 | Bungs 28 28 | 171 957 857 |
| 23 | Valve | 049 133 517 |
| 3 | shorten to: 2300 MM 2300 MM | — |
| 4 | shorten to: 550 MM 550 MM | — |
| 6 | Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4 | N 024 528 1 |
| 7 | shorten to: 50 MM 50 MM | — |
| 8 | Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4 | N 102 582 01 |
| 8 | Hose clamp LC 12-22 LC 12-22 | N 024 509 4 |
| 9 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 9 | Clamp LC 16-25 LC 16-25 | N 900 719 01 |
