Which VW part numbers are on the fuel tank diagram for the Mk1 Golf?

This diagram lists 73 OEM part numbers for the Mk1 Golf. The first three are 111 837 219 A S 88, 111 837 219 A S 98 and 155 201 551 S BV.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Fuel tank — Mk1 Golf Fuel Supply (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Fuel tank

Generation: Mk1 1979 - 1980 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 78 Primary OEM: 111 837 219 A S 88, 111 837 219 A S 98, 155 201 551 S BV

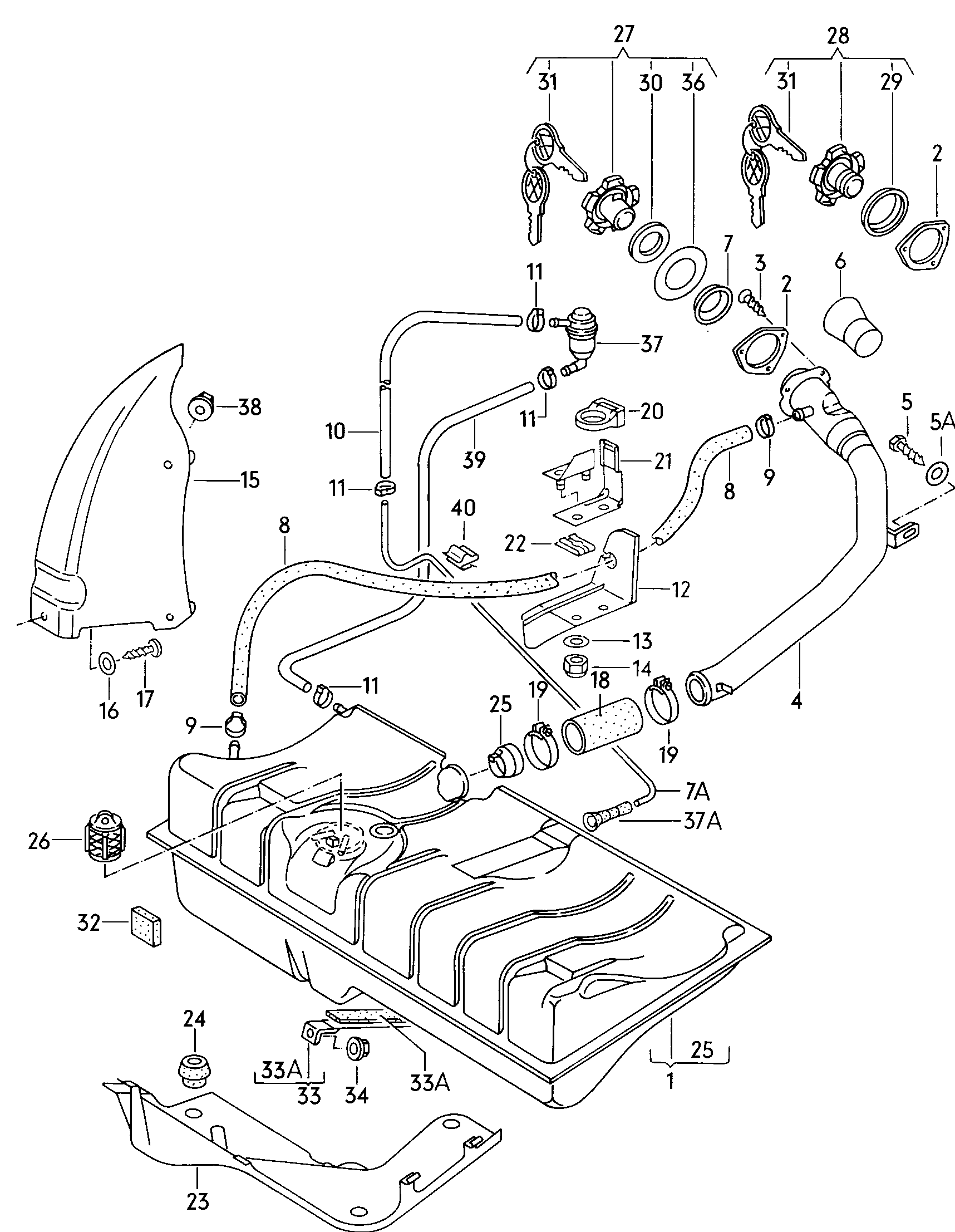

Fuel tank for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 42010 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 73 OEM part numbers across 78 catalogued positions including 111 837 219 A S 88, 111 837 219 A S 98 and 155 201 551 S BV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 73 OEM part numbers across 78 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Right profile	111 837 219 A S 88
	Right profile	111 837 219 A S 98
	Self-service packaging	155 201 551 S BV
	Left profile	111 837 219 A S 97
	Z profilequote key numberfor cut keys	111 837 219 A S 99
	Left profile	111 837 219 A S 89
-	Stop buffer	056 129 465
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
-	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
-	Edge protection	861 805 793 A
-	1 set underlays forfuel tank	171 298 121
-	beading 100 MM 100 MM	701 947 149 A
-	Underlay 620 X 35 X 1,5 620 X 35 X 1,5	321 201 300 B
-	Washer A 8,4 A 8,4	N 011 525 13
(1)	Fuel tank also use: 171 298 121 DIESEL,K-JETRONIC 171 298 121	171 201 075 Q
(14)	Hexagon collar nutself-locking M 8 SCIROCCO M 8	N 902 264 03
(14)	hexagon nut, self-locking BM 8 SCIROCCO BM 8	N 902 891 01
(17)	panel screw 6,5 X 17,5 6,5 X 17,5	N 900 449 01
(18)	Hose For vehicles with retrofittedexhaust gas treatment system F 53-A-000 001>> 40 X 5 X 410 SCIR.:JB 40 X 5 X 410	N 901 196 02
(18)	Hose 40 X 5 X 410 40 X 5 X 410	N 901 196 02
(19)	Clamp LC 32-50 LC 32-50	N 024 507 4
(19)	Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this →	N 024 507 7
(2)	seal ring	171 201 119 F
(2)	seal ringfor vehicles with retro-fittedunregulated emission controlsystem GOLF,JETTA:GG,GF	171 201 119 E
(27)	cap without ventilation forfuel tank	171 201 551 J
(36)	Cover ring for fillingpiecefor vehicles with retro-fittedunregulated emission controlsystem GOLF,JETTA:GG,GF	171 201 681 D
(36)	Cover ring for fillingpiece with lettering DIESEL:CK	171 201 681 E
(37)	gravity valve K-JETRONIC K-JETRONIC	161 201 753 A
(39)	shorten to: 650 MM SCIROCCO 650 MM	—
(4)	fuel filler neckfor vehicles with retro-fittedunregulated emission controlsystem GOLF,JETTA:GG,GF	161 201 129 F
(4)	fuel filler neck For vehicles with retrofittedexhaust gas treatment system F 53-A-000 001>> SCIR.:JB	531 201 129 S
(4)	fuel filler neck SCIR.	531 201 129 T
(8)	breather hosewith spring JETTA	171 201 153 G
1	Fuel tank also use: 171 298 121 carburetorengine 171 298 121	171 201 075 P
10	shorten to: 650 MM 650 MM	—
11	Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 024 528 1
12	No longer available	—
13	Washer A 8,4 GOLF,JETTA A 8,4	N 011 525 13
13	Washer A 8,4 X 16 X 1,6 GOLF,JETTA A 8,4 X 16 X 1,6	N 011 525 20
14	hexagon nut, self-locking M 8 GOLF,JETTA M 8	N 022 146 4
15	Cover	171 201 192 A
16	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
18	Hose 40 X 5 X 165 40 X 5 X 165	N 901 196 01
2	seal ring K-JETRONIC K-JETRONIC	171 201 119 E
20	ring	171 201 247
21	bracket for gravity valvewith seal	171 201 181 A
22	Speed nut	171 201 280
23	Guard plate For vehicles with retrofittedexhaust gas treatment system also use: 701 947 149 A 321 201 300 B 056 129 465 SCIR.:JB 701 947 149 A 321 201 300 B 056 129 465	171 201 283
23	Guard plate also use: 701 947 149 A 321 201 300 B 056 129 465 "J..",GOLF GTI,GLIJETTA LI,GLI 701 947 149 A 321 201 300 B 056 129 465	171 201 283
24	Grommet "J..",GOLF GTI,GLI	321 721 559
25	pipe insert with flap	171 201 285 A
26	Fuel filter K-JETRONIC DIESEL:CK K-JETRONIC	431 201 511
27	cap, lockable forfuel tank	155 201 551
3	countersunk panel screw 4,2 X 16 4,2 X 16	N 013 998 1
30	Seal	171 201 557 A
31	key	111 837 219 A
32	Underlay	171 201 647 A
33	tensioning strap	171 201 651 A
33A	Underlay	321 201 300 B
34	hexagon nut, self-locking M 8 M 8	N 022 146 4
36	Cover ring for fillingpiece K-JETRONIC K-JETRONIC	171 201 681 D
37	gravity valve DIESEL:CK	161 201 753
37A	end piece	321 201 890
38	Hexagon collar nut 5 5	171 201 969
39	shorten to: 750 MM GOLF,JETTA 750 MM	—
4	fuel filler neck JETTA,GOLF	171 201 129 F
40	cable terminal	803 971 847
5	hexagon head panel screw 6,5 X 19 6,5 X 19	N 015 946 1
5A	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
5A	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
6	funnel for use with leadedfuels	133 201 134
7	ring for fuel filler neck	171 201 141
7A	No longer available	—
7A	Breather line	171 201 158 A
8	breather hosewith spring	171 201 159 B
9	Clamp LC 16-25 LC 16-25	N 900 719 01
9	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

Mk2 Golf Engine Hose Clamps Factory number on this diagram: N 024 507 7

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: petrol_8v_base
Factory group: 29 Fuel / air power supply
Factory subgroup: 42010
