Activated charcoal containerexpansion chamber — Mk1 Golf Fuel Supply (1981)

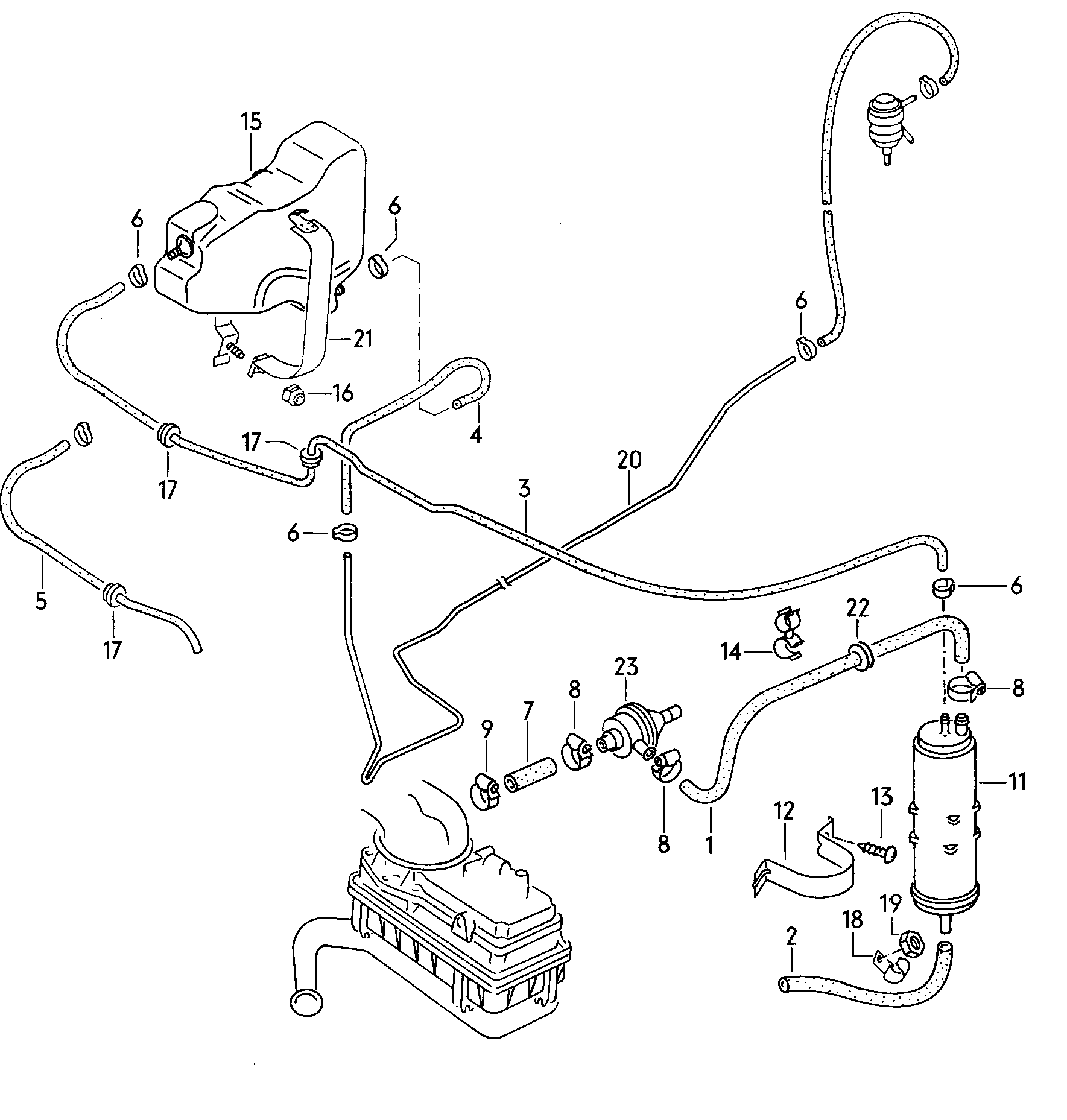

Factory title: Volkswagen Golf (1981) - Fuel tank. Vent hose. gravity valve
Activated charcoal containerexpansion chamber for the Volkswagen Golf Mk1 (1981): factory exploded diagram 67000 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 26 OEM part numbers across 33 catalogued positions including N 020 150 5, N 020 290 1 and N 020 290 3. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 26 OEM part numbers across 33 numbered positions.
| № | Description | Part number |
|---|---|---|
| tube in coils of 5 m'order unit 5' 6 X 1 X 5000 "S.." 6 X 1 X 5000 | N 020 150 5 | |
| - | Hose(Bulk stock) 12 X 3,5 12 X 3,5 | N 020 290 1 |
| - | hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5 | N 020 290 3 |
| - | hose in coils of 5 m'order unit 5' 10 X 3,5 10 X 3,5 | N 020 262 1 |
| - | hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3 | N 900 996 01 |
| (1) | breather hosewith spring "S..":GOLF | 171 201 159 B |
| (15) | expansion chamber F 53-B-200 001>> SCIR. | 533 201 891 |
| (20) | shorten to: 3040 MM 3040 MM | — |
| (21) | tensioning strap SCIR. | 531 805 415 |
| (22) | Bungs 27 27 | 191 971 928 |
| (8) | Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4 | N 102 582 01 |
| 1 | shorten to: 580 MM 580 MM | — |
| 11 | Activated charcoal container | 1H0 201 801 C |
| 11 | Activated charcoal container | 171 201 801 A |
| 12 | tensioning strap | 171 201 809 |
| 13 | oval head panel screw 5,5 X 25 5,5 X 25 | N 013 948 1 |
| 14 | No longer available GOLF: | — |
| 14 | Hose bracket GOLF: | 171 201 815 |
| 15 | expansion chamber F 15-B-000 001>>F 16-B-000 001>>F 17-B-000 001>>F >> 53-B-050 000 GOLF CABRIO.JETTAGOLFSCIR. | 171 201 891 B |
| 16 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 17 | Grommet 16,5 16,5 | 111 971 911 A |
| 18 | Clamp | 171 201 989 |
| 19 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 19 | Hexagon nut M 6 M 6 | N 011 006 8 |
| 2 | shorten to: 550 MM 550 MM | — |
| 20 | Pipefor models with activatedcharcoal canister | 171 201 999 A |
| 21 | tensioning strap GOLF;JETTA | 171 805 415 |
| 23 | Valve | 049 133 517 |
| 3 | shorten to: 2300 MM 2300 MM | — |
| 4 | shorten to: 550 MM 550 MM | — |
| 6 | Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4 | N 024 528 1 |
| 7 | shorten to: 50 MM 50 MM | — |
| 9 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 29 Fuel / air power supply
- Factory subgroup
- 67000
Related factory diagrams
Other published fuel supply plates for the Mk1 Golf in this catalogue.
The complete Mk1 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the activated charcoal containerexpansion chamber diagram for the Mk1 Golf?
- This diagram lists 26 OEM part numbers for the Mk1 Golf. The first three are N 020 150 5, N 020 290 1 and N 020 290 3.
- Which Mk1 Golf years and engines does this diagram cover?
- This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk1 Golf factory parts catalogue?
- The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
