Which VW part numbers are on the fuel line carburetor engine diesel diagram for the Mk1 Golf?

This diagram lists 22 OEM part numbers for the Mk1 Golf. The first three are 251 201 511 G S BV, N 101 965 02 and N 020 150 5.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Fuel line carburetor engine diesel — Mk1 Golf Fuel Supply (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Fuel tank

Generation: Mk1 1979 - 1980 (RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 34 Primary OEM: 251 201 511 G S BV, N 101 965 02, N 020 150 5

Fuel line carburetor engine diesel for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 43010 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 22 OEM part numbers across 34 catalogued positions including 251 201 511 G S BV, N 101 965 02 and N 020 150 5. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 22 OEM part numbers across 34 numbered positions.

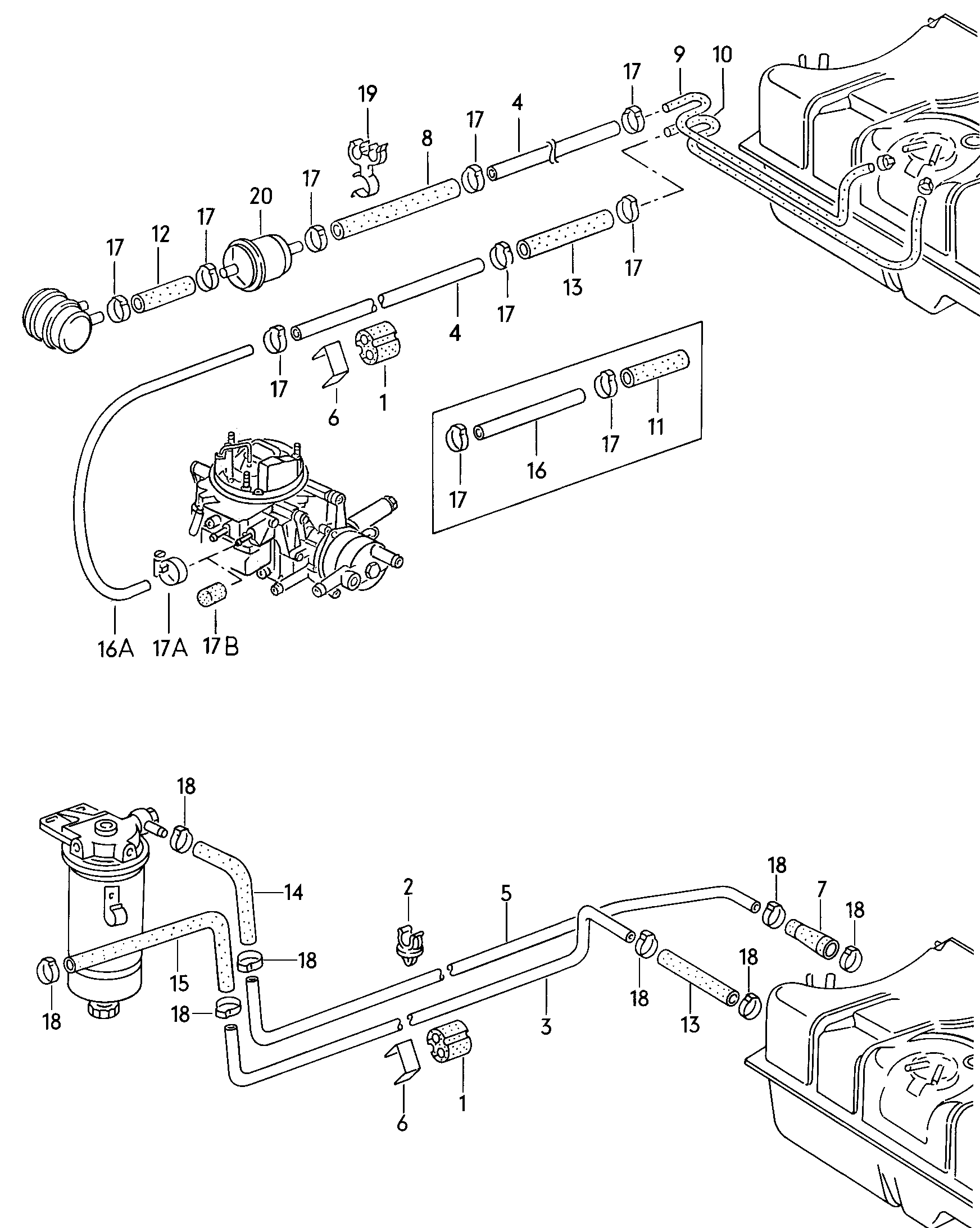

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel line DIESEL;carburetorengine	—
	Self-service packaging	251 201 511 G S BV
-	hose in coils of 5 m'order unit 5' 4 X 3 4 X 3	N 101 965 02
-	tube in coils of 5 m'order unit 5' 6 X 1 X 5000 6 X 1 X 5000	N 020 150 5
-	Hose(Bulk stock) 7 X 3 7 X 3	N 020 281 1
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
-	hose in coils of 5 m'order unit 5' 4 X 2,5 4 X 2,5	N 020 361 2
-	hose in coils of 5 m'order unit 5' 4 X 3 4 X 3	N 101 965 02
-	hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3	N 900 996 01
(16A)	shorten to: 185 MM 185 MM	—
1	Protective profile	171 201 245
10	shorten to: 630 MM 630 MM	—
11	shorten to: 45 MM 45 MM	—
12	shorten to: 60 MM 60 MM	—
13	shorten to: 185 MM 185 MM	—
14	shorten to: 260 MM 260 MM	—
15	shorten to: 700 MM 700 MM	—
16	shorten to: 555 MM 555 MM	—
16A	Reducing hose F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> GOLF GLSJETTA S,LS,GLSGOLF S,LS,GLSSCIR.S,LS,GI,GL	171 201 242
17	terminal 11 11	111 127 537 A
17A	Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4	N 024 528 1
17B	Cap closure GOLF S,LS,GLS;JETTA S,LS,GLS;SCIR.S,LS,GT,GL	049 127 535
18	Hose clamp LC 12-22 LC 12-22	N 024 509 4
18	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
19	Bracket "S..","AUS"	055 133 687
2	Clip DIESEL	171 201 340
20	Fuel filter	251 201 511 G
3	fuel pipe DIESEL	171 201 353 C
4	fuel pipe	171 201 363 B
5	fuel pipe DIESEL	171 201 363 E
6	No longer available	—
7	Hose 7/11 MM DIESEL 7/11 MM	171 201 543 B
8	shorten to: 250 MM 250 MM	—
9	shorten to: 575 MM 575 MM	—

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: diesel
Factory group: 29 Fuel / air power supply
Factory subgroup: 43010
