Fuel tankgravity valve vent hose — Mk1 Golf Fuel Supply (1981)

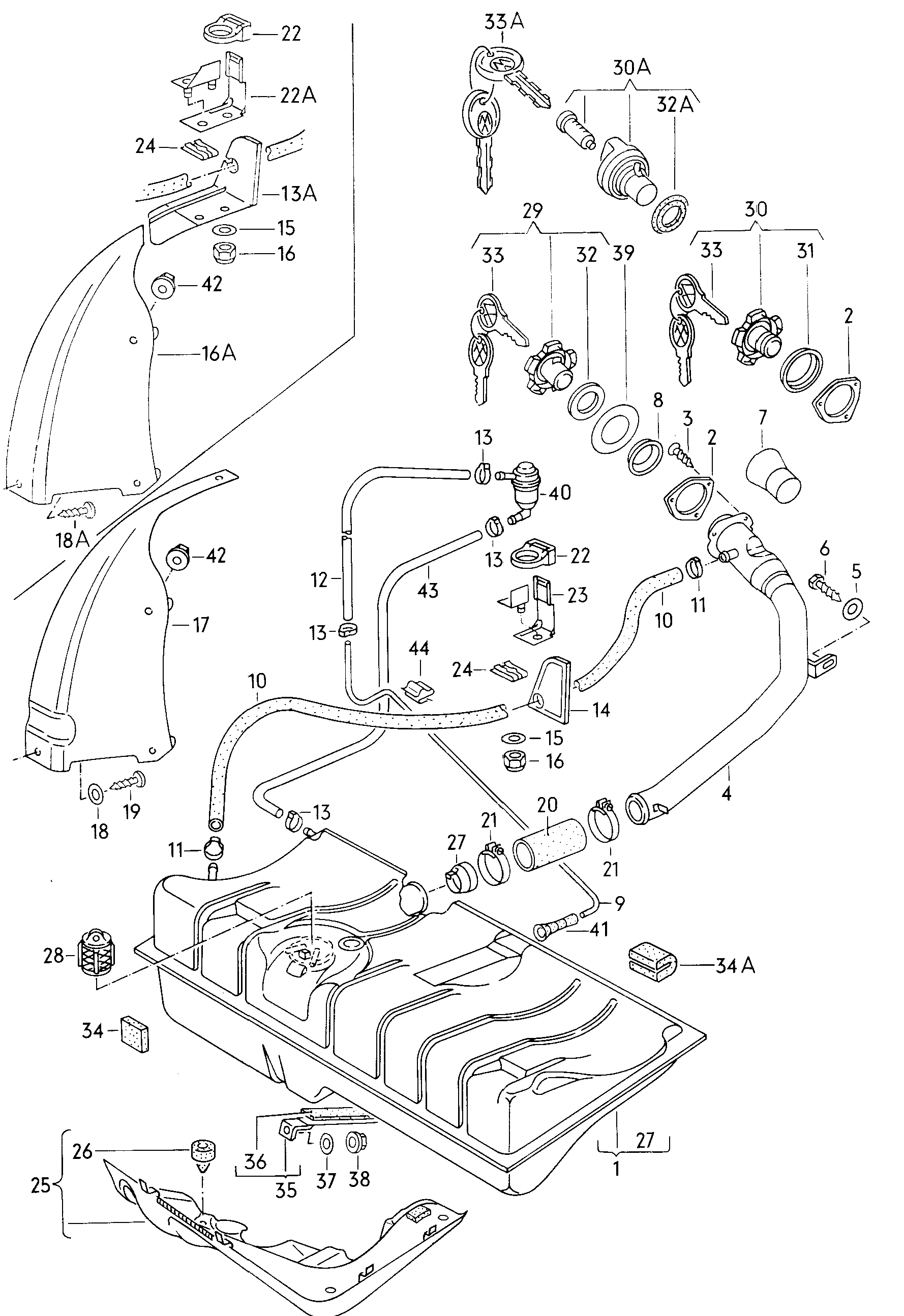

Factory title: Volkswagen Golf (1981) - Fuel tank. Vent hose. gravity valve
Fuel tankgravity valve vent hose for the Volkswagen Golf Mk1 (1981): factory exploded diagram 66000 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 89 OEM part numbers across 99 catalogued positions including 111 837 219 A S 91, 111 837 219 A S 99 and 111 837 219 A S 97. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 89 OEM part numbers across 99 numbered positions.
| № | Description | Part number |
|---|---|---|
| VB profilequote key numberfor cut keys F 53-B-200 001>> NV SCIR. NV | 111 837 219 A S 91 | |
| Z profilequote key numberfor cut keys F 15-B-000 001>>F 16-B-000 001>>F 17-B-000 001>>F >> 53-B-050 000 GOLF CABRIO.JETTAGOLFSCIR. | 111 837 219 A S 99 | |
| Left profile | 111 837 219 A S 97 | |
| Self-service packaging | 155 201 551 S BV | |
| Left profile | 111 837 219 A S 89 | |
| Right profile | 111 837 219 A S 88 | |
| Right profile | 111 837 219 A S 98 | |
| - | hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3 | N 900 996 01 |
| - | beading 100 MM JB 100 MM | 701 947 149 A |
| - | 1 set underlays forfuel tank | 171 298 121 |
| - | Bungs F 53-B-200 001>> SCIR. | 311 415 535 |
| - | Edge protection JB | 861 805 793 A |
| - | hose in coils of 5 m'order unit 5' 5,5 X 3 5,5 X 3 | N 900 996 01 |
| - | Hose For vehicles with retrofittedexhaust gas treatment system F >> 53-B-050 000 40 X 5 X 410 SCIR.:JB 40 X 5 X 410 | N 901 196 02 |
| - | Hose For vehicles with retrofittedexhaust gas treatment system 40 X 5 X 410 GOLF JETTA,GOLF CABRIO:JB 40 X 5 X 410 | N 901 196 02 |
| - | Hose For vehicles with retrofittedexhaust gas treatment system F 53-B-200 001>> 40 X 5 X 410 SCIR.:JB 40 X 5 X 410 | N 901 196 02 |
| - | Hose bracket F 53-B-200 001>> SCIR. | 861 201 815 |
| (1) | Fuel tank also use: 171 298 121 DIESEL:CR;K-JETRONIC 171 298 121 | 171 201 075 Q |
| (10) | breather hosewith springfor models with activatedcharcoal canister JETTA | 171 201 153 G |
| (14) | bracket for gravity valvewith seal | 171 201 181 A |
| (16) | Hexagon collar nutself-locking M 8 SCIR. M 8 | N 902 264 03 |
| (16) | hexagon nut, self-locking BM 8 SCIR. BM 8 | N 902 891 01 |
| (2) | seal ring | 171 201 119 F |
| (2) | seal ring For vehicles with retrofittedexhaust gas treatment system GOLF,JETTA:JB,GG,GFSCIR.:GF | 171 201 119 E |
| (21) | Clamp LC 32-50 LC 32-50 | N 024 507 4 |
| (21) | Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this → | N 024 507 7 |
| (23) | bracket for gravity valvewith seal | 171 201 181 A |
| (25) | Guard platefor vehicles with retro-fittedunregulated emission controlsystem also use: 701 947 149 A 056 129 465321 201 300 B JB 701 947 149 A 056 129 465321 201 300 B | 171 201 283 |
| (29) | cap without ventilation forfuel tank F 15-B-000 001>>F 16-B-000 001>>F 17-B-000 001>>F >> 53-B-050 000 GOLF CABRIO.JETTAGOLFSCIR. | 171 201 551 J |
| (29) | fuel tankcap F 53-B-200 001>> SCIR. | 811 201 551 |
| (30A) | cap, lockable for singlekey system with separatelock cylinder but withouttumblers, springs andkeys forfuel tank F 53-B-200 001>> SCIR. | 443 201 551 AA |
| (30A) | cap, lockable, not for one keylocking system forfuel tank F 53-B-200 001>> SCIR. | 443 201 551 S |
| (32A) | Seal F 53-B-200 001>> SCIR. | 811 201 557 |
| (33) | key | 111 837 219 A |
| (39) | Cover ring for fillingpiece FORMEL E | 171 201 681 G |
| (39) | Cover ring for fillingpiecefor vehicles with retro-fittedunregulated emission controlsystem GOLF,JETTA:GG,GFSCIR.:GF | 171 201 681 D |
| (39) | No longer available 'DIESEL' DIESEL:CR 'DIESEL' | — |
| (39) | Cover ring for fillingpiece with lettering 'DIESEL' DIESEL:CR 'DIESEL' | 171 201 681 E |
| (4) | fuel filler neckfor vehicles with retro-fittedunregulated emission controlsystem(conversion : 01/90 >> 12/95 ) SCIR.:GF | 533 201 129 A |
| (4) | fuel filler neck For vehicles with retrofittedexhaust gas treatment system GOLF,JETTA:JB,GG,GF | 161 201 129 F |
| (4) | fuel filler neck For vehicles with retrofittedexhaust gas treatment system GOLF CABRIO:JB | 155 201 129 |
| (4) | fuel filler neck F 53-B-200 001>> SCIROCCO | 533 201 129 |
| (4) | fuel filler neck F >> 53-B-050 000 SCIROCCO | 531 201 129 T |
| (4) | fuel filler neck For vehicles with retrofittedexhaust gas treatment system F 53-B-200 001>> SCIR.:JB | 533 201 129 A |
| (4) | fuel filler neck For vehicles with retrofittedexhaust gas treatment system F >> 53-B-050 000 SCIR.:JB,GF | 531 201 129 S |
| (40) | gravity valve K-JETRONIC | 161 201 753 A |
| (43) | shorten to: 650 MM SCIROCCO 650 MM | — |
| 1 | Fuel tank also use: 171 298 121 carburetorengine 171 298 121 | 171 201 075 P |
| 10 | breather hosewith spring | 171 201 159 B |
| 11 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 12 | shorten to: 650 MM 650 MM | — |
| 13 | Hose clamp 8-12 X 8 X 0,4 8-12 X 8 X 0,4 | N 024 528 1 |
| 13A | Discont. / replace: 171 201 181 A 171 201 181 A | — |
| 15 | Washer A 8,4 GOLF,JETTA A 8,4 | N 011 525 13 |
| 15 | Washer A 8,4 X 16 X 1,6 GOLF,JETTA A 8,4 X 16 X 1,6 | N 011 525 20 |
| 16 | hexagon nut, self-locking M 8 GOLF,JETTA M 8 | N 022 146 4 |
| 16A | Discont. / replace: 171 201 192 A 171 201 192 A | — |
| 17 | Cover | 171 201 192 A |
| 18 | Washer F 15-B-011 498>>F 16-B-262 019>>F 17-B-262 019>>F 53-B-020 002>> 6,4 X 18 X 1,6 6,4 X 18 X 1,6 | N 011 666 15 |
| 18A | panel screw F >> 15-B-011 497*F >> 16-B-262 018 F >> 17-B-262 018 F >> 53-B-020 001* 6,5 X 17,5 6,5 X 17,5 | N 900 449 01 |
| 19 | oval head panel screw F 15-B-011 498>>*F 16-B-262 019>>F 17-B-262 019>>F 53-B-020 002>>* 4,8 X 13 4,8 X 13 | N 013 968 1 |
| 2 | seal ring K-JETRONIC | 171 201 119 E |
| 20 | Hose 40 X 5 X 165 40 X 5 X 165 | N 901 196 01 |
| 22 | bracket for gravity valvewith seal | 171 201 181 A |
| 22A | Discont. / replace: 171 201 181 A 171 201 181 A | — |
| 24 | No longer available | — |
| 25 | Guard plate "J..";GOLF GTI,GLIJETTA LI,GLI | 171 201 283 |
| 26 | Stop buffer F 53-B-200 001>> "J..":SCIR. | 056 129 465 |
| 26 | Grommet "J..";GOLF GTI,GLIJETTA LI,GLI | 321 721 559 |
| 27 | pipe insert with flap | 171 201 285 A |
| 28 | Fuel filter DIESEL:CRK-JETRONIC | 431 201 511 A |
| 29 | cap, lockable forfuel tank F 15-B-000 001>>F 16-B-000 001>>F 17-B-000 001>>F >> 53-B-050 000 GOLF CABRIOJETTAGOLFSCIR. | 155 201 551 |
| 3 | countersunk panel screw 4,2 X 16 4,2 X 16 | N 013 998 1 |
| 32 | Seal F 15-B-000 001>>F 16-B-000 001>>F 17-B-000 001>>F >> 53-B-050 000 GOLF CABRIO.JETTAGOLFSCIR. | 171 201 557 A |
| 32A | Seal F 53-B-200 001>> SCIR. | 811 201 557 A |
| 33 | key | 111 837 219 A |
| 33A | main key HV profilequote key numberfor cut keys F 53-B-200 001>> SCIR. | 161 837 219 |
| 34 | No longer available | — |
| 34 | Underlay | 171 201 647 A |
| 34A | Underlay | 481 201 647 |
| 35 | tensioning strap | 171 201 651 A |
| 36 | Underlay 35 X 1,5 X 450 35 X 1,5 X 450 | 321 201 300 B |
| 37 | Washer A 8,4 A 8,4 | N 011 525 13 |
| 37 | Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6 | N 011 525 20 |
| 38 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 39 | Cover ring for fillingpiece carburetorengine K-JETRONIC | 171 201 681 D |
| 4 | fuel filler neck GOLF,JETTA | 171 201 129 F |
| 40 | gravity valve carburetorengine DIESEL | 161 201 753 |
| 41 | end piece | 321 201 890 |
| 42 | Hexagon collar nut 5 5 | 171 201 969 |
| 43 | shorten to: 750 MM GOLF,JETTA 750 MM | — |
| 44 | cable terminal | 803 971 847 |
| 5 | Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6 | N 011 666 15 |
| 5 | Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2 | N 011 666 10 |
| 6 | hexagon head panel screw 6,5 X 19 6,5 X 19 | N 015 946 1 |
| 7 | funnel for use with leadedfuels | 133 201 134 |
| 8 | ring for fuel filler neck carburetorengine | 171 201 141 |
| 9 | No longer available | — |
| 9 | Breather line | 171 201 158 A |
Reproduction parts by Type 19 for this diagram
Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.
- Mk2 Golf Engine Hose Clamps Factory number on this diagram: N 024 507 7
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 29 Fuel / air power supply
- Factory subgroup
- 66000
Related factory diagrams
Other published fuel supply plates for the Mk1 Golf in this catalogue.
The complete Mk1 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the fuel tankgravity valve vent hose diagram for the Mk1 Golf?
- This diagram lists 89 OEM part numbers for the Mk1 Golf. The first three are 111 837 219 A S 91, 111 837 219 A S 99 and 111 837 219 A S 97.
- Which Mk1 Golf years and engines does this diagram cover?
- This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk1 Golf factory parts catalogue?
- The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
