Brake turn signal taillights scir — Mk1 Golf Lighting (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Brake, turn signal and taillights

Generation: Mk1 1982 - 1983 (RDW) Group: Lighting Parts: 13 Primary OEM: 533 945 111 A, 533 945 112, 533 945 112 A

Brake turn signal taillights scir for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 223000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 12 OEM part numbers across 13 catalogued positions including 533 945 111 A, 533 945 112 and 533 945 112 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 12 OEM part numbers across 13 numbered positions.

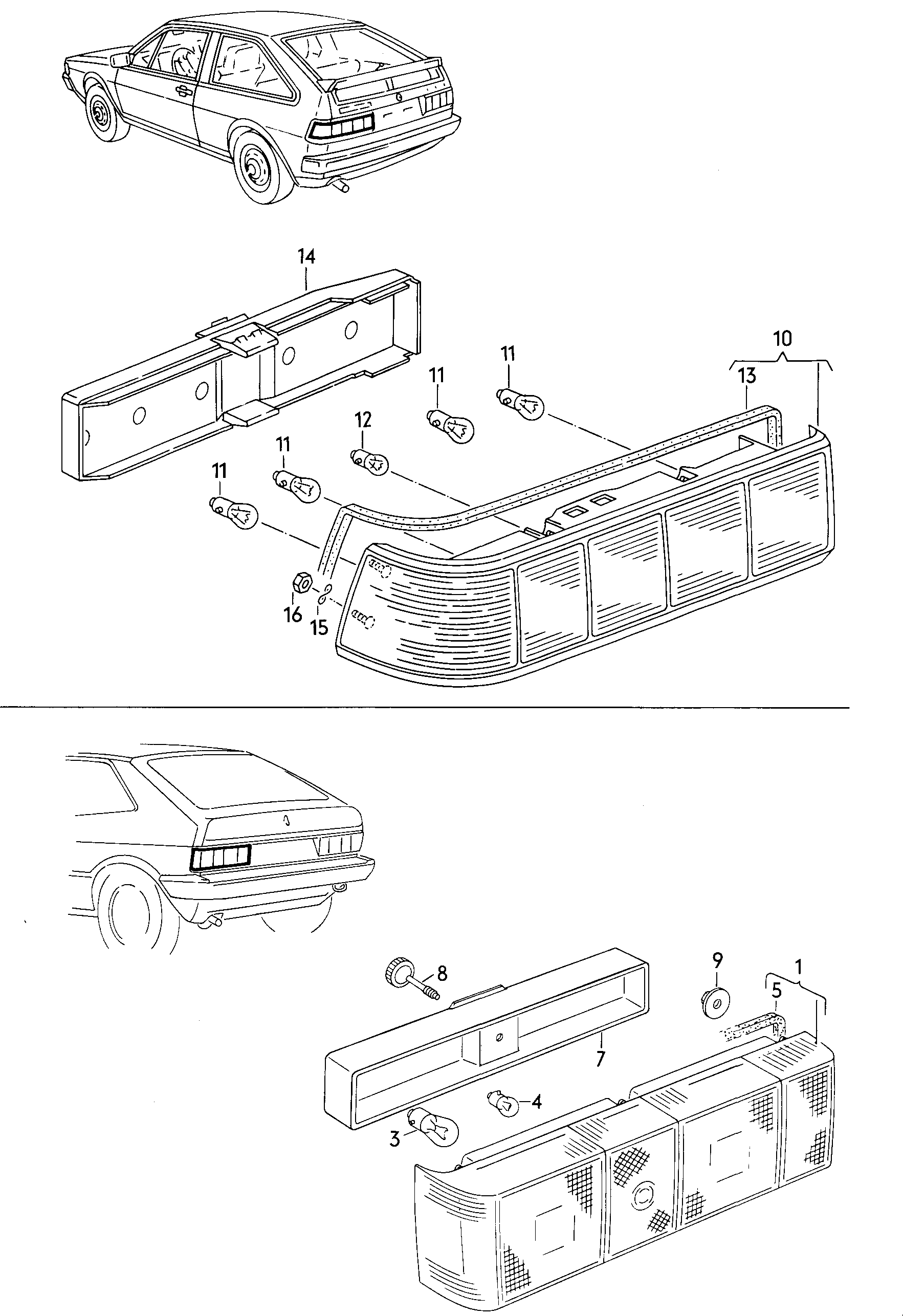

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	brake, turn signal andtaillights SCIR.	—
(10)	Tail light with foglight	533 945 111 A
(10)	Tail light	533 945 112
(10)	Tail light with foglight	533 945 112 A
(14)	Bulb carrier	533 945 258
10	Tail light	533 945 111
11	bulb P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 2
12	bulb R 10 W-12 V 10 W R 10 W-12 V 10 W	N 017 719 2
13	Seal	533 945 191
14	Bulb carrier	533 945 257
15	Spring washer 5 5	N 012 222 4
16	Hexagon nut M 5 M 5	N 011 005 17
16	Hexagon nut M 5 M 5	N 011 005 4
