Twin headlamps scir — Mk1 Golf Lighting (1977 - 1978)

Factory title: Volkswagen Golf (1977 - 1978) - Headlights

Generation: Mk1 1977 - 1978 (RDW) Group: Lighting Parts: 27 Primary OEM: 531 941 045, 531 941 046, 531 941 046 B

Twin headlamps scir for the Volkswagen Golf Mk1 (1977 - 1978): factory exploded diagram 92000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 25 OEM part numbers across 27 catalogued positions including 531 941 045, 531 941 046 and 531 941 046 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 25 OEM part numbers across 27 numbered positions.

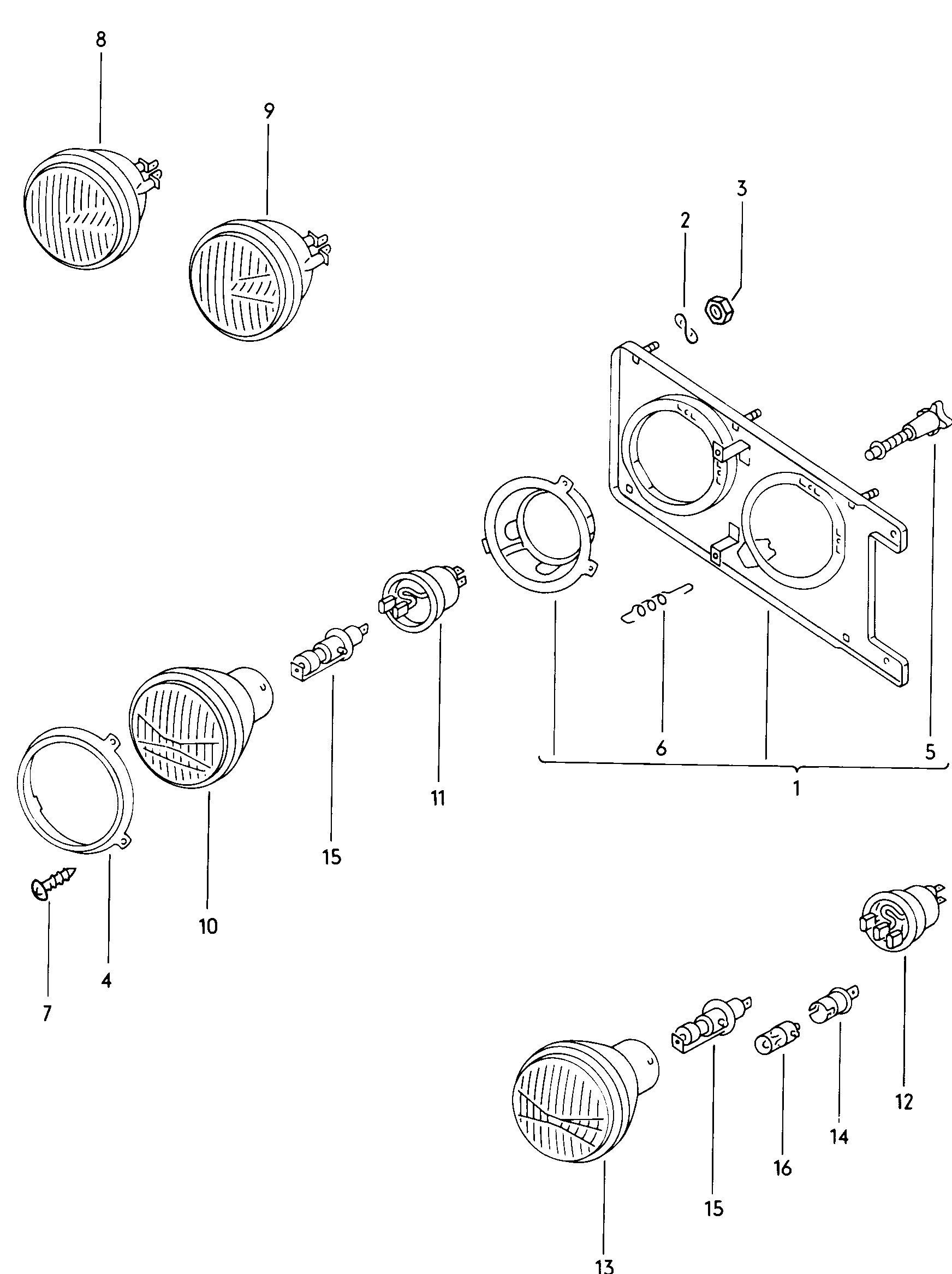

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	twin headlamps SCIR.	—
(1)	retaining frame F >> 537 2500 000	531 941 045
(1)	retaining frame F >> 537 2000 001	531 941 046
(1)	retaining frame F 538 2000 001>>	531 941 046 B
(10)	Headlight insert (halogen)main beam light, yellow light	823 941 653 A
(13)	Headlight insertdipped beam, yellow light(right-hand traffic only)	823 941 663 A
(13)	Headlight insert,dipped beam(left-hand traffic only)	824 941 663
(15)	Halogen bulb(for export only) 12 V 55 W H 1 12 V 55 W H 1	N 017 761 2Z
(8)	sealed beam unit(dip beam)(left-hand traffic only) 12 V 38/50 W 145 12 V 38/50 W 145	N 017 618 2
1	retaining frame F 538 2000 001>>	531 941 045 B
10	Headlight insert (halogen)main beam light	823 941 653
11	Cover cap for main beam	823 941 659
12	Cover cap for dipped headlight	823 941 659 A
13	Headlight insert,dipped beam(right-hand traffic only)	823 941 663
14	Bulb holder	411 941 669
15	Halogen bulb H 1-12 V-55 W H 1-12 V-55 W	N 017 761 2
16	bulb T 4 W-12 V 4 W T 4 W-12 V 4 W	N 017 717 2
2	Spring washer 5 5	N 012 225 3
3	Hexagon nut M 5 M 5	N 011 005 17
3	Hexagon nut M 5 M 5	N 011 005 4
4	Retaining ring	411 941 047
5	adjusting screw	531 941 141 A
6	tension spring	815 941 143
7	oval head panel screw 3,9 X 9,5 3,9 X 9,5	N 013 960 5
8	sealed beam unit halogen(main and dip beam)(right-hand traffic only) 12 V 38/60 W 145 12 V 38/60 W 145	N 017 615 2
8-9	No longer available	—
9	sealed beam unit(main beam) 12 V 38 W 145 12 V 38 W 145	N 017 613 2
