Switch side main emergency lights fuse box relay plate — Mk1 Golf Lighting (1977 - 1978)

Factory title: Volkswagen Golf (1977 - 1978) - Headlights

Generation: Mk1 1977 - 1978 (RDW) Group: Lighting Parts: 52 Primary OEM: 171 971 761 B, 251 941 531 M, 321 941 531 C

Switch side main emergency lights fuse box relay plate for the Volkswagen Golf Mk1 (1977 - 1978): factory exploded diagram 93000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 51 OEM part numbers across 52 catalogued positions including 171 971 761 B, 251 941 531 M and 321 941 531 C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 51 OEM part numbers across 52 numbered positions.

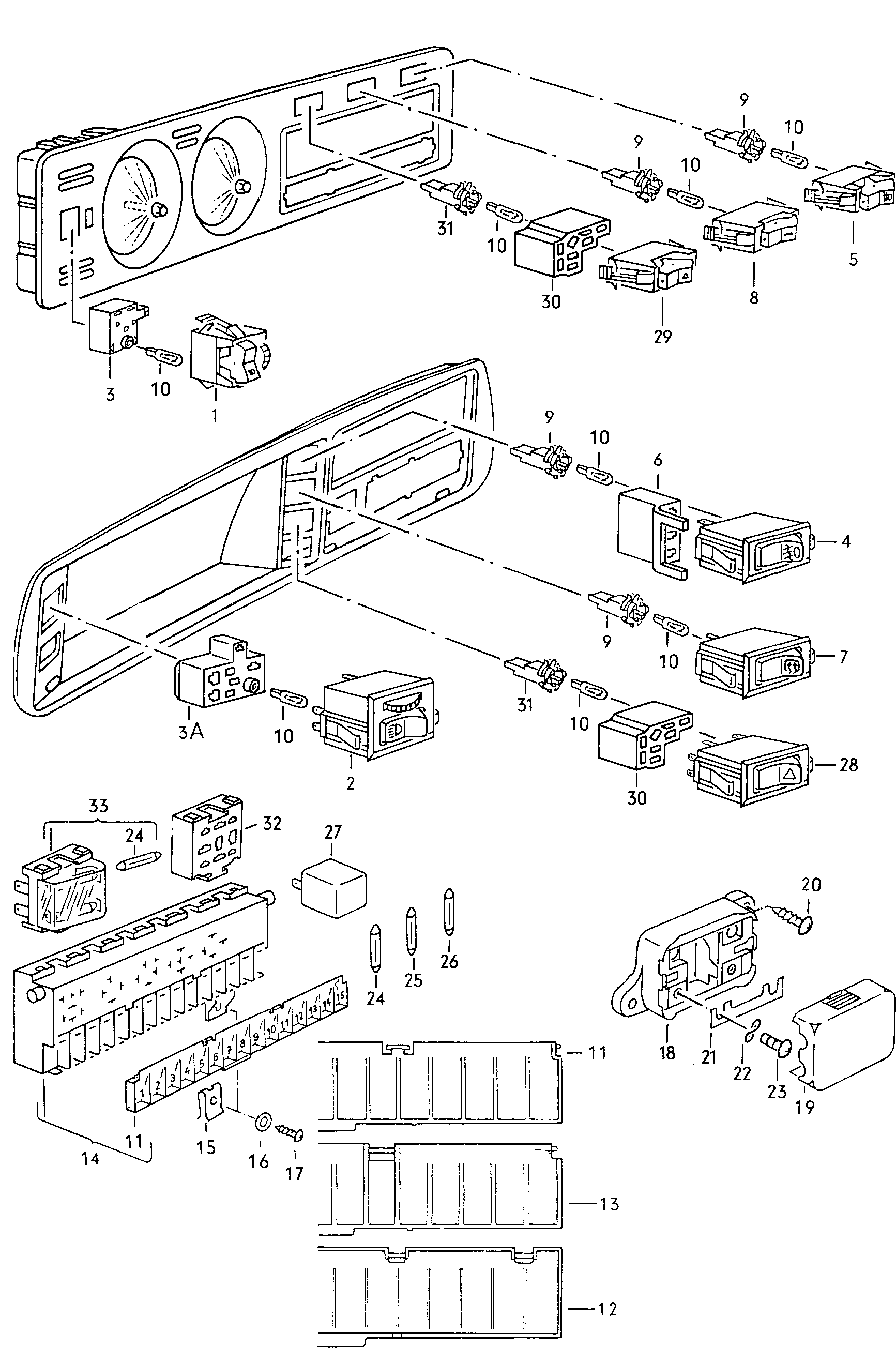

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
-
wiring harness adapter forfuel pump relay K-JETRONIC
 171 971 761 B
(1)
switch for lighting withrheostat for panel lighting
 251 941 531 M
(1)
switch for lighting withoutrheostat for panel lighting
 321 941 531 C
(18)
Fuse socket withoutfuses
 281 937 505 A
(27)
Control unit for wiper/washingautomatic intervals F 178 3000 001>>F 538 2000 001>>
 191 955 531
(27)
Control unit for wiper/washingautomatic intervals F >> 177 3800 000 F >> 537 2500 000
 111 955 531
(27)
Control unit for wiper/washingsystem - rear window F 178 3000 000>>F 538 2000 000>>
 191 955 529
(27)
relay for headlightwasher
 113 955 200
(27)
Fuel pump relay K-JETRONIC
 321 906 059 C
(27)
Relayfor fog lamp
 701 915 511
(27)
Relay For rear window,heated F >> 177 3800 000 F >> 537 2500 000
 141 951 253 B
(27)
Relay F 178 3240 542>>F 538 2039 454>> air condit. air condit.
 171 959 143 A
(27)
Relay F >> 178 3240 541 F >> 538 2039 453 air condit. air condit.
 171 959 143
(27)
Relayfor relief relay x contact F 178 3000 001>>F 538 2000 001>> 40 A
40 A
 141 951 253 B
(27)
Relay For radiator fan air condit.
 321 919 505
(27)
Control unit for glow plug DIESEL
 321 911 261 C
(27)
turn signal/hazard light relayfor models withtowing facility 12 V 6 X 21 W
12 V 6 X 21 W
 431 953 231
(27)
turn signal/hazard light relay 12 V 4 X 21 W
12 V 4 X 21 W
 1H0 953 227
(27)
buzzer "J.."
 3A0 951 307
(27)
turn signal/hazard light relay 12 V 4 X 21 W
12 V 4 X 21 W
 191 953 227 A
(27)
buzzer "J.."
 321 951 307
(27)
emergency siren system relay
 191 951 273
(27)
Relayfor relief relay x contact F 178 3000 001>>F 538 2000 001>> 40 A
40 A
 431 951 253 H
(32)
relay plate GOLF D,LD,GLD
 867 937 501
10
bulb W 5/1,2 W 12 V 1,2 W
W 5/1,2 W 12 V 1,2 W
 N 017 751 2
11
Cover MESSMER
MESSMER
 171 941 809
12
Cover AMP
AMP
 171 941 809 B
13
Cover F >> 177 3800 000 F >> 537 2500 000 STRIEBEL
STRIEBEL
 321 941 809
14
central electrics F 178 3000 001>>F 538 2000 001>>
 171 941 821 C
14
central electrics F >> 177 3800 000 F >> 537 2500 000
 171 941 821 A
15
Speed nut 4,8 X 23,7 X 16
4,8 X 23,7 X 16
 N 015 455 1
16
Washer A 5,3 X 10 X 1
A 5,3 X 10 X 1
 N 011 523 7
16
Washer 5
5
 N 011 523 18
17
oval head panel screw ST 4,8 X 16,0
ST 4,8 X 16,0
 N 013 969 4
18
Discont. / replace: 281 937 505 A
281 937 505 A
 —
19
Cover
 171 937 555 A
20
oval head panel screw 3,9 X 13
3,9 X 13
 N 013 961 2
21
fuse 50 A
50 A
 N 017 125 1
22
Spring washer 5
5
 N 012 225 3
23
fillister hd. bolt M 5 X 8
M 5 X 8
 N 014 128 11
24
Safety fuse
 N 017 121 1
25
fuse
 N 017 121 4
26
fuse
 N 017 121 5
27
relay fortemperature sensor "J.."
 055 906 086
29
emergency light switch
 171 953 235 A
3
Flat contact housing 6,3/2,8
6,3/2,8
 321 971 999 A
31
Bulb holder
 141 957 397 A
32
relay plate
 135 937 501 A
33
Fuse socket
 171 937 501
5
switch for front and rear foglights
 251 941 535
8
switch for heatedrear window
 171 959 621 A
9
Bulb holder W 5/1,2
W 5/1,2
 141 957 397 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1977 - 1978
Generation region
RDW
Generation code
001
Factory group
19 Lighting
Factory subgroup
93000

Related factory diagrams

Other published lighting plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the switch side main emergency lights fuse box relay plate diagram for the Mk1 Golf?
This diagram lists 51 OEM part numbers for the Mk1 Golf. The first three are 171 971 761 B, 251 941 531 M and 321 941 531 C.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1977 - 1978 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
