Rectangular headlamp scir — Mk1 Golf Lighting (1975 - 1976)

Factory title: Volkswagen Golf (1975 - 1976) - Headlights

Generation: Mk1 1975 - 1976 (RDW) Group: Lighting Parts: 31 Primary OEM: 531 941 160, 481 941 159 A, 531 941 046 A

Rectangular headlamp scir for the Volkswagen Golf Mk1 (1975 - 1976): factory exploded diagram 91000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 28 OEM part numbers across 31 catalogued positions including 531 941 160, 481 941 159 A and 531 941 046 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 28 OEM part numbers across 31 numbered positions.

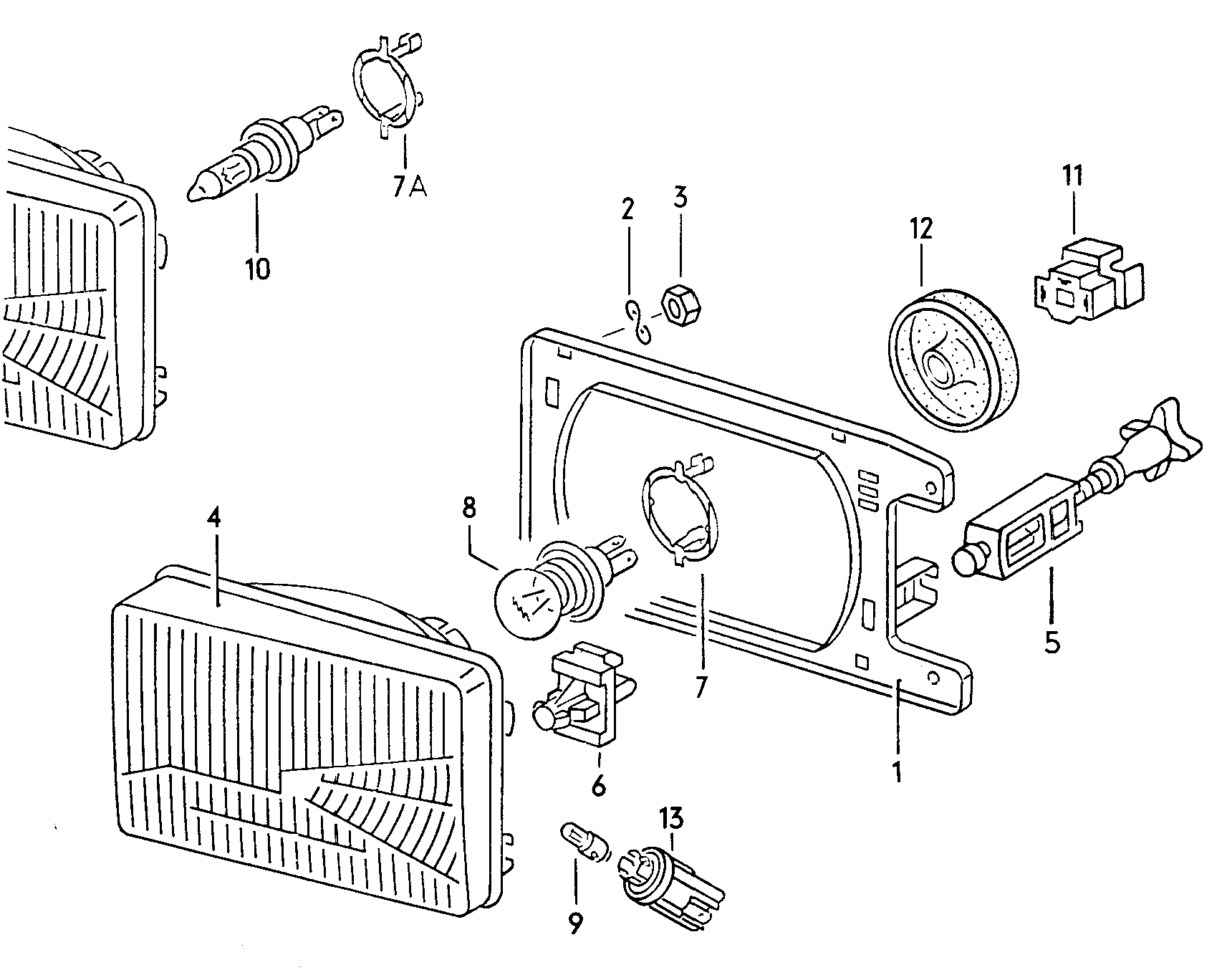

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	rectangular headlamp SCIR.	—
-	retaining spring for bulb F 535 2000 001>>	531 941 160
-	Cap closure F >> 534 2014 530	481 941 159 A
(1)	retaining frame	531 941 046 A
(10)	Halogen bulb, yellow glass H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 764 3
(10)	Halogen bulb(for germany only) YD 12 V 60/55 W H 4 YD 12 V 60/55 W H 4	N 017 763 2Z
(10)	Halogen bulb, yellow glass(for export only) YD 12 V 60/55 W H 4 YD 12 V 60/55 W H 4	N 017 764 3Z
(4)	Headlight insert (halogen)(right-hand traffic only) also use: >>534 2014530533 941 669 >>534 2014530533 941 669	531 941 106 E
(4)	Headlight insert (halogen)(right-hand traffic only) also use: >>534 2014530533 941 669 >>534 2014530533 941 669	531 941 105 E
(4)	Headlight insert(left-hand traffic only) >>534 2014530531 941 160531 941 605 A 443 941 156 >>534 2014530531 941 160531 941 605 A 443 941 156	532 941 105 A
(4)	Headlight insert(right-hand traffic only) also use: >>534 2014530533 941 669321 941 600 >>534 2014530533 941 669321 941 600	531 941 106 D
(4)	Headlight insert(left-hand traffic only) also use: >>534 2014530531 941 160531 941 605 A 443 941 156 >>534 2014530531 941 160531 941 605 A 443 941 156	532 941 106 A
(8)	bulb, yellow glass(for export only) A 12 V 45/40 W A 12 V 45/40 W	N 017 705 4Z
(8)	bulb, yellow glass R 2-12 V 45/40 W R 2-12 V 45/40 W	N 017 705 4
(8)	bulb(for export only) A 12 V 45/40 W A 12 V 45/40 W	N 017 705 3Z
1	No longer available	—
1	retaining frame	531 941 045 A
10	Halogen bulb H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 763 2
11	Flat contact housing	161 941 165 A
12	Cover cap F 535 2000 001>>	531 941 605 A
13	Bulb holder F 535 2000 001>>	443 941 156
13	Bulb holder F 535 2000 001>>	111 941 669
2	Spring washer 5 5	N 012 225 3
3	Hexagon nut M 5 M 5	N 011 005 4
3	Hexagon nut M 5 M 5	N 011 005 17
4	Headlight insert(right-hand traffic only) also use: >>534 2014530531 941 160531 941 605 A 443 941 156533 941 669321 941 600 >>534 2014530531 941 160531 941 605 A 443 941 156533 941 669321 941 600	531 941 105 D
5	No longer available	—
5	adjusting screw	531 941 141
6	mounting clip	531 941 147
7A	retaining ring for halogenbulb F 535 2000 001>>	531 941 160 A
8	bulb R 2-12 V 45/40 W R 2-12 V 45/40 W	N 017 705 3
