Halogen fog lamp — Mk1 Golf Lighting (1979 - 1980)
Factory title: Volkswagen Golf (1979 - 1980) - Headlights

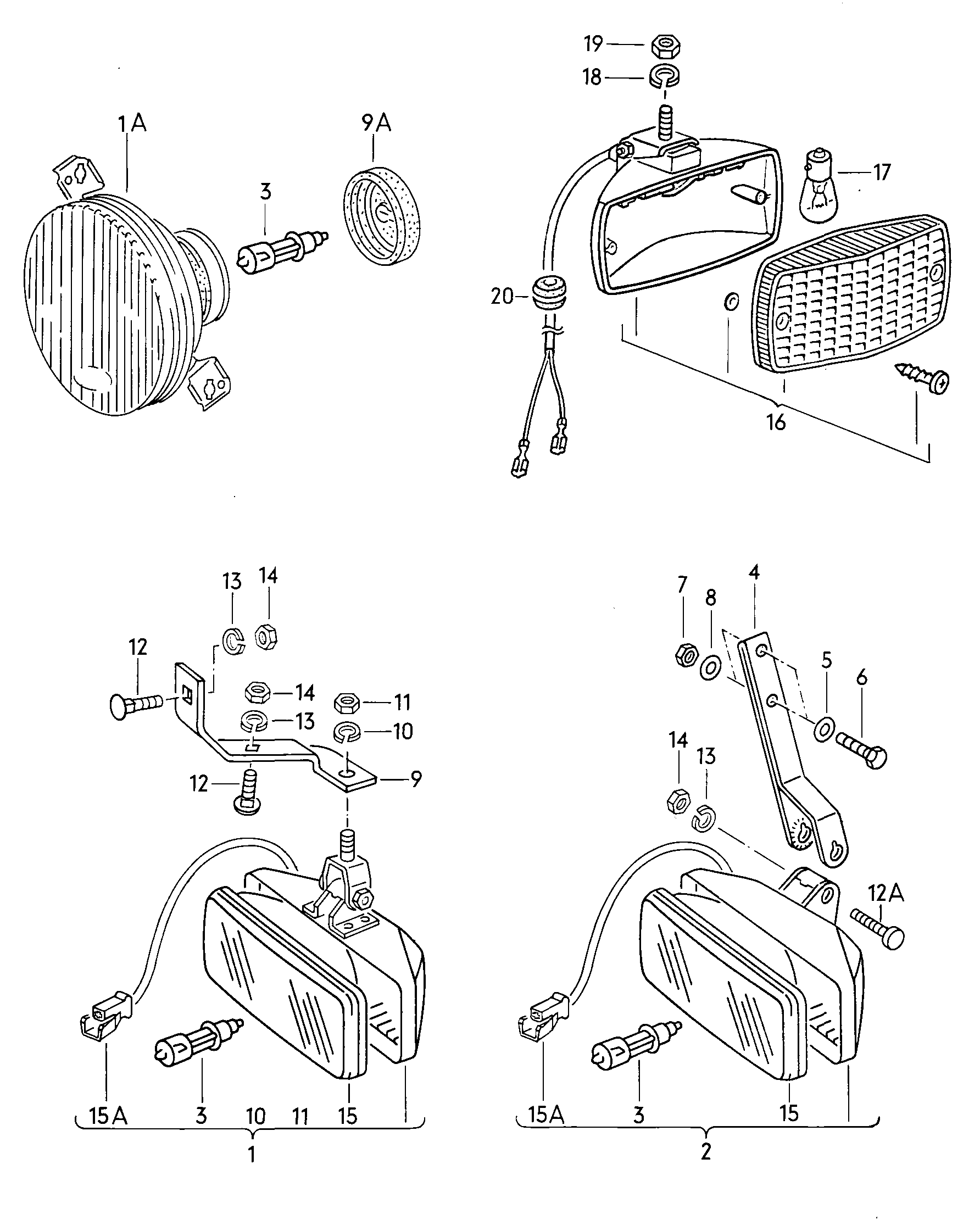

Halogen fog lamp for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 141000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 36 OEM part numbers across 38 catalogued positions including N 903 352 03, N 017 494 7 and 357 972 752. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 36 OEM part numbers across 38 numbered positions.
| № | Description | Part number |
|---|---|---|
| Rear fog light GOLF,SCIROCCO | — | |
| - | flat contact'order unit 25' 3,5-1 3,5-1 | N 903 352 03 |
| - | Flat insert sleeve withlocking lug'Order qty.25' F 6,3 X 6 F 6,3 X 6 | N 017 494 7 |
| - | flat contact housing withgasket | 357 972 752 |
| - | single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5 | 357 972 741 A |
| (1) | Halogen fog lamp,yellow light also use: HELLAN 017 494 7 HELLAN 017 494 7 | 531 941 701 A |
| (15) | Halogen fog lamp RUHLA RUHLA | 191 941 701 B |
| (15) | Headlight insert RUHLA RUHLA | 171 941 723 |
| (2) | Halogen fog lamp also use: HELLA 357 972 752357 972 741 AN 903 352 03 HELLA 357 972 752357 972 741 AN 903 352 03 | 191 941 701 F |
| (2) | Halogen fog lamp RUHLA GOLF;JETTA RUHLA | 191 941 701 B |
| (2) | Halogen fog lamp,yellow light | 191 941 701 A |
| (2) | Halogen fog lamp,yellow light use if required: 357 972 752 357 972 752 | 191 941 701 G |
| (2) | Halogen fog lamp also use: HELLA 357 972 752357 972 741 A HELLA 357 972 752357 972 741 A | 191 941 701 F |
| (3) | Halogen bulb(for export only) YC 12 V 55 W H 3 YC 12 V 55 W H 3 | N 017 762 2Z |
| (8) | Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2 | N 011 666 10 |
| (8) | Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6 | N 011 666 15 |
| 1 | Halogen fog lamp HELLA HELLA | 531 941 701 |
| 1 | Halogen fog lamp also use: HELLAN 017 494 7 HELLAN 017 494 7 | 531 941 701 |
| 10 | spring ring 10 10 | N 012 011 3 |
| 11 | Hexagon nut M 10 M 10 | N 011 010 11 |
| 11 | Hexagon nut M 10 M 10 | N 101 552 07 |
| 12 | flat round head bolt M 8 X 15 SCIR. M 8 X 15 | 113 707 191 C |
| 13 | spring ring 8 8 | N 012 038 7 |
| 13 | spring ring 8 8 | N 012 038 8 |
| 14 | Hexagon nut M 8 M 8 | N 011 008 8 |
| 16 | Rear fog light | 211 945 701 |
| 17 | bulb P 21 W-12 V 21 W P 21 W-12 V 21 W | N 017 732 2 |
| 18 | spring ring 8 8 | N 012 038 7 |
| 19 | Hexagon nut M 8 M 8 | N 011 008 8 |
| 20 | Grommet 13/5 13/5 | 311 949 149 B |
| 3 | Halogen bulb H 3-12 V 55 W H 3-12 V 55 W | N 017 762 2 |
| 4 | Bracket GOLF;JETTA | 171 941 705 |
| 5 | Washer 7 X 12 X 1,6 7 X 12 X 1,6 | N 012 207 1 |
| 5 | Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6 | N 011 524 23 |
| 6 | Hexagon bolt M 6 X 18 M 6 X 18 | N 010 216 12 |
| 7 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 7 | Hexagon nut M 6 M 6 | N 011 006 8 |
| 9 | No longer available | — |
