Halogen fog lamp — Mk1 Golf Lighting (1981)

Factory title: Volkswagen Golf (1981) - Headlights

Generation: Mk1 1981 (RDW) Group: Lighting Parts: 33 Primary OEM: 531 941 701 A, 191 941 701 B, 171 941 723

Halogen fog lamp for the Volkswagen Golf Mk1 (1981): factory exploded diagram 220000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 32 OEM part numbers across 33 catalogued positions including 531 941 701 A, 191 941 701 B and 171 941 723. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 32 OEM part numbers across 33 numbered positions.

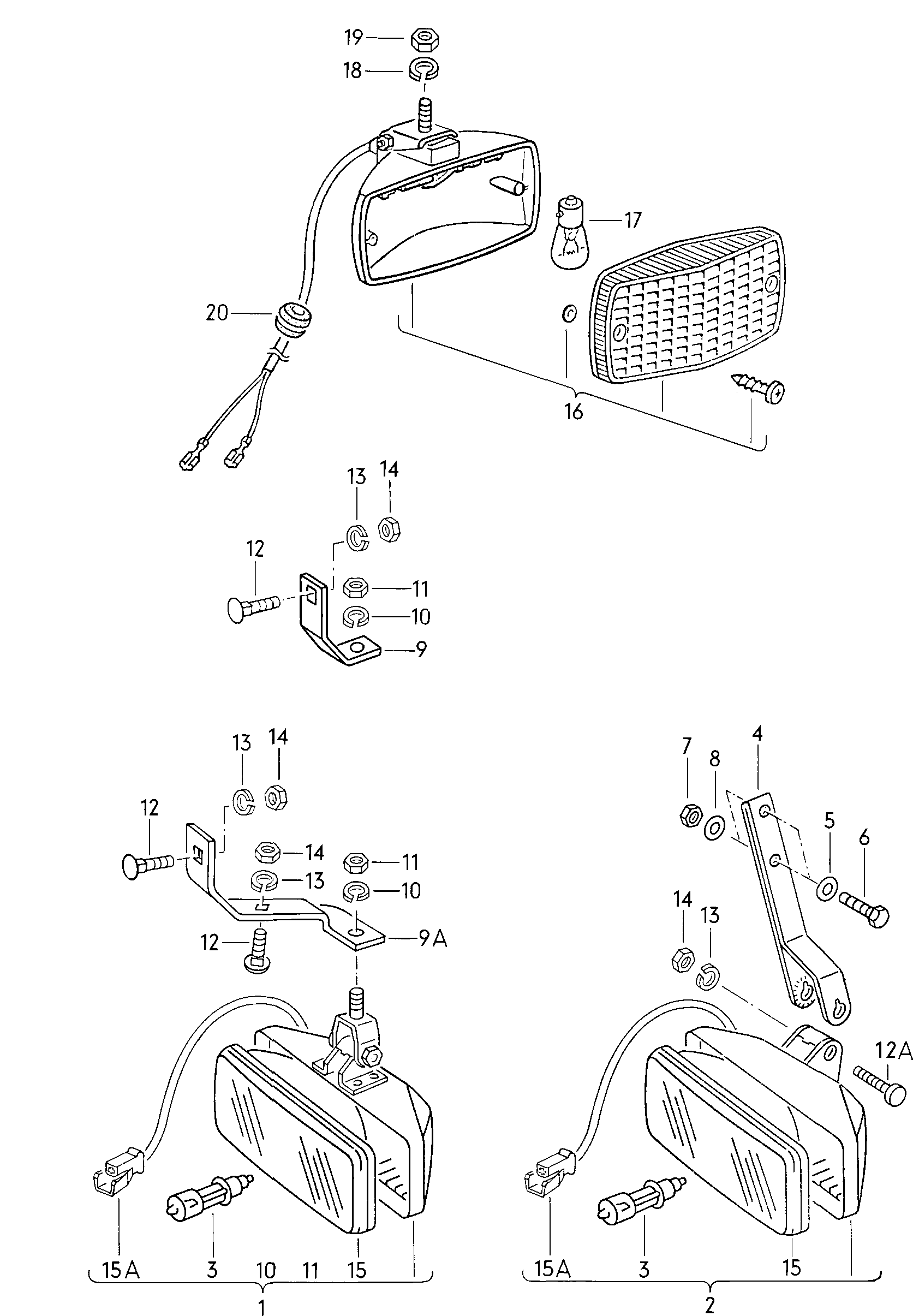

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Rear fog light F 15-B-000 001>>F >> 53-B-050 000 GOLF CABRIOSCIROCCO	—
(1)	Halogen fog lamp,yellow light HELLA HELLA	531 941 701 A
(15)	Halogen fog lamp RUHLA RUHLA	191 941 701 B
(15)	Headlight insert RUHLA RUHLA	171 941 723
(2)	Halogen fog lamp,yellow light 357 972 741 A 357 972 752 357 972 741 A 357 972 752	191 941 701 G
(2)	Halogen fog lamp RUHLA RUHLA	191 941 701 B
(3)	Halogen bulb(for export only) YC 12 V 55 W H 3 YC 12 V 55 W H 3	N 017 762 2Z
(9)	Bracket F 53-B-200 001>> SCIR.GT,GTI,GT/E	533 941 708
1	Halogen fog lamp HELLA HELLA	531 941 701
10	spring ring 10 SCIR. 10	N 012 011 3
11	Hexagon nut M 10 SCIR. M 10	N 011 010 11
11	Hexagon nut M 10 SCIR. M 10	N 101 552 07
12	flat round head bolt M 8 X 15 SCIR. M 8 X 15	113 707 191 C
12A	Socket head bolt M 8 GOLF,JETTA M 8	171 941 785 A
13	spring ring 8 8	N 012 038 7
13	spring ring 8 8	N 012 038 8
14	Hexagon nut M 8 M 8	N 011 008 8
15A	Flat contact housing 6,3 6,3	171 971 934
16	Rear fog light	211 945 701
17	bulb P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 2
18	spring ring 8 8	N 012 038 7
19	Hexagon nut M 8 M 8	N 011 008 8
20	Grommet 13/5 13/5	311 949 149 B
3	Halogen bulb H 3-12 V 55 W H 3-12 V 55 W	N 017 762 2
4	Bracket GOLF;JETTA	171 941 705
5	Washer 6,4 X 12,5 X 1,6 GOLF,JETTA 6,4 X 12,5 X 1,6	N 011 524 23
5	Washer 7 X 12 X 1,6 GOLF,JETTA 7 X 12 X 1,6	N 012 207 1
6	Hexagon bolt M 6 X 18 GOLF,JETTA M 6 X 18	N 010 216 12
7	Hexagon nut M 6 GOLF,JETTA M 6	N 011 006 24
7	Hexagon nut M 6 GOLF,JETTA M 6	N 011 006 8
8	Washer 6,4 X 18 X 1,6 GOLF,JETTA 6,4 X 18 X 1,6	N 011 666 15
8	Washer B 6,1 X 18 X 2 GOLF,JETTA B 6,1 X 18 X 2	N 011 666 10
9	Bracket F 53-B-200 001>> SCIR.GT,GTI,GT/E	533 941 707
