Halogen fog lamp f 53 c 100 000 scir cl gl gli — Mk1 Golf Lighting (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Headlights

Generation: Mk1 1982 - 1983 (RDW) Group: Lighting Parts: 10 Primary OEM: 533 941 065 A, 533 941 066, 533 941 066 A

Halogen fog lamp f 53 c 100 000 scir cl gl gli for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 220010 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 9 OEM part numbers across 10 catalogued positions including 533 941 065 A, 533 941 066 and 533 941 066 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 9 OEM part numbers across 10 numbered positions.

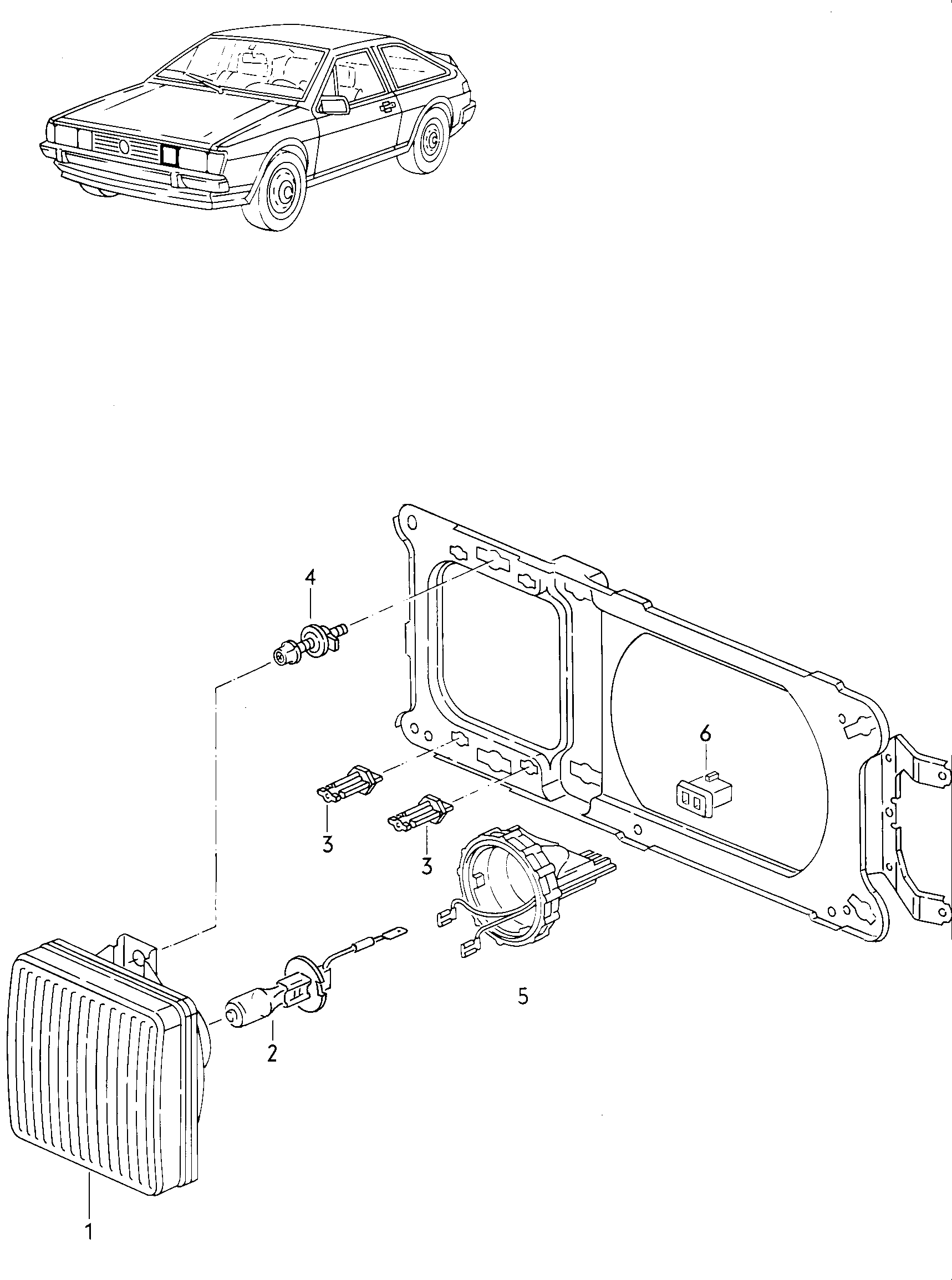

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Halogen fog lamp F >> 53-C-100 000 SCIR.CL,GL,GLI	—
(1)	Halogen fog lamp,yellow light "F..","E.."	533 941 065 A
(1)	Halogen fog lamp	533 941 066
(1)	Halogen fog lamp,yellow light "F..","E.."	533 941 066 A
1	Halogen fog lamp	533 941 065
2	Halogen bulb H 3-12 V 55 W H 3-12 V 55 W	N 017 762 2
3	Joint	113 941 133
4	adjusting screw	533 941 141
5	Cap	533 941 607
6	Flat contact housing	321 941 600

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Variant tags: petrol_8v_base
Factory group: 19 Lighting
Factory subgroup: 220010
