Headlights f 53 c 000 001 f 53 d 000 001 scir cl gl gli — Mk1 Golf Lighting (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Headlights

Generation: Mk1 1982 - 1983 (RDW) Group: Lighting Parts: 31 Primary OEM: N 017 763 2Z, N 017 764 3, N 017 764 3Z

Headlights f 53 c 000 001 f 53 d 000 001 scir cl gl gli for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 216000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 29 OEM part numbers across 31 catalogued positions including N 017 763 2Z, N 017 764 3 and N 017 764 3Z. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 29 OEM part numbers across 31 numbered positions.

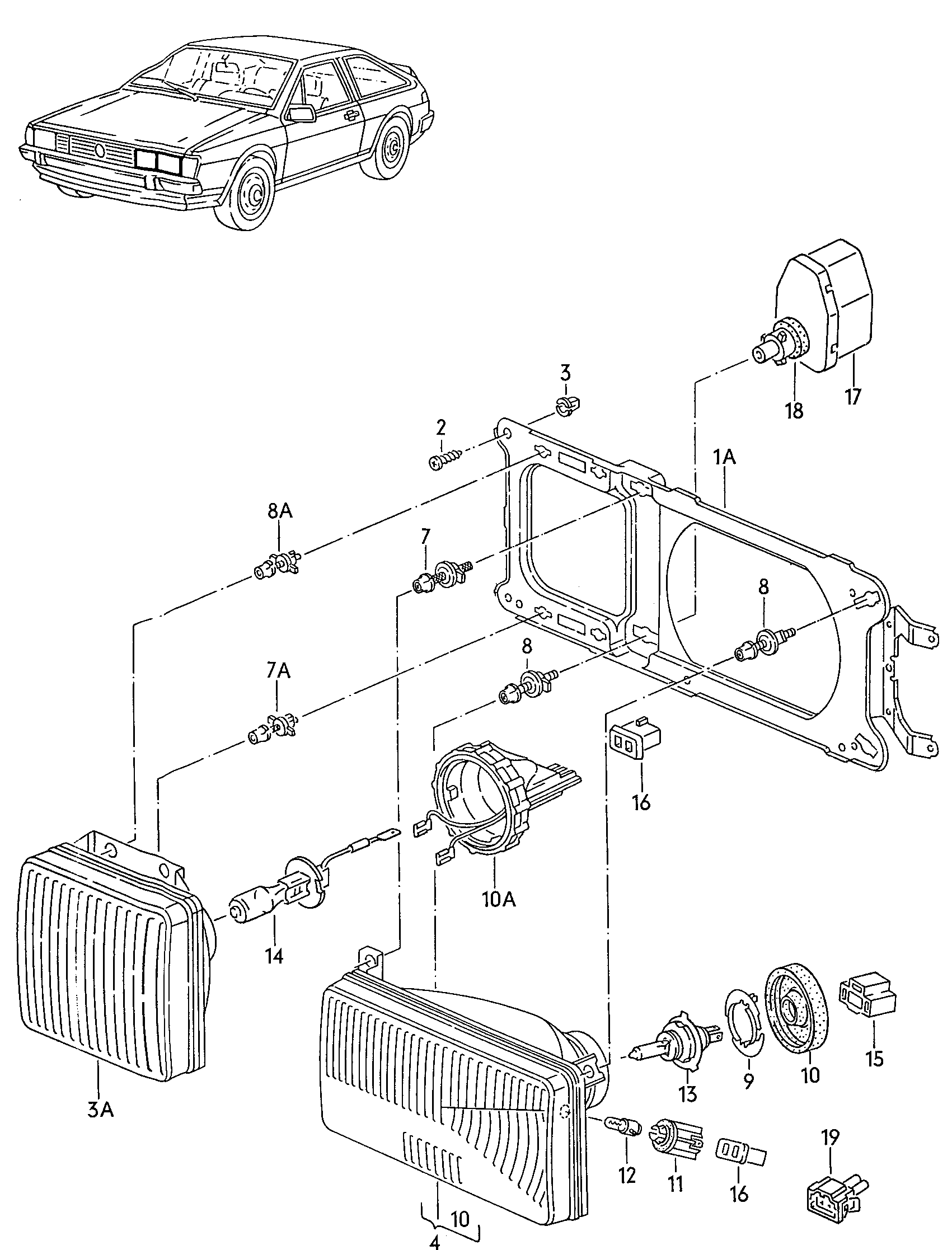

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Headlights F 53-C-000 001>>F 53-D-000 001>> SCIR.CL,GL,GLISCIR.GT,GTI,GTS,GTX	—
(13)	Halogen bulb(for export only) YD 12 V 60/55 W H 4 H 4 YD 12 V 60/55 W H 4 H 4	N 017 763 2Z
(13)	Halogen bulb, yellow glass H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 764 3
(13)	Halogen bulb, yellow glass(for export only) YD 12 V 60/55 W H 4 YD 12 V 60/55 W H 4	N 017 764 3Z
(1A)	No longer available F 53-C-000 001>>F >> 53-C-100 000 F 53-D-000 001>> SCIR.CLSCIR.GL,GLISCIR. GTS	—
(1A)	retaining frame F 53-C-000 001>>F >> 53-C-100 000 F 53-D-000 001>> SCIR.CLSCIR.GL,GLISCIR. GTS	533 941 045 B
(3A)	Headlight set, main beamyellow light F 53-D-000 001>> "F..":SCIR.GL,GLI,GT,GTI	533 941 061 A
(3A)	Headlight set, main beamyellow light F 53-D-000 001>> "F..":SCIR.GL,GLI,GT,GTI	533 941 062 A
(3A)	Headlight insert, m.beam light F 53-D-000 001>> SCIR.GL,GLI,GT,GTI,GTX	533 941 062
(4)	Headlight insert(right-hand traffic only)	533 941 106 B
(4)	Headlight insert(left-hand traffic only)	534 941 105 A
(4)	Headlight insert(left-hand traffic only)	534 941 106 A
(9)	spring forhalogen bulb	441 941 160
10	sealing cap	111 941 605 A
10A	Cap F 53-D-000 001>> SCIR. GL,GLIGT,GTI,GTX	533 941 607
11	Bulb holder	533 941 669
12	bulb T 4 W-12 V 4 W T 4 W-12 V 4 W	N 017 717 2
13	Halogen bulb H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 763 2
14	Halogen bulb F 53-D-000 001>> YC 12 V 55 W H 3 H 3 SCIR. GL,GLIGT,GTI,GTX YC 12 V 55 W H 3 H 3	N 017 762 2
15	Flat contact housing 8 8	161 941 165
16	Flat contact housing 6,3 6,3	321 941 600
1A	retaining frame F 53-D-000 001>> SCIR.GL,GLI,GT,GTI,GTX	533 941 045 C
2	oval head panel screw ST 4,2 X 13-C ST 4,2 X 13-C	N 013 966 12
2	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
3	insert nut	811 807 577 C
3A	Headlight insert, m.beam light F 53-D-000 001>> SCIR.GL,GLI,GT,GTI,GTX	533 941 061
4	Headlight insert(right-hand traffic only)	533 941 105 B
7	Joint	533 941 133
7A	Joint F 53-D-000 001>> SCIR.GL,GLI,GT,GTI,GTX	533 941 133 A
8	adjusting screw	533 941 141
8A	adjusting screw F 53-D-000 001>> SCIR.GL,GLI,GT,GTI,GTX	533 941 141 A
