Interior light turn signal indicator side scir — Mk1 Golf Lighting (1981)

Factory title: Volkswagen Golf (1981) - Interior light. Turn signal indicator

Generation: Mk1 1981 (RDW) Group: Lighting Parts: 26 Primary OEM: 111 947 111 E, 113 947 561 H, 113 947 565 A

Interior light turn signal indicator side scir for the Volkswagen Golf Mk1 (1981): factory exploded diagram 225010 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 21 OEM part numbers across 26 catalogued positions including 111 947 111 E, 113 947 561 H and 113 947 565 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 21 OEM part numbers across 26 numbered positions.

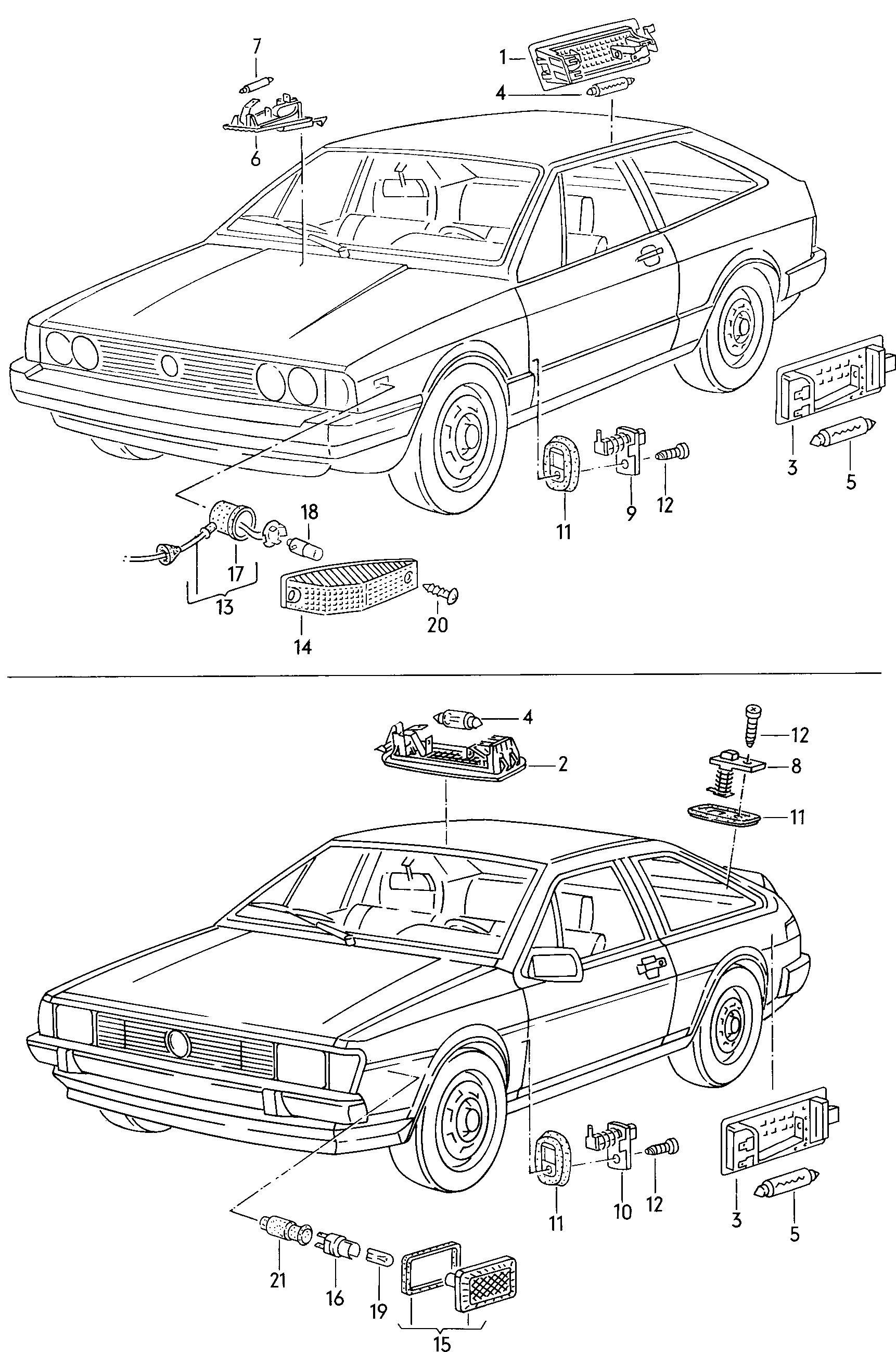

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	interior light SCIR.	—
	interior light Turn signal indicator SCIR.	—
	Turn signal indicator side SCIR. side	—
(13)	Bulb carrier with cables F >> 53-B-500 000 Discont. / replace: OLSA 321 945 351321 949 117 OLSA 321 945 351321 949 117	—
(14)	Turn signal indicator F >> 53-B-500 000 Discont. / replace: OLSA 321 945 351321 949 117 OLSA 321 945 351321 949 117	—
1	interior light F >> 53-B-050 000	111 947 111 E
10	Switch F 53-B-200 001>>	113 947 561 H
11	Seal	113 947 565 A
12	fillister hd. bolt M 3 M 3	N 900 949 01
13	Bulb carrier with cables F >> 53-B-050 000 HELLA,ULO HELLA,ULO	321 945 351
14	Turn signal repeater F >> 53-B-050 000 HELLA,ULO HELLA,ULO	321 949 117
15	Turn signal indicator F 53-B-200 001>>	161 949 117
16	Bulb holder F 53-B-200 001>>	161 949 111
17	Grommet F >> 53-B-050 000	433 971 867
18	bulb F >> 53-B-050 000 T 4 W-12 V 4 W T 4 W-12 V 4 W	N 017 717 2
19	bulb F 53-B-200 001>> W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
2	interior light F 53-B-200 001>>	321 947 111 A
20	oval head panel screw F >> 53-B-050 000 B 4,2 X 16 B 4,2 X 16	N 013 964 4
20	oval head panel screw F >> 53-B-050 000 4,2 X 16 4,2 X 16	N 013 964 9
21	Grommet F 53-B-200 001>> 15 X 48 15 X 48	447 953 331 A
3	Light F 53-B-200 001>>	331 947 113
3	Light F >> 53-B-050 000 L,GL,LS,GLE,GLI,GT,GTE,GTI	331 947 113
4	bulb K 12 V 10 W K 12 V 10 W	N 017 723 2
5	bulb C 5 W-12 V 5 W C 5 W-12 V 5 W	N 017 725 2
8	Switch	171 947 563 A
9	Switch F >> 53-B-050 000	171 947 563 A
