Interior lightluggage compartment lightdoor contact switch — Mk1 Golf Lighting (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Interior light. luggage compartment light. door contact switch. Glove compartment lid light. Turn signal indicator

Generation: Mk1 1982 - 1983 (RDW) Group: Lighting Parts: 17 Primary OEM: 321 947 111 A, 161 949 117, 161 949 111

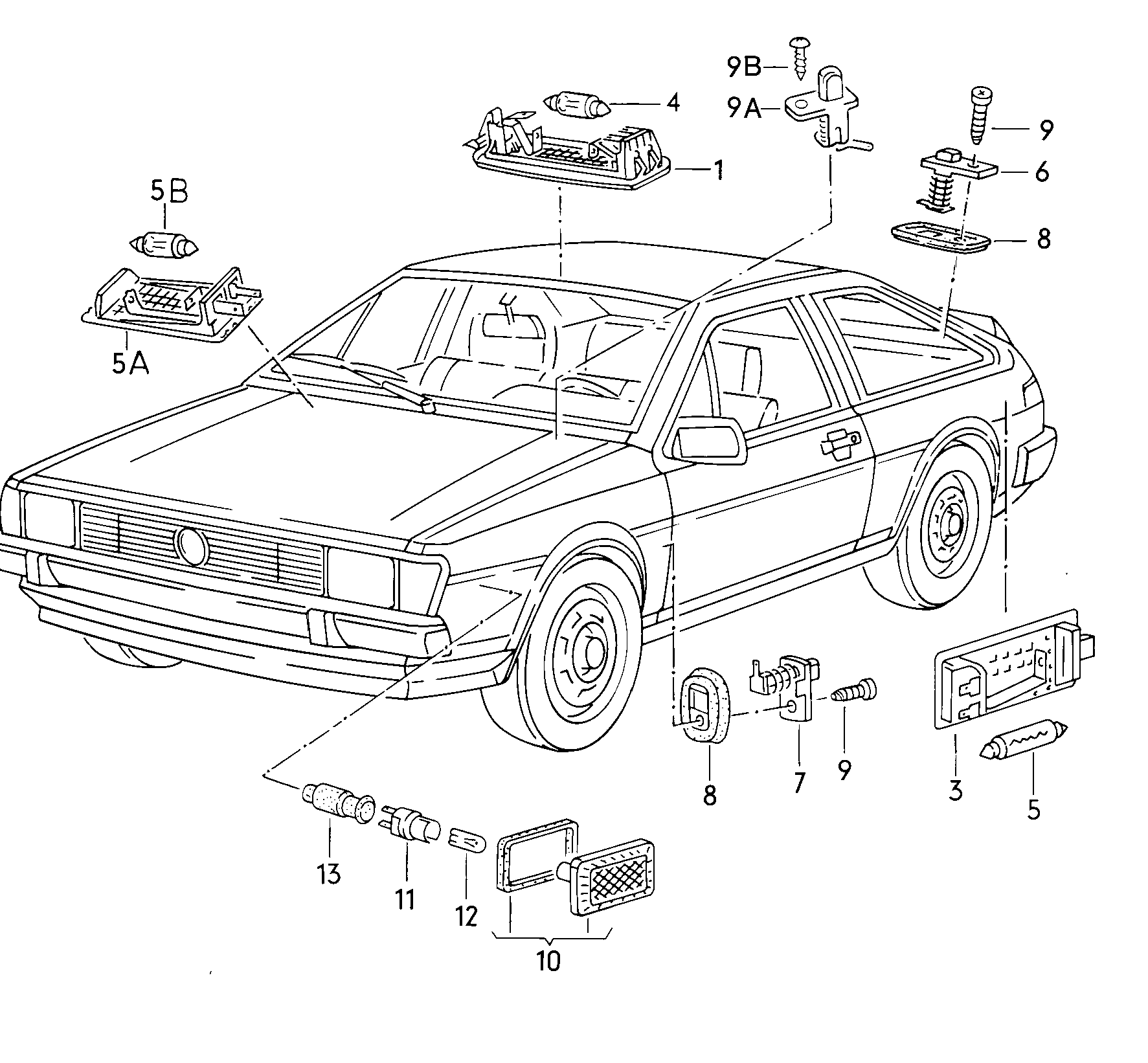

Interior lightluggage compartment lightdoor contact switch for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 225010 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 14 OEM part numbers across 17 catalogued positions including 321 947 111 A, 161 949 117 and 161 949 111. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 14 OEM part numbers across 17 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
interior lightluggage compartment lightdoor contact switch Glove compartment lid light Turn signal indicator SCIR.
 —
interior lightluggage compartment lightdoor contact switch Glove compartment lid light SCIR.
 —
Turn signal indicator side SCIR.
side
 —
1
interior light
 321 947 111 A
10
Turn signal indicator
 161 949 117
11
Bulb holder
 161 949 111
12
bulb W 5 W-12 V 5 W
W 5 W-12 V 5 W
 N 017 753 2
13
Grommet 15 X 48
15 X 48
 447 953 331 A
3
Light
 331 947 113
4
bulb K 12 V 10 W
K 12 V 10 W
 N 017 723 2
5
bulb C 5 W-12 V 5 W
C 5 W-12 V 5 W
 N 017 725 2
5A
Glove box light Glove compartment lid light F 53-D-000 001>> SCIR.GL,GT,GLI,GTI
 171 947 311
5B
bulb F 53-D-000 001>> M-12 V 3 W SCIR.GL,GT,GLI,GTI
M-12 V 3 W
 N 017 726 2
6
Switch
 171 947 563 A
7
Switch
 113 947 561 H
8
Seal
 113 947 565 A
9
fillister hd. bolt M 3
M 3
 N 900 949 01

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1982 - 1983
Generation region
RDW
Generation code
007
Factory group
19 Lighting
Factory subgroup
225010

Related factory diagrams

Other published lighting plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the interior lightluggage compartment lightdoor contact switch diagram for the Mk1 Golf?
This diagram lists 14 OEM part numbers for the Mk1 Golf. The first three are 321 947 111 A, 161 949 117 and 161 949 111.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
