Rectangular headlamp f 53 b 200 001 scirocco l ls gl gli — Mk1 Golf Lighting (1981)

Factory title: Volkswagen Golf (1981) - Headlights

Generation: Mk1 1981 (RDW) Group: Lighting Parts: 22 Primary OEM: 533 941 045 B, N 017 764 3, N 017 763 2Z

Rectangular headlamp f 53 b 200 001 scirocco l ls gl gli for the Volkswagen Golf Mk1 (1981): factory exploded diagram 216010 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 19 OEM part numbers across 22 catalogued positions including 533 941 045 B, N 017 764 3 and N 017 763 2Z. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 19 OEM part numbers across 22 numbered positions.

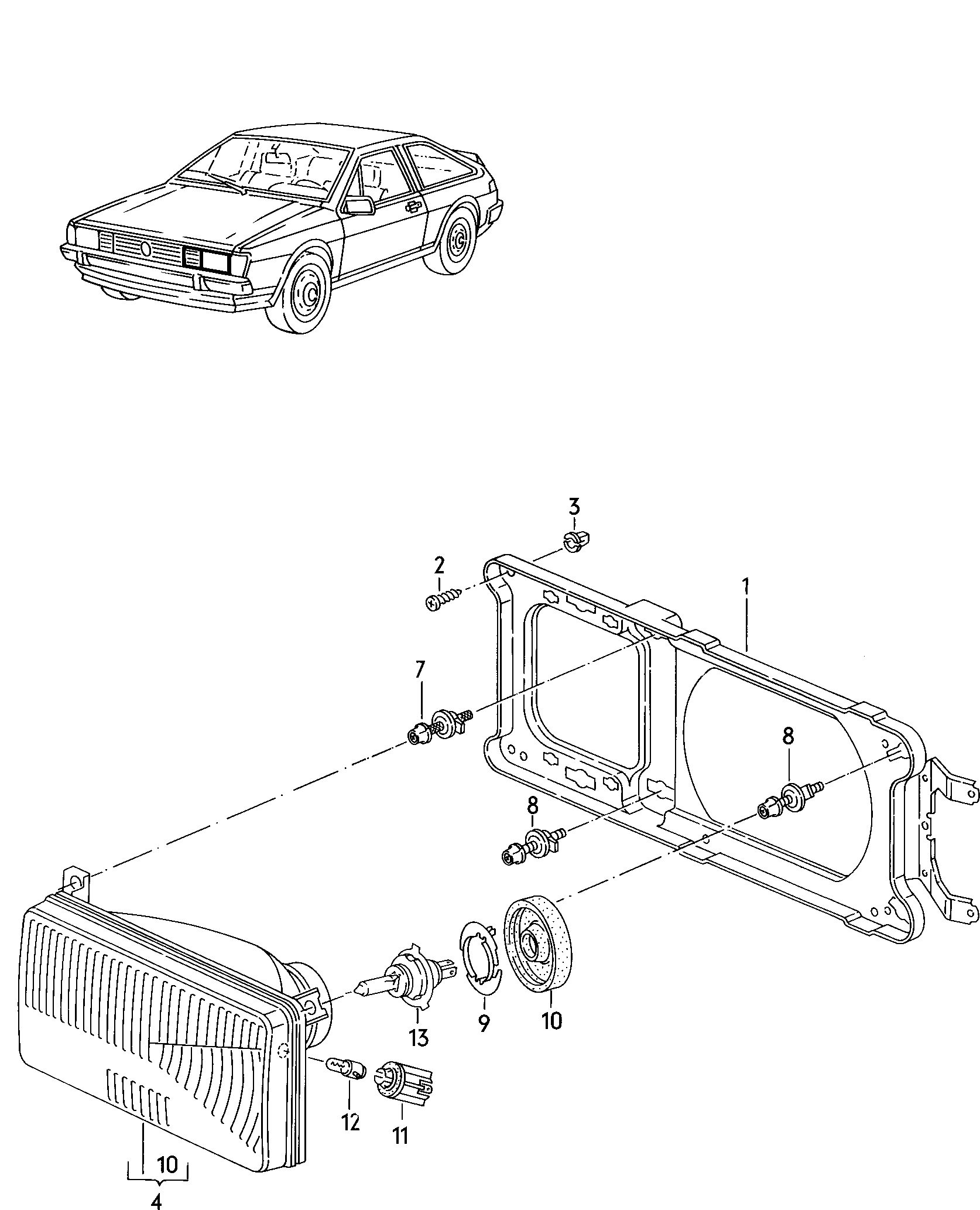

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	rectangular headlamp F 53-B-200 001>> SCIROCCO L,LS,GL,GLI	—
(1)	No longer available	—
(1)	retaining frame	533 941 045 B
(13)	Halogen bulb, yellow glass H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 764 3
(13)	Halogen bulb(for export only) YD 12 V 60/55 W H 4 YD 12 V 60/55 W H 4	N 017 763 2Z
(13)	Halogen bulb, yellow glass(for export only) YD 12 V 60/55 W H 4 YD 12 V 60/55 W H 4	N 017 764 3Z
(4)	Headlight insert(left-hand traffic only)	534 941 106 A
(4)	Headlight insert(left-hand traffic only)	534 941 105 A
(4)	Headlight insert(right-hand traffic only)	533 941 106 B
1	retaining frame	533 941 045 A
1	No longer available	—
10	sealing cap	111 941 605 A
11	Bulb holder	533 941 669
12	bulb T 4 W-12 V 4 W T 4 W-12 V 4 W	N 017 717 2
13	Halogen bulb H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 763 2
2	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
2	oval head panel screw ST 4,2 X 13-C ST 4,2 X 13-C	N 013 966 12
3	insert nut	811 807 577 C
4	Headlight insert(right-hand traffic only)	533 941 105 B
7	Joint	533 941 133
8	adjusting screw	533 941 141
9	retaining ring for bulb	111 941 160
