Signal horn — Mk1 Golf Lighting (1981)

Factory title: Volkswagen Golf (1981) - Signal horn

Generation: Mk1 1981 (RDW) Group: Lighting Parts: 48 Primary OEM: 171 951 221 S BV, 191 951 113 A S BV, 171 951 223 S BV

Signal horn for the Volkswagen Golf Mk1 (1981): factory exploded diagram 226000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 45 OEM part numbers across 48 catalogued positions including 171 951 221 S BV, 191 951 113 A S BV and 171 951 223 S BV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 45 OEM part numbers across 48 numbered positions.

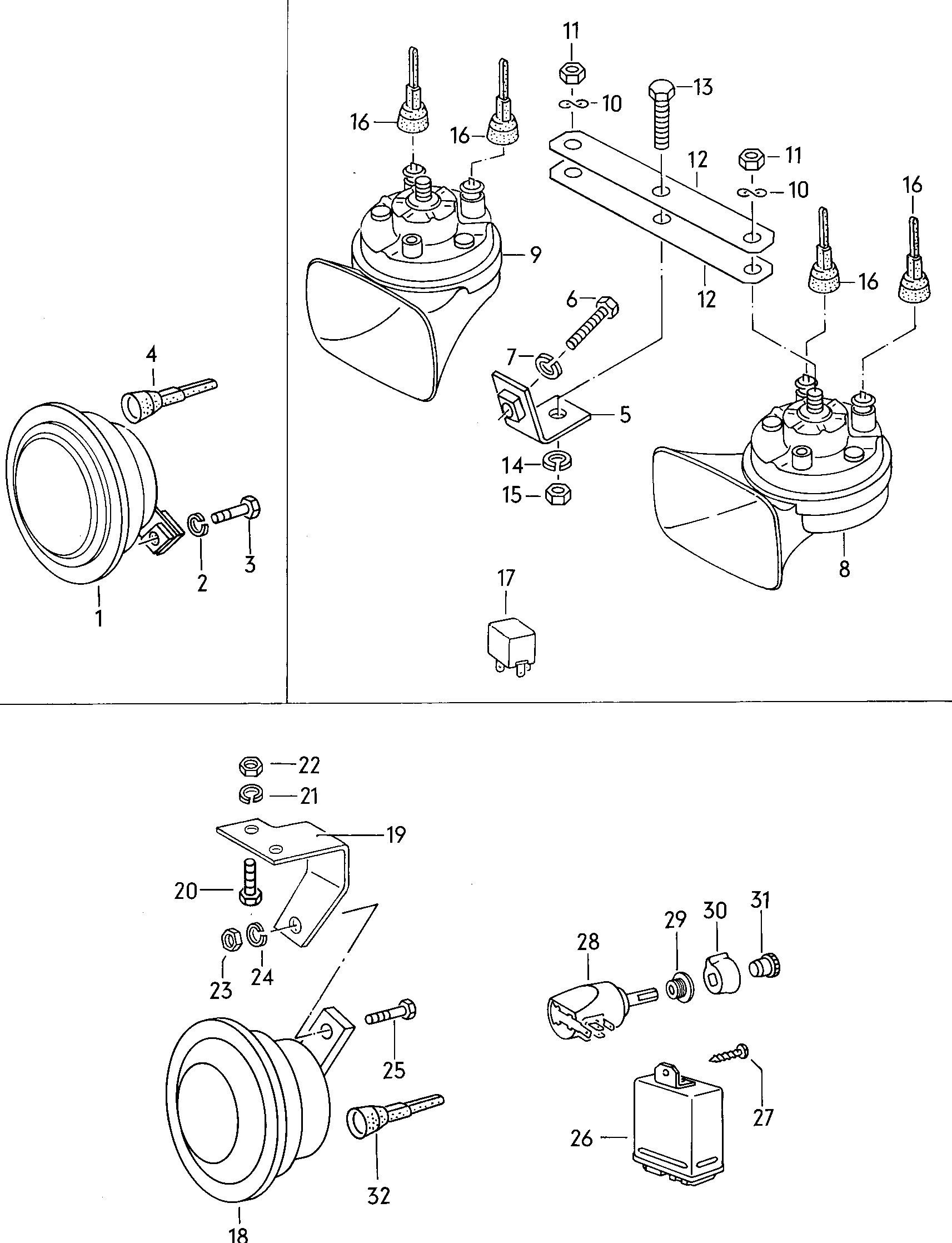

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	high volume horn with relay GOLF;JETTA	—
	Self-service packaging	171 951 221 S BV
	Self-service packaging	191 951 113 A S BV
	Self-service packaging	171 951 223 S BV
(18)	high volume horn	191 951 217
(19)	Bracket	171 951 200 A
(28)	alarm switch, push-pull, rotary fire brigade	211 951 275 C
(8)	Fanfare	171 951 221
(9)	Fanfare	171 951 223
1	Signal horn	191 951 113 A
1	Signal horn	191 951 113 A
10	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
11	Hexagon nut M 8 M 8	N 011 008 18
11	Hexagon nut M 8.0 M 8.0	N 011 008 30
12	spring shackle	810 951 229
13	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
14	spring ring 8 8	N 012 038 7
15	Hexagon nut M 8 M 8	N 011 008 18
15	Hexagon nut M 8.0 M 8.0	N 011 008 30
16	Protective cap	211 906 101
17	Relay	141 951 253 B
18	high volume horn	191 951 215
19	No longer available	—
19	Bracket	171 951 199 C
2	spring ring 8 8	N 012 038 8
2	spring ring 8 8	N 012 038 7
20	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
21	spring ring 8 8	N 012 038 7
22	Hexagon nut M 8 M 8	N 011 008 8
23	Hexagon nut M 10 M 10	N 011 010 11
23	Hexagon nut M 10 M 10	N 101 552 07
24	spring ring 10 10	N 012 011 3
25	Hexagon bolt M 10 X 30 M 10 X 30	N 010 230 8
26	emergency siren system relay	191 951 273
27	oval head panel screw 4,8 X 9,5 4,8 X 9,5	N 013 970 5
28	alarm switch, push-pull, rotary police	211 951 275 A
29	Rosette M 14 X 1 M 14 X 1	311 963 111 D
3	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
30	knob	211 951 297
31	Window	211 951 299
32	Protective cap	211 906 101
4	Protective cap	211 906 101
5	No longer available	—
5	Bracket	171 951 183
6	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
7	spring ring 8 8	N 012 038 7
8	Fanfare	171 951 221
9	Fanfare	171 951 223

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Factory group: 19 Lighting
Factory subgroup: 226000
